Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 10 illustrations

Illustrations

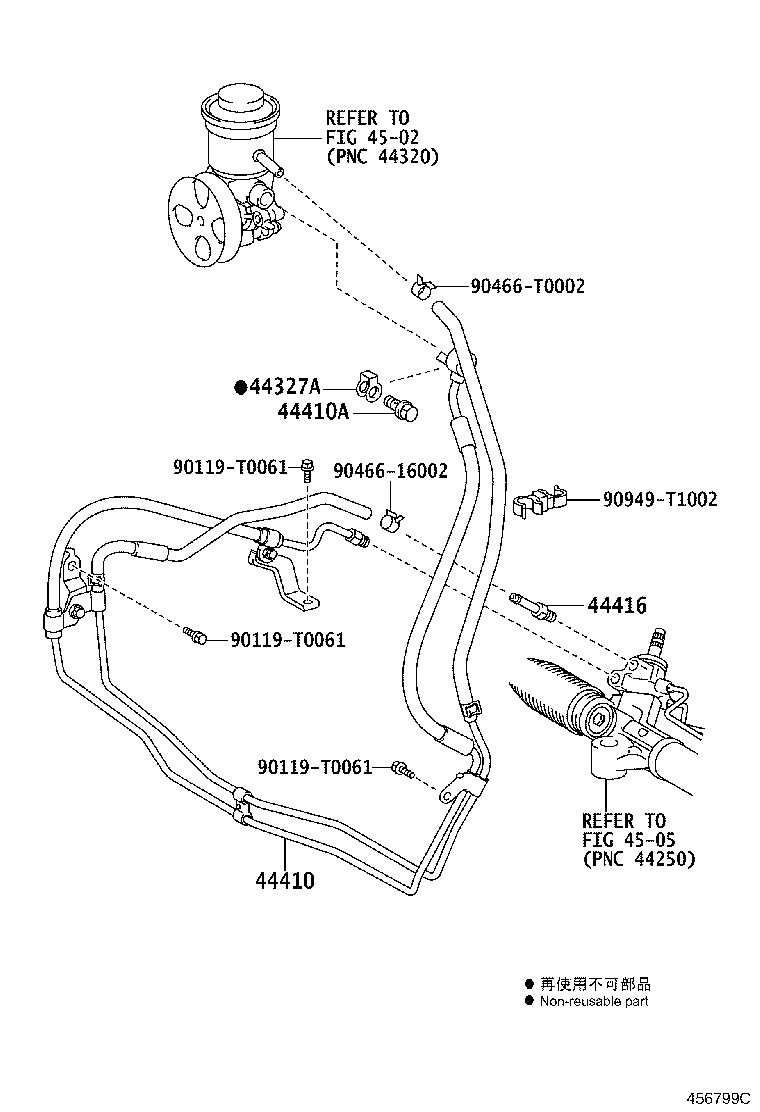

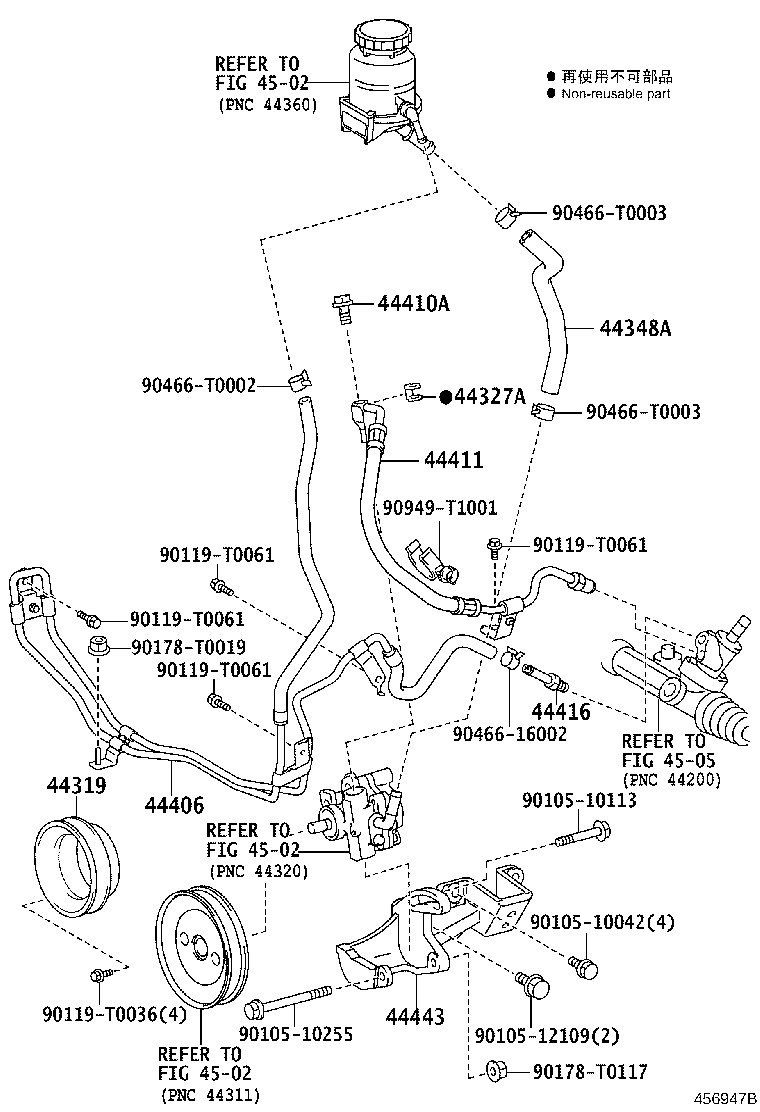

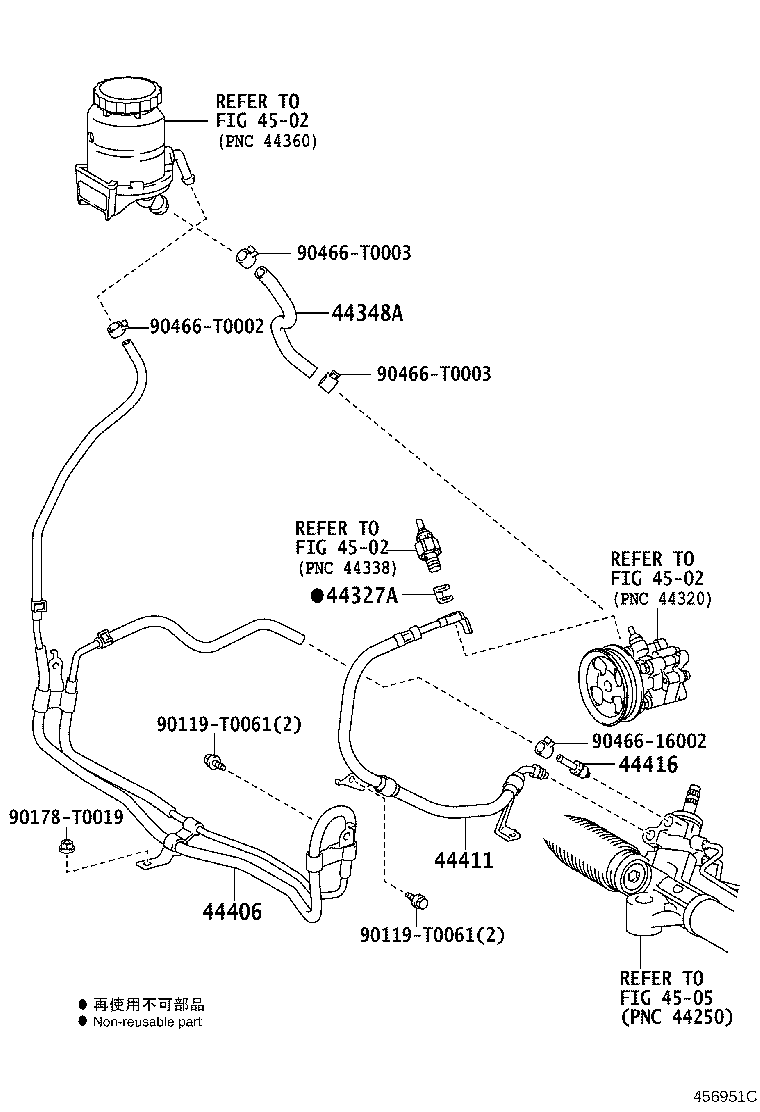

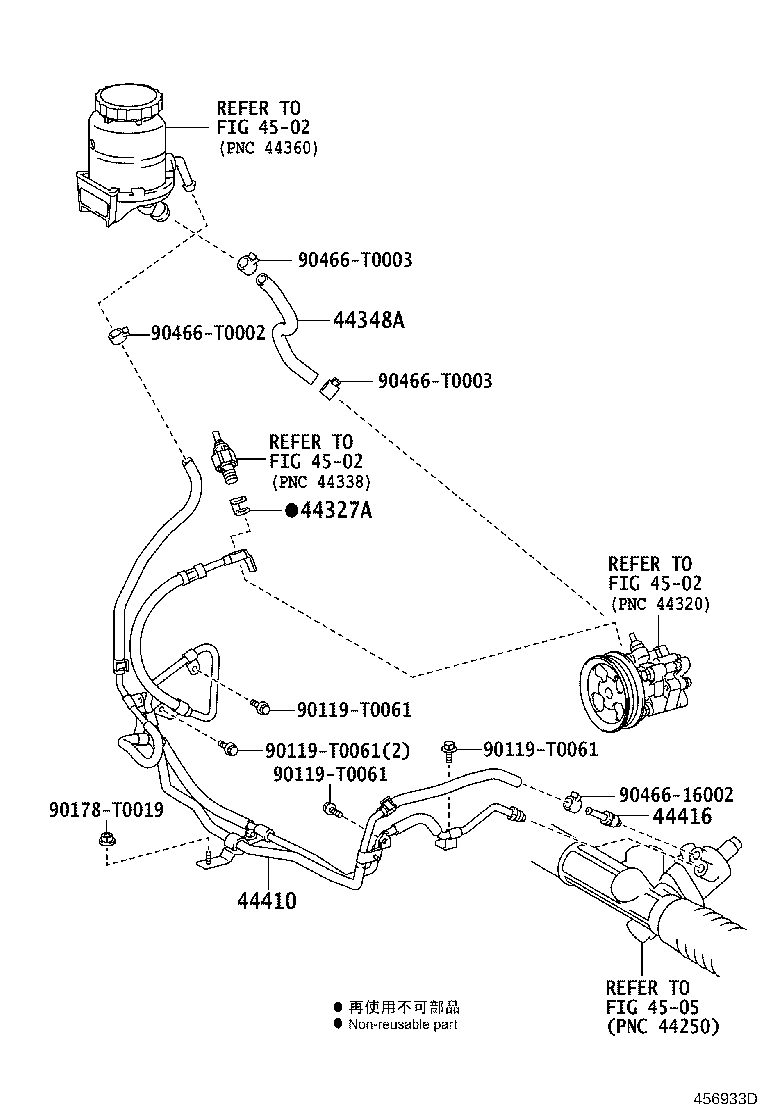

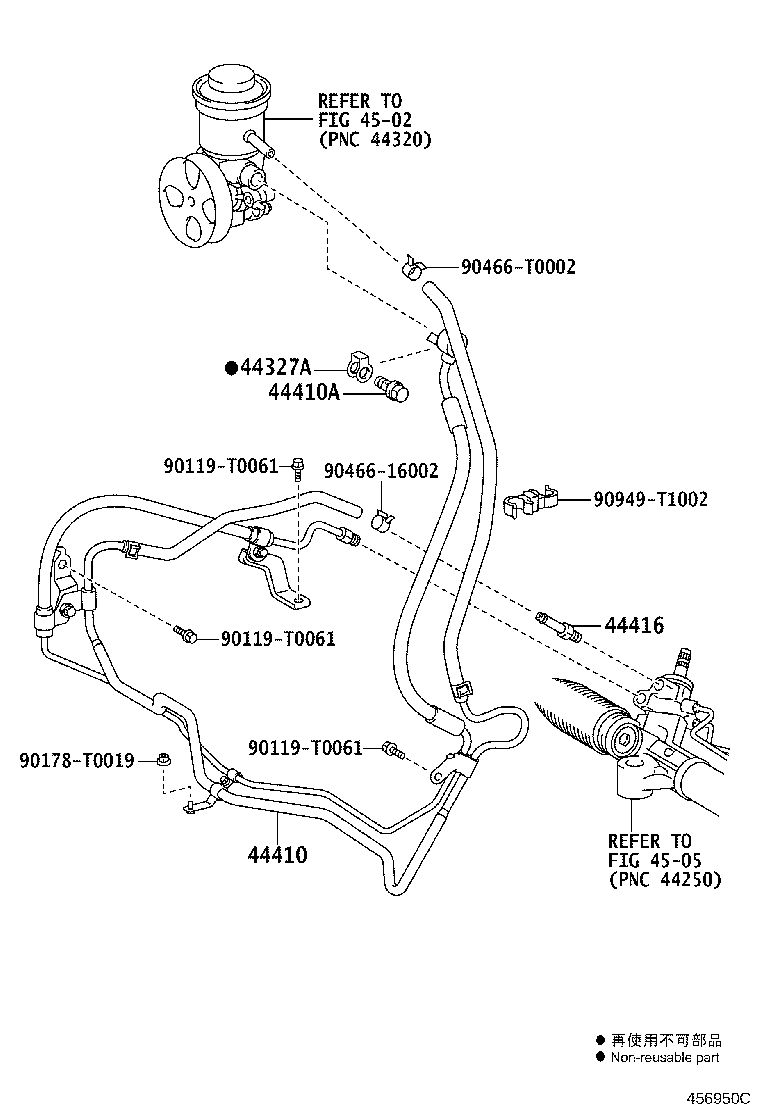

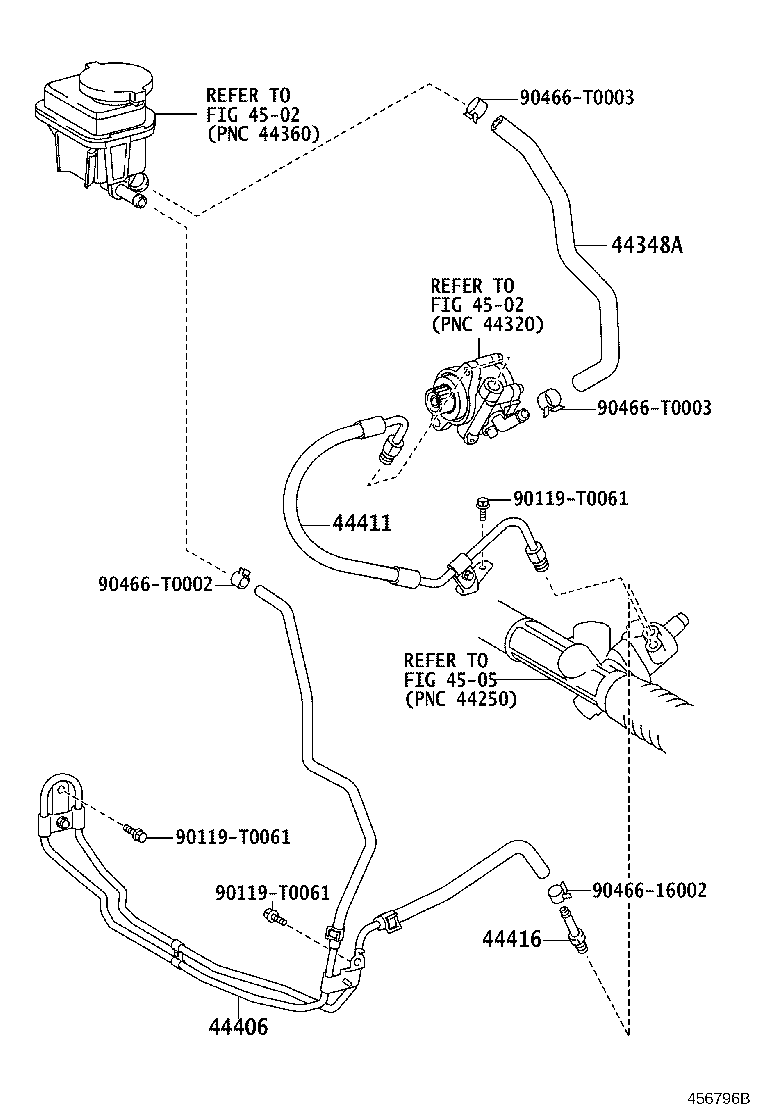

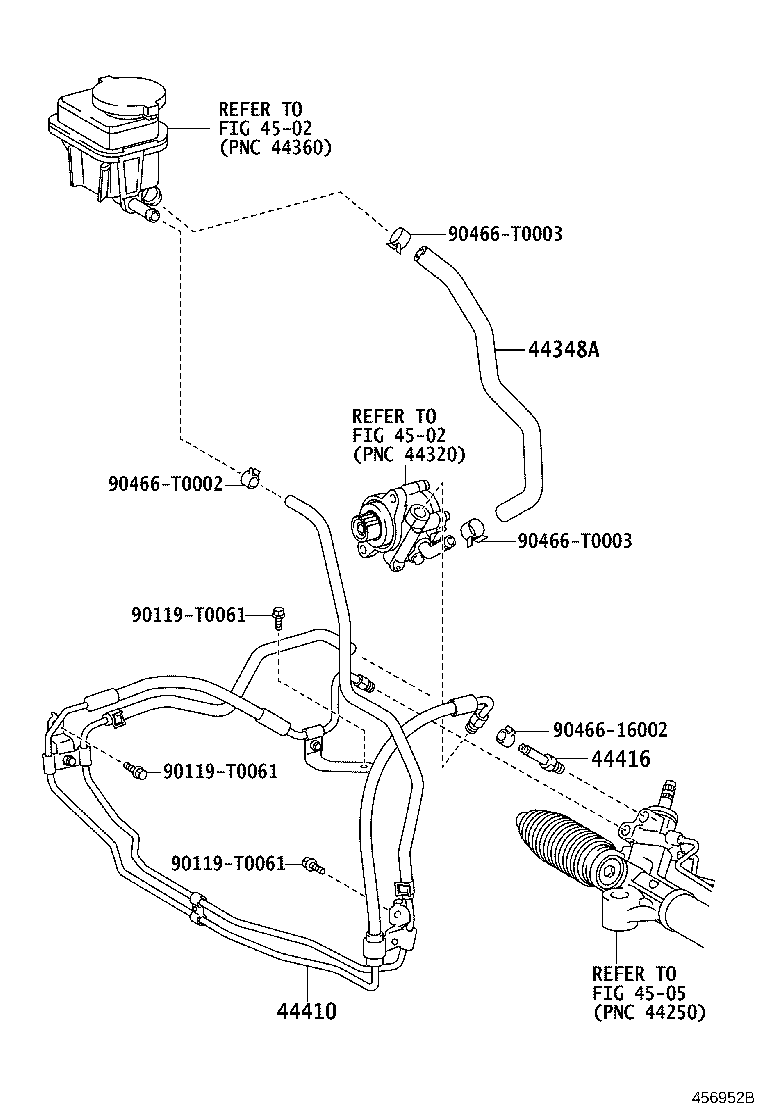

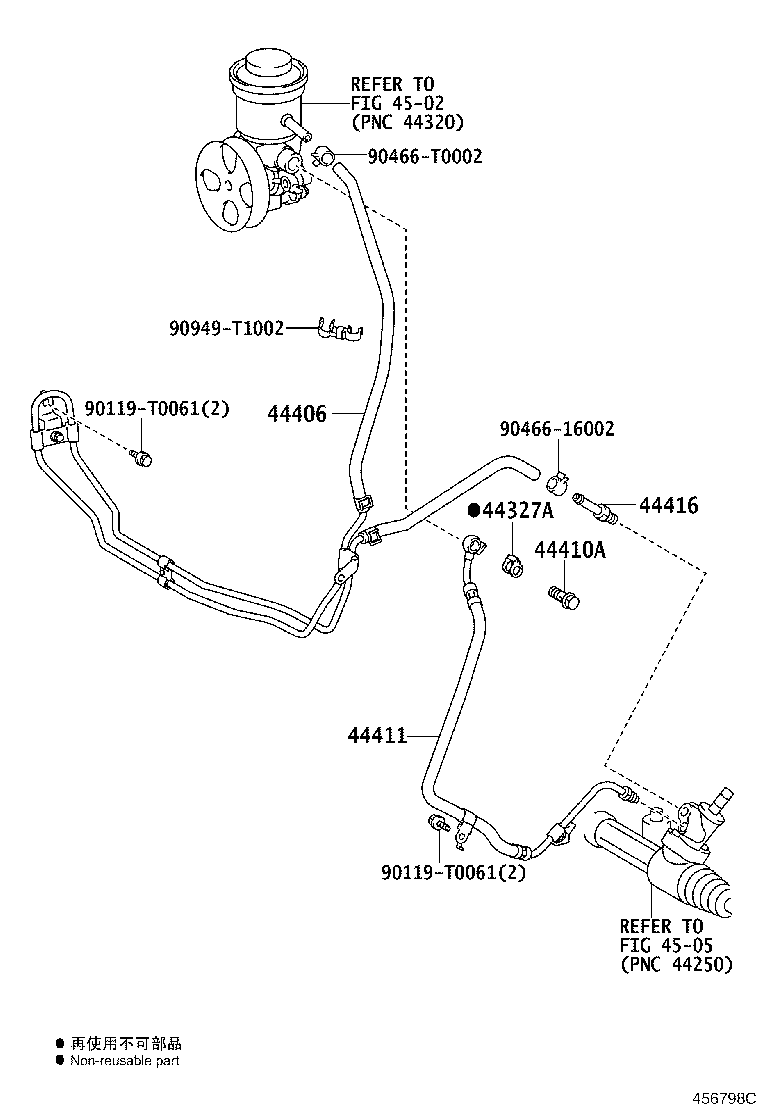

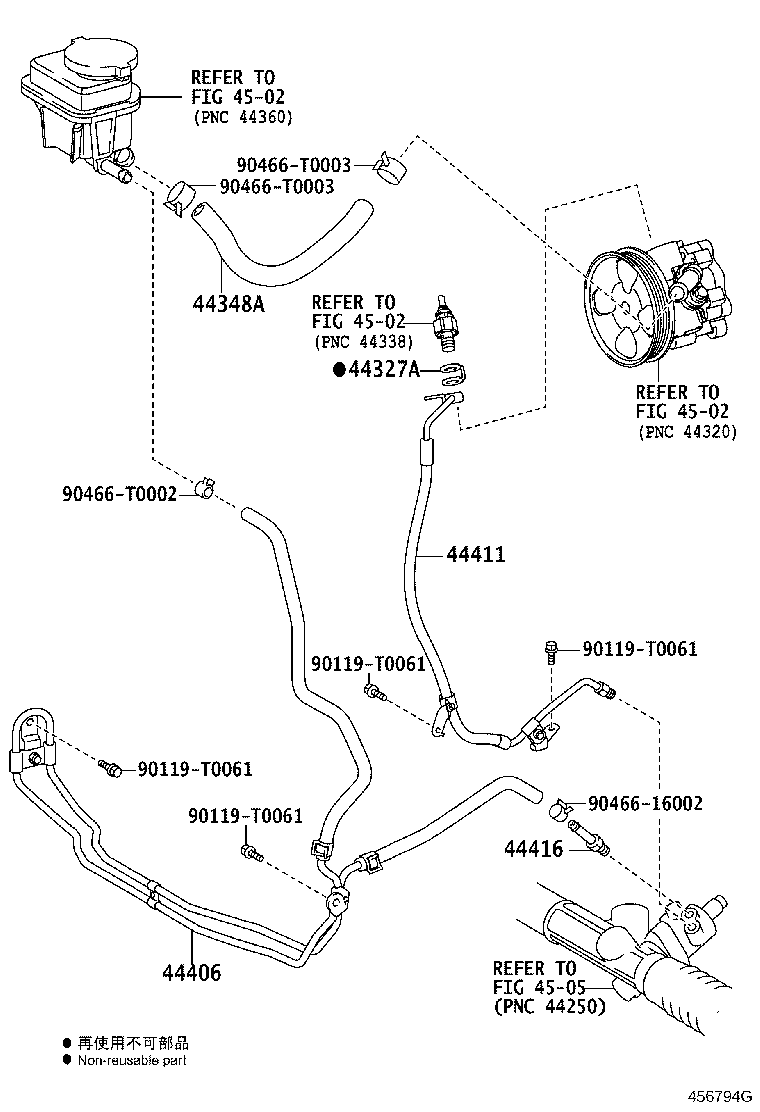

Figure 456793G 456793G 2015-07 → — Figure 456799C 456799C 2015-07 → — Figure 456933D 456933D 2015-12 → — Figure 456798C 456798C 2015-12 → — Figure 456796B 456796B 2015-12 → — Figure 456794G 456794G 2015-12 → — Figure 456952B 456952B 2016-01 → — Figure 456951D 456951D 2016-03 → — Figure 456947B 456947B 2016-03 → — Figure 456950C 456950C 2016-03 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
