Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

3 part groups · 5 illustrations

Illustrations

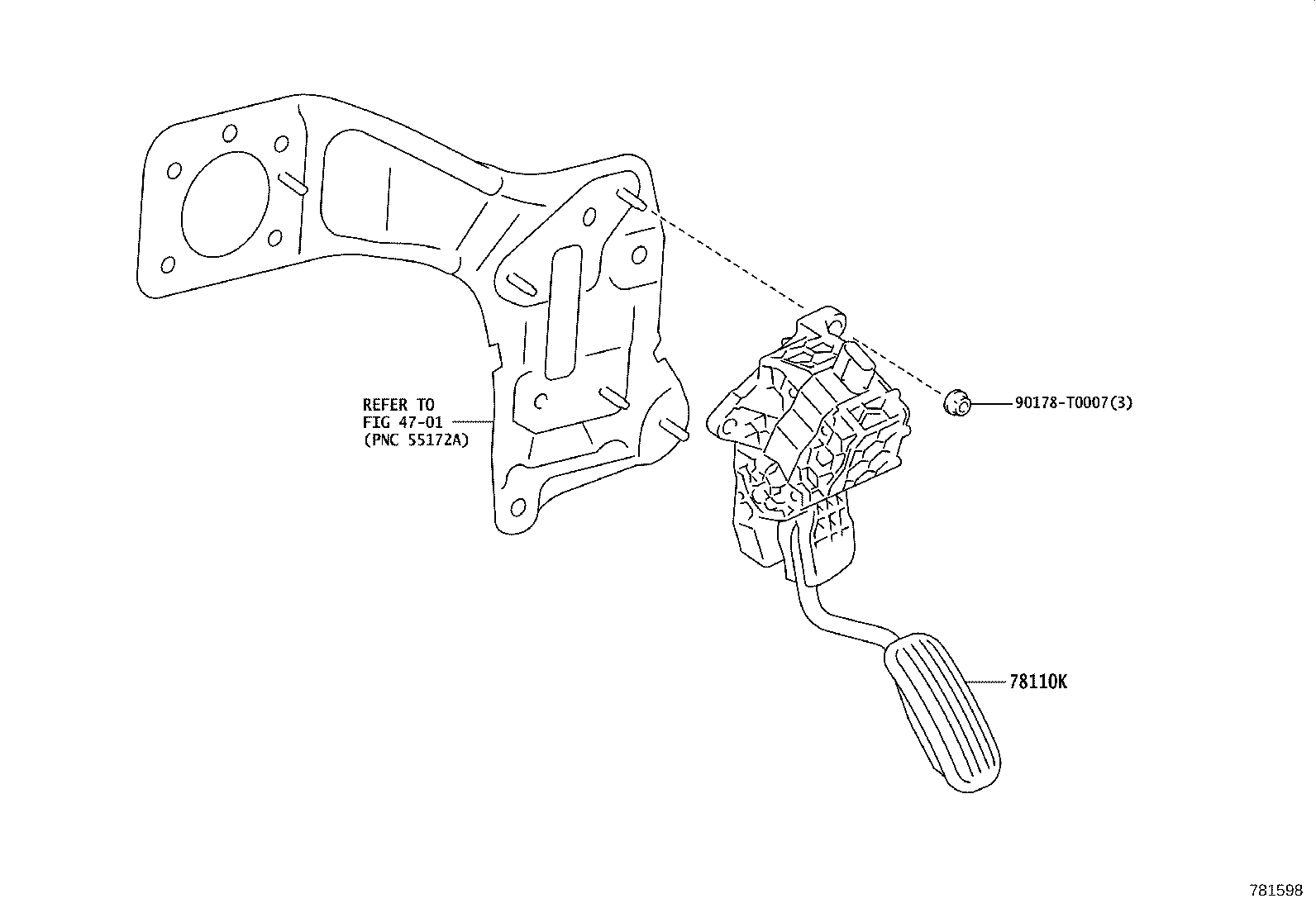

Figure 781572 781572 2015-12 → 2018-04 Figure 781572 781572 2018-04 → 2018-05 Figure 781572 781572 2018-04 → — Figure 781598 781598 2018-04 → — Figure 781500A 781500A 2015-07 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111 Pedal, Accelerator
78167B Seal, Accelerator Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
