Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 3 illustrations

Illustrations

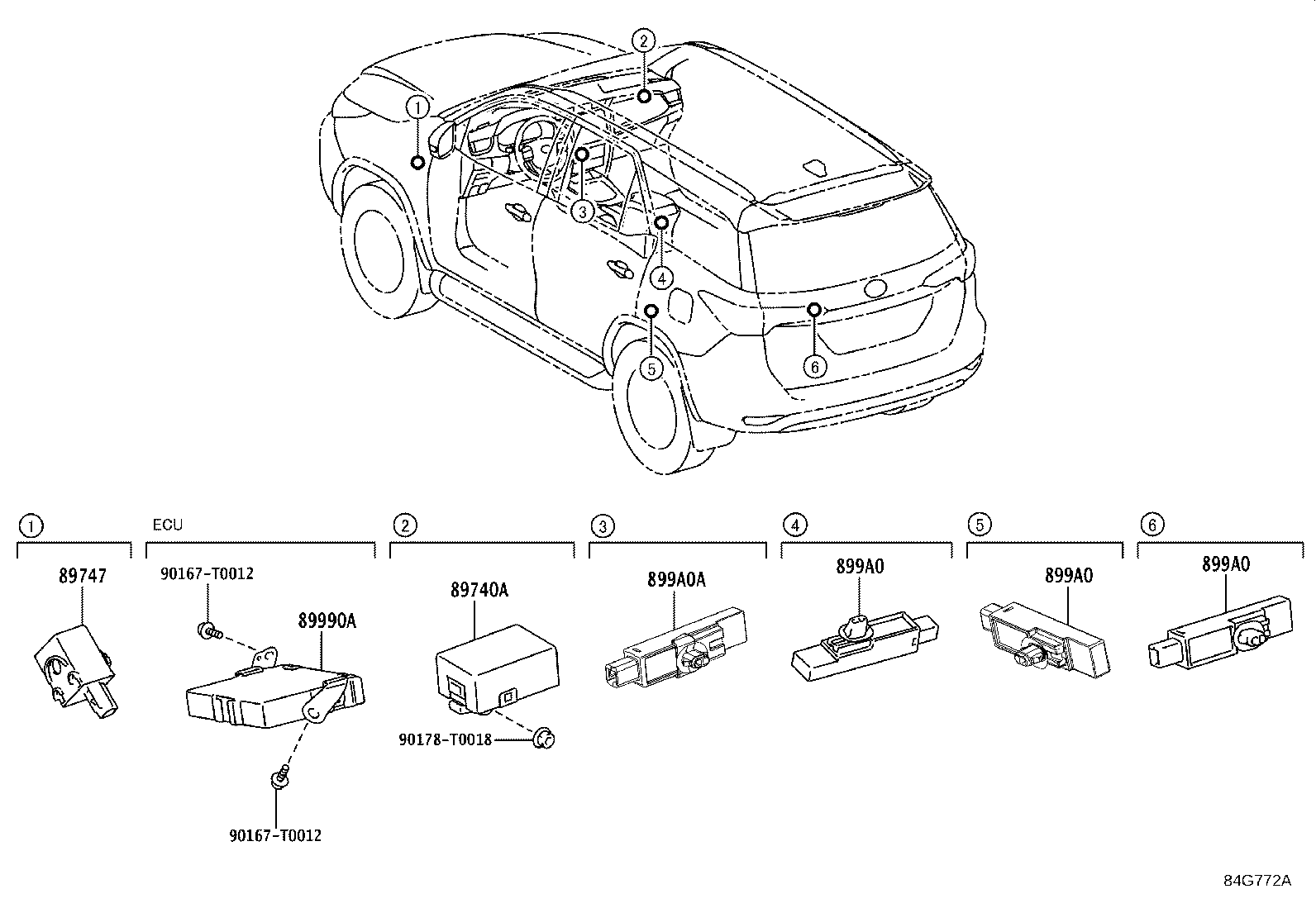

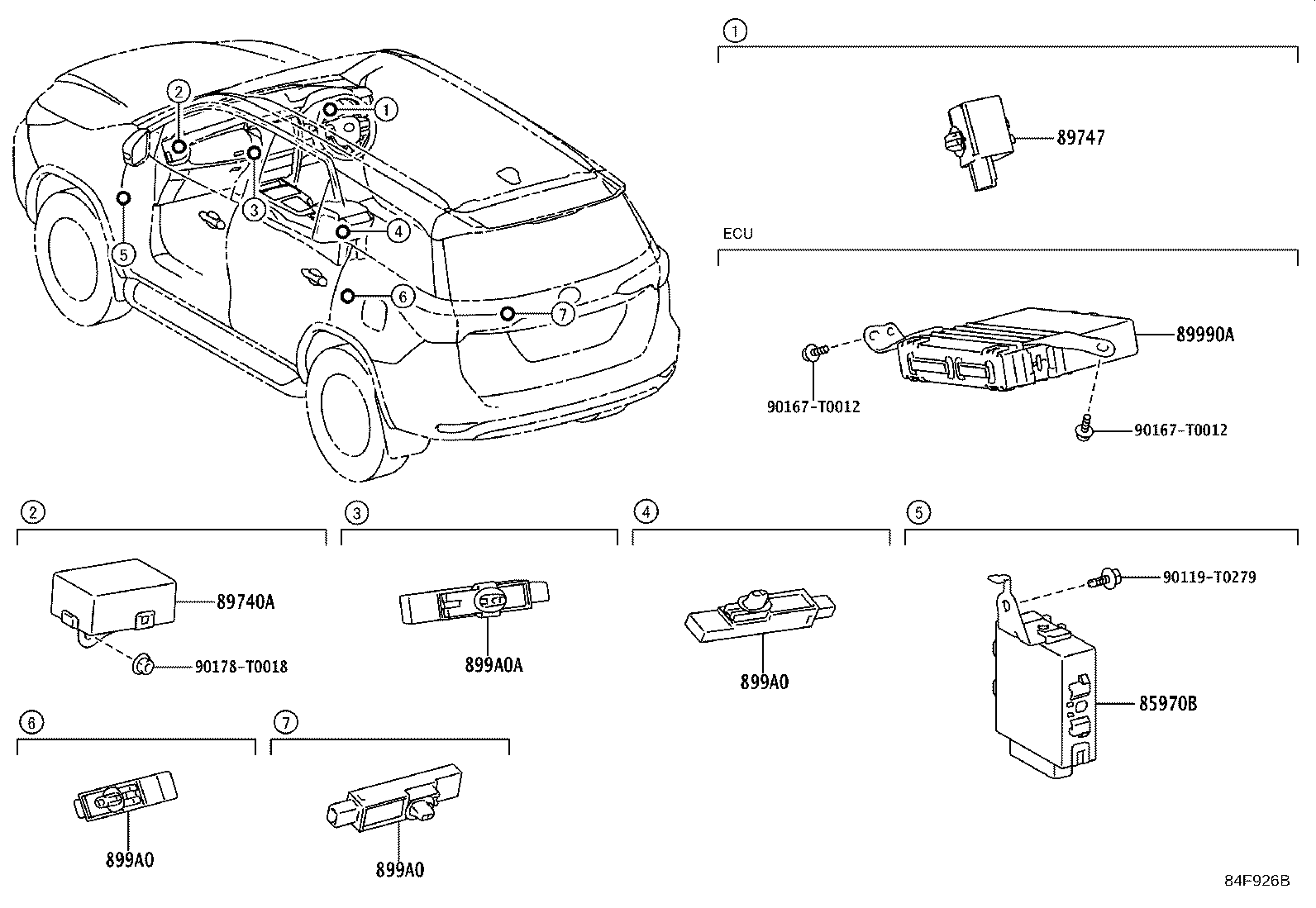

Figure 84F925A 84F925A 2015-07 → — Figure 84F926B 84F926B 2015-07 → — Figure 84G772A 84G772A 2015-12 → —

Part groups

PNCDescription
85970B Relay Assy, Double Lock Door Control
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
