Heating & Air Conditioning - Cooler Unit

36 part groups · 8 illustrations

Illustrations

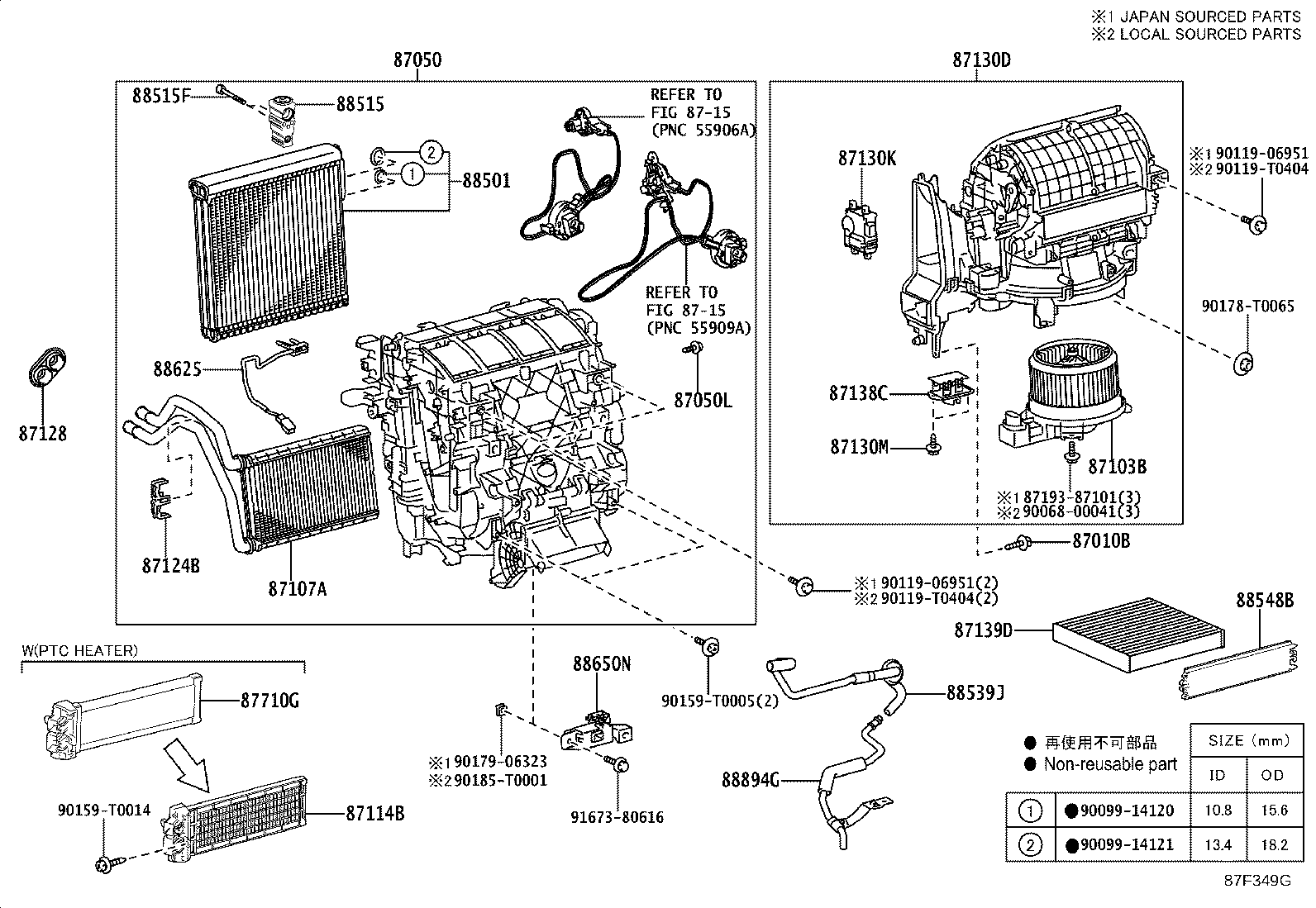

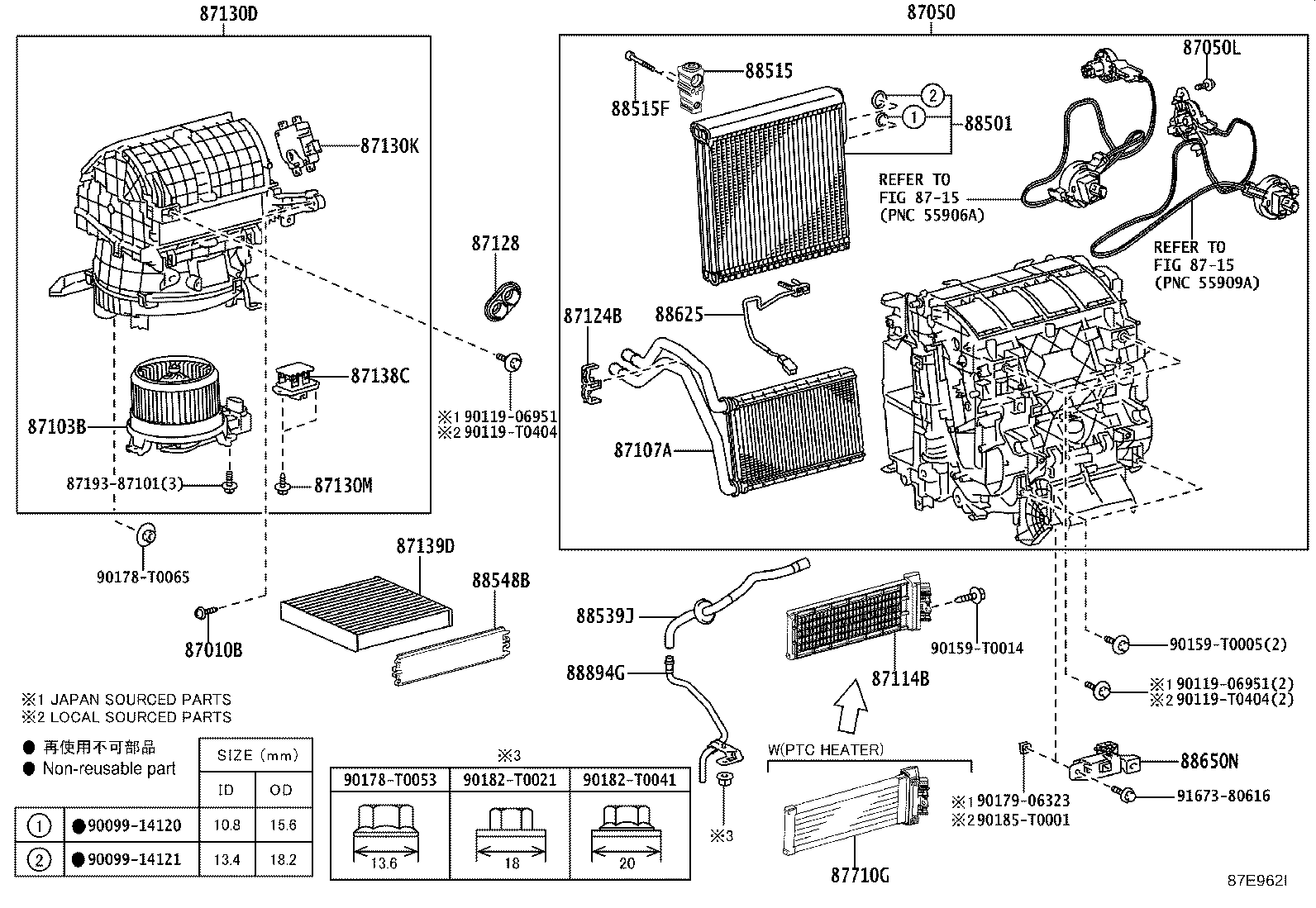

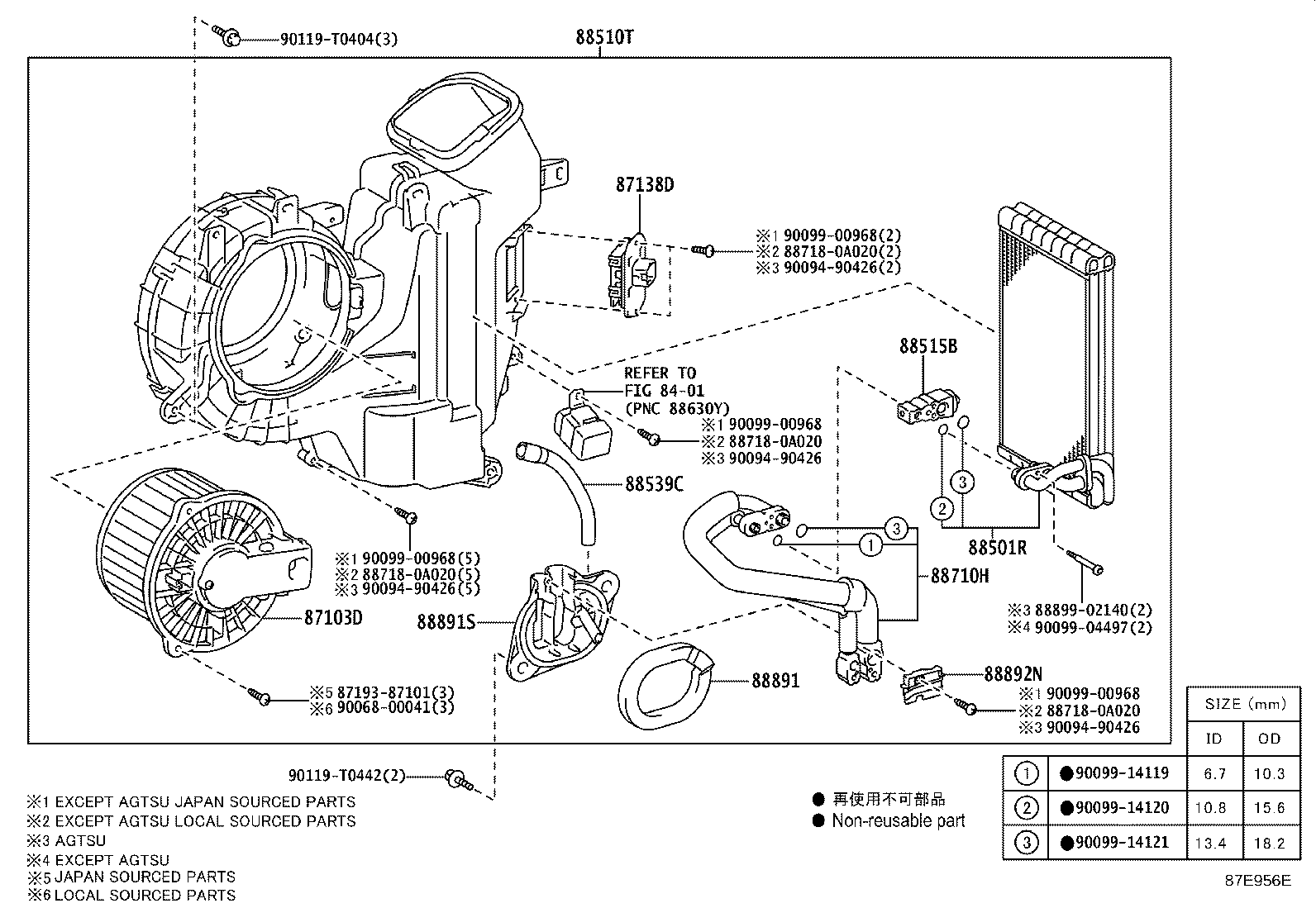

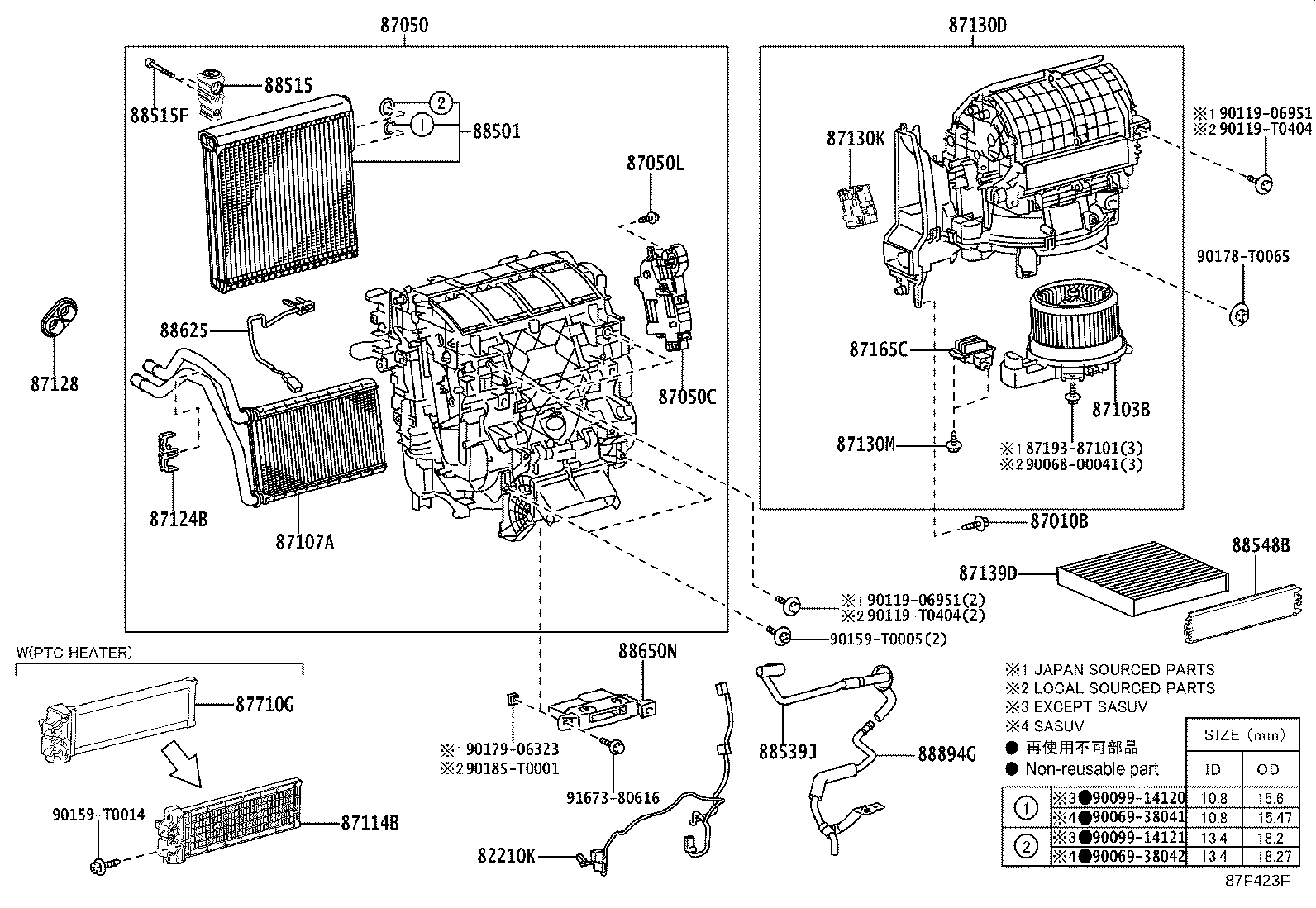

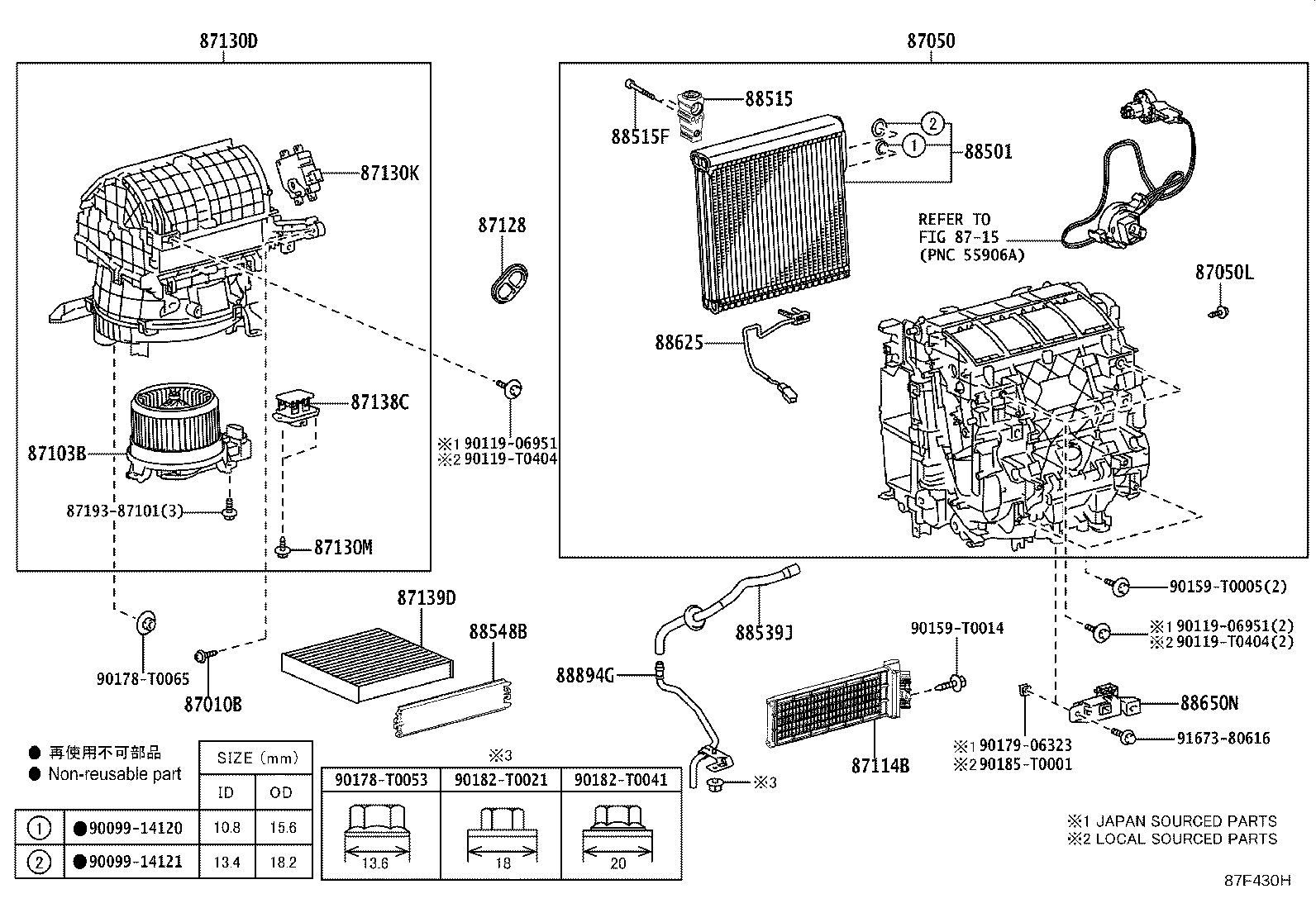

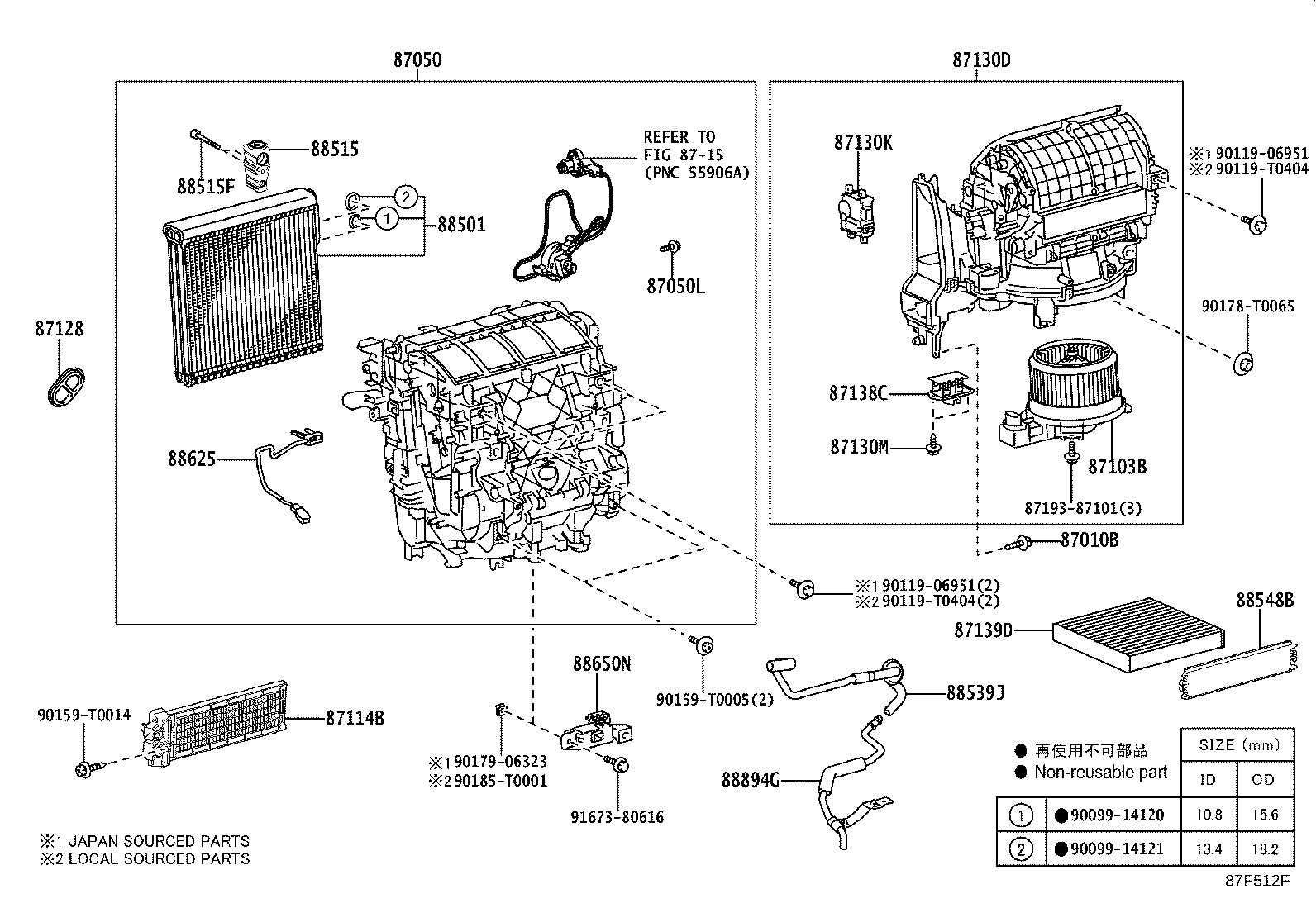

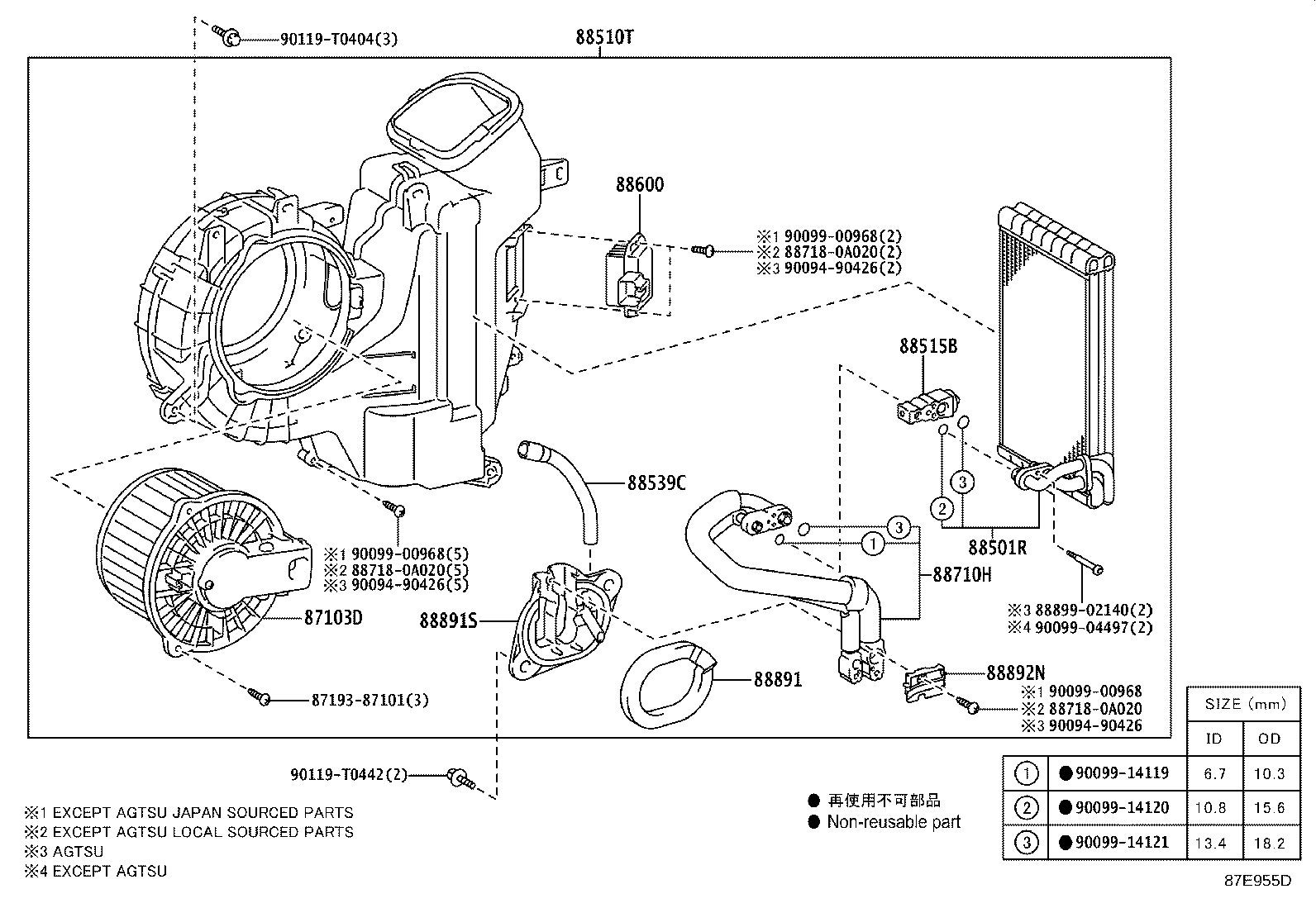

Figure 87E986G 87E986G 2015-07 → — Figure 87E962I 87E962I 2015-07 → — Figure 87F430H 87F430H 2015-07 → — Figure 87F423F 87F423F 2015-12 → — Figure 87F349G 87F349G 2015-12 → — Figure 87F512F 87F512F 2016-01 → — Figure 87E955D 87E955D 2015-07 → — Figure 87E956E 87E956E 2015-07 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87010B Screw(FOR AIR CONDITIONER UNIT)
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050L Screw(FOR AIR CONDITIONER RADIATOR)
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87124B Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87130M Screw(FOR BLOWER)
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87139D Element, Air Refiner
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539C Hose, Cooler Unit Drain, NO.2
88539J Hose, Drain Cooler
88548B Case, Air Filter
88600 Control Assy, Air Conditioner
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88891 Packing (FOR COOLER)
88891S Cover, Cooler, NO.1
88892N Cover, Cooler, NO.2
88894G Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
