Heating & Air Conditioning - Water Piping

10 part groups · 6 illustrations

Illustrations

Figure 87G489C

87G489C 2015-07 → —

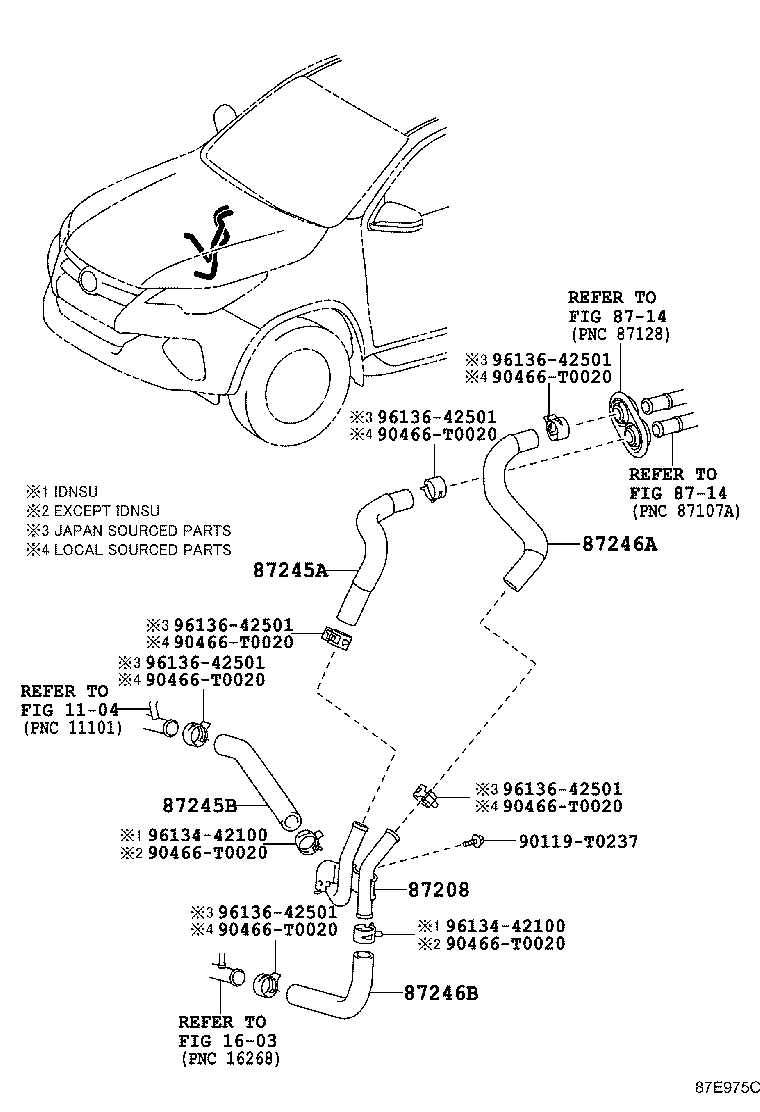

Figure 87E975C

87E975C 2015-07 → —

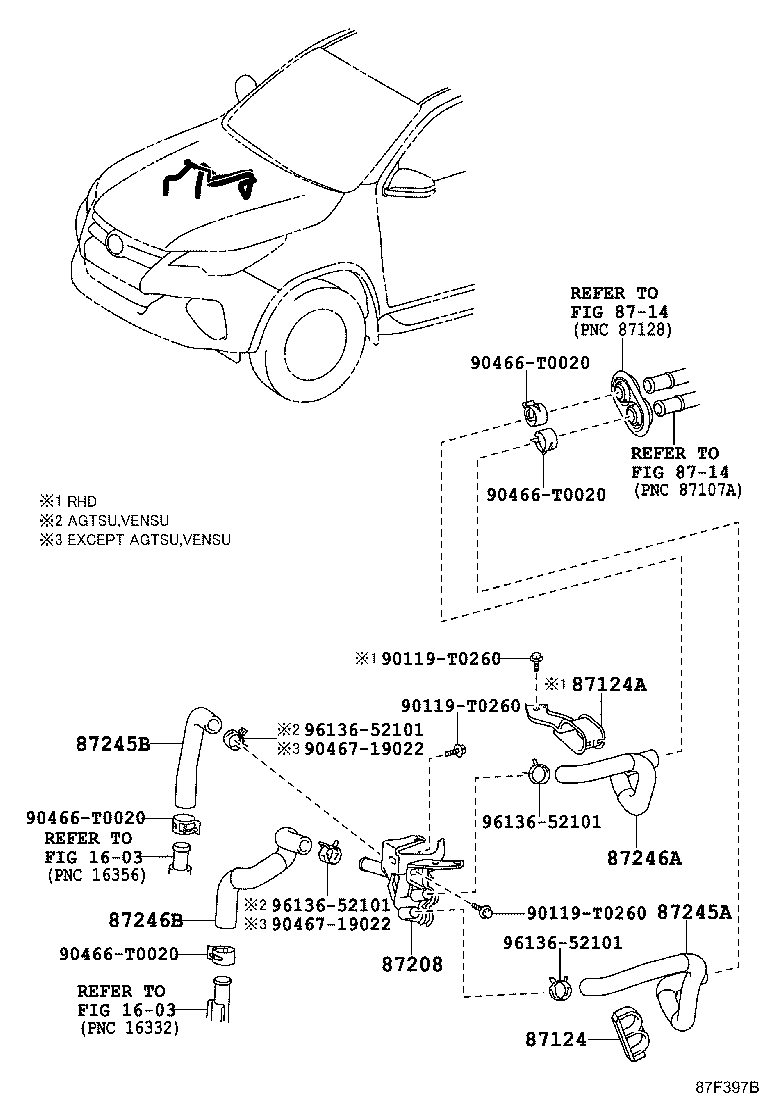

Figure 87F397B

87F397B 2015-12 → —

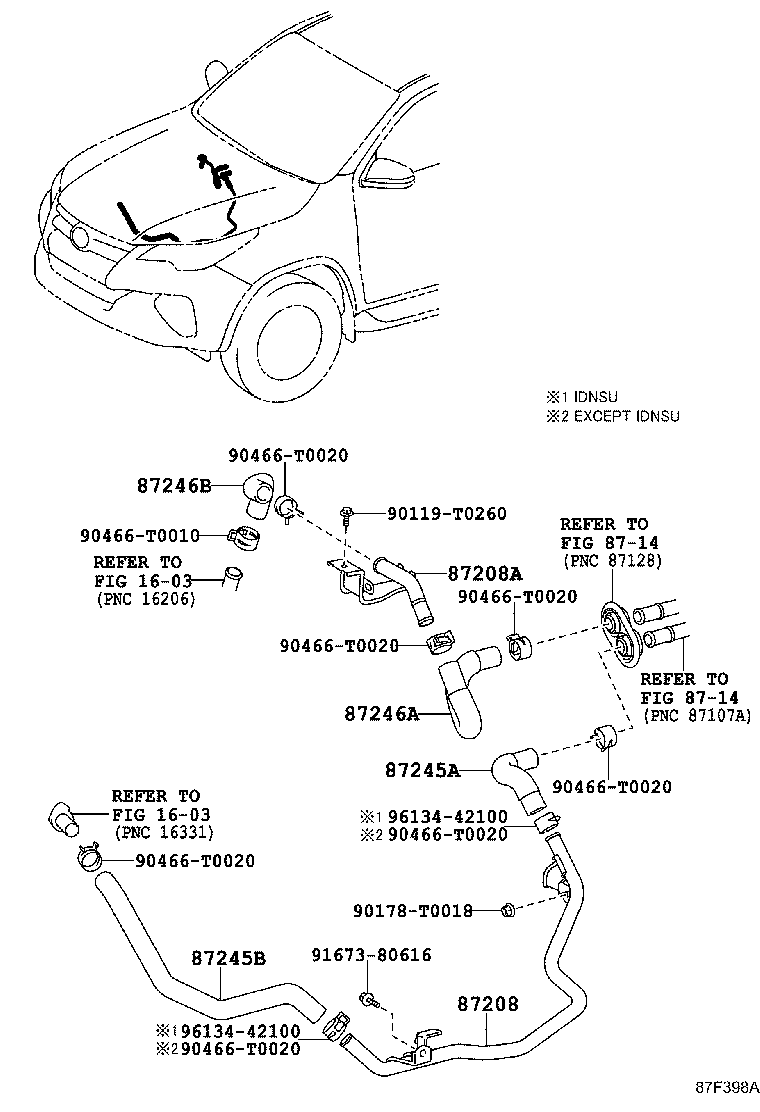

Figure 87F398A

87F398A 2015-12 → —

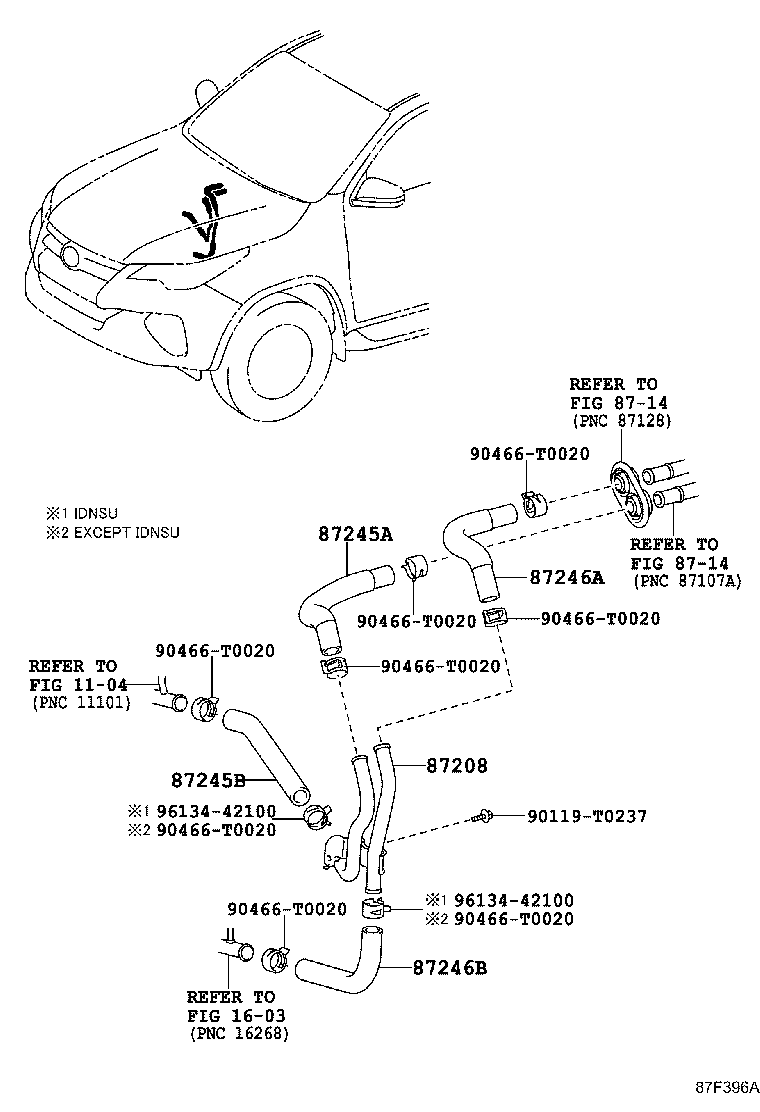

Figure 87F396A

87F396A 2015-12 → —

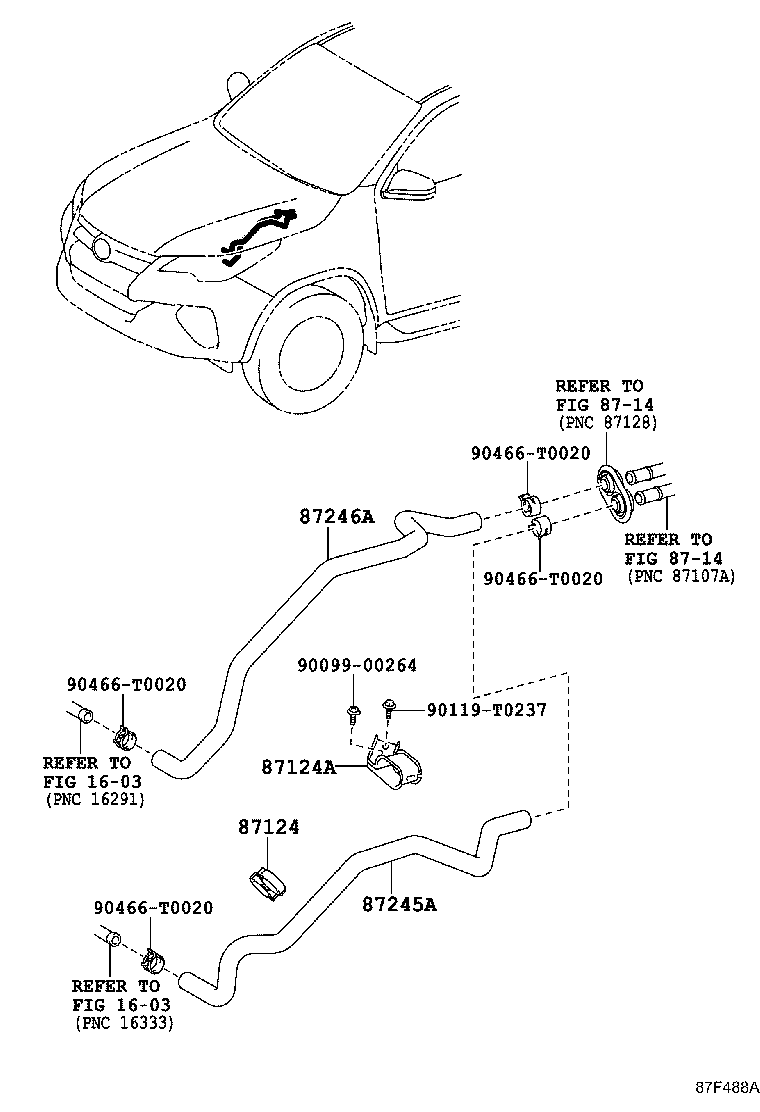

Figure 87F488A

87F488A 2016-03 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124A	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
