Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

32 part groups · 16 illustrations

Illustrations

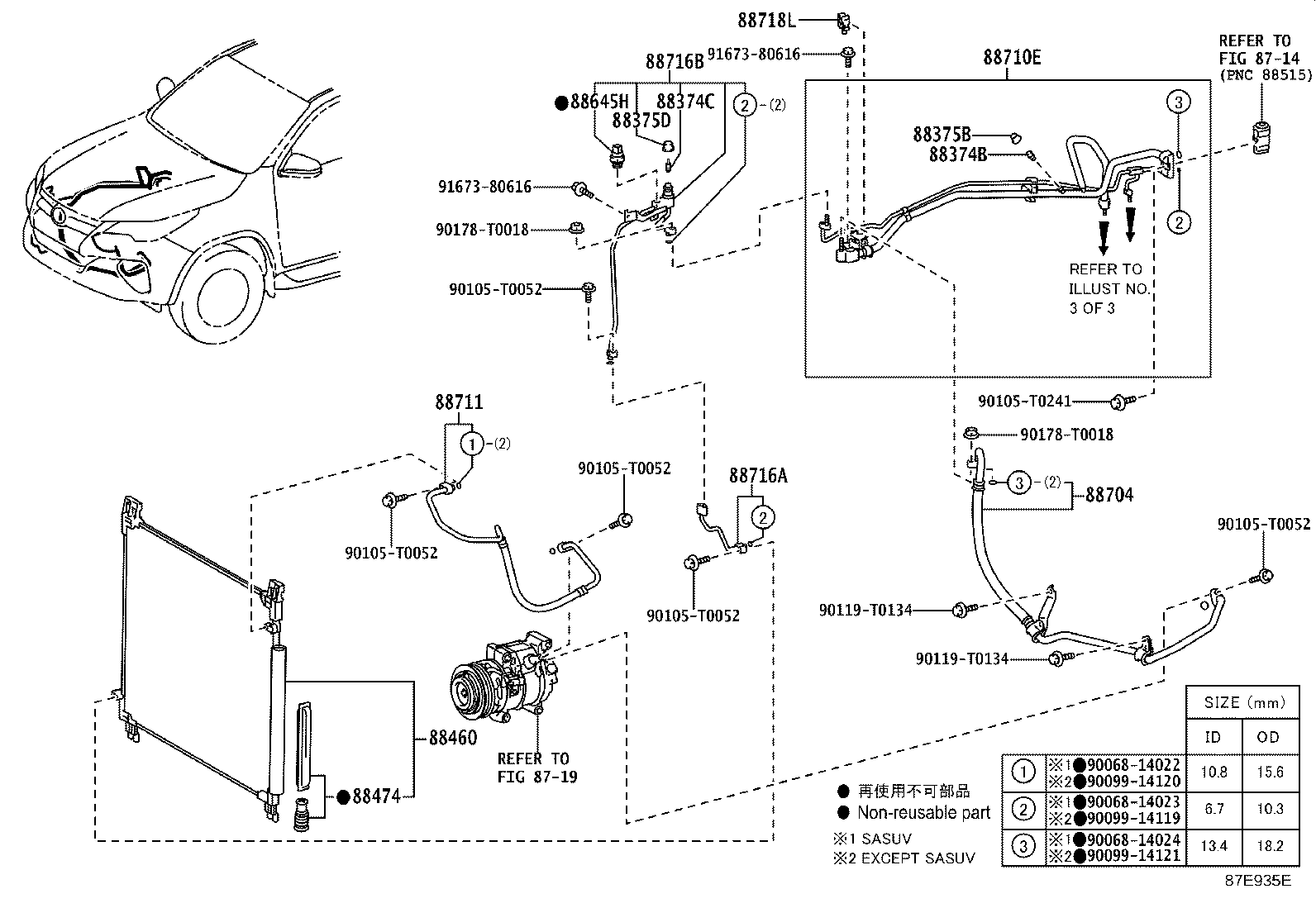

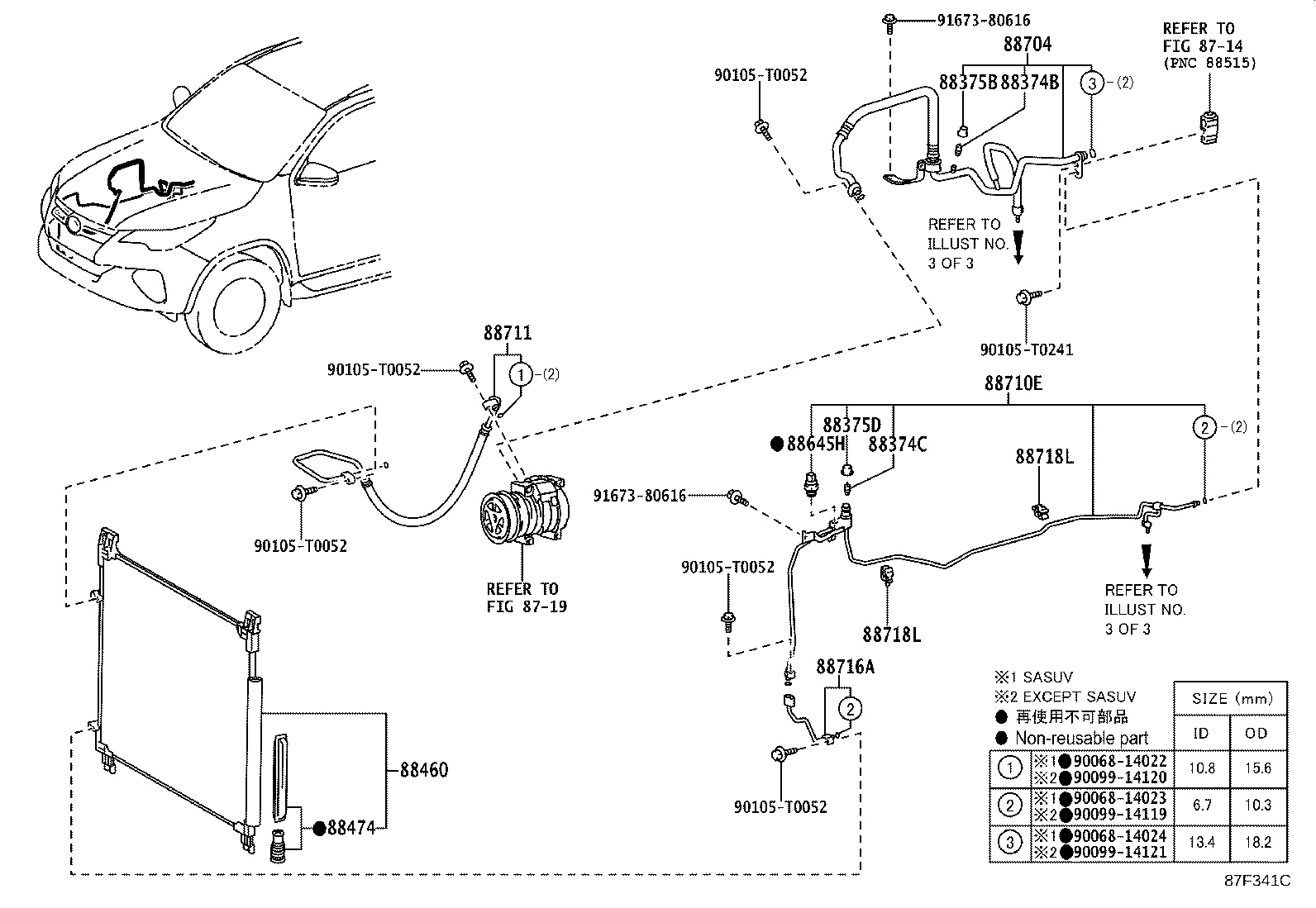

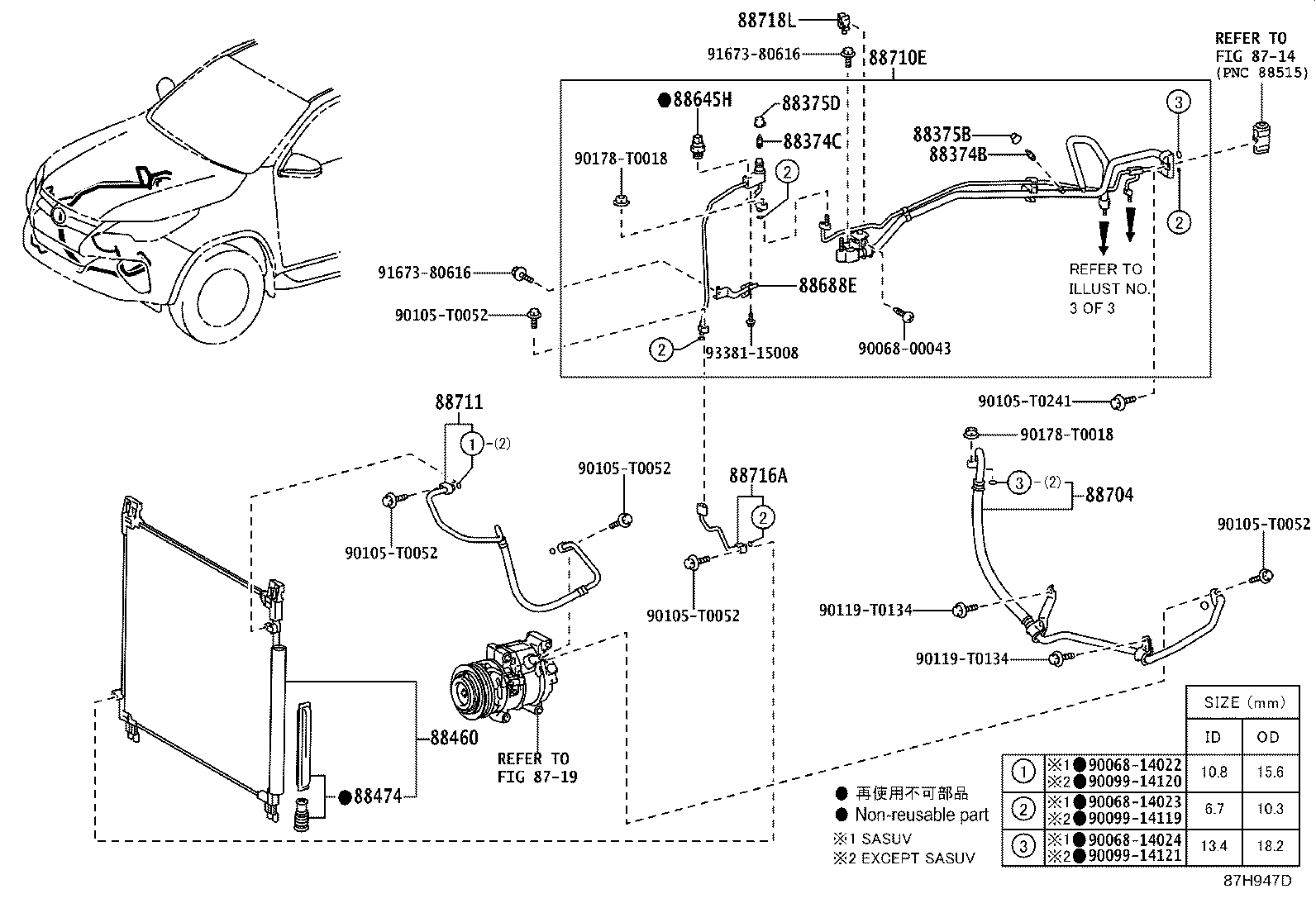

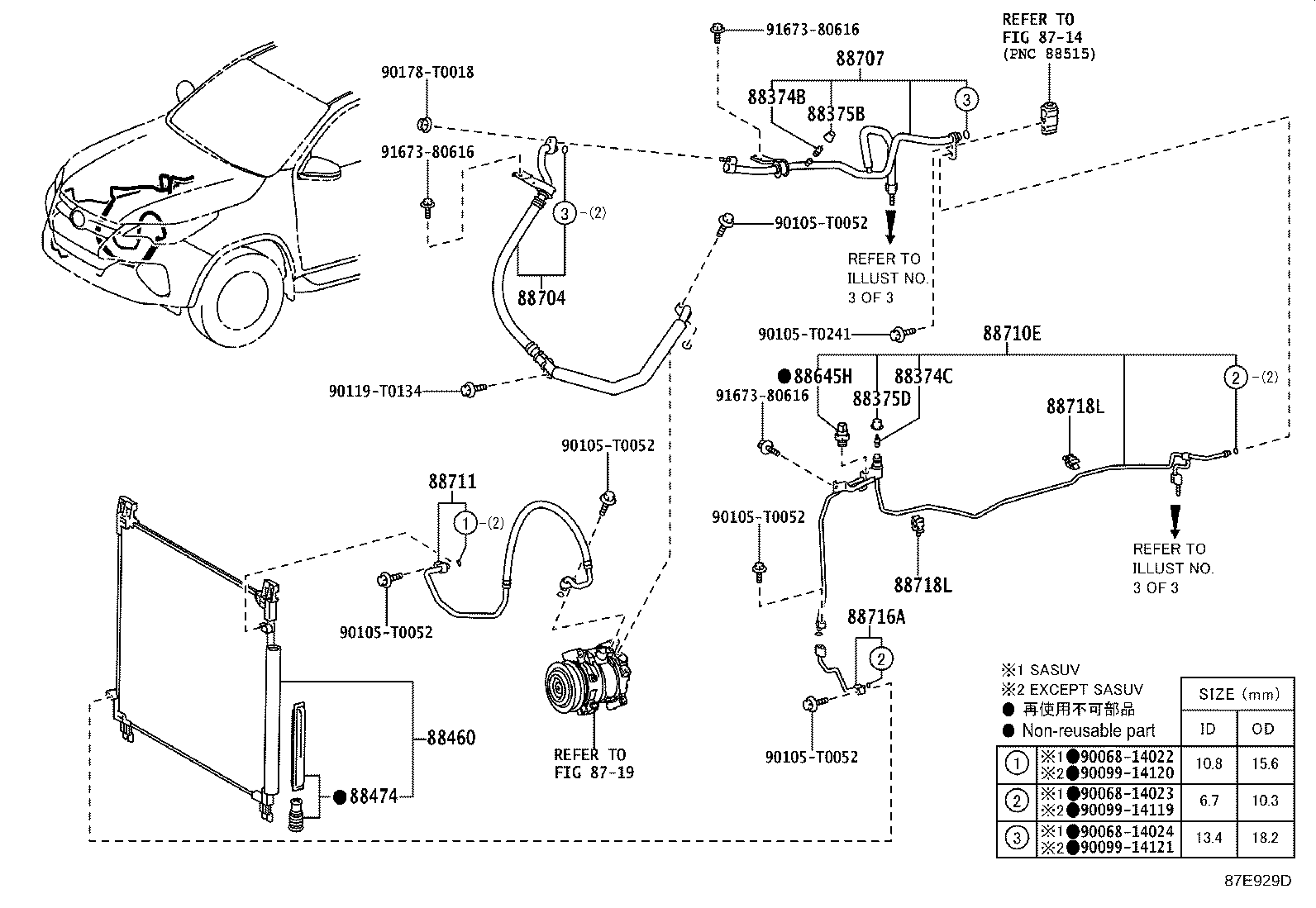

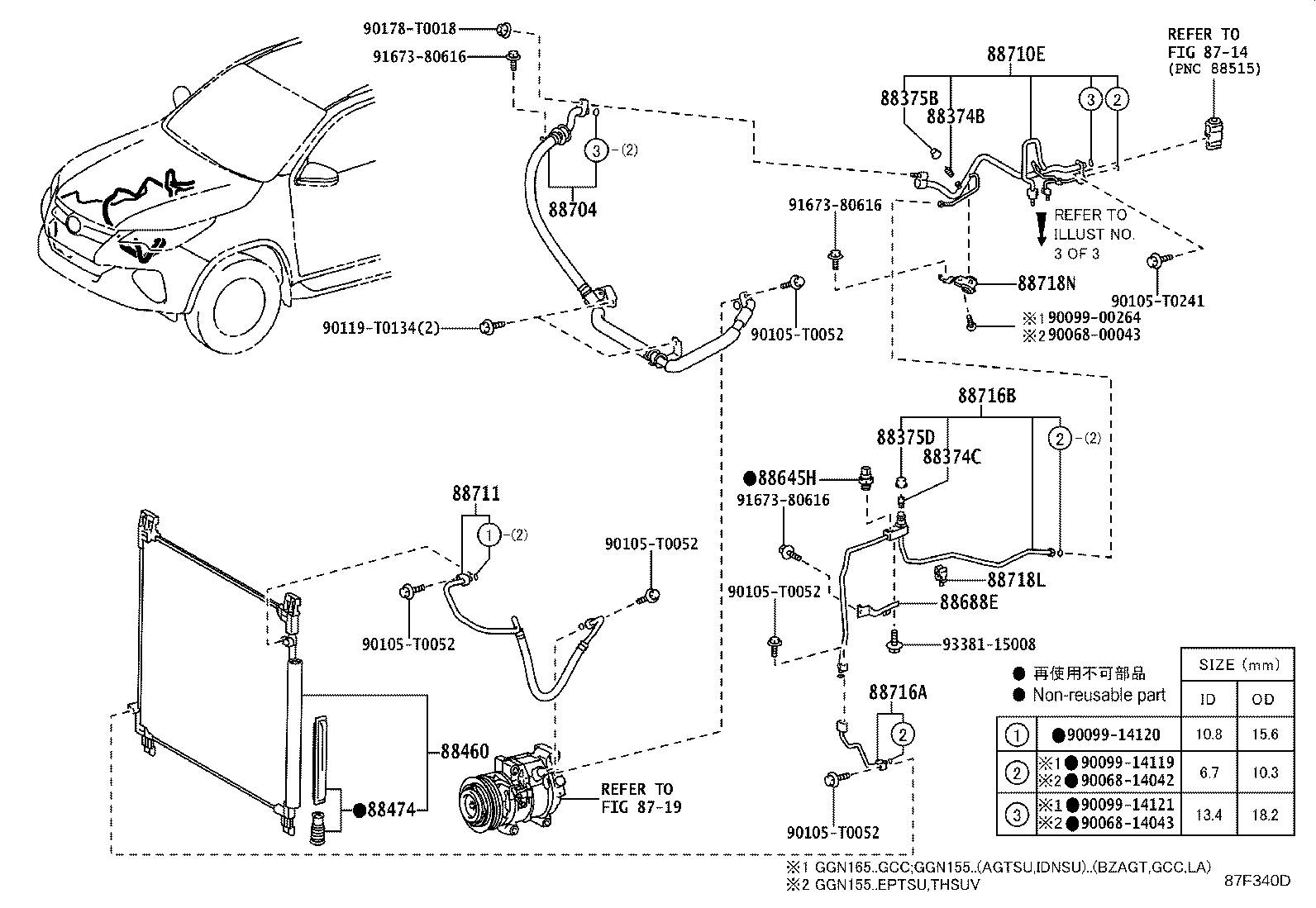

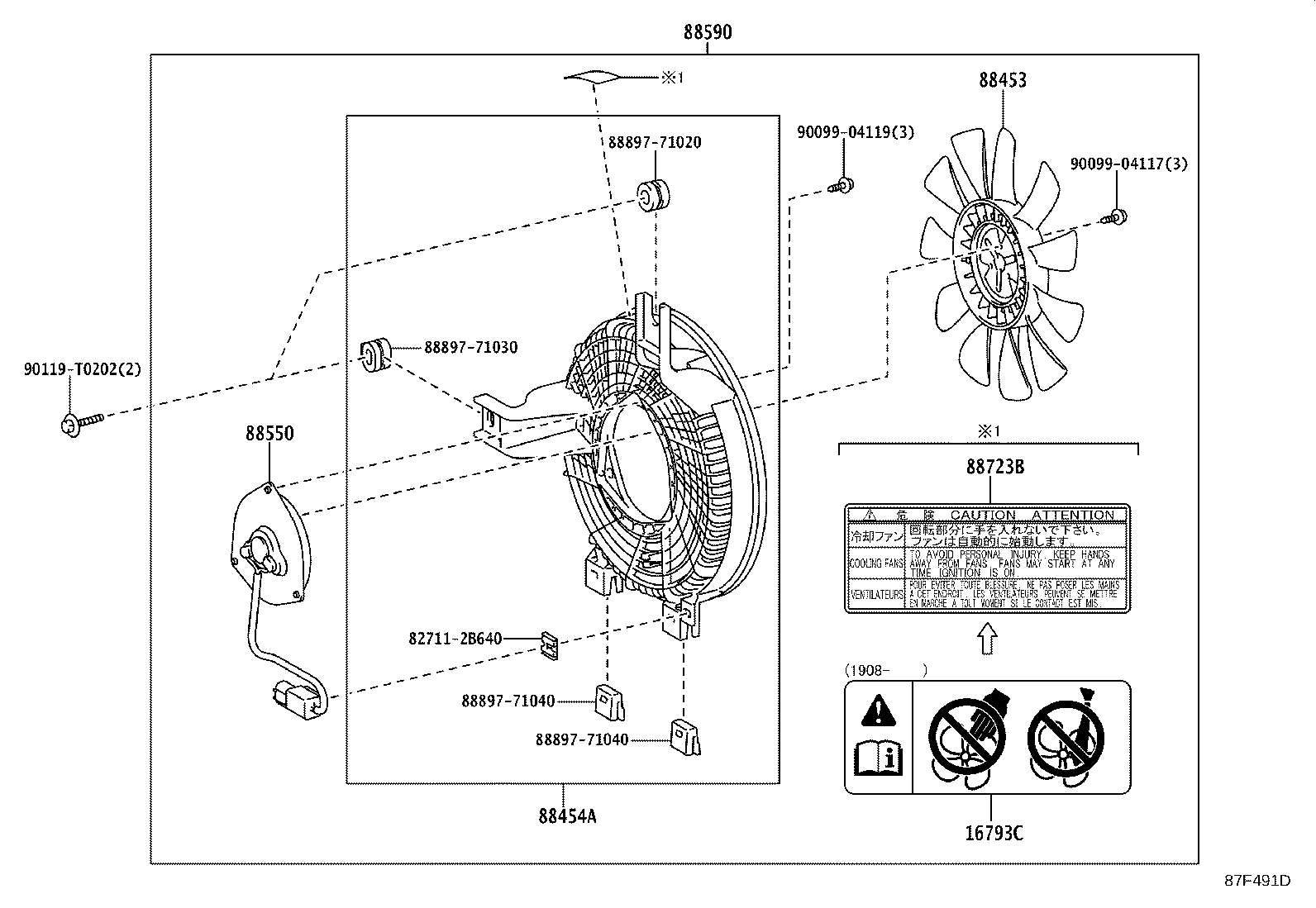

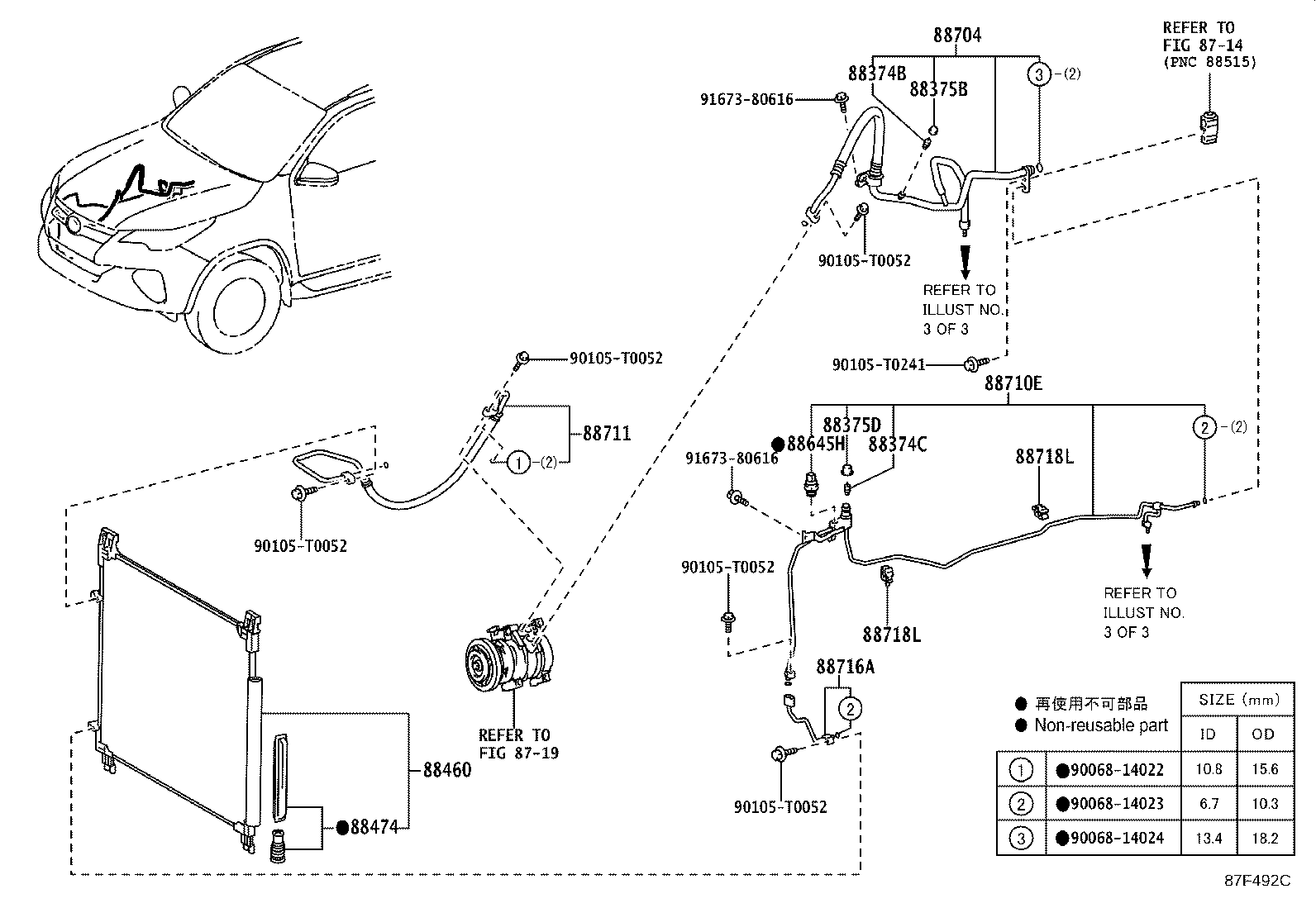

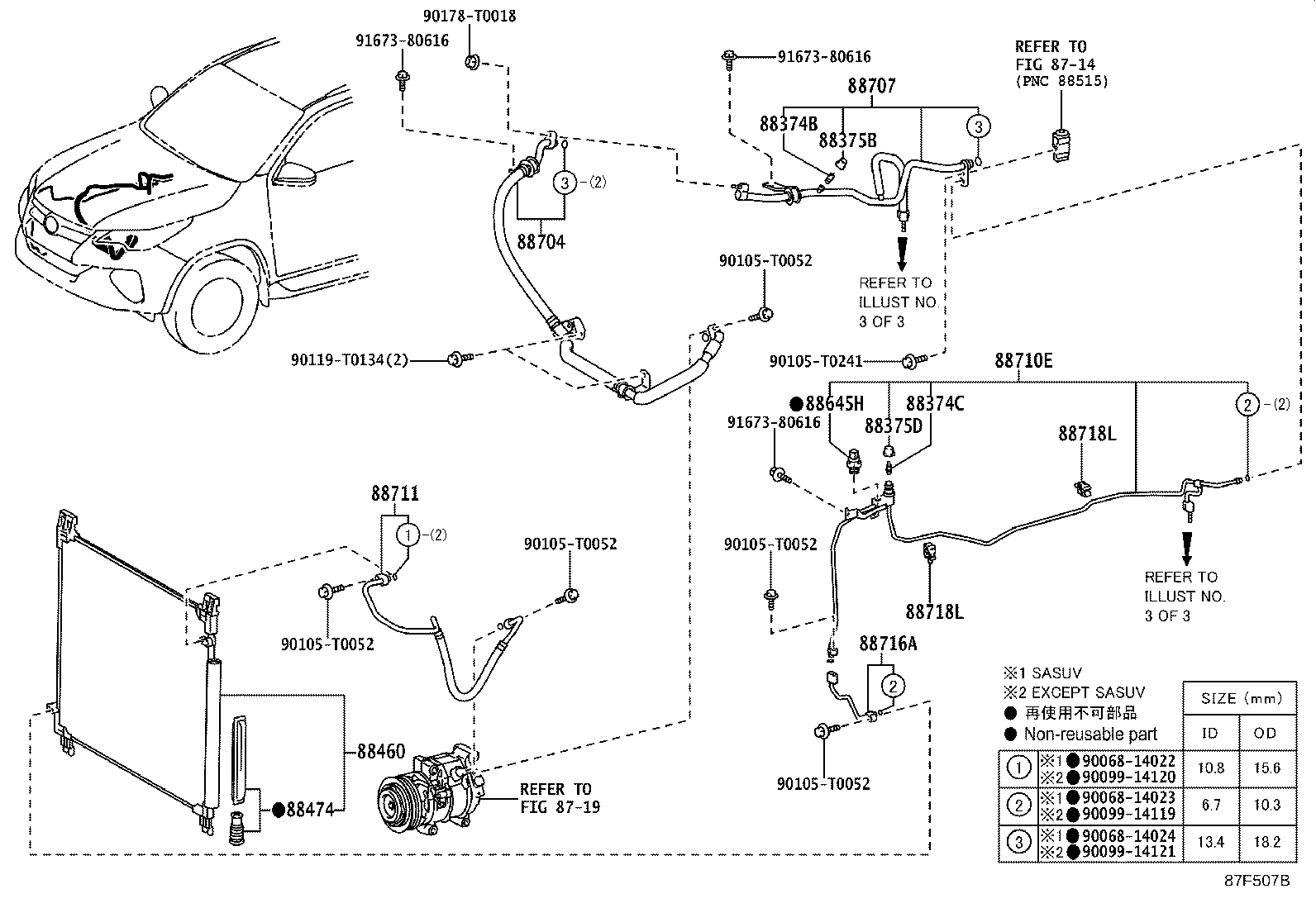

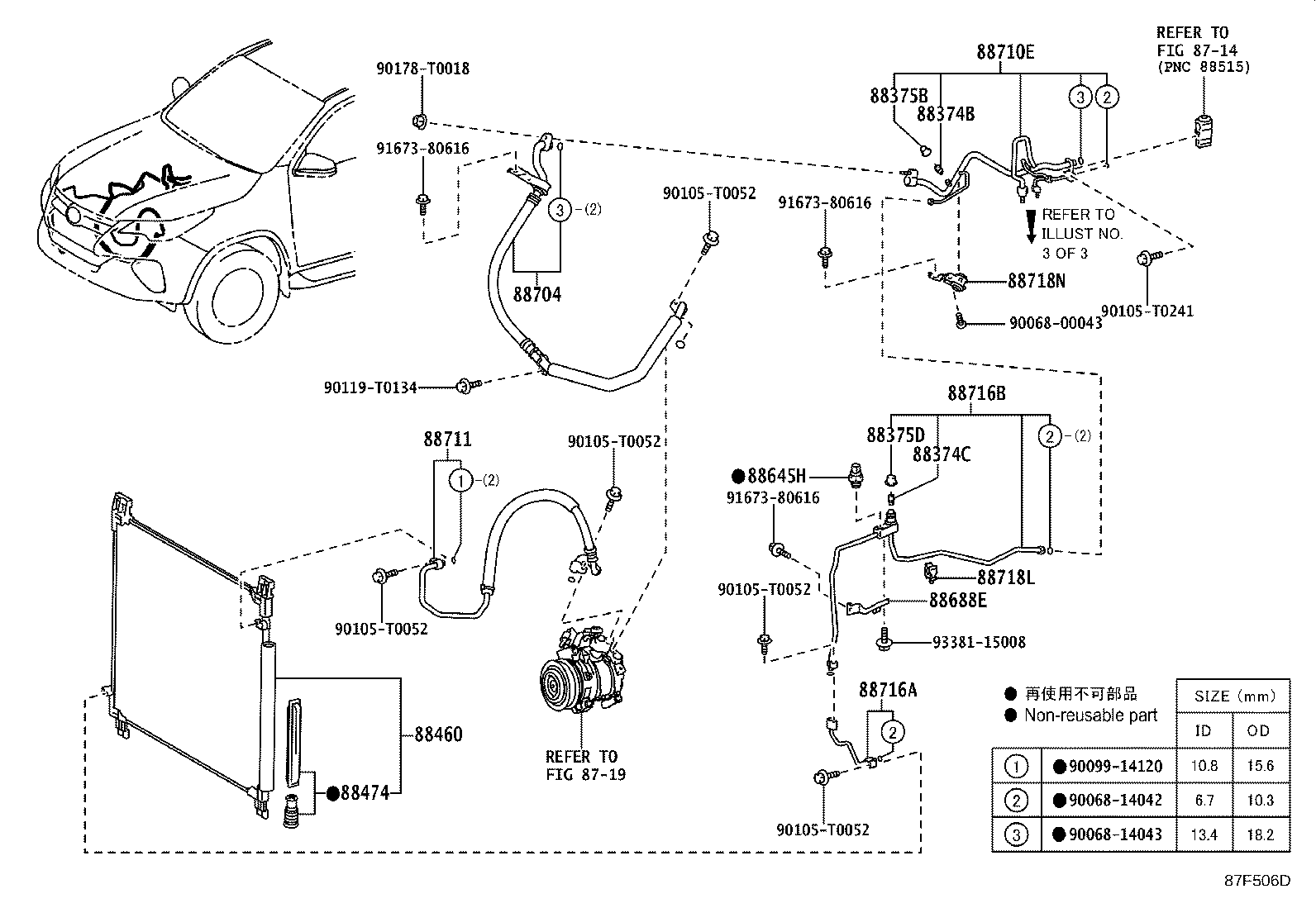

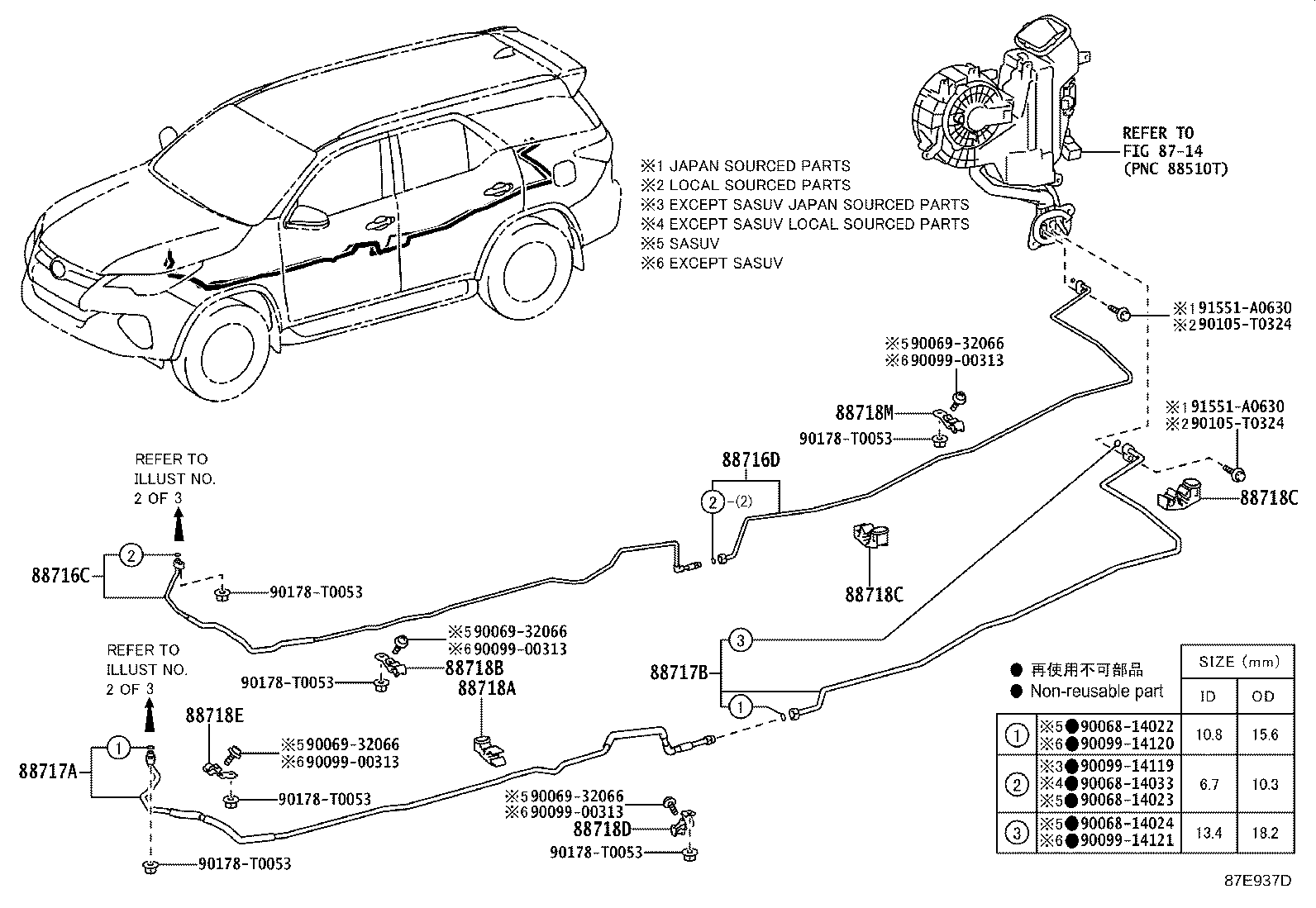

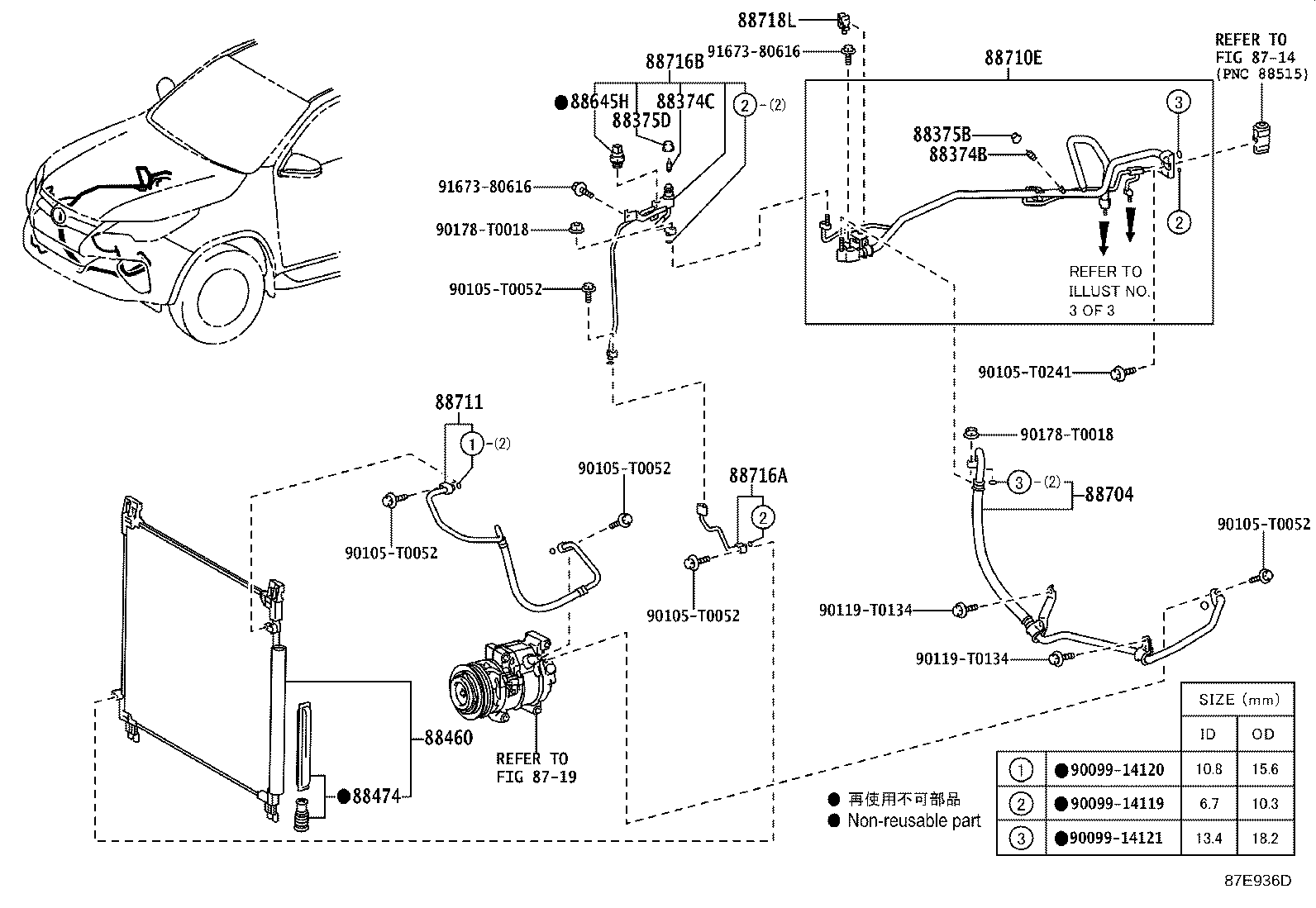

Figure 87F511C 87F511C 2016-01 → — Figure 87F491D 87F491D 2016-01 → — Figure 87E935E 87E935E 2015-07 → 2019-01 Figure 87E935E 87E935E 2019-01 → 2020-01 Figure 87E935E 87E935E 2019-01 → — Figure 87H947D 87H947D 2019-01 → — Figure 87H947D 87H947D 2020-01 → — Figure 87E936D 87E936D 2015-07 → — Figure 87E936D 87E936D 2017-09 → — Figure 87E929D 87E929D 2015-07 → — Figure 87F340D 87F340D 2015-12 → — Figure 87F341C 87F341C 2015-12 → — Figure 87F507B 87F507B 2016-01 → — Figure 87F506D 87F506D 2016-01 → — Figure 87F492C 87F492C 2016-03 → — Figure 87E937D 87E937D 2015-07 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
