Toyota Fortuner

2020-06 → 2022-05 · chassis GGN155,GUN1##,LAN155,TGN1## · catalogue 6713C0 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

10 part groups · 4 illustrations

Illustrations

Figure 153275A

153275A 2020-06 → —

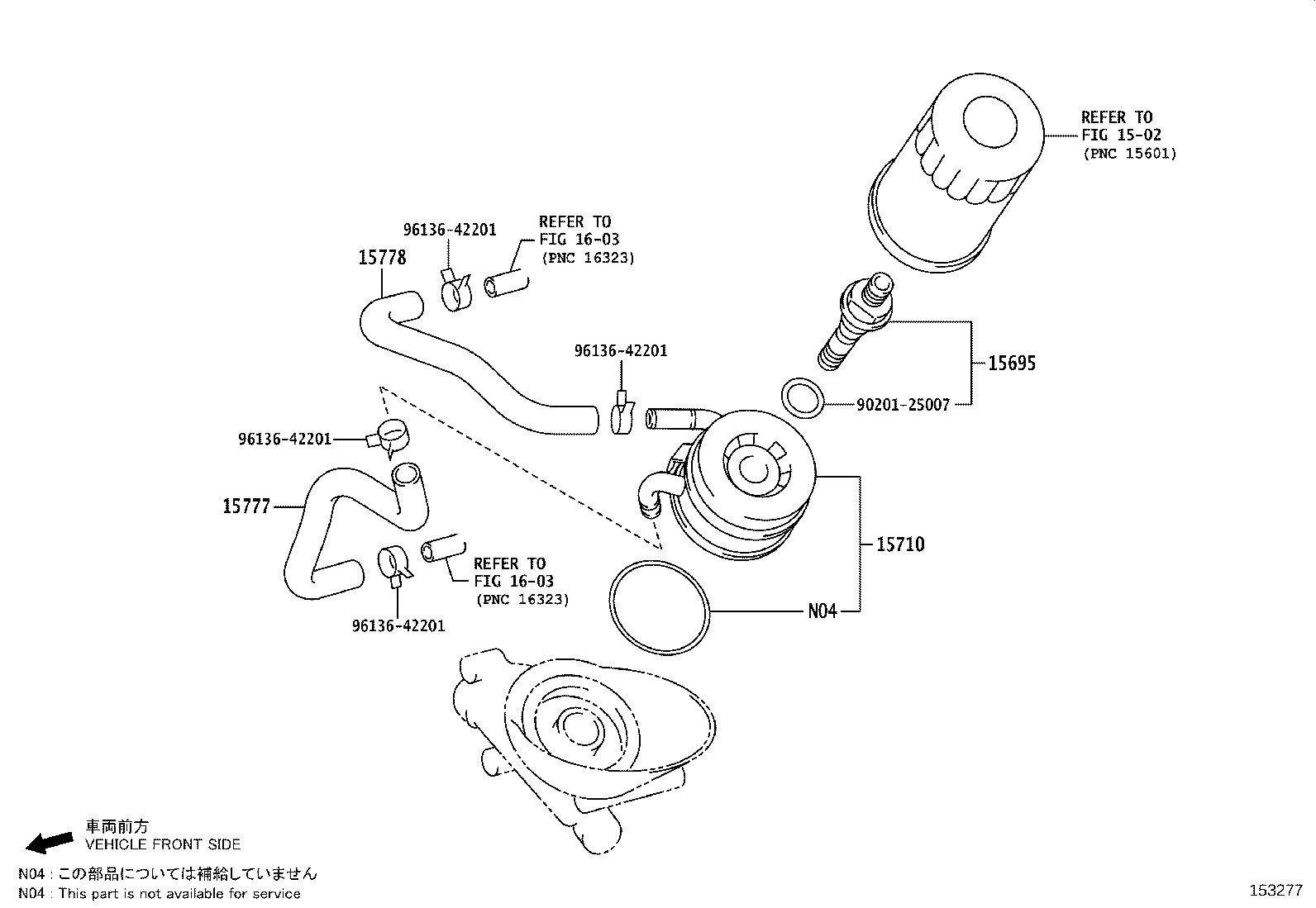

153277 2020-06 → —

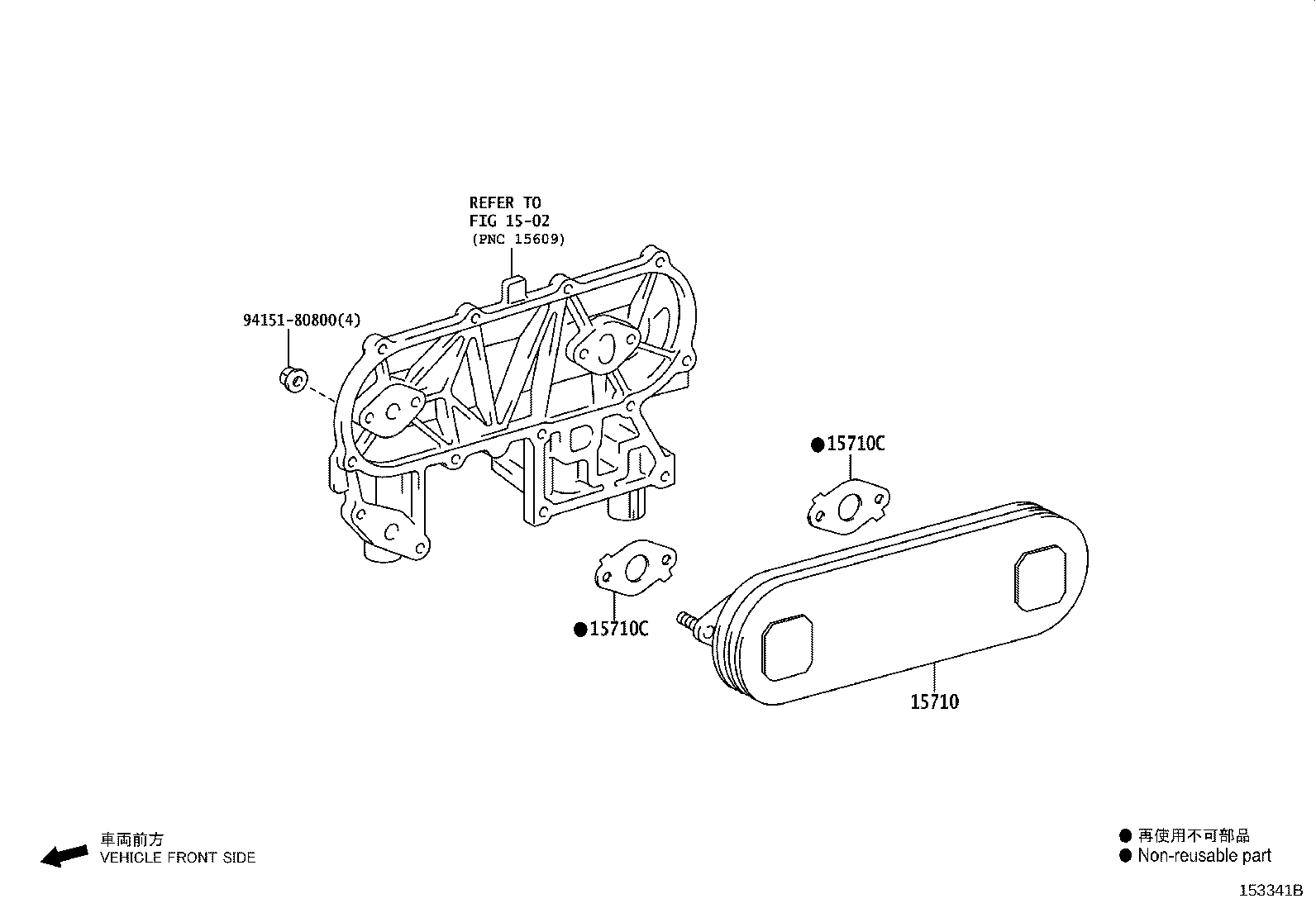

Figure 153341B

153341B 2020-09 → —

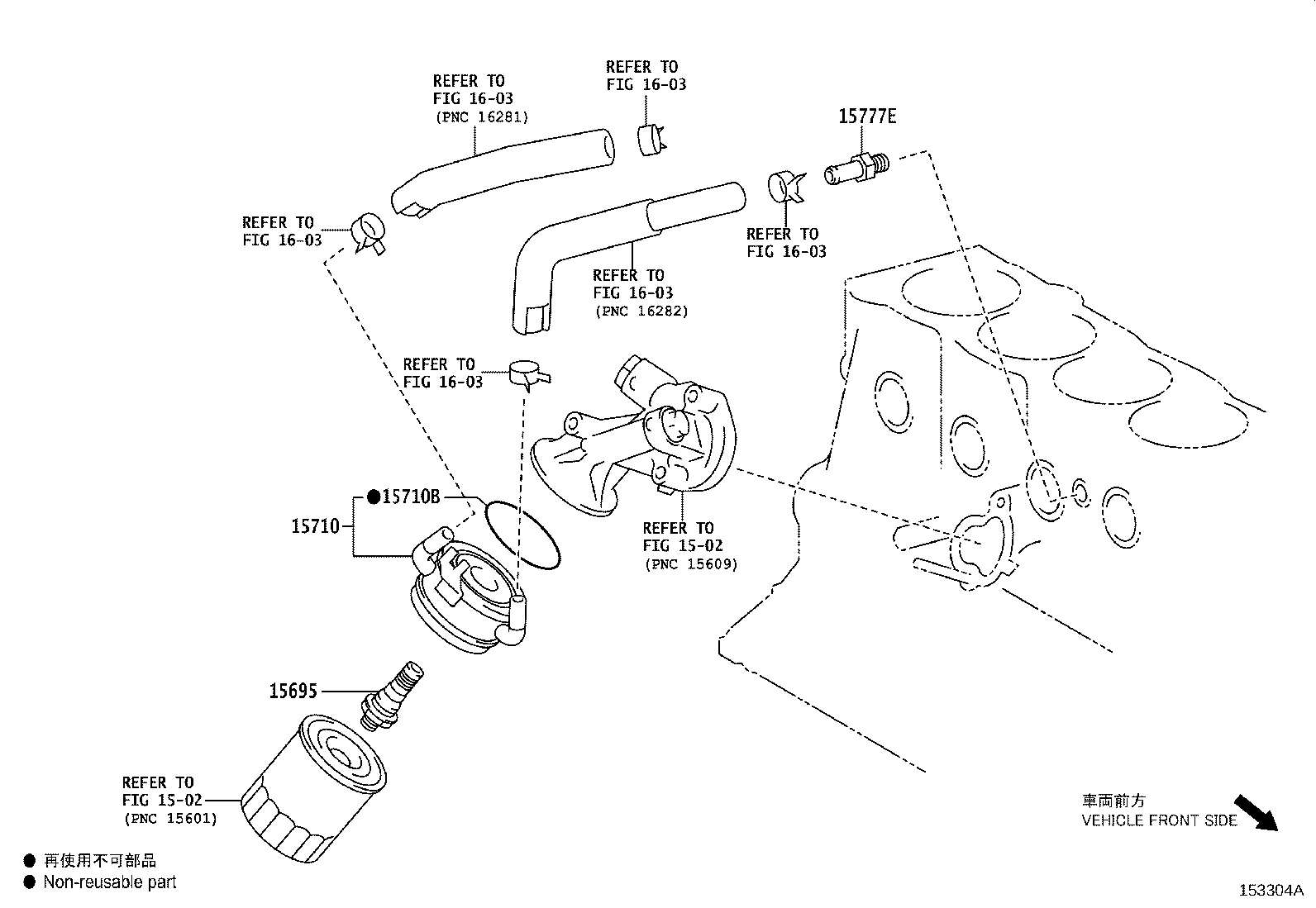

Figure 153304A

153304A 2020-05 → —

Part groups

PNC	Description
15071	Cooler Set, Engine Oil
15695	Bolt, Oil Cooler Union
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710C	Gasket(FOR OIL COOLER)
15723	Ring, O
15777	Hose, Oil Cooler
15777E	Union
15778	Hose, Oil Cooler, NO.2
16345A	Gasket, Water Outlet Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
