Toyota Fortuner

2020-06 → 2022-05 · chassis GGN155,GUN1##,LAN155,TGN1## · catalogue 6713C0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

12 part groups · 2 illustrations

Illustrations

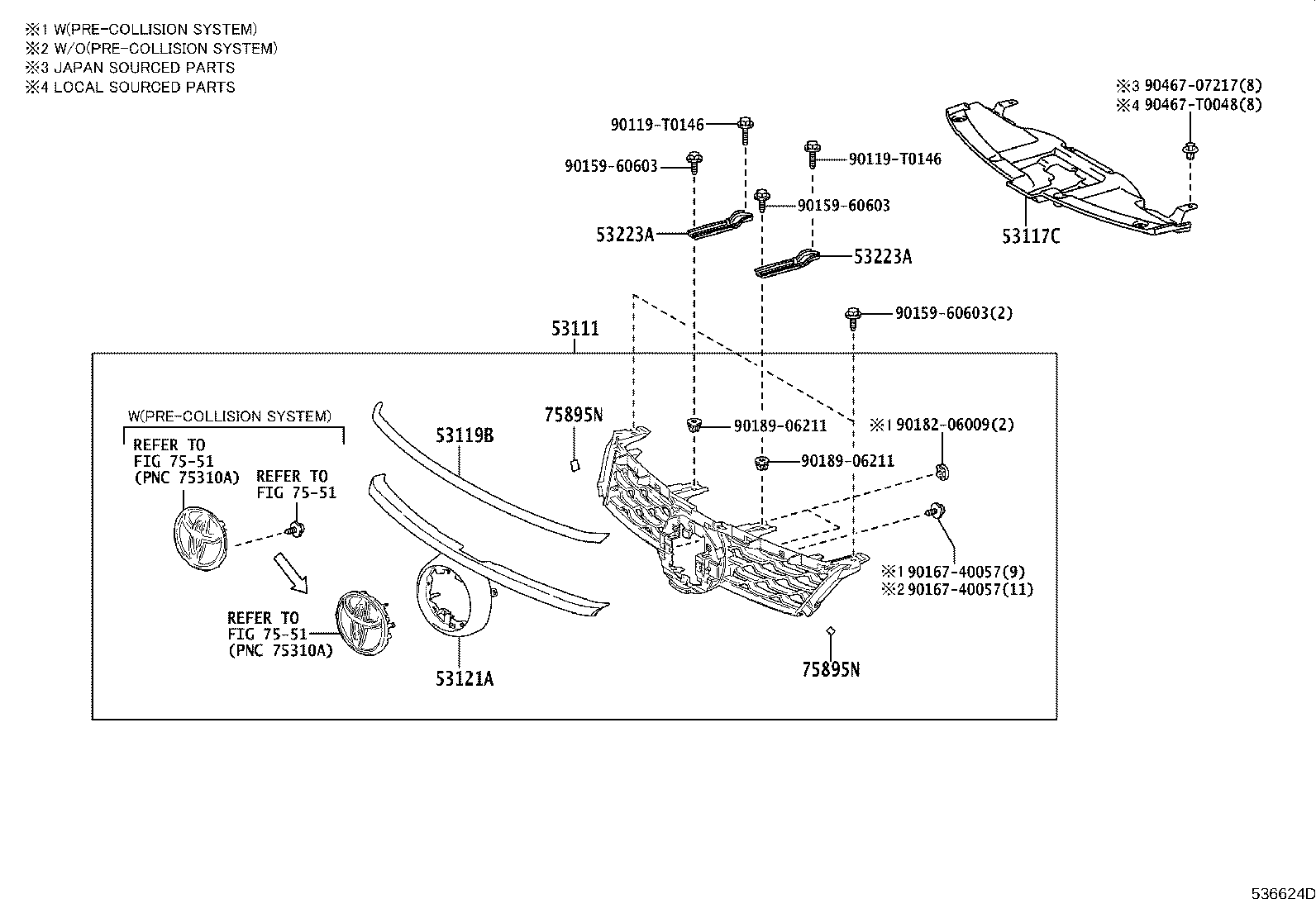

Figure 536623E 536623E 2020-06 → — Figure 536624D 536624D 2020-06 → —

Part groups

PNCDescription
53111 Grille, Radiator
53111F Moulding, Radiator Grille, Center
53117C Retainer, Radiator Grille, NO.1
53119B Protector, Radiator Grille
53121A Moulding, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53121F Moulding, Radiator Grille, Upper RH
53122A Moulding, Radiator Grille, Lower
53124C Moulding, Radiator Grille, Upper LH
53129B Moulding, Radiator Grille, NO.9
53223A Bracket, Radiator Grille Mounting
75895N Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
