Toyota Fortuner

2020-06 → 2022-05 · chassis GGN155,GUN1##,LAN155,TGN1## · catalogue 6713C0 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 6 illustrations

Illustrations

Figure 87I843A

87I843A 2020-06 → —

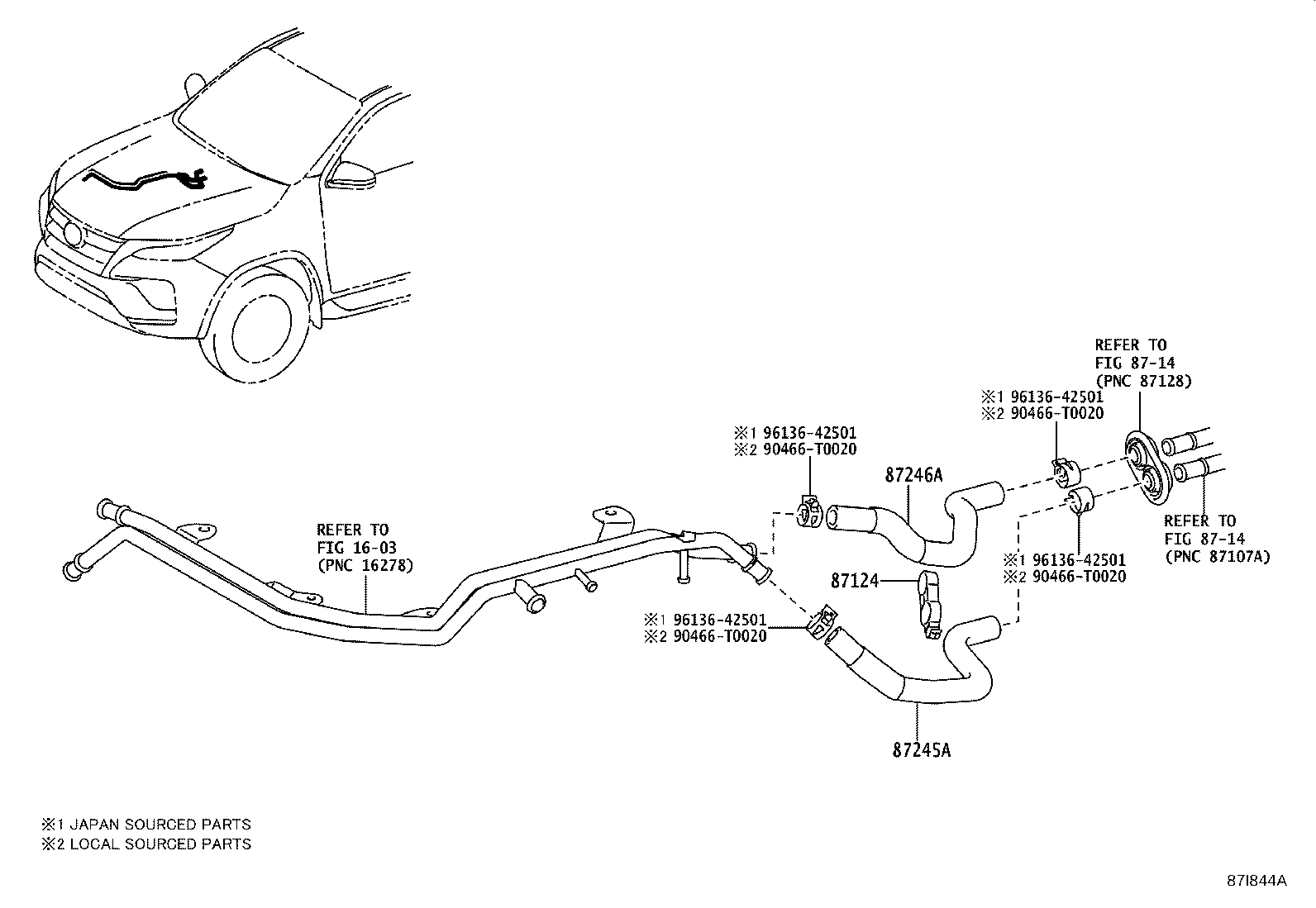

Figure 87I844A

87I844A 2020-06 → —

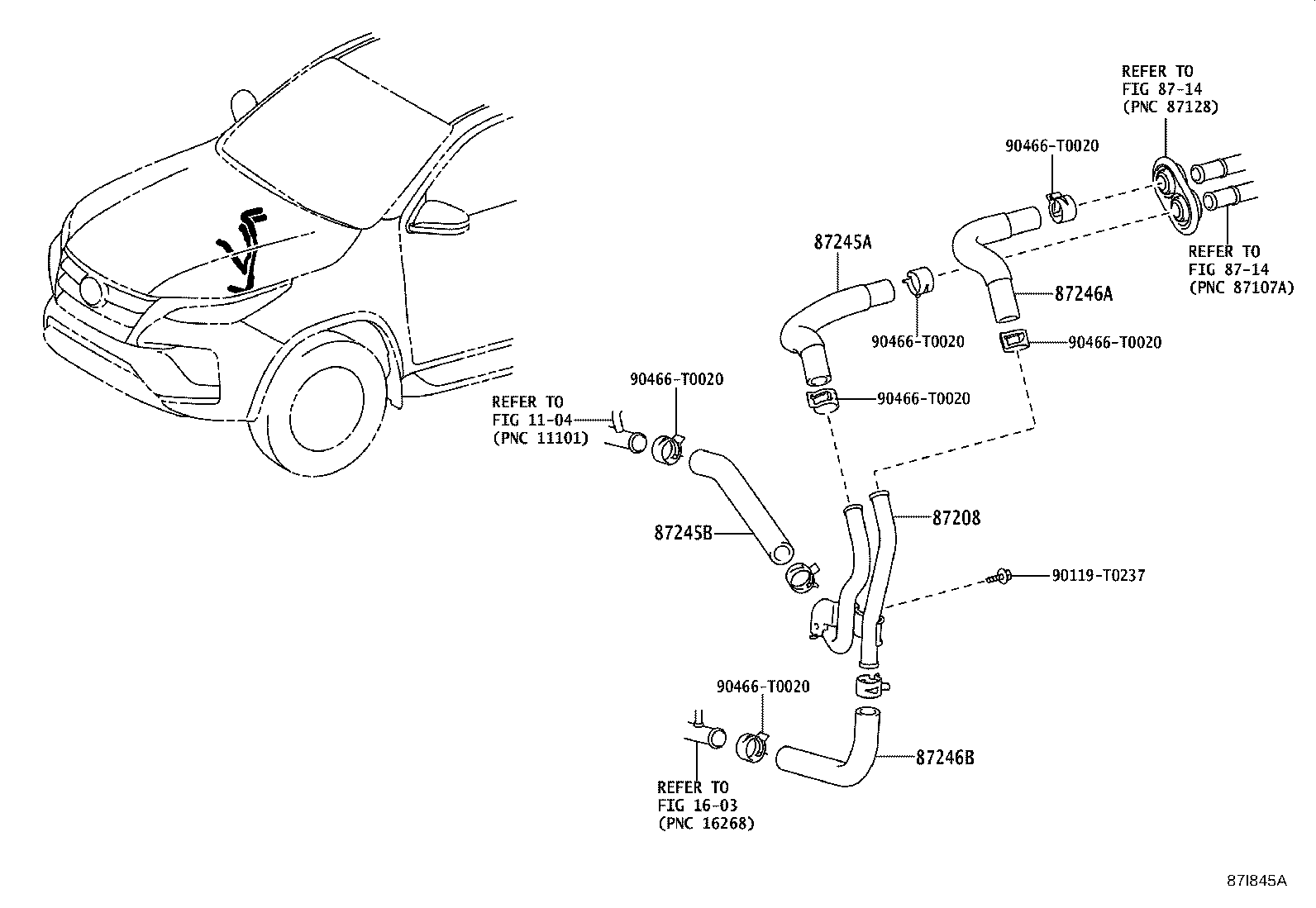

Figure 87I845A

87I845A 2020-06 → —

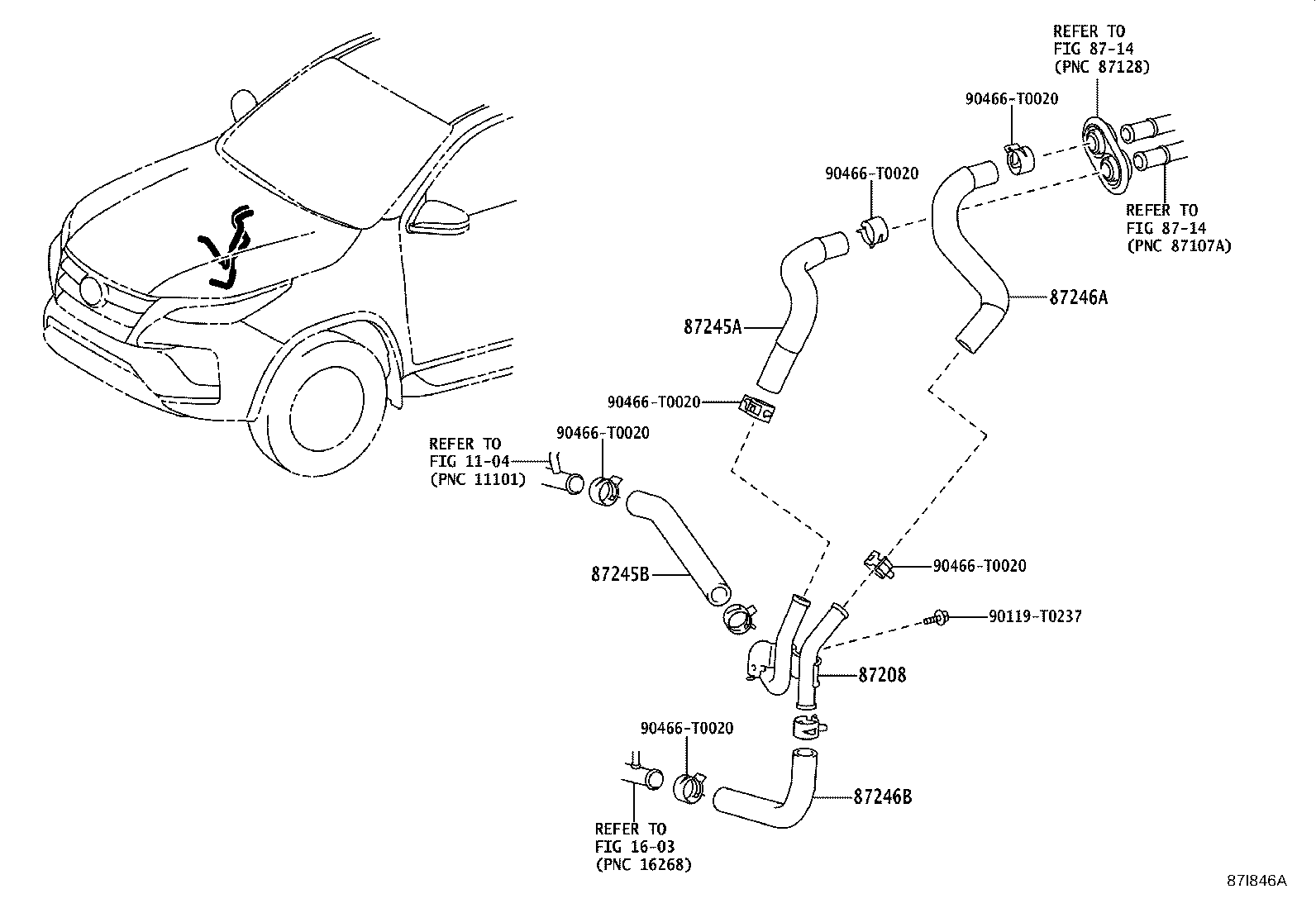

Figure 87I846A

87I846A 2020-06 → —

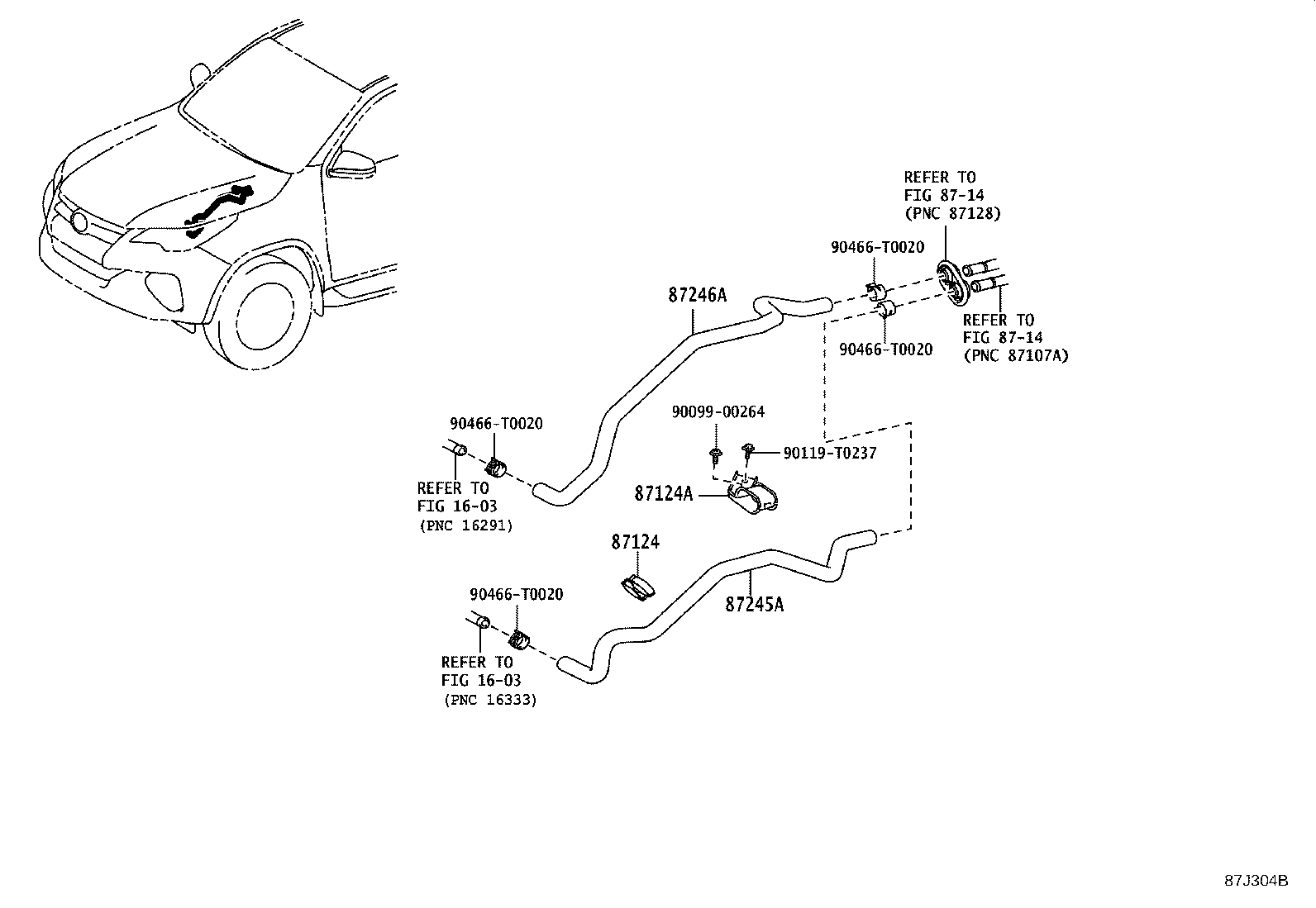

Figure 87J304B

87J304B 2020-09 → —

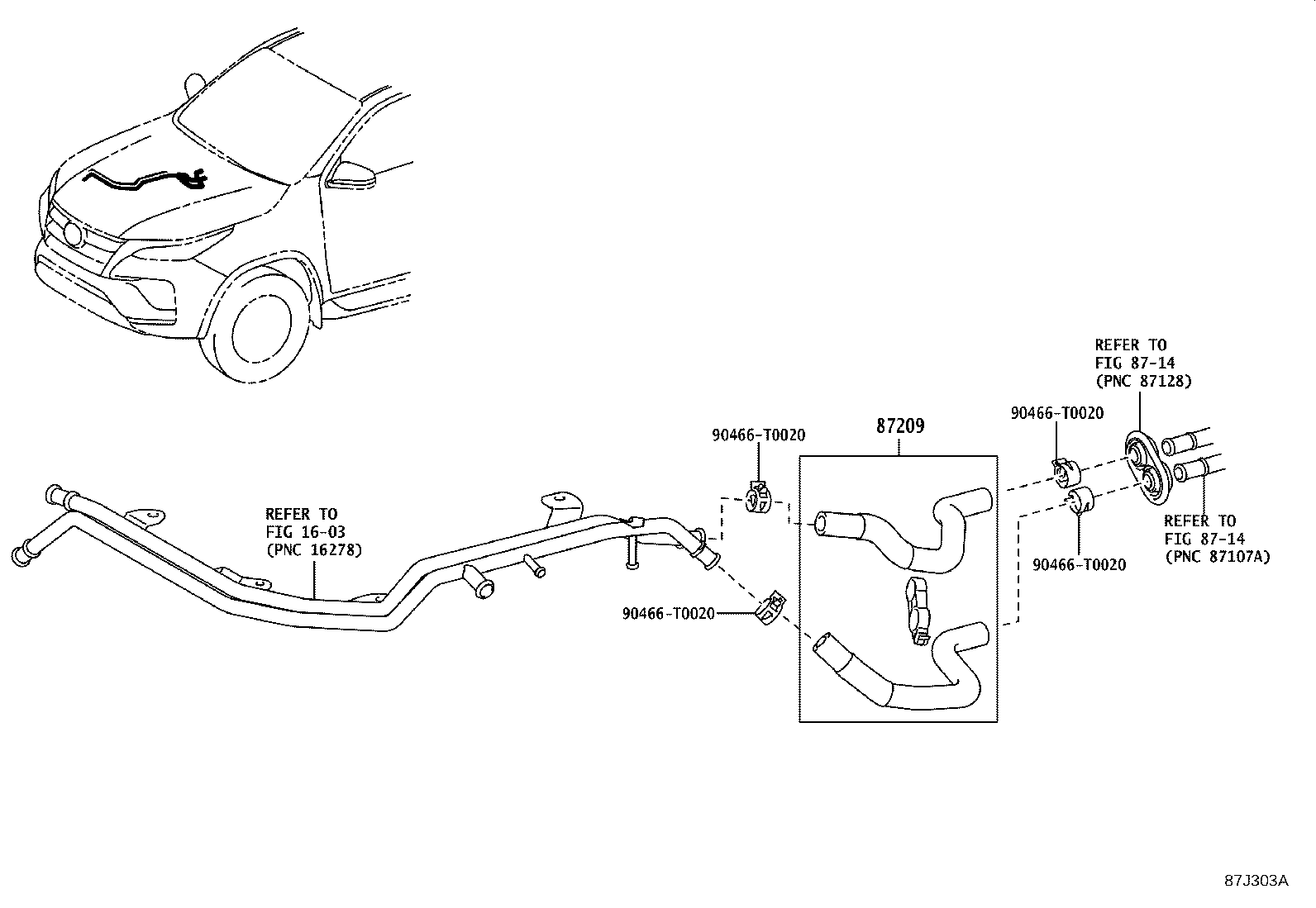

Figure 87J303A

87J303A 2021-02 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124A	Clamp, Heater
87208	Pipe Sub-assy, Heater Water
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
