Toyota Fortuner (SUV)

2021-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,16# · catalogue 6713D0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

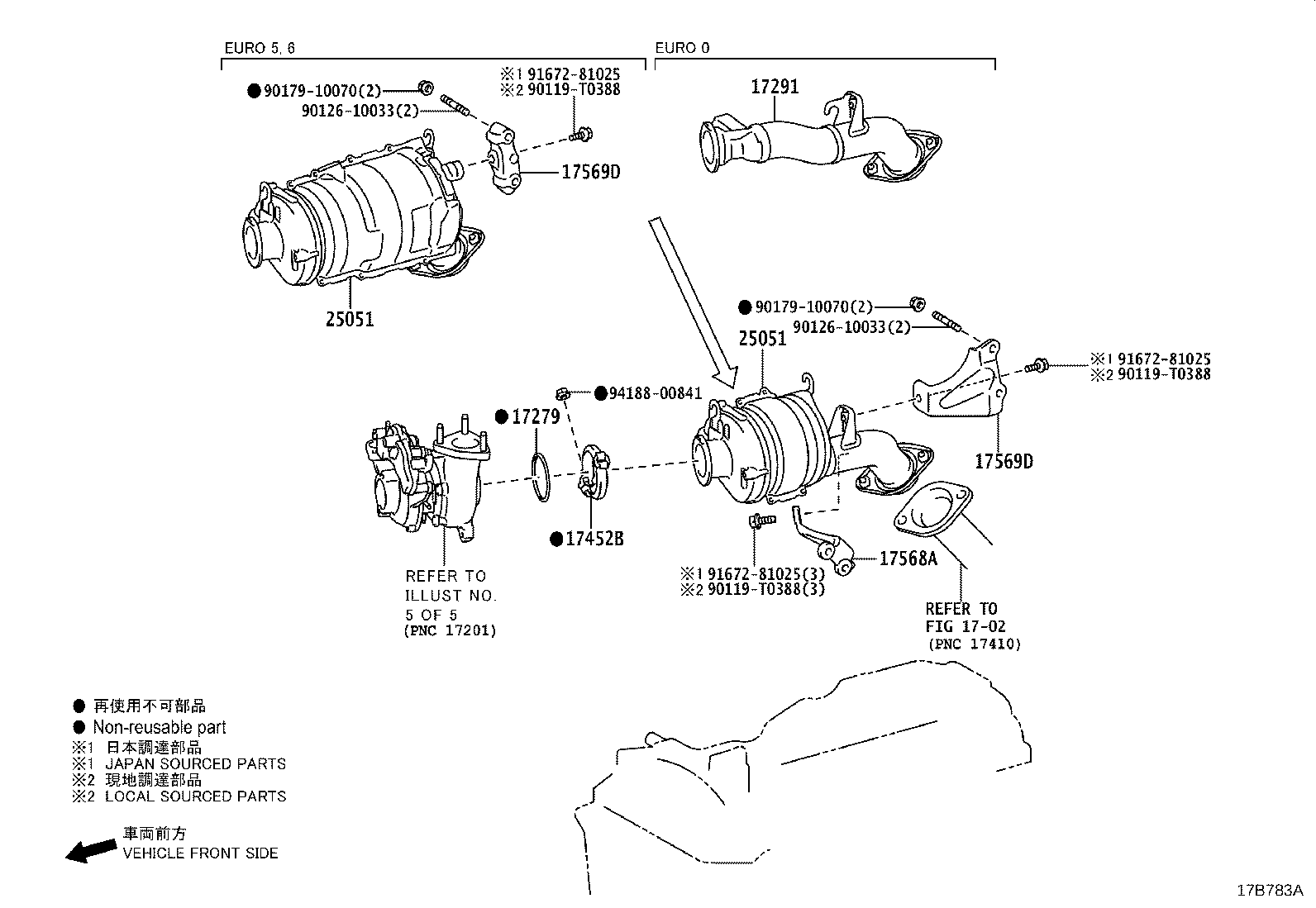

Exploded illustration 17B783A 17279 — GASKET, TURBINE OUTLET ELBOW (6 parts) 17452B — CLAMP, EXHAUST PIPE (7 parts) 25051 — CONVERTER SUB-ASSY, EXHAUST MANIFOLD (23 parts) 17568A — STAY, EXHAUST PIPE SUPPORT (10 parts) 17569D — STAY, EXHAUST PIPE SUPPORT, NO.2 (22 parts) 9012610033 — not listed in this catalogue 9017910070 — not listed in this catalogue 9418800841 — not listed in this catalogue 1702 — not listed in this catalogue 25051 — CONVERTER SUB-ASSY, EXHAUST MANIFOLD (23 parts) 17291 — ELBOW, TURBINE OUTLET (5 parts) 17569D — STAY, EXHAUST PIPE SUPPORT, NO.2 (22 parts) 9012610033 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119T0388 — not listed in this catalogue 9017910070 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119T0388 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119T0388 — not listed in this catalogue
17B783A · 8 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
17279 — Gasket, Turbine Outlet Elbow
17279-11020 Gasket, Turbine Outlet Elbow
2021-08 → 2022-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
17279-11020 Gasket, Turbine Outlet Elbow
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
17279-11020 Gasket, Turbine Outlet Elbow
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17279-11020 Gasket, Turbine Outlet Elbow
2021-08 → 2022-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
17279-11020 Gasket, Turbine Outlet Elbow
2021-08 → 2023-03 ended
1GDFTV,2GDFTV GUN15#,16# PKNP,SAP,VNP —
17279-11020 note Gasket, Turbine Outlet Elbow
2021-11 → 2022-03 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
17291 — Elbow, Turbine Outlet
17291-0E011 Elbow, Turbine Outlet
2021-08 → 2022-07 ended
1GDFTV GUN156 THP GEN —
17291-0E011 Elbow, Turbine Outlet
2021-08 → 2022-08 ended
1GDFTV ) GUN156 (IDNP,MAP) +4 —
17291-0E011 note Elbow, Turbine Outlet
2021-08 → 2022-08 ended
2GDFTV GUN165 LHD GEN —
17291-0E011 note Elbow, Turbine Outlet
2021-11 → 2022-10 ended
2GDFTV GUN165 L LA;1GDFTV +2 —
17291-0E011 Elbow, Turbine Outlet
2021-08 → 2023-03 ended
1GDFTV,2GDFTV GUN15#,16# PKN,SA —
17452B — Clamp, Exhaust Pipe
17452-0E010 note Clamp, Exhaust Pipe
2021-11 → 2022-03 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
17452-0E010 note Clamp, Exhaust Pipe
2021-08 → 2023-03 ended
1GDFTV,2GDFTV GUN15#,16# PKNP,SAP,VNP —
17452-0E010 note Clamp, Exhaust Pipe
2021-08 → 2022-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
17452-0E010 note Clamp, Exhaust Pipe
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17452-0E010 note Clamp, Exhaust Pipe
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
17452-0E010 note Clamp, Exhaust Pipe
2021-08 → 2022-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
17452-11070 note Clamp, Exhaust Pipe
2021-08 → 2022-07 ended
2GDFTV GUN155,165 THP —
17568A — Stay, Exhaust Pipe Support
17568-0E010 note Stay, Exhaust Pipe Support
2021-08 → 2022-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
17568-0E010 note Stay, Exhaust Pipe Support
2021-08 → 2023-03 ended
1GDFTV,2GDFTV GUN15#,16# PKNP,SAP,VNP —
17568-0E010 note Stay, Exhaust Pipe Support
2021-08 → 2022-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
17568-0E010 note Stay, Exhaust Pipe Support
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17568-0E010 note Stay, Exhaust Pipe Support
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
17568-0E020 note Stay, Exhaust Pipe Support
2021-11 → 2022-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 —
17568-0E020 note Stay, Exhaust Pipe Support
2021-11 → 2022-03 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
17568-0E030 note Stay, Exhaust Pipe Support
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17568-0E030 note Stay, Exhaust Pipe Support
2021-08 → 2022-07 ended
1GDFTV GUN156 THP ARL —
17568-11170 note Stay, Exhaust Pipe Support
2021-08 → 2022-07 ended
2GDFTV GUN155,165 THP —
17569D — Stay, Exhaust Pipe Support, NO.2
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2023-03 ended
1GDFTV,2GDFTV GUN15#,16# PKNP,SAP,VNP —
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (GCC,GEN,TH) —
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156 L BZAGT —
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15#,16# (IDNP,MAP) (GCC,GEN,IDN,MA,PH,VN) —
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156 6FC (H,S) +1 —
17569-0E010 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-10 ended
1GDFTV,2GDFTV GUN156,16# LA —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156,166 LA —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156,166 6F LA —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-10 ended
1GDFTV GUN156 BZAGT —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN156,165 IDNP VN —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-08 ended
1GDFTV GUN156 IDNP ARL —
17569-0E020 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-07 ended
1GDFTV GUN156 THP ARL —
17569-0E030 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156,166 6F LA —
17569-0E030 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
1GDFTV GUN156 6F BZAGT —
17569-0E040 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 —
17569-0E040 note Stay, Exhaust Pipe Support, NO.2
2021-11 → 2022-03 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
17569-0E050 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-07 ended
1GDFTV GUN156 THP ARL —
17569-0E050 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-09 ended
1GDFTV GUN156,166 IND —
17569-11121 note Stay, Exhaust Pipe Support, NO.2
2021-08 → 2022-07 ended
2GDFTV GUN155,165 THP —
25051 — Converter Sub-assy, Exhaust Manifold
25051-0E080 note Converter Sub-assy, Exhaust Manifold
2021-11 → 2022-10 ended
1GDFTV GUN156 L BZAGT —
25051-0E080 note Converter Sub-assy, Exhaust Manifold
2021-11 → 2022-10 ended
1GDFTV GUN156 6FC (H,S) +1 —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV GUN156 IDNP (GCC,PH,VN);1GDFTV,2GDFTV +3 —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-10 ended
1GDFTV,2GDFTV GUN156,16# (AGTP,VNP) (LA,VN) —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-11 → 2022-03 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (GCC,TH) —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-07 ended
1GDFTV GUN156 THP GEN —
25051-0E090 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25051-0E190 Converter Sub-assy, Exhaust Manifold
2021-10 → 2022-09 ended
1GDFTV GUN156,166 IND —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-09 ended
1GDFTV GUN156 VNP —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-11 → 2022-10 ended
1GDFTV GUN156,166 LA —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-11 → 2022-10 ended
1GDFTV GUN156,166 6F LA —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-10 ended
1GDFTV GUN156 BZAGT —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV GUN156 RHD GEN —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV GUN156 IDNP VN —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
1GDFTV GUN156 IDNP ARL —
25051-0E200 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-07 ended
1GDFTV GUN156 THP ARL —
25051-0E210 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-09 ended
2GDFTV GUN165 VNP —
25051-0E210 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
2GDFTV GUN155 RHD GEN —
25051-0E210 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-08 ended
2GDFTV GUN165 IDNP VN —
25051-11080 note Converter Sub-assy, Exhaust Manifold
2021-08 → 2022-07 ended
2GDFTV GUN155,165 THP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
