Toyota Fortuner (SUV)

2021-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,16# · catalogue 6713D0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 6 illustrations

Illustrations

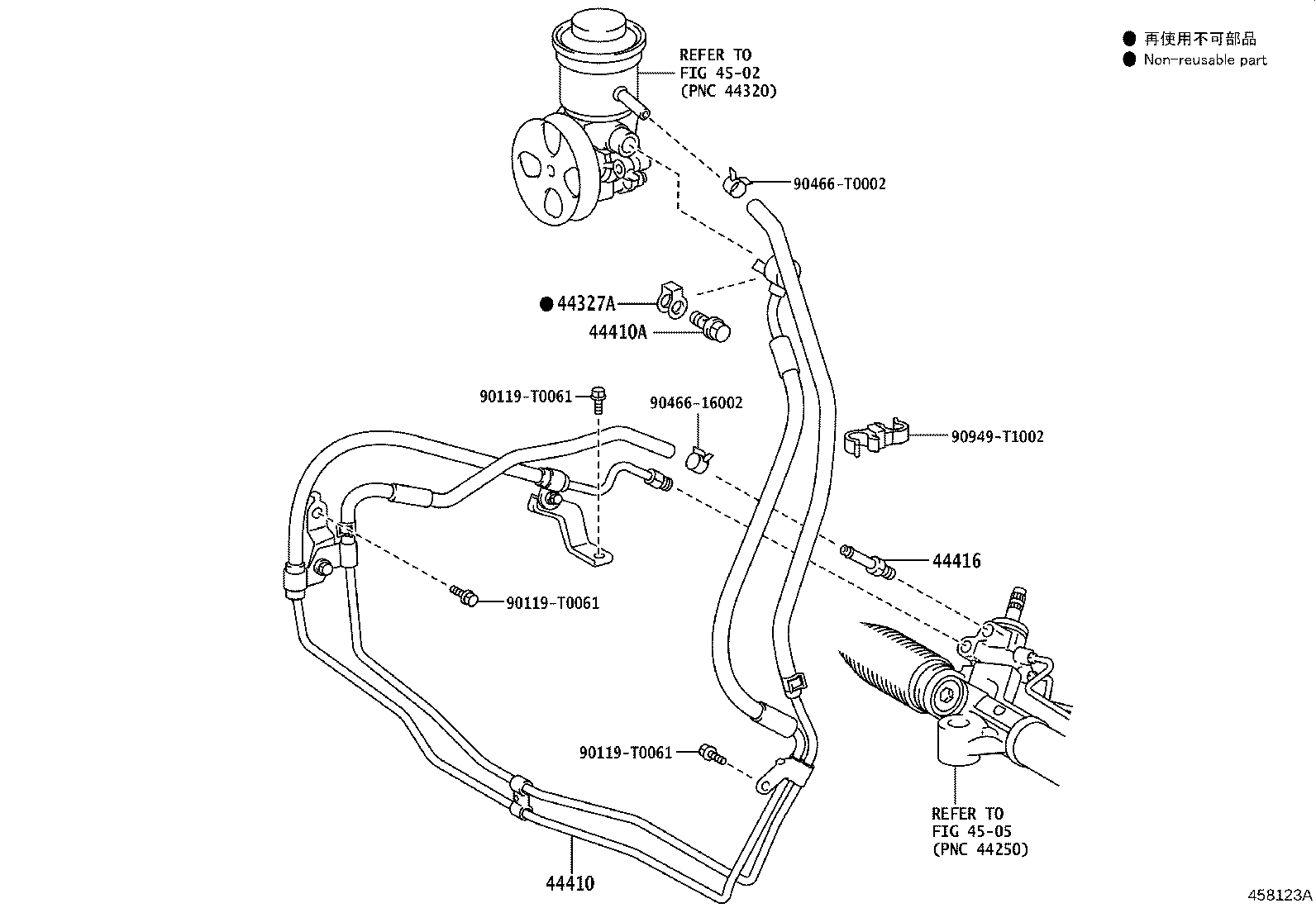

Figure 458119A 458119A 2021-08 → — Figure 458120A 458120A 2021-08 → — Figure 458121A 458121A 2021-08 → — Figure 458122A 458122A 2021-08 → — Figure 458123A 458123A 2021-08 → — Figure 458124A 458124A 2021-09 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
