Toyota Fortuner (SUV)

2021-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,16# · catalogue 6713D0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

15 part groups · 2 illustrations

Illustrations

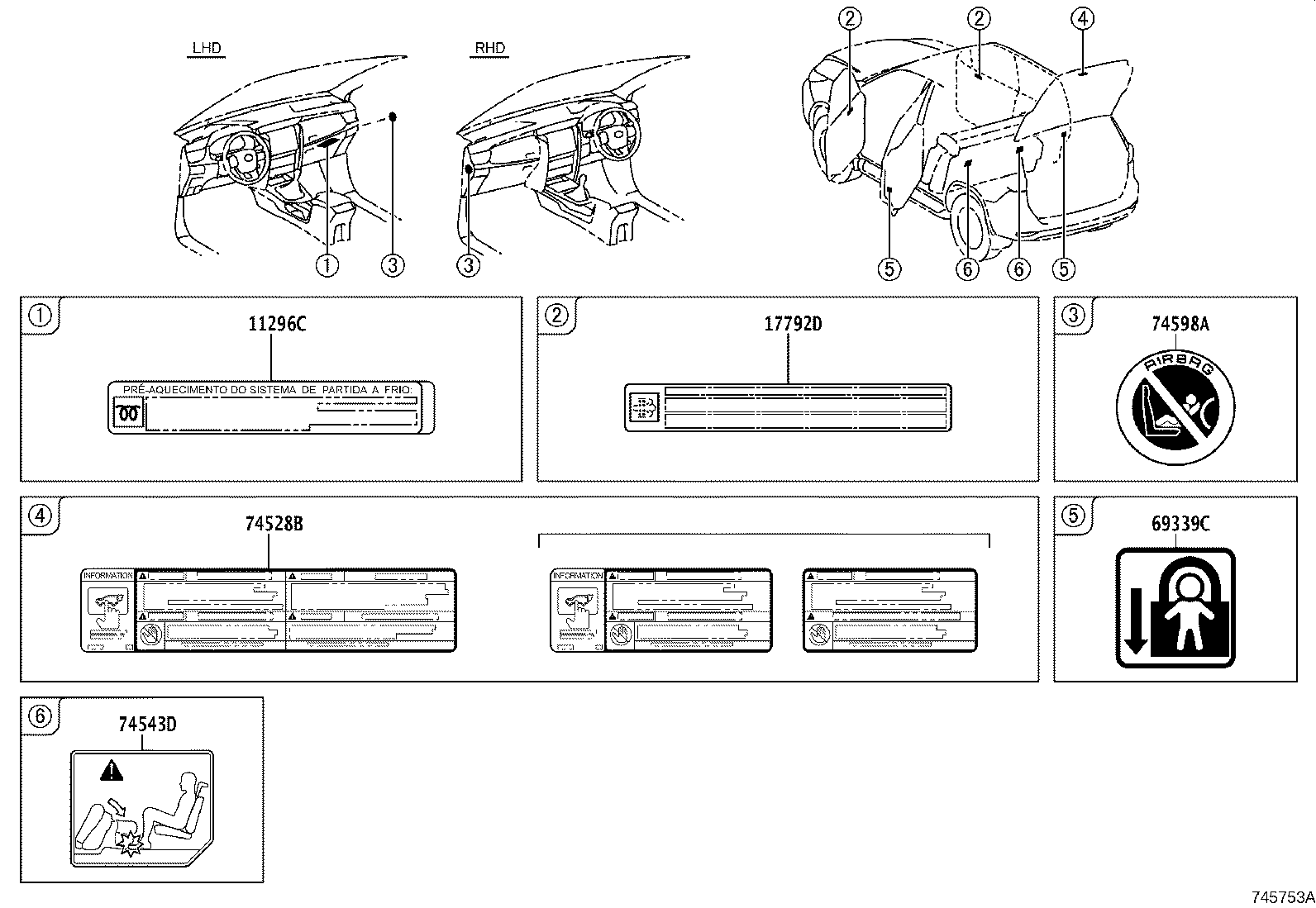

Figure 745739B 745739B 2021-08 → — Figure 745753A 745753A 2021-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
11298B Label, Emission Control Information
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74543D Plate, Rear Seat Caution, NO.1
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
