Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

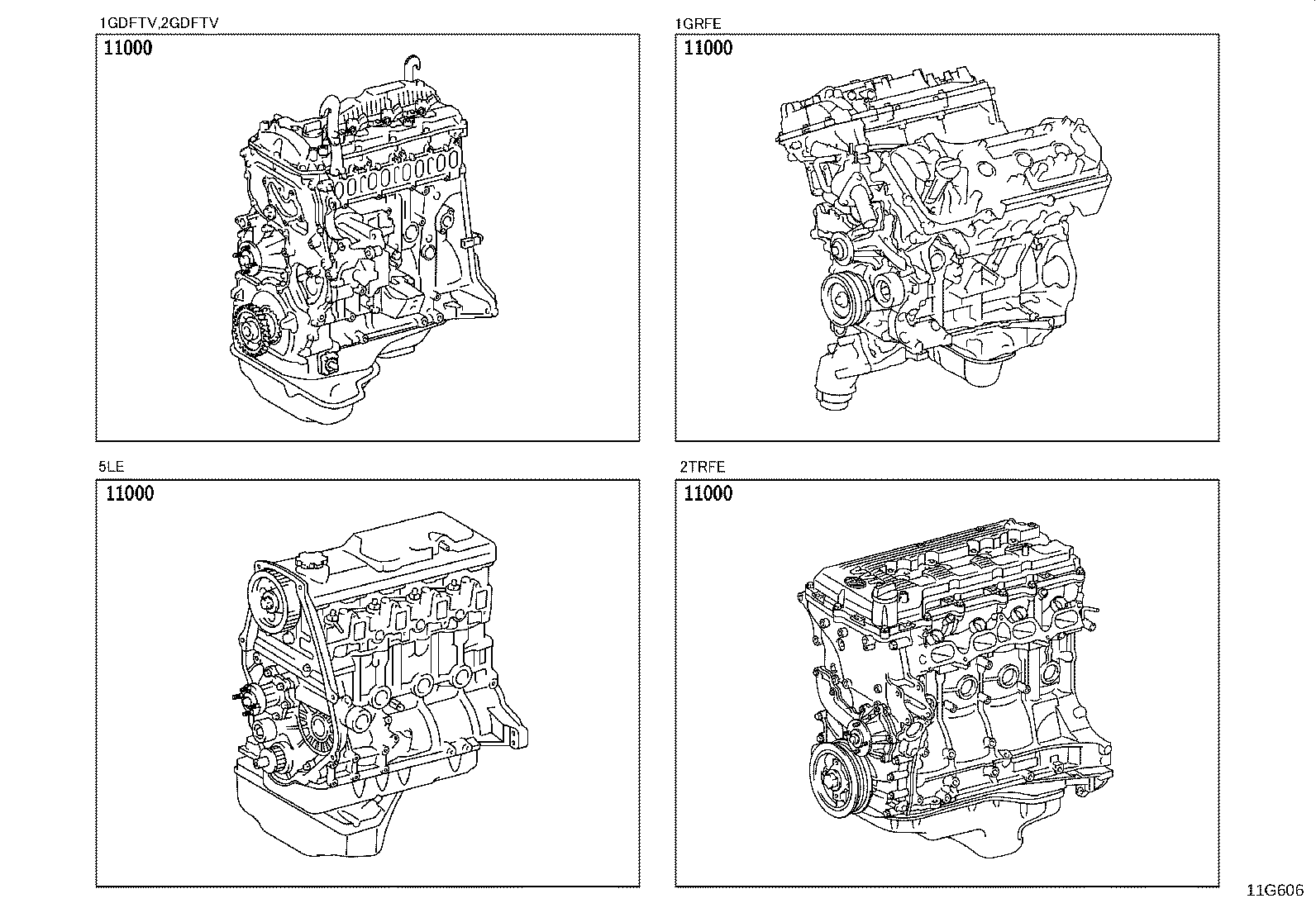

| 11000 — Engine Assy, Partial | ||||
| 19000-0C250 note |
Engine Assy, Partial
2023-02 → —
|
2TRFE TGN156,166 PKN | — | |
| 19000-0C250 |
Engine Assy, Partial
2023-05 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 19000-0C270 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 H GEN | — | |
| 19000-0C270 |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 19000-0C280 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN166 GEN | — | |
| 19000-0C280 |
Engine Assy, Partial
2022-09 → —
|
2TRFE TGN166 S LA;2TRFE +2 | — | |
| 19000-0C280 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN166 GEN | — | |
| 19000-0C290 |
Engine Assy, Partial
2022-11 → 2023-10
ended
|
2TRFE TGN156,166 AGTP 6FC | — | |
| 19000-0C290 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 19000-0C370 |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 H GEN | — | |
| 19000-0C370 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN156 IDNP L +1 | — | |
| 19000-0C430 |
Engine Assy, Partial
2022-08 → 2023-08
ended
|
2TRFE TGN166 GCC,IDN;2TRFE TGN156 +2 | — | |
| 19000-0C430 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN156 H GEN | — | |
| 19000-0C430 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2TRFE TGN156 H GEN | — | |
| 19000-0E300 |
Engine Assy, Partial
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 6FC IND | — | |
| 19000-0E310 |
Engine Assy, Partial
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 6F IND | — | |
| 19000-0E320 note |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
1GDFTV GUN156 (MAP,THP) (GEN,MA) | — | |
| 19000-0E320 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 19000-0E320 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN166 6FC LA | — | |
| 19000-0E320 |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6FC LA | — | |
| 19000-0E330 |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN166 6FC LA;1GDFTV +4 | — | |
| 19000-0E330 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6FC LA | — | |
| 19000-0E350 |
Engine Assy, Partial
2023-02 → 2023-07
ended
|
2GDFTV GUN165 6F IDN | — | |
| 19000-0E350 |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN165 IDNP L +1 | — | |
| 19000-0E350 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN165 VNP L | — | |
| 19000-0E350 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN165 6F IDN | — | |
| 19000-0E370 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6F +1 | — | |
| 19000-0E370 |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156,166 6F LA | — | |
| 19000-0E370 |
Engine Assy, Partial
2022-11 → 2024-03
ended
|
1GDFTV GUN156 6F KEN | — | |
| 19000-0E410 |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN165 VNP L;2GDFTV +3 | — | |
| 19000-0E440 |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 19000-0E450 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F LA | — | |
| 19000-0E450 |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
1GDFTV GUN156 6F SA | — | |
| 19000-0E480 |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 19000-0E480 |
Engine Assy, Partial
2022-09 → —
|
1GDFTV GUN156,166 RHD 6FC +1 | — | |
| 19000-0E490 |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
1GDFTV GUN156 VNP;1GDFTV GUN156,166 +1 | — | |
| 19000-0E560 note |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
2GDFTV GUN155 GCC | — | |
| 19000-0E560 |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN165 IDNP S +1 | — | |
| 19000-0E560 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN165 VNP 6FC | — | |
| 19000-0E560 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 19000-0E560 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
2GDFTV GUN165 LA | — | |
| 19000-0E580 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 19000-0E580 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 19000-0E580 |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN165 6F IDN | — | |
| 19000-0E590 |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN155,165 6FC IDN | — | |
| 19000-0E590 |
Engine Assy, Partial
2022-09 → 2024-01
ended
|
2GDFTV GUN155 S SA;2GDFTV +4 | — | |
| 19000-0E590 note |
Engine Assy, Partial
2022-11 → 2023-10
ended
|
2GDFTV GUN165 L LA | — | |
| 19000-0E600 |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
2GDFTV 2GDFTV GUN155 GUN165 +12 | — | |
| 19000-0E620 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
2GDFTV GUN165 LA | — | |
| 19000-0E650 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6FC +1 | — | |
| 19000-0E650 |
Engine Assy, Partial
2022-08 → 2024-01
ended
|
1GDFTV GUN156 GEN;1GDFTV GUN156 +3 | — | |
| 19000-0E650 note |
Engine Assy, Partial
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA | — | |
| 19000-0E670 |
Engine Assy, Partial
2023-06 → 2024-03
ended
|
1GDFTV GUN156 6FC KEN | — | |
| 19000-0E670 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6FC +1 | — | |
| 19000-0E680 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F LA | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-08 → 2023-08
ended
|
2GDFTV GUN155 S GCC | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN155 S IDN | — | |
| 19000-0E730 note |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
2GDFTV GUN155 L SA | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2GDFTV GUN155 MA | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-09 → 2023-08
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
2GDFTV GUN165 LA | — | |
| 19000-0E730 |
Engine Assy, Partial
2023-02 → 2024-03
ended
|
2GDFTV GUN155,165 6FC (IDN,KEN) | — | |
| 19000-0E730 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN155,165 6FC IDN | — | |
| 19000-0E750 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156,166 6FC LA | — | |
| 19000-0E750 |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
1GDFTV GUN156 L BZAGT;1GDFTV +3 | — | |
| 19000-0E750 note |
Engine Assy, Partial
2022-08 → 2023-07
ended
|
1GDFTV GUN156 GCC | — | |
| 19000-0E750 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
1GDFTV GUN156 VNP | — | |
| 19000-0E750 note |
Engine Assy, Partial
2022-09 → 2023-07
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 19000-0E750 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6FC H +1 | — | |
| 19000-0E770 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
2GDFTV GUN155 S IDN | — | |
| 19000-0E780 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 19000-0E790 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 19000-0E790 note |
Engine Assy, Partial
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 19000-0E790 |
Engine Assy, Partial
2023-02 → 2023-07
ended
|
1GDFTV GUN156,166 IDN | — | |
| 19000-0E800 note |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F LA | — | |
| 19000-0E800 |
Engine Assy, Partial
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F BZAGT | — | |
| 19000-0EA40 |
Engine Assy, Partial
2024-06 → —
|
1GDFTV GUN156 TH | — | |
| 19000-31L11 |
Engine Assy, Partial
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 19000-54A40 |
Engine Assy, Partial
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
