Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

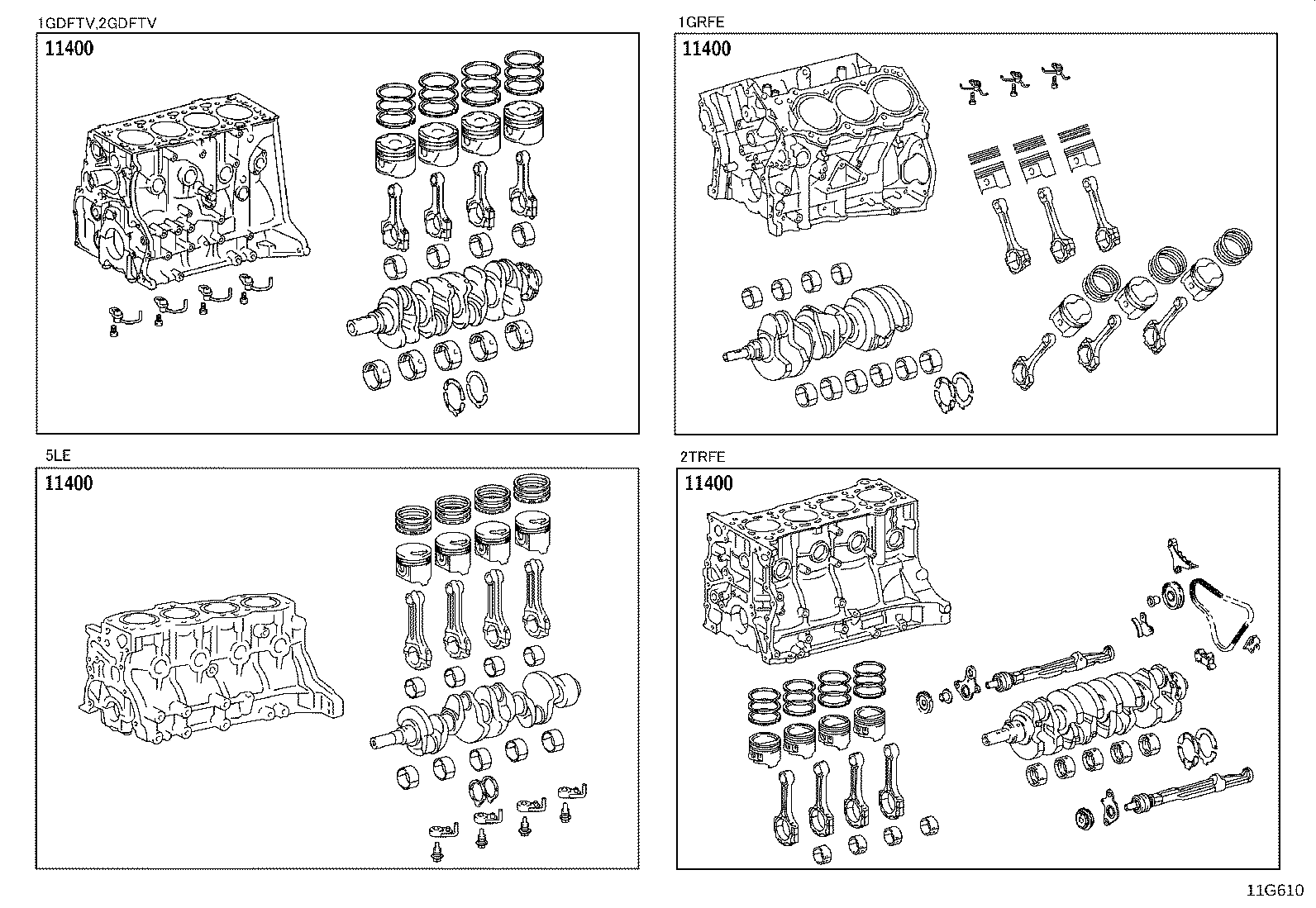

| 11400 — Block Assy, Short | ||||
| 11400-0C230 |
Block Assy, Short
2022-08 → —
|
2TRFE TGN156,166 | — | |
| 11400-0E150 |
Block Assy, Short
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 6FC IND | — | |
| 11400-0E160 |
Block Assy, Short
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 6F IND | — | |
| 11400-0E170 note |
Block Assy, Short
2022-09 → 2023-07
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 11400-0E170 note |
Block Assy, Short
2022-09 → 2023-07
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 11400-0E170 note |
Block Assy, Short
2022-09 → 2023-07
ended
|
1GDFTV GUN156 VNP | — | |
| 11400-0E170 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6FC H +1 | — | |
| 11400-0E170 |
Block Assy, Short
2022-08 → 2023-07
ended
|
1GDFTV GUN156 L BZAGT;1GDFTV +4 | — | |
| 11400-0E170 note |
Block Assy, Short
2022-08 → 2023-07
ended
|
1GDFTV GUN156 GCC | — | |
| 11400-0E170 note |
Block Assy, Short
2022-08 → 2023-07
ended
|
1GDFTV GUN156 (MAP,THP) (GEN,MA) | — | |
| 11400-0E170 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN166 6FC LA | — | |
| 11400-0E170 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN166 6FC LA | — | |
| 11400-0E180 |
Block Assy, Short
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11400-0E180 |
Block Assy, Short
2022-09 → 2023-07
ended
|
1GDFTV GUN166 6FC LA;1GDFTV +4 | — | |
| 11400-0E180 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6FC LA | — | |
| 11400-0E180 |
Block Assy, Short
2022-09 → —
|
1GDFTV GUN156,166 RHD 6FC +1 | — | |
| 11400-0E190 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
2GDFTV GUN165 LA | — | |
| 11400-0E190 |
Block Assy, Short
2023-02 → 2023-07
ended
|
2GDFTV GUN165 6F IDN | — | |
| 11400-0E190 |
Block Assy, Short
2022-09 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 11400-0E190 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
2GDFTV GUN165 6F IDN | — | |
| 11400-0E190 note |
Block Assy, Short
2022-09 → 2023-07
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 11400-0E190 |
Block Assy, Short
2022-09 → 2023-07
ended
|
2GDFTV GUN165 IDNP VN | — | |
| 11400-0E190 note |
Block Assy, Short
2022-09 → 2023-07
ended
|
2GDFTV GUN165 VNP | — | |
| 11400-0E190 note |
Block Assy, Short
2022-08 → 2023-07
ended
|
2GDFTV GUN155 GCC | — | |
| 11400-0E200 |
Block Assy, Short
2022-11 → 2024-03
ended
|
1GDFTV GUN156 KEN | — | |
| 11400-0E200 |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN156,166 6F LA | — | |
| 11400-0E200 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6F +1 | — | |
| 11400-0E200 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6FC +1 | — | |
| 11400-0E210 |
Block Assy, Short
2022-09 → 2023-02
ended
|
2GDFTV GUN155,165 IDN | — | |
| 11400-0E210 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 11400-0E210 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
2GDFTV GUN165 6F SA | — | |
| 11400-0E210 |
Block Assy, Short
2022-09 → 2024-01
ended
|
2GDFTV GUN155 S SA;2GDFTV +4 | — | |
| 11400-0E210 note |
Block Assy, Short
2022-11 → 2023-10
ended
|
2GDFTV GUN165 L LA | — | |
| 11400-0E220 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6FC +1 | — | |
| 11400-0E220 |
Block Assy, Short
2022-08 → 2023-07
ended
|
1GDFTV GUN156 6F BZAGT | — | |
| 11400-0E220 note |
Block Assy, Short
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA | — | |
| 11400-0E220 |
Block Assy, Short
2022-08 → 2024-01
ended
|
1GDFTV GUN156 GEN;1GDFTV GUN156 +6 | — | |
| 11400-0E220 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F LA | — | |
| 11400-0E220 note |
Block Assy, Short
2022-11 → 2023-07
ended
|
1GDFTV GUN156 6F LA | — | |
| 11400-0E230 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
2GDFTV GUN155,165 6FC IDN | — | |
| 11400-0E230 |
Block Assy, Short
2022-08 → 2024-03
ended
|
2GDFTV GUN155,165 KENP,THP | — | |
| 11400-0E230 note |
Block Assy, Short
2023-01 → 2024-01
ended
|
2GDFTV GUN155 L SA | — | |
| 11400-0E230 |
Block Assy, Short
2022-08 → 2023-07
ended
|
2GDFTV GUN165 AGTP,VNP;2GDFTV GUN155,165 +3 | — | |
| 11400-0E230 |
Block Assy, Short
2023-02 → 2024-03
ended
|
2GDFTV GUN155,165 6FC IDN | — | |
| 11400-0E230 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
2GDFTV GUN155 S IDN | — | |
| 11400-0E230 note |
Block Assy, Short
2022-09 → 2023-08
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 11400-0E230 note |
Block Assy, Short
2023-07 → 2023-08
ended
|
2GDFTV GUN155 S GCC | — | |
| 11400-0E230 note |
Block Assy, Short
2022-09 → 2023-08
ended
|
2GDFTV GUN155 MA | — | |
| 11400-0E250 |
Block Assy, Short
2022-08 → 2023-07
ended
|
1GDFTV GUN156 VNP;1GDFTV GUN156,166 +2 | — | |
| 11400-0E250 |
Block Assy, Short
2022-08 → —
|
1GDFTV GUN156,166 (PKNP,THP) (GCC,TH) | — | |
| 11400-0E250 |
Block Assy, Short
2023-02 → 2023-07
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11400-0E250 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11400-0E250 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11400-0E280 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
2GDFTV GUN155 S IDN | — | |
| 11400-0E290 note |
Block Assy, Short
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11400-39135 |
Block Assy, Short
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 11400-54190 |
Block Assy, Short
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
