Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

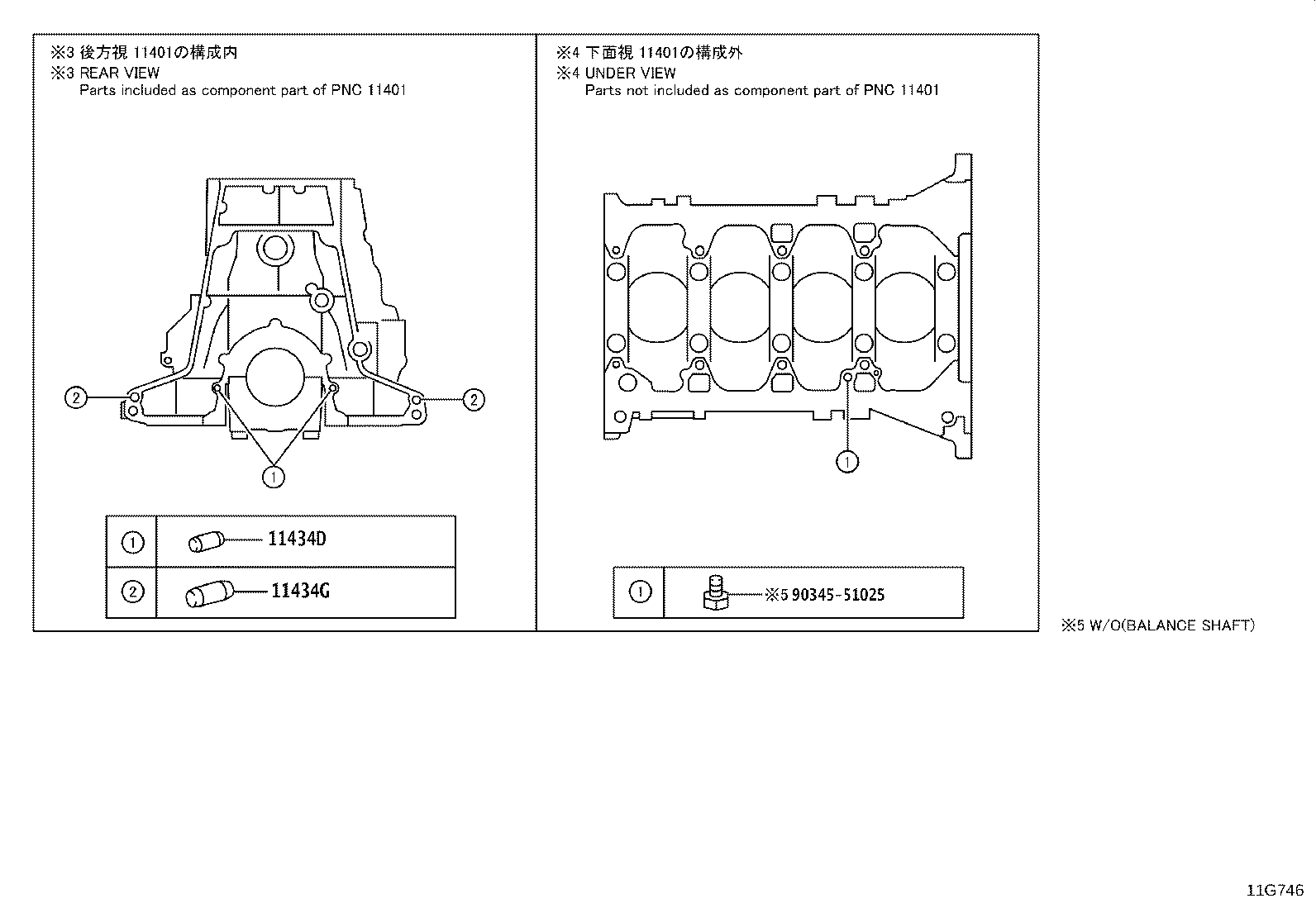

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 90250-06068 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 90250-06068 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,16# INDP,VNP | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
| 90250-T0012 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → —
|
2TRFE TGN156,166 PKN | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90250-T0017 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → —
|
2TRFE TGN156,166 PKN | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90250-T0030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90253-11021 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2023-01 → —
|
5LE LAN155 | — | |
| 11434G — Pin, Straight(FOR END PLATE) | ||||
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2022-08 → —
|
1GRFE GGN155 EPT | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 90250-10192 |
Pin, Straight(FOR END PLATE)
2023-01 → —
|
5LE LAN155 | — | |
| 90250-10192 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 90250-10192 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 90250-10192 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,16# INDP,VNP | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 90250-T0008 note |
Pin, Straight(FOR END PLATE)
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
