Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

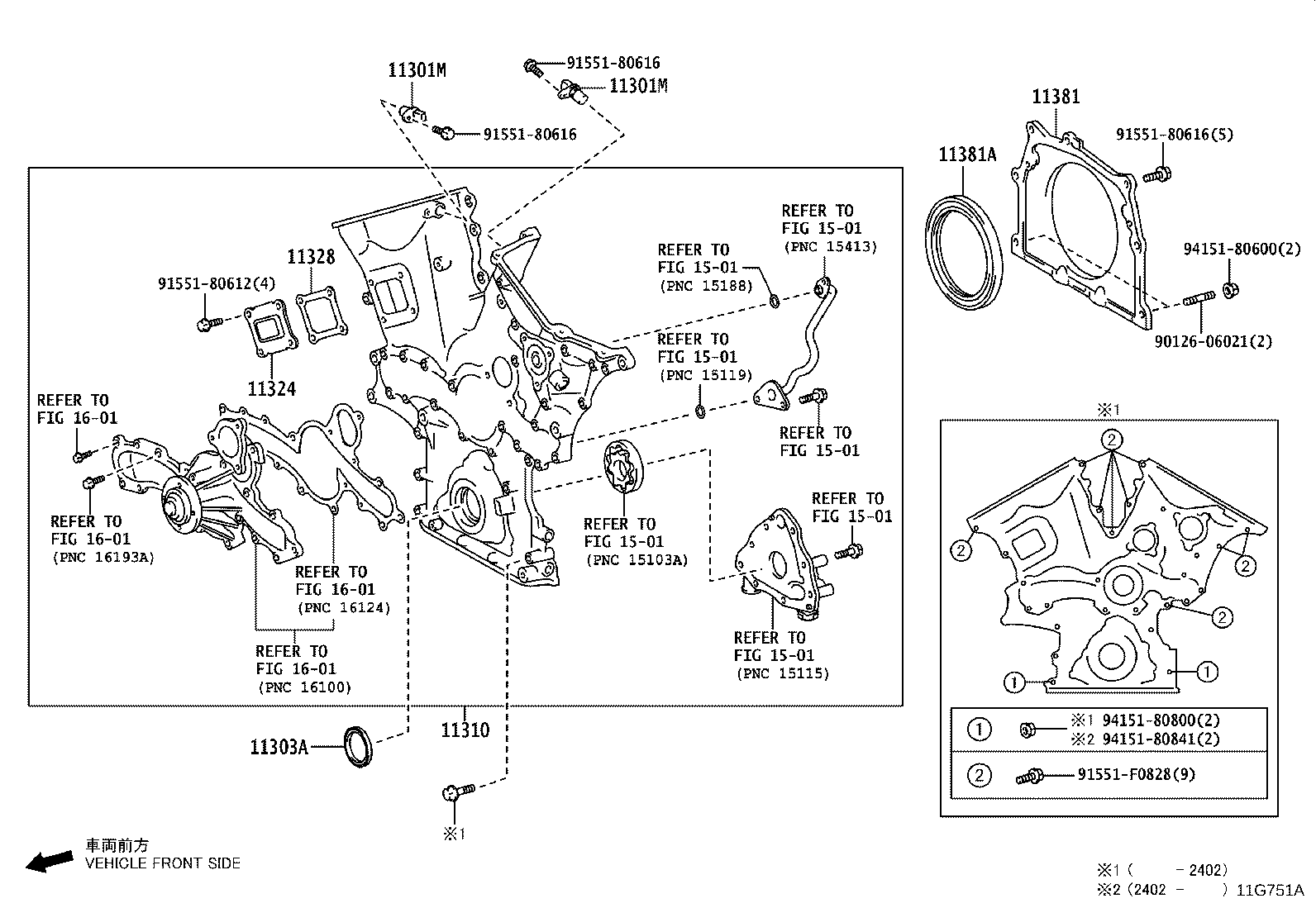

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301M — Sensor, Cam Position | ||||
| 90919-05060 |
Sensor, Cam Position
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 90919-05060 |
Sensor, Cam Position
2022-08 → —
|
1GRFE GGN155 EPT | — | |
| 90919-05060 |
Sensor, Cam Position
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 90919-05060 |
Sensor, Cam Position
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90919-05061 note |
Sensor, Cam Position
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 90919-05073 note |
Sensor, Cam Position
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90919-T5001 note |
Sensor, Cam Position
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 11303A — Seal, Oil(FOR CRANKSHAFT FRONT) | ||||
| 90311-42031 |
Seal, Oil(FOR CRANKSHAFT FRONT)
2023-01 → —
|
5LE LAN155 | — | |
| 90311-42048 |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 90311-50051 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 90311-50051 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 90311-50051 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 90311-T0054 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → —
|
1GDFTV,2GDFTV GUN15#,16# | — | |
| 90311-T0054 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → —
|
2TRFE TGN156,166 PKN | — | |
| 90311-T0099 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-09 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90311-T0100 note |
Seal, Oil(FOR CRANKSHAFT FRONT)
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 11310 — Cover Assy, Timing Chain | ||||
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 11310-0C040 |
Cover Assy, Timing Chain
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 11310-0E010 note |
Cover Assy, Timing Chain
2023-01 → 2024-01
ended
|
1GDFTV GUN156 RHD 6FC +1 | — | |
| 11310-0E010 note |
Cover Assy, Timing Chain
2022-08 → 2024-01
ended
|
1GDFTV FTV GUN156 GUN155,165 +10 | — | |
| 11310-0E010 note |
Cover Assy, Timing Chain
2022-08 → 2023-02
ended
|
2GDFTV GUN155,165 IDN | — | |
| 11310-0E010 note |
Cover Assy, Timing Chain
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA;2GDFTV +6 | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-08 → 2025-04
ended
|
2GDFTV H,TH,VN GUN155,165 LHD +3 | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15# RHD 6FC +1 | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-08 → 2024-01
ended
|
1GDFTV GUN156 RHD 6F +4 | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-08 → 2023-02
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-09 → 2023-08
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-09 → 2023-08
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-09 → 2023-08
ended
|
1GDFTV GUN156 RHD GEN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-09 → 2023-08
ended
|
2GDFTV GUN155 RHD GEN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2023-02 → 2025-04
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 11310-0E040 note |
Cover Assy, Timing Chain
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 11310-0E050 note |
Cover Assy, Timing Chain
2022-08 → 2023-09
ended
|
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) | — | |
| 11310-11041 note |
Cover Assy, Timing Chain
2022-09 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 11310-11041 note |
Cover Assy, Timing Chain
2022-09 → 2024-06
ended
|
1GDFTV GUN156,166 RHD 6FC +1 | — | |
| 11310-11050 note |
Cover Assy, Timing Chain
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 11310-11050 note |
Cover Assy, Timing Chain
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 11310-11050 note |
Cover Assy, Timing Chain
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 11310-31014 |
Cover Assy, Timing Chain
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 11310-35120 note |
Cover Assy, Timing Chain
2024-07 → 2025-04
ended
|
1GDFTV GUN156 PKN | — | |
| 11324 — Plate, Timing Chain Cover | ||||
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 11324-0C010 |
Plate, Timing Chain Cover
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 11324-0E010 note |
Plate, Timing Chain Cover
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 11324-0E010 note |
Plate, Timing Chain Cover
2022-08 → —
|
1GDFTV,2GDFTV GUN15#,16# AGTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP | — | |
| 11324-0E020 note |
Plate, Timing Chain Cover
2022-08 → 2023-09
ended
|
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) | — | |
| 11324-11010 note |
Plate, Timing Chain Cover
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 11324-11010 note |
Plate, Timing Chain Cover
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 11324-11010 note |
Plate, Timing Chain Cover
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 11324-31020 |
Plate, Timing Chain Cover
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-05010 note |
Gasket, Timing Gear OR Chain Cover
2023-01 → —
|
5LE LAN155 | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 11328-0C010 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 11328-0E010 note |
Gasket, Timing Gear OR Chain Cover
2022-08 → —
|
1GDFTV,2GDFTV GUN15#,16# AGTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP | — | |
| 11328-0E020 note |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-09
ended
|
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) | — | |
| 11328-11070 note |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 11328-11070 note |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 11328-11070 note |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 11328-31030 |
Gasket, Timing Gear OR Chain Cover
2022-08 → 2024-03
ended
|
1GRFE GGN155 | — | |
| 11328-54021 note |
Gasket, Timing Gear OR Chain Cover
2023-01 → —
|
5LE LAN155 | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → —
|
2TRFE TGN156,166 PKN | — | |
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 11381-0C012 note |
Retainer, Engine Rear Oil Seal
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 11381-0C022 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,16# INDP,VNP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 11381-0E010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 11381-0E030 note |
Retainer, Engine Rear Oil Seal
2022-11 → 2023-10
ended
|
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 | — | |
| 11381-0E040 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP ARL | — | |
| 11381-0E040 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 11381-11010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 11381-11010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 11381-11010 note |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 11381-31010 |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 11381-31010 |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 11381-31010 |
Retainer, Engine Rear Oil Seal
2022-08 → —
|
1GRFE GGN155 EPT | — | |
| 11381-31010 |
Retainer, Engine Rear Oil Seal
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 11381-54030 |
Retainer, Engine Rear Oil Seal
2023-01 → —
|
5LE LAN155 | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-85011 |
Seal, Engine Rear Oil
2023-01 → —
|
5LE LAN155 | — | |
| 90311-95015 note |
Seal, Engine Rear Oil
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP S | — | |
| 90311-95015 note |
Seal, Engine Rear Oil
2022-08 → 2023-07
ended
|
2GDFTV GUN155,165 THP | — | |
| 90311-95015 note |
Seal, Engine Rear Oil
2022-08 → 2023-05
ended
|
2GDFTV GUN155 THP GCC | — | |
| 90311-99010 |
Seal, Engine Rear Oil
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 90311-99010 |
Seal, Engine Rear Oil
2022-08 → —
|
1GRFE GGN155 EPT | — | |
| 90311-99010 |
Seal, Engine Rear Oil
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 90311-99010 |
Seal, Engine Rear Oil
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,16# INDP,VNP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
| 90311-T0046 note |
Seal, Engine Rear Oil
2022-11 → 2023-05
ended
|
2GDFTV GUN165 L LA;1GDFTV +3 | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90311-T0058 note |
Seal, Engine Rear Oil
2022-09 → —
|
2TRFE TGN156,166 PKN | — | |
| 90311-T0098 note |
Seal, Engine Rear Oil
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
