Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

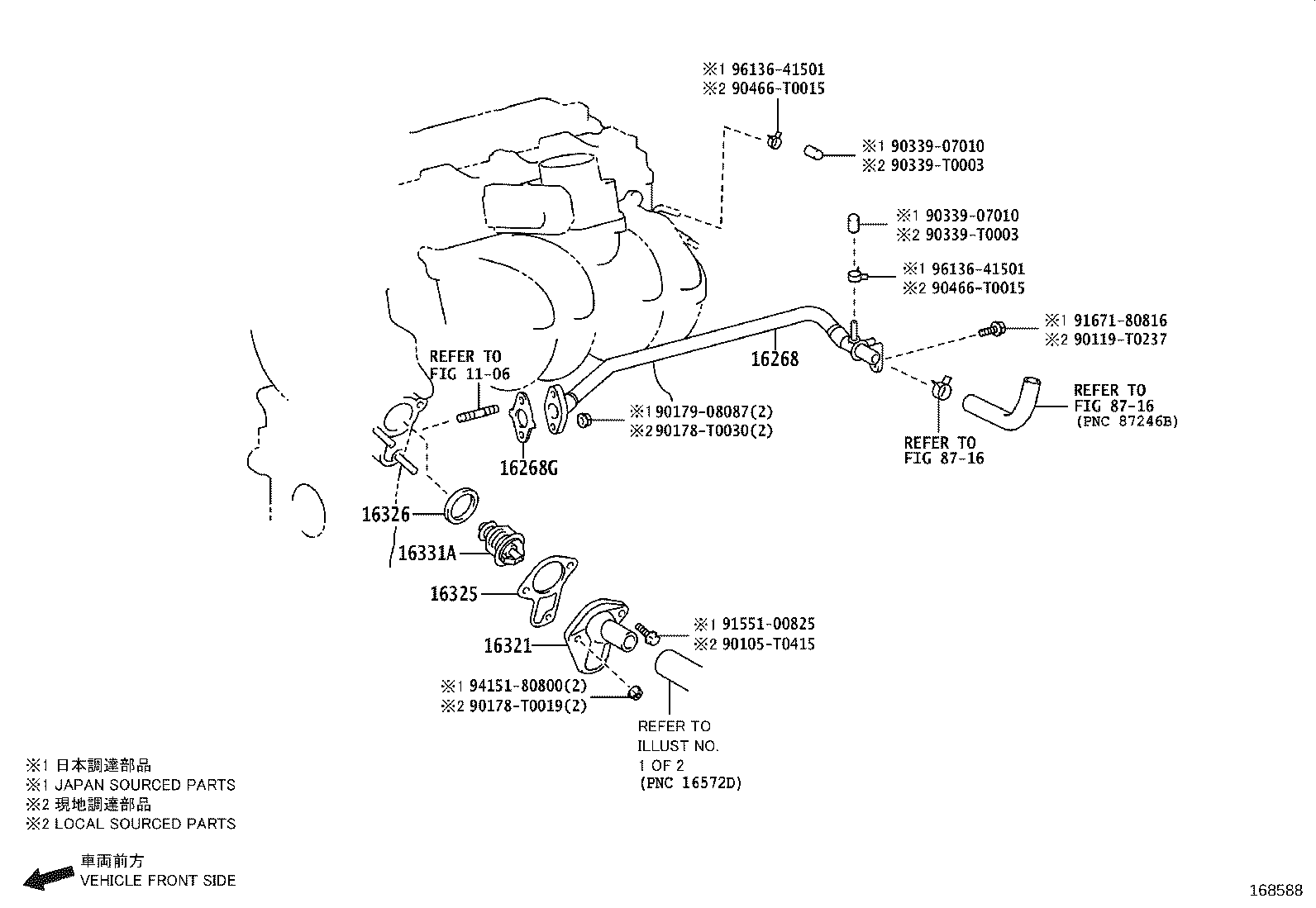

Exploded illustration 168588 16268 — PIPE, WATER BY-PASS, NO.1 (24 parts) 16321 — INLET, WATER (12 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (18 parts) 16331A — THERMOSTAT (9 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (18 parts) 1106 — not listed in this catalogue 16268G — GASKET(FOR WATER BY-PASS PIPE) (14 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 90119T0237 — not listed in this catalogue 9167180816 — not listed in this catalogue 9017908087 — not listed in this catalogue 90105T0415 — not listed in this catalogue 9155100825 — not listed in this catalogue 90178T0019 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178T0030 — not listed in this catalogue 90466T0015 — not listed in this catalogue 9613641501 — not listed in this catalogue 90466T0015 — not listed in this catalogue 9613641501 — not listed in this catalogue 90339T0003 — not listed in this catalogue 9033907010 — not listed in this catalogue 90339T0003 — not listed in this catalogue 9033907010 — not listed in this catalogue
168588 · 6 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
16268 — Pipe, Water By-pass, NO.1
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → —
2TRFE TGN156,166 PKN —
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16268-0C021 note Pipe, Water By-pass, NO.1
2022-08 → 2023-10 ended
2TRFE TGN166 S LA —
16268-0C030 note Pipe, Water By-pass, NO.1
2022-09 → 2023-08 ended
2TRFE TGN156,166 H GEN —
16268-0C030 note Pipe, Water By-pass, NO.1
2022-11 → 2024-01 ended
2TRFE TGN156 SA —
16268-0C030 note Pipe, Water By-pass, NO.1
2022-11 → 2023-10 ended
2TRFE TGN156,166 AGTP 6FC —
16268-0E060 note Pipe, Water By-pass, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) —
16268-0E080 note Pipe, Water By-pass, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
16268-0E080 note Pipe, Water By-pass, NO.1
2022-08 → —
1GDFTV,2GDFTV GUN15#,16# AGTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP —
16268-11090 note Pipe, Water By-pass, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16268-11090 note Pipe, Water By-pass, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16268-11090 note Pipe, Water By-pass, NO.1
2022-08 → —
1GDFTV,2GDFTV GUN15#,16# —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → 2023-10 ended
2TRFE TGN166 S LA —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16268-75131 note Pipe, Water By-pass, NO.1
2022-08 → —
2TRFE TGN156,166 PKN —
16268-75141 note Pipe, Water By-pass, NO.1
2022-11 → 2024-01 ended
2TRFE TGN156 SA —
16268-75141 note Pipe, Water By-pass, NO.1
2022-09 → 2023-08 ended
2TRFE TGN156,166 H GEN —
16268-75141 note Pipe, Water By-pass, NO.1
2022-11 → 2023-10 ended
2TRFE TGN156,166 AGTP 6FC —
16268G — Gasket(FOR WATER BY-PASS PIPE)
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → —
2TRFE TGN156,166 PKN —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16258-0C010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16258-75021 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → —
2TRFE TGN156,166 PKN —
16321 — Inlet, Water
16321-0C010 note Inlet, Water
2022-09 → —
2TRFE TGN156,166 PKN —
16321-0C010 note Inlet, Water
2022-09 → 2024-03 ended
2TRFE TGN166 EPT —
16321-0C010 note Inlet, Water
2022-09 → 2024-01 ended
2TRFE TGN156 SA —
16321-0C010 note Inlet, Water
2022-09 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16321-0C010 note Inlet, Water
2022-09 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16321-0C010 note Inlet, Water
2022-09 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16321-0C020 note Inlet, Water
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16321-0E010 note Inlet, Water
2022-08 → —
1GDFTV,2GDFTV GUN15#,16# AGTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP —
16321-0E020 note Inlet, Water
2022-08 → 2023-09 ended
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) —
16321-0E030 Inlet, Water
2022-11 → 2023-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 —
16321-0E030 note Inlet, Water
2022-11 → 2023-10 ended
1GDFTV GUN156,166 6FC LA —
16321-11050 note Inlet, Water
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16325 — Gasket, Water Inlet Housing, NO.1
16325-0C021 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → —
2TRFE TGN156,166 PKN —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → 2024-03 ended
2TRFE TGN166 EPT —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → 2024-01 ended
2TRFE TGN156 SA —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16325-0C040 note Gasket, Water Inlet Housing, NO.1
2022-09 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16325-31010 Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
16325-31010 Gasket, Water Inlet Housing, NO.1
2022-08 → —
1GRFE GGN155 EPT —
16325-31010 Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
16325-31010 Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → —
2TRFE TGN156,166 PKN —
16325-75011 note Gasket, Water Inlet Housing, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16326 — Gasket, Water Inlet Housing, NO.2
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → —
2TRFE TGN156,166 PKN —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16325-0C030 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16325-0H020 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → —
2TRFE TGN156,166 PKN —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
16325-76010 note Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
16326-31020 Gasket, Water Inlet Housing, NO.2
2022-08 → 2023-07 ended
1GRFE GGN155 —
16326-31050 Gasket, Water Inlet Housing, NO.2
2023-08 → 2023-10 ended
1GRFE GGN155 LA —
16326-31050 Gasket, Water Inlet Housing, NO.2
2023-08 → —
1GRFE GGN155 EPT —
16331A — Thermostat
16340-54040 note Thermostat
2023-01 → —
5LE LAN155 —
90916-03118 note Thermostat
2022-08 → —
1GDFTV,2GDFTV GUN15#,16# —
90916-03129 note Thermostat
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
90916-03129 note Thermostat
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
90916-03129 note Thermostat
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
90916-03129 note Thermostat
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
90916-03129 note Thermostat
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
90916-03129 note Thermostat
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
90916-03129 note Thermostat
2022-08 → —
2TRFE TGN156,166 PKN —
