Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

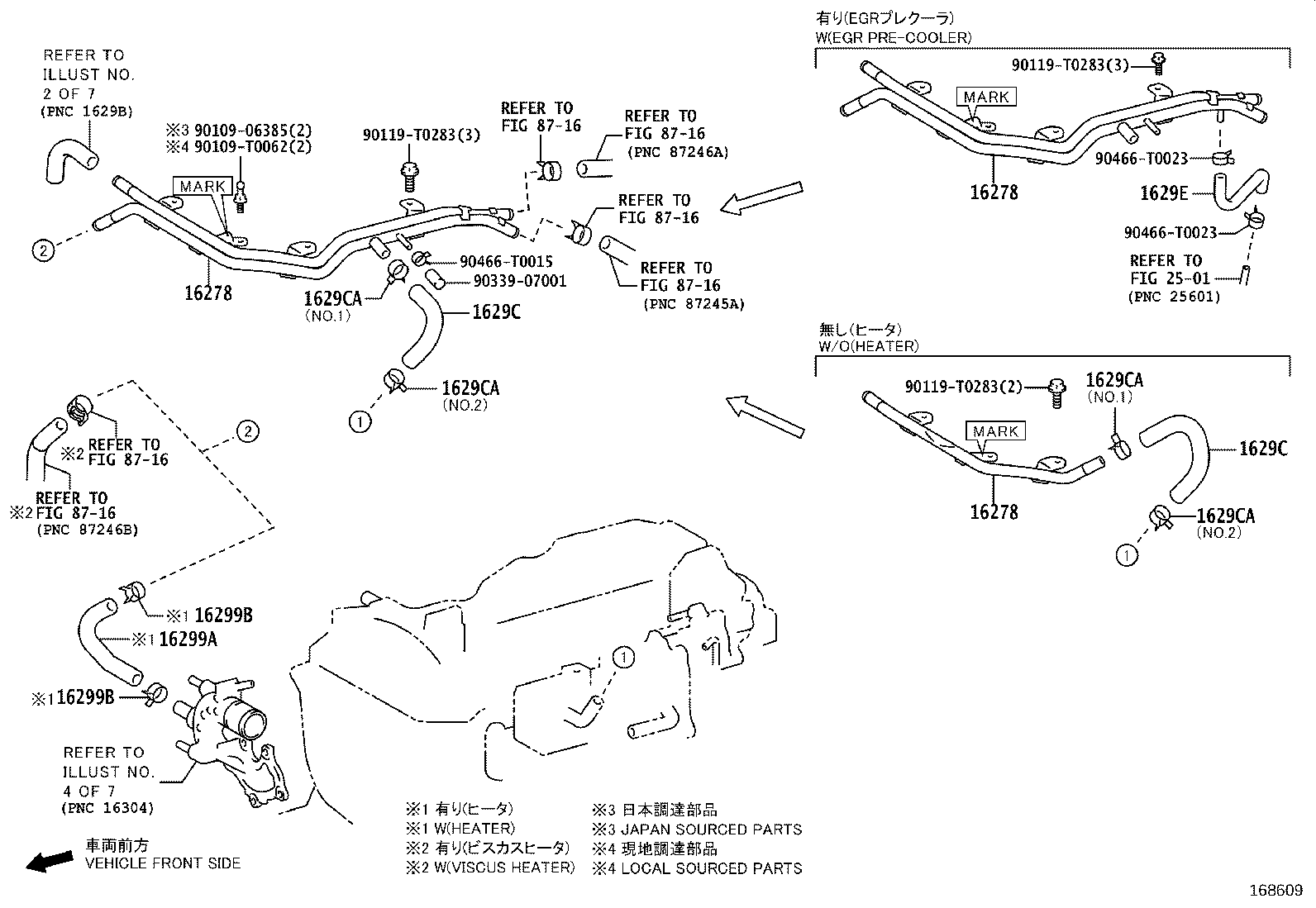

Exploded illustration 168609 16278 — PIPE, WATER BY-PASS, NO.2 (27 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 16299A — HOSE, WATER BY-PASS, NO.13 (7 parts) 16299B — CLIP(FOR WATER BY-PASS HOSE NO.13) (14 parts) 16299B — CLIP(FOR WATER BY-PASS HOSE NO.13) (14 parts) 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (14 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 90119T0283 — not listed in this catalogue 90466T0015 — not listed in this catalogue 9033907001 — not listed in this catalogue 16278 — PIPE, WATER BY-PASS, NO.2 (27 parts) 1629C — HOSE, WATER BY-PASS, NO.16 (8 parts) 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (14 parts) 16278 — PIPE, WATER BY-PASS, NO.2 (27 parts) 1629C — HOSE, WATER BY-PASS, NO.16 (8 parts) 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (14 parts) 1629CA — CLIP(FOR WATER BY-PASS HOSE NO.16) (14 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 90466T0023 — not listed in this catalogue 90466T0023 — not listed in this catalogue 1629E — HOSE, WATER BY-PASS, NO.18 (17 parts) 2501 — not listed in this catalogue 90119T0283 — not listed in this catalogue 90119T0283 — not listed in this catalogue 9010906385 — not listed in this catalogue 90109T0062 — not listed in this catalogue
168609 · 13 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
16278 — Pipe, Water By-pass, NO.2
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP;1GDFTV GUN156 +2 —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → —
1GDFTV GUN156 PKN —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2023-08 ended
2GDFTV P GUN165 (GCC,GEN,IDN) +7 —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2024-03 ended
2GDFTV GUN155 KEN —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;1GDFTV +3 —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2023-10 ended
2GDFTV GUN165 LA —
16278-0E010 note Pipe, Water By-pass, NO.2
2022-08 → 2023-09 ended
2GDFTV GUN165 VNP —
16278-0E020 note Pipe, Water By-pass, NO.2
2022-09 → 2023-08 ended
2GDFTV GUN155,165 L (MA,PH) —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD SA —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → —
1GDFTV GUN156 PKNP TH —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2024-03 ended
1GDFTV GUN156 KEN —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-11 → 2023-10 ended
2GDFTV GUN165 LA —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-10 ended
1GDFTV GUN156,166 AGTP —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-09 → 2023-09 ended
2GDFTV GUN165 VNP —
16278-0E030 note Pipe, Water By-pass, NO.2
2023-02 → 2023-08 ended
1GDFTV GUN156,166 IDN —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156,166 THP (ARL,GCC,TH) —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155 THP GCC —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-08 ended
2GDFTV GUN165 IDNP VN;1GDFTV +3 —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-08 ended
2GDFTV GUN155 IDNP GCC —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 INDP,VNP —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-08 → 2023-08 ended
1GDFTV GUN156 MA —
16278-0E030 note Pipe, Water By-pass, NO.2
2022-09 → 2023-08 ended
1GDFTV GUN156 RHD GEN —
16299A — Hose, Water By-pass, NO.13
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2023-08 ended
2GDFTV FTV GUN165 GUN165 +8 —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16299-0E010 Hose, Water By-pass, NO.13
2022-08 → —
1GDFTV GUN156 PKNP —
16299B — Clip(FOR WATER BY-PASS HOSE NO.13)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → —
1GDFTV GUN156 PKNP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-08 ended
2GDFTV FTV GUN165 GUN165 +8 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → —
1GDFTV GUN156 PKNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.13)
2022-08 → 2023-08 ended
2GDFTV FTV GUN165 GUN165 +8 —
1629C — Hose, Water By-pass, NO.16
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2023-08 ended
2GDFTV FTV GUN165 GUN165 +8 —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
1629C-0E010 Hose, Water By-pass, NO.16
2022-08 → —
1GDFTV GUN156 PKNP —
1629C-0E020 Hose, Water By-pass, NO.16
2022-09 → 2023-08 ended
2GDFTV GUN155,165 L (MA,PH) —
1629CA — Clip(FOR WATER BY-PASS HOSE NO.16)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → —
1GDFTV GUN156 PKNP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → —
1GDFTV GUN156 PKNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.16)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
1629E — Hose, Water By-pass, NO.18
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → —
1GDFTV GUN156 PKNP TH —
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → 2024-03 ended
1GDFTV GUN156 KEN —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD SA —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-11 → 2023-10 ended
2GDFTV GUN165 LA —
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → 2023-10 ended
1GDFTV GUN156,166 AGTP —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-09 → 2023-09 ended
2GDFTV GUN165 VNP —
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → 2023-09 ended
1GDFTV GUN156,166 INDP,VNP —
1629E-0E010 Hose, Water By-pass, NO.18
2023-02 → 2023-08 ended
1GDFTV GUN156,166 IDN —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-09 → 2023-08 ended
1GDFTV GUN156 RHD GEN —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2023-08 ended
1GDFTV GUN156 MA —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2023-08 ended
2GDFTV GUN155 IDNP GCC —
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → 2023-08 ended
2GDFTV GUN165 IDNP VN;1GDFTV +3 —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2023-07 ended
2GDFTV GUN155 THP GCC —
1629E-0E010 Hose, Water By-pass, NO.18
2022-08 → 2023-07 ended
1GDFTV GUN156,166 THP (ARL,GCC,TH) —
1629E-0E010 note Hose, Water By-pass, NO.18
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
