Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

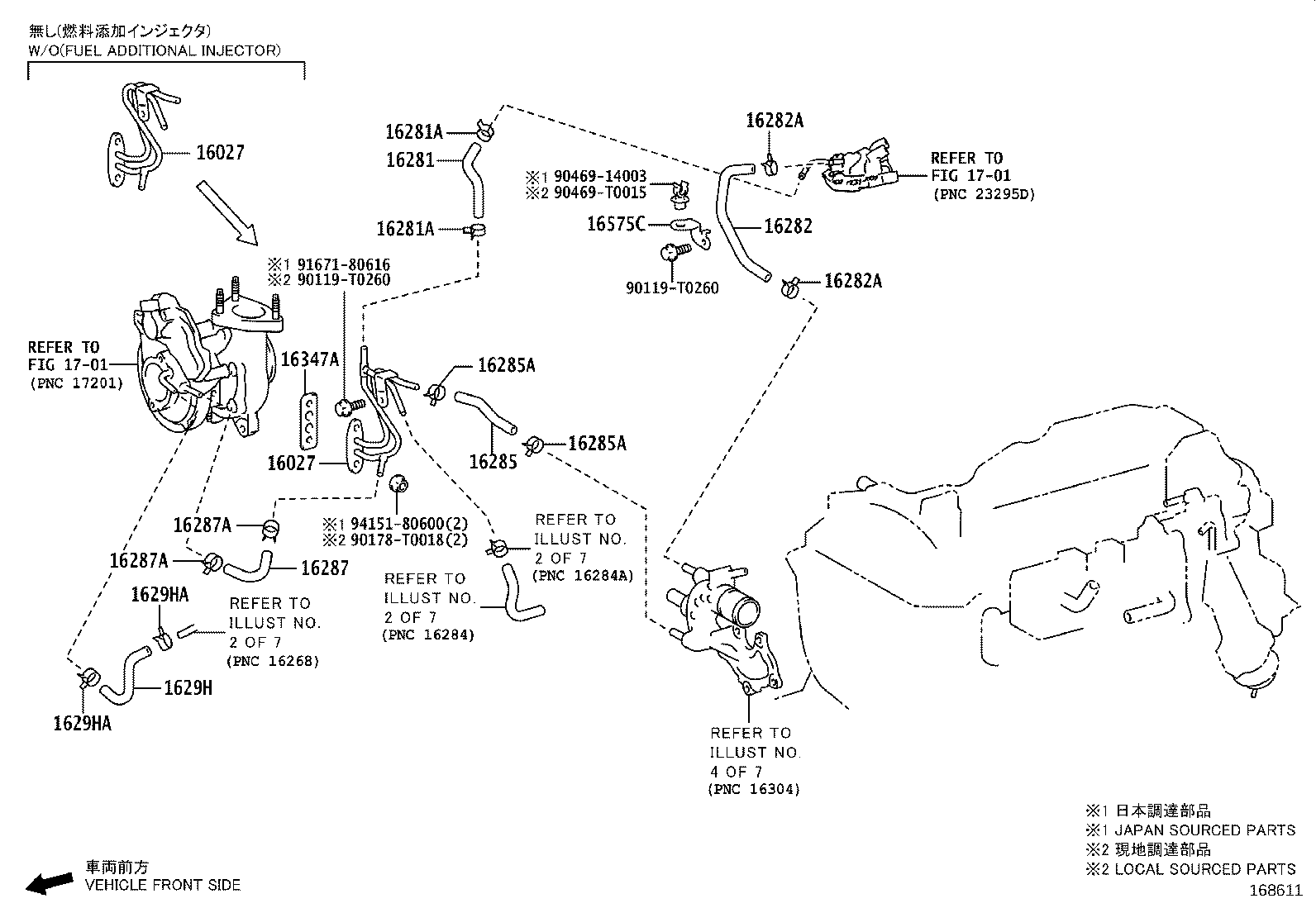

Exploded illustration 168611 90119T0260 — not listed in this catalogue 9167180616 — not listed in this catalogue 90469T0015 — not listed in this catalogue 9046914003 — not listed in this catalogue 90119T0260 — not listed in this catalogue 16575C — BRACKET, WATER HOSE CLAMP, NO.1 (14 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (19 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (19 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (19 parts) 1701 — not listed in this catalogue 16281 — HOSE, WATER BY-PASS, NO.4 (16 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (19 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (19 parts) 16285 — HOSE, TURBO WATER, NO.2 (22 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (6 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (6 parts) 16347A — GASKET(FOR TURBO WATER PIPE) (13 parts) 16027 — PIPE SUB-ASSY, TURBO WATER, NO.1 (27 parts) 1701 — not listed in this catalogue 16027 — PIPE SUB-ASSY, TURBO WATER, NO.1 (27 parts) 90178T0018 — not listed in this catalogue 9415180600 — not listed in this catalogue 16287 — HOSE, TURBO WATER, NO.4 (14 parts) 16287A — CLIP(FOR TURBO WATER HOSE NO.4) (6 parts) 16287A — CLIP(FOR TURBO WATER HOSE NO.4) (6 parts) 1629H — HOSE, WATER BY-PASS, NO.21 (16 parts) 1629HA — CLIP(FOR WATER BY-PASS HOSE NO.21) (6 parts) 1629HA — CLIP(FOR WATER BY-PASS HOSE NO.21) (6 parts)
168611 · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
197 parts on this figure
Part number Description Fitment Price
16027 — Pipe Sub-assy, Turbo Water, NO.1
16027-0E040 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16027-0E040 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → —
1GDFTV GUN156 PKN —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16027-0E070 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-10 ended
1GDFTV GUN166 6F LA;1GDFTV,2GDFTV +2 —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# (IDNP,MAP) (GCC,GEN,IDN,MA,PH) —
16027-0E070 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
16027-0E070 Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (GCC,GEN,TH) —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN156,165 IDNP (ARL,VN) —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 LA —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-10 ended
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16027-0E080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16027-11080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16027-11080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16027-11080 note Pipe Sub-assy, Turbo Water, NO.1
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16281 — Hose, Water By-pass, NO.4
16281-0E010 Hose, Water By-pass, NO.4
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16281-0E010 Hose, Water By-pass, NO.4
2022-08 → —
1GDFTV GUN156 PKNP TH —
16281-0E010 note Hose, Water By-pass, NO.4
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
16281-0E010 note Hose, Water By-pass, NO.4
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16281-0E010 note Hose, Water By-pass, NO.4
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16281-0E010 Hose, Water By-pass, NO.4
2022-08 → 2023-10 ended
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 —
16281-0E010 Hose, Water By-pass, NO.4
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16281-0E010 Hose, Water By-pass, NO.4
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16281-0E010 note Hose, Water By-pass, NO.4
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16281-0E010 note Hose, Water By-pass, NO.4
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16281-0E010 Hose, Water By-pass, NO.4
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN156,165 IDNP (ARL,VN) —
16281-0E010 note Hose, Water By-pass, NO.4
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16281-31011 Hose, Water By-pass, NO.4
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
16281-31011 Hose, Water By-pass, NO.4
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
16281-31011 Hose, Water By-pass, NO.4
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
16281-31011 Hose, Water By-pass, NO.4
2022-08 → —
1GRFE GGN155 EPT —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → 2024-11 ended
1GDFTV IDNP,INDP,THP) GUN166 (ARL,BZAGT,IND,VN) +7 —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# 6FC LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
90466-T0059 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F BZAGT —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# GCC —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
90466-T0080 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2024-12 → —
1GDFTV GUN156 TH —
96136-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → 2024-03 ended
1GRFE GGN155 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → 2024-12 ended
1GDFTV IDNP,THP) GUN166 (ARL,BZAGT,VN) +7 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# GCC —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16282 — Hose, Water By-pass, NO.5
16282-0C010 Hose, Water By-pass, NO.5
2022-11 → 2024-01 ended
2TRFE TGN156 SA —
16282-0C010 Hose, Water By-pass, NO.5
2022-11 → 2023-10 ended
2TRFE TGN156,166 AGTP 6FC —
16282-0C010 note Hose, Water By-pass, NO.5
2022-09 → 2023-08 ended
2TRFE TGN156,166 H GEN —
16282-0E010 Hose, Water By-pass, NO.5
2022-08 → —
1GDFTV GUN156 PKNP TH —
16282-0E010 note Hose, Water By-pass, NO.5
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
16282-0E010 note Hose, Water By-pass, NO.5
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16282-0E010 note Hose, Water By-pass, NO.5
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16282-0E010 Hose, Water By-pass, NO.5
2022-08 → 2023-10 ended
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 —
16282-0E010 Hose, Water By-pass, NO.5
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16282-0E010 note Hose, Water By-pass, NO.5
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16282-0E010 note Hose, Water By-pass, NO.5
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16282-0E010 Hose, Water By-pass, NO.5
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN156,165 IDNP (ARL,VN) —
16282-0E010 note Hose, Water By-pass, NO.5
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16282-0E010 Hose, Water By-pass, NO.5
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16282-0E010 Hose, Water By-pass, NO.5
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16282-31010 Hose, Water By-pass, NO.5
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
16282-31010 Hose, Water By-pass, NO.5
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
16282-31010 Hose, Water By-pass, NO.5
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
16282-31010 Hose, Water By-pass, NO.5
2022-08 → —
1GRFE GGN155 EPT —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# 6FC LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
90466-T0059 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F BZAGT —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → 2024-11 ended
1GDFTV IDNP,INDP,THP) GUN166 (ARL,BZAGT,IND,VN) +7 —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
90466-T0059 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# GCC —
90466-T0080 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2024-12 → —
1GDFTV GUN156 TH —
96136-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → 2024-03 ended
1GRFE GGN155 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → 2024-12 ended
1GDFTV IDNP,THP) GUN166 (ARL,BZAGT,VN) +7 —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# GCC —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16285 — Hose, Turbo Water, NO.2
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16285-0E010 note Hose, Turbo Water, NO.2
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16285-0E010 note Hose, Turbo Water, NO.2
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16285-0E010 note Hose, Turbo Water, NO.2
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
16285-0E010 note Hose, Turbo Water, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16285-0E020 note Hose, Turbo Water, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16285-0E020 note Hose, Turbo Water, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16285-11010 note Hose, Turbo Water, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16285-11010 note Hose, Turbo Water, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16285-11010 note Hose, Turbo Water, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16285A — Clip(FOR TURBO WATER HOSE NO.2)
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.2)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.2)
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
90466-T0080 note Clip(FOR TURBO WATER HOSE NO.2)
2024-12 → —
1GDFTV GUN156 —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.2)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.2)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.2)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16287 — Hose, Turbo Water, NO.4
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → —
1GDFTV GUN156 PKNP —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
16287-0E010 note Hose, Turbo Water, NO.4
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16287-0E010 note Hose, Turbo Water, NO.4
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
16287-0E020 note Hose, Turbo Water, NO.4
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16287-0E020 note Hose, Turbo Water, NO.4
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16287-11011 note Hose, Turbo Water, NO.4
2022-11 → 2023-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 —
16287-11020 Hose, Turbo Water, NO.4
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16287-11020 note Hose, Turbo Water, NO.4
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16287-11020 note Hose, Turbo Water, NO.4
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16287A — Clip(FOR TURBO WATER HOSE NO.4)
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.4)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0059 note Clip(FOR TURBO WATER HOSE NO.4)
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
90466-T0080 note Clip(FOR TURBO WATER HOSE NO.4)
2024-12 → —
1GDFTV GUN156 —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.4)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.4)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96137-41501 note Clip(FOR TURBO WATER HOSE NO.4)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
1629H — Hose, Water By-pass, NO.21
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → —
1GDFTV GUN156 PKNP —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
1629H-0E010 note Hose, Water By-pass, NO.21
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
1629H-0E020 note Hose, Water By-pass, NO.21
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
1629H-0E020 note Hose, Water By-pass, NO.21
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
1629H-11010 Hose, Water By-pass, NO.21
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
1629H-11010 note Hose, Water By-pass, NO.21
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
1629H-11010 note Hose, Water By-pass, NO.21
2022-08 → 2023-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156,166 +2 —
1629H-11010 note Hose, Water By-pass, NO.21
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
1629H-11010 note Hose, Water By-pass, NO.21
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
1629H-11010 note Hose, Water By-pass, NO.21
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
1629HA — Clip(FOR WATER BY-PASS HOSE NO.21)
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.21)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.21)
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
90466-T0080 note Clip(FOR WATER BY-PASS HOSE NO.21)
2024-12 → —
1GDFTV GUN156 —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.21)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.21)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.21)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16347A — Gasket(FOR TURBO WATER PIPE)
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → —
1GDFTV GUN156 PKNP —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16347-0E010 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16347-0E020 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16347-0E020 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16347-11020 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16347-11020 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16347-11020 note Gasket(FOR TURBO WATER PIPE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16575C — Bracket, Water Hose Clamp, NO.1
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN156,165 IDNP (ARL,VN) —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-10 ended
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,165 6FC LA —
16575-0E010 note Bracket, Water Hose Clamp, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
16575-0E020 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16575-0E020 note Bracket, Water Hose Clamp, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
