Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

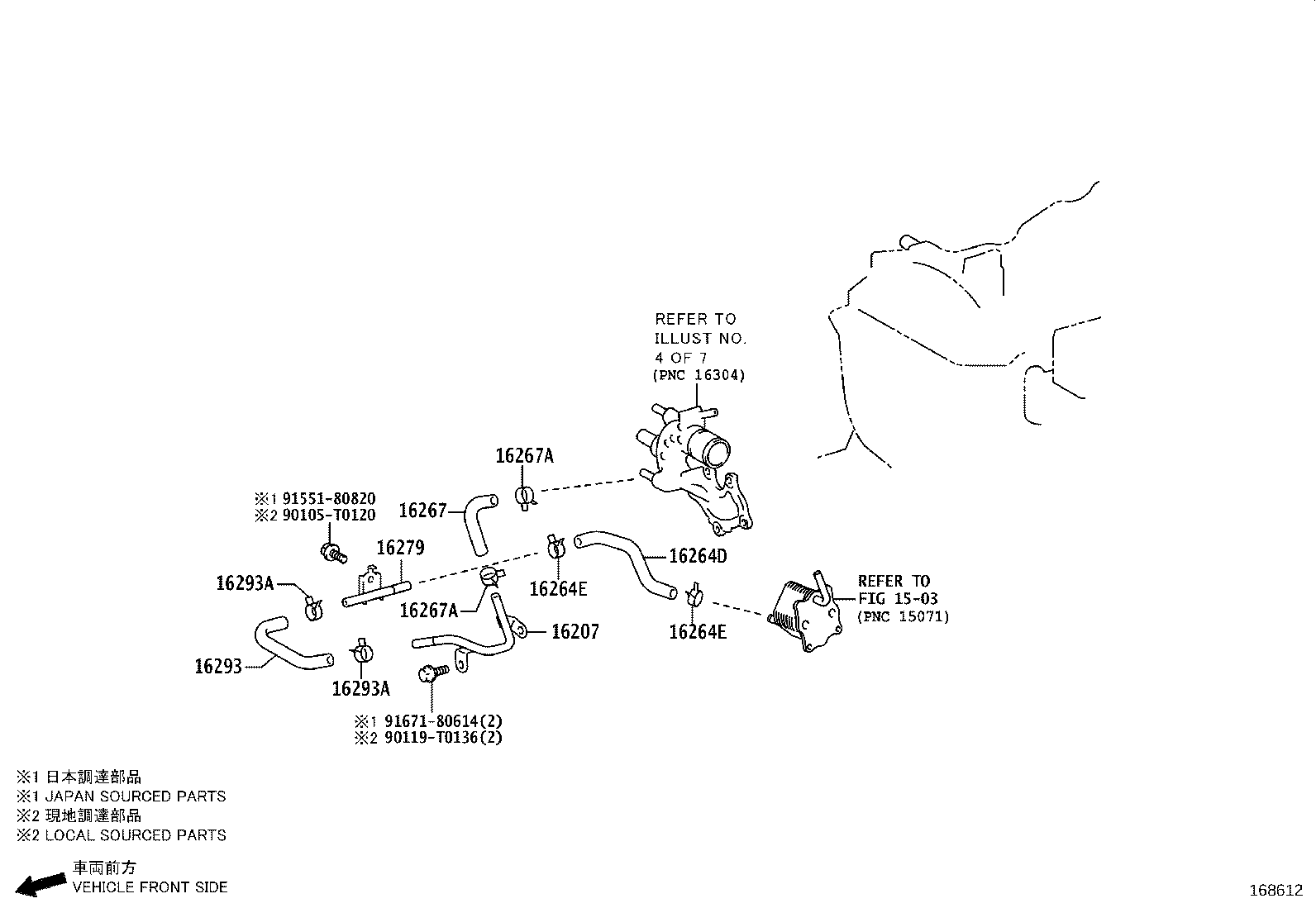

Exploded illustration 168612 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9155180820 — not listed in this catalogue 90105T0120 — not listed in this catalogue 16207 — PIPE SUB-ASSY, WATER BY-PASS, NO.2 (13 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (33 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (12 parts) 16293 — HOSE, WATER BY-PASS, NO.10 (13 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (4 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (5 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (5 parts) 1503 — not listed in this catalogue 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (18 parts) 16264D — HOSE, WATER BY-PASS, NO.2 (12 parts) 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (18 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (4 parts)
168612 · 11 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
16207 — Pipe Sub-assy, Water By-pass, NO.2
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16207-0E011 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16207-0E040 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16207-11030 note Pipe Sub-assy, Water By-pass, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP;1GDFTV GUN156 +2 —
16264D — Hose, Water By-pass, NO.2
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16264-0E011 note Hose, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16264-0E021 note Hose, Water By-pass, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16264-0E021 note Hose, Water By-pass, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16264-11131 note Hose, Water By-pass, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16264-11131 note Hose, Water By-pass, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16264-11131 note Hose, Water By-pass, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16264E — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2TRFE TGN156,166 PKN —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-08 ended
2TRFE TGN156,166 (IDNP,MAP) (GCC,GEN,MA,VN) —
90466-T0015 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0081 note Clip(FOR WATER BY-PASS HOSE NO.2)
2024-12 → —
1GDFTV GUN156 —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2TRFE TGN156,166 PKN —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-08 ended
2TRFE TGN156,166 (IDNP,MAP) (GCC,GEN,MA,VN) —
96136-41501 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2024-12 ended
1GDFTV,2GDFTV GUN15#,16# —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16267 — Hose, Water By-pass, NO.3
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16267-0E010 note Hose, Water By-pass, NO.3
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → —
1GDFTV GUN156 PKNP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;2GDFTV +6 —
16267-0E010 note Hose, Water By-pass, NO.3
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# 6FC LA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
16267-0E010 note Hose, Water By-pass, NO.3
2023-01 → 2024-01 ended
2GDFTV GUN165 6F SA —
16267-0E010 note Hose, Water By-pass, NO.3
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
16267-0E010 note Hose, Water By-pass, NO.3
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
16267-0E010 note Hose, Water By-pass, NO.3
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16267-0E010 note Hose, Water By-pass, NO.3
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16267-0E010 note Hose, Water By-pass, NO.3
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
16267-0E020 note Hose, Water By-pass, NO.3
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16267-0E020 note Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16267-11010 note Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16267-11010 note Hose, Water By-pass, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16267-11010 note Hose, Water By-pass, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16267-31010 Hose, Water By-pass, NO.3
2022-08 → —
1GRFE GGN155 EPT —
16267-31010 Hose, Water By-pass, NO.3
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
16267-31010 Hose, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
16267-31010 Hose, Water By-pass, NO.3
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
90466-T0017 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0081 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2024-12 → —
1GDFTV GUN156 —
96136-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96136-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-08 → 2024-12 ended
1GDFTV,2GDFTV GUN15#,16# —
96136-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-08 → 2024-03 ended
1GRFE GGN155 —
16279 — Pipe, Water By-pass, NO.3
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → —
1GDFTV GUN156 PKNP —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16279-0E010 note Pipe, Water By-pass, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16279-0E030 note Pipe, Water By-pass, NO.3
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16279-0E030 note Pipe, Water By-pass, NO.3
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16293 — Hose, Water By-pass, NO.10
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → —
1GDFTV GUN156 PKNP —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
16293-0E011 note Hose, Water By-pass, NO.10
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16293-0E030 note Hose, Water By-pass, NO.10
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16293-0E030 note Hose, Water By-pass, NO.10
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16293-11020 note Hose, Water By-pass, NO.10
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP;1GDFTV GUN156 +2 —
16293-11020 note Hose, Water By-pass, NO.10
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16293-11020 note Hose, Water By-pass, NO.10
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16293-11020 note Hose, Water By-pass, NO.10
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16293A — Clip(FOR WATER BY-PASS HOSE NO.10)
90466-T0017 note Clip(FOR WATER BY-PASS HOSE NO.10)
2022-08 → 2024-11 ended
1GDFTV,2GDFTV GUN15#,16# —
90466-T0081 note Clip(FOR WATER BY-PASS HOSE NO.10)
2024-12 → —
1GDFTV GUN156 —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.10)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96136-42101 note Clip(FOR WATER BY-PASS HOSE NO.10)
2022-08 → 2024-12 ended
1GDFTV,2GDFTV GUN15#,16# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
