Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

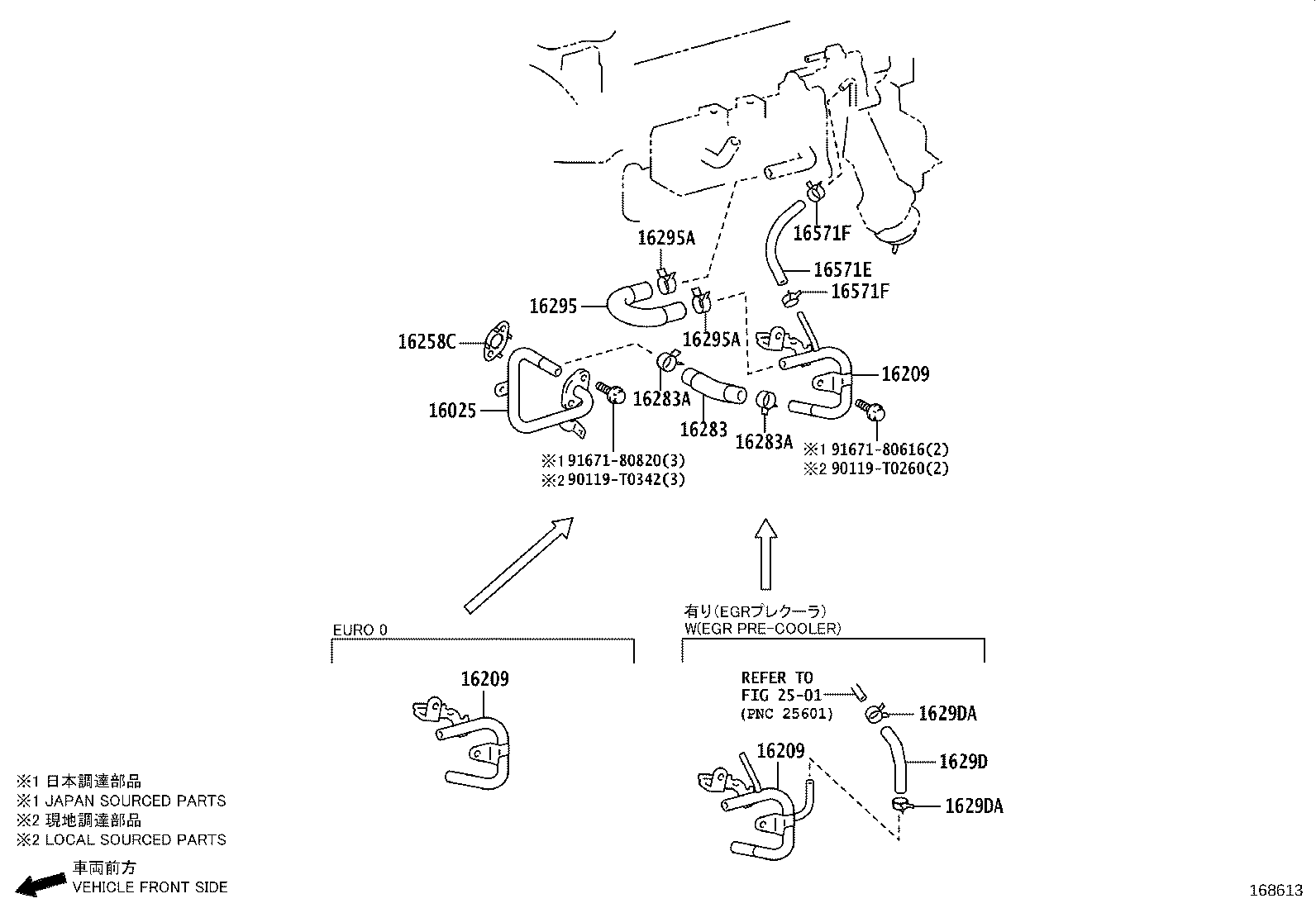

Exploded illustration 168613 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 90119T0342 — not listed in this catalogue 9167180820 — not listed in this catalogue 16025 — PIPE SUB-ASSY, WATER BY-PASS, NO.5 (12 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (23 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (12 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (32 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (12 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (8 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (8 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (18 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (15 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (18 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (15 parts) 16571E — HOSE, WATER (30 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (23 parts) 16209 — PIPE SUB-ASSY, WATER BY-PASS, NO.4 (23 parts) 1629D — HOSE, WATER BY-PASS, NO.17 (20 parts) 1629DA — CLIP(FOR WATER BY-PASS HOSE NO.17) (12 parts) 1629DA — CLIP(FOR WATER BY-PASS HOSE NO.17) (12 parts) 2501 — not listed in this catalogue
168613 · 17 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
194 parts on this figure
Part number Description Fitment Price
16025 — Pipe Sub-assy, Water By-pass, NO.5
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → —
1GDFTV GUN156 PKNP —
16025-0E010 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16025-0E020 note Pipe Sub-assy, Water By-pass, NO.5
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16209 — Pipe Sub-assy, Water By-pass, NO.4
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;2GDFTV +3 —
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → —
2GDFTV CC,GEN,IDN,KEN,LA,MA,PH,SA,TH GUN165 VNP;1GDFTV +5 —
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16209-0E010 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
16209-0E020 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2022-10 ended
1GDFTV GUN156 THP ARL —
16209-0E070 note Pipe Sub-assy, Water By-pass, NO.4
2023-01 → 2024-01 ended
2GDFTV GUN165 6F SA —
16209-0E070 note Pipe Sub-assy, Water By-pass, NO.4
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16209-0E070 Pipe Sub-assy, Water By-pass, NO.4
2023-01 → 2024-01 ended
1GDFTV GUN156 6F SA —
16209-0E090 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2022-10 ended
1GDFTV GUN156 THP ARL —
16209-0E091 note Pipe Sub-assy, Water By-pass, NO.4
2022-10 → 2023-09 ended
1GDFTV GUN156,166 (INDP,THP) (ARL,IND) —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2023-02 → —
1GDFTV GUN156,166 IDN —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → —
2GDFTV GUN165 IDNP VN;1GDFTV +2 —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2023-01 → 2024-01 ended
1GDFTV GUN156 RHD 6FC +1 —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-09 → 2023-09 ended
2GDFTV GUN165 VNP —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-11 → 2023-10 ended
2GDFTV GUN165 LA;1GDFTV GUN156 +2 —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +4 —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-09 → 2023-08 ended
1GDFTV GUN156 RHD GEN —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2023-08 ended
2GDFTV GUN155 GCC —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-11 → 2023-05 ended
1GDFTV GUN156 6F LA —
16209-0E120 note Pipe Sub-assy, Water By-pass, NO.4
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16258-0E010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → —
1GDFTV GUN156 PKNP —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16258-0E020 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16258-11010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16258-11010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16258-11010 note Gasket(FOR WATER BY-PASS PIPE)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16283 — Hose, Water By-pass, NO.6
16283-0E010 note Hose, Water By-pass, NO.6
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
16283-0E010 note Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# 6FC LA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;2GDFTV +6 —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16283-0E010 note Hose, Water By-pass, NO.6
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-01 → 2024-01 ended
2GDFTV GUN165 6F SA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
16283-0E010 note Hose, Water By-pass, NO.6
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16283-0E010 note Hose, Water By-pass, NO.6
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → —
1GDFTV GUN156 PKNP —
16283-0E010 note Hose, Water By-pass, NO.6
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
16283-0E020 note Hose, Water By-pass, NO.6
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16283-0E020 note Hose, Water By-pass, NO.6
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16283-11010 note Hose, Water By-pass, NO.6
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16283-11010 note Hose, Water By-pass, NO.6
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16283-11010 note Hose, Water By-pass, NO.6
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16283-75030 Hose, Water By-pass, NO.6
2022-11 → 2024-01 ended
2TRFE TGN156 SA —
16283-75030 note Hose, Water By-pass, NO.6
2022-09 → 2023-08 ended
2TRFE TGN156,166 H GEN —
16283-75030 Hose, Water By-pass, NO.6
2022-11 → 2023-10 ended
2TRFE TGN156,166 AGTP 6FC —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → —
1GDFTV GUN156 PKNP —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90466-T0020 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → —
1GDFTV GUN156 PKNP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96136-52101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-11 → 2023-10 ended
2TRFE TGN156,166 AGTP 6FC —
96136-52101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-11 → 2024-01 ended
2TRFE TGN156 SA —
96136-52101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-09 → 2023-08 ended
2TRFE TGN156,166 H GEN —
16295 — Hose, Water By-pass, NO.7
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → —
1GDFTV GUN156 PKNP —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
16295-0E010 note Hose, Water By-pass, NO.7
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
16295-0E020 note Hose, Water By-pass, NO.7
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
16295-0E020 note Hose, Water By-pass, NO.7
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
16295-11010 note Hose, Water By-pass, NO.7
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
16295-11010 note Hose, Water By-pass, NO.7
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
16295-11010 note Hose, Water By-pass, NO.7
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → —
1GDFTV GUN156 PKNP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
90466-T0020 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → —
1GDFTV GUN156 PKNP —
1629D — Hose, Water By-pass, NO.17
1629D-0E010 Hose, Water By-pass, NO.17
2022-08 → 2022-10 ended
1GDFTV GUN156 THP ARL —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → —
1GDFTV GUN156 PKNP TH —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → 2024-03 ended
1GDFTV GUN156 KEN —
1629D-0E011 note Hose, Water By-pass, NO.17
2023-01 → 2024-01 ended
1GDFTV GUN156 RHD 6FC +1 —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-11 → 2023-10 ended
2GDFTV GUN165 LA —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → 2023-10 ended
1GDFTV GUN156,166 AGTP —
1629D-0E011 Hose, Water By-pass, NO.17
2022-09 → 2023-09 ended
2GDFTV GUN165 VNP —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → 2023-09 ended
1GDFTV GUN156,166 INDP,VNP —
1629D-0E011 Hose, Water By-pass, NO.17
2023-02 → 2023-08 ended
1GDFTV GUN156,166 IDN —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-09 → 2023-08 ended
1GDFTV GUN156 RHD GEN —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2023-08 ended
1GDFTV GUN156 MA —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2023-08 ended
2GDFTV GUN155 IDNP GCC —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → 2023-08 ended
2GDFTV GUN165 IDNP VN;1GDFTV +3 —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2023-07 ended
2GDFTV GUN155 THP GCC —
1629D-0E011 Hose, Water By-pass, NO.17
2022-08 → 2023-07 ended
1GDFTV GUN156,166 THP (ARL,GCC,TH) —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-11 → 2023-05 ended
1GDFTV GUN156 6F LA —
1629D-0E011 note Hose, Water By-pass, NO.17
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
1629DA — Clip(FOR WATER BY-PASS HOSE NO.17)
90466-T0023 Clip(FOR WATER BY-PASS HOSE NO.17)
2024-12 → —
1GDFTV GUN156 TH —
90466-T0042 Clip(FOR WATER BY-PASS HOSE NO.17)
2023-02 → 2024-11 ended
1GDFTV GUN156,166 IDN —
90466-T0042 Clip(FOR WATER BY-PASS HOSE NO.17)
2022-08 → 2024-11 ended
2GDFTV GUN165 IDNP VN;1GDFTV +2 —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2023-01 → 2024-01 ended
1GDFTV GUN156 RHD 6FC +1 —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +4 —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-11 → 2023-10 ended
2GDFTV GUN165 LA —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
90466-T0042 Clip(FOR WATER BY-PASS HOSE NO.17)
2022-09 → 2023-09 ended
2GDFTV GUN165 VNP —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-08 → 2023-02 ended
1GDFTV GUN156,166 IDN —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-11 → 2023-05 ended
1GDFTV GUN156 6F LA —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-09 → 2023-08 ended
1GDFTV GUN156 RHD GEN —
90466-T0042 note Clip(FOR WATER BY-PASS HOSE NO.17)
2022-08 → 2023-08 ended
2GDFTV GUN155 GCC —
16571E — Hose, Water
16298-0E020 Hose, Water
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
16298-0E020 Hose, Water
2022-08 → —
1GDFTV GUN156 PKN —
16298-0E020 Hose, Water
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
16298-0E020 note Hose, Water
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;2GDFTV +3 —
16298-0E020 note Hose, Water
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
16298-0E020 Hose, Water
2022-08 → 2023-08 ended
2GDFTV GUN155,165 RHD (GEN,MA);1GDFTV +3 —
16298-0E020 Hose, Water
2022-08 → 2024-01 ended
1GDFTV GUN156 6FC SA;1GDFTV,2GDFTV +2 —
99555-10200 note Hose, Water
2022-09 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
99555-10200 note Hose, Water
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
99555-10200 note Hose, Water
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA —
99555-10200 note Hose, Water
2022-11 → 2023-10 ended
1GDFTV GUN156 6F LA —
99555-10200 note Hose, Water
2022-11 → 2023-10 ended
1GDFTV GUN156 LA —
99555-10200 note Hose, Water
2022-11 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# 6FC LA —
99555-10200 note Hose, Water
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
99555-10200 note Hose, Water
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
99555-10200 note Hose, Water
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
99555-10200 note Hose, Water
2022-08 → —
1GDFTV GUN156 PKNP TH —
99555-10200 note Hose, Water
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
99555-10200 note Hose, Water
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
99555-10200 note Hose, Water
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
99555-10200 note Hose, Water
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
99555-10200 note Hose, Water
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
99555-10200 note Hose, Water
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15# THP GCC —
99555-10200 note Hose, Water
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
99555-10200 note Hose, Water
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
99555-10200 note Hose, Water
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# IDNP GCC —
99555-10200 note Hose, Water
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
99555-10200 note Hose, Water
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
99555-10200 note Hose, Water
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
99555-10200 note Hose, Water
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
16571F — Clamp OR Clip(FOR WATER HOSE)
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2022-11 → 2023-05 ended
1GDFTV GUN156 6F LA —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2023-01 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
90466-T0015 note Clamp OR Clip(FOR WATER HOSE)
2022-08 → 2024-11 ended
1GDFTV ENP,MAP,PKNP,THP,VNP GUN156 6FC +4 —
90466-T0080 note Clamp OR Clip(FOR WATER HOSE)
2024-12 → —
1GDFTV GUN156 —
96136-41501 note Clamp OR Clip(FOR WATER HOSE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
96136-41501 note Clamp OR Clip(FOR WATER HOSE)
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
96136-41501 note Clamp OR Clip(FOR WATER HOSE)
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
