Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

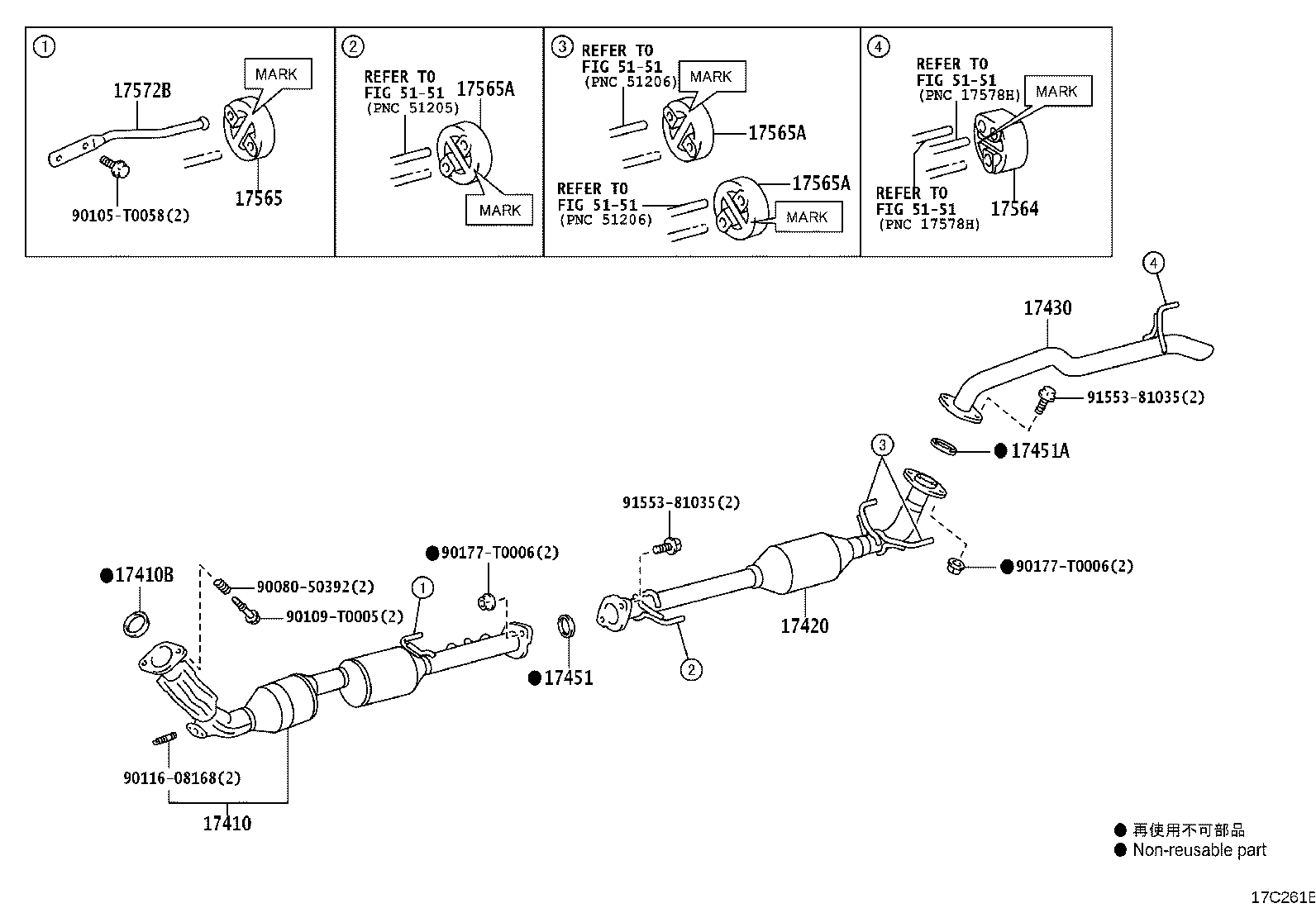

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17401-05110 |
Pipe Assy, Exhaust, Front
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
| 17401-0C550 |
Pipe Assy, Exhaust, Front
2022-08 → 2023-04
ended
|
2TRFE TGN166 VNP;2TRFE TGN156 +4 | — | |
| 17401-0C550 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN156 H GEN | — | |
| 17401-0C550 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN156 H GEN | — | |
| 17401-0C550 note |
Pipe Assy, Exhaust, Front
2023-01 → 2023-04
ended
|
2TRFE TGN156 SA | — | |
| 17401-0C551 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-10
ended
|
2TRFE TGN156,166 LA | — | |
| 17401-0C551 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN156 H GEN | — | |
| 17401-0C551 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN156 H GEN | — | |
| 17401-0C551 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-09
ended
|
2TRFE TGN166 VNP | — | |
| 17401-0C551 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 17401-0C551 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN156 L GEN;2TRFE +3 | — | |
| 17401-0C551 |
Pipe Assy, Exhaust, Front
2023-04 → —
|
2TRFE TGN156,166 PKN | — | |
| 17401-0C551 note |
Pipe Assy, Exhaust, Front
2023-04 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 17401-0C620 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-04
ended
|
2TRFE TGN166 6FC LA | — | |
| 17401-0C620 |
Pipe Assy, Exhaust, Front
2022-11 → 2023-04
ended
|
2TRFE TGN156 BZAGT | — | |
| 17401-0C620 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-04
ended
|
2TRFE TGN166 6FC LA | — | |
| 17401-0C621 |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN166 VNP | — | |
| 17401-0C621 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN166 GEN | — | |
| 17401-0C621 |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN156,166 (IDNP,INDP) (IND,VN) | — | |
| 17401-0C621 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-04
ended
|
2TRFE TGN166 GEN | — | |
| 17401-0C622 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN156,166 IDNP VN | — | |
| 17401-0C622 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN166 GEN | — | |
| 17401-0C622 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-08
ended
|
2TRFE TGN166 GEN | — | |
| 17401-0C622 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-10
ended
|
2TRFE TGN156 BZAGT | — | |
| 17401-0C622 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-09
ended
|
2TRFE TGN166 IND | — | |
| 17401-0C622 |
Pipe Assy, Exhaust, Front
2023-04 → 2023-09
ended
|
2TRFE TGN166 VNP | — | |
| 17401-0C622 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-10
ended
|
2TRFE TGN166 6FC LA | — | |
| 17401-0C622 note |
Pipe Assy, Exhaust, Front
2023-04 → 2023-10
ended
|
2TRFE TGN166 6FC LA | — | |
| 17401-0C660 |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 H GEN | — | |
| 17401-0C660 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
2TRFE TGN156 IDNP L +1 | — | |
| 17401-0C660 |
Pipe Assy, Exhaust, Front
2022-09 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 17401-0C660 |
Pipe Assy, Exhaust, Front
2022-09 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 17401-0C660 note |
Pipe Assy, Exhaust, Front
2023-02 → —
|
2TRFE TGN156,166 PKN | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2024-01
ended
|
1GDFTV GUN156 RHD 6F +1 | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2023-02 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-10
ended
|
1GDFTV GUN166 6F LA;1GDFTV,2GDFTV +2 | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15# RHD 6FC +1 | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-02
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# MA | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP (GCC,TH) | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GDFTV GUN156 IDNP (GCC,PH);1GDFTV,2GDFTV +4 | — | |
| 17401-0L180 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP GEN | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-10
ended
|
1GDFTV GUN156 LA | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-10
ended
|
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-09 → —
|
1GDFTV GUN156 PKNP TH | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15# THP GCC | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# IDNP GCC | — | |
| 17401-0L190 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN156,165 IDNP VN | — | |
| 17401-0L220 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP ARL | — | |
| 17401-0L220 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GDFTV GUN156 IDNP ARL | — | |
| 17401-0L260 note |
Pipe Assy, Exhaust, Front
2022-09 → 2024-01
ended
|
2GDFTV GUN155,165 SA | — | |
| 17401-0L260 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-10
ended
|
2GDFTV GUN165 L LA | — | |
| 17401-0L260 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-02
ended
|
2GDFTV GUN155,165 IDN | — | |
| 17401-0L260 note |
Pipe Assy, Exhaust, Front
2022-09 → 2023-08
ended
|
2GDFTV GUN155,165 RHD (GEN,MA) | — | |
| 17401-0P080 |
Pipe Assy, Exhaust, Front
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 17401-0P080 |
Pipe Assy, Exhaust, Front
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17401-0P080 |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 17401-0P080 |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17410-0E080 |
Pipe Assy, Exhaust, Front
2022-10 → 2023-05
ended
|
1GDFTV GUN156,166 IND | — | |
| 17410-0E081 |
Pipe Assy, Exhaust, Front
2023-06 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA;1GDFTV +3 | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-08 → —
|
1GDFTV GUN156 PKN | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-08
ended
|
1GDFTV GUN156 (IDNP,MAP) (GEN,MA) | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-08 → 2024-01
ended
|
1GDFTV GUN156,166 SA | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP GEN | — | |
| 17410-0E130 note |
Pipe Assy, Exhaust, Front
2022-08 → 2023-02
ended
|
1GDFTV GUN156,166 IDN | — | |
| 17410-0E140 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-05
ended
|
1GDFTV,2GDFTV GUN156,16# 6FC LA | — | |
| 17410-0E140 note |
Pipe Assy, Exhaust, Front
2022-11 → 2023-05
ended
|
1GDFTV GUN156 6F LA | — | |
| 17410-0E141 note |
Pipe Assy, Exhaust, Front
2023-06 → 2023-10
ended
|
1GDFTV GUN156 6F LA | — | |
| 17410-0E141 note |
Pipe Assy, Exhaust, Front
2023-06 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# 6FC LA | — | |
| 17410-0E150 note |
Pipe Assy, Exhaust, Front
2023-02 → 2023-05
ended
|
1GDFTV GUN156 6FC IND | — | |
| 17410-0E150 note |
Pipe Assy, Exhaust, Front
2023-02 → 2023-05
ended
|
1GDFTV GUN166 IND;1GDFTV GUN156 +2 | — | |
| 17410-0E151 note |
Pipe Assy, Exhaust, Front
2023-06 → 2023-09
ended
|
1GDFTV GUN166 IND;1GDFTV GUN156 +2 | — | |
| 17410-0E151 note |
Pipe Assy, Exhaust, Front
2023-06 → 2023-09
ended
|
1GDFTV GUN156 6FC IND | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN156,166 AGTP | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN166 EPT,KEN | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,16#,TGN156 SA | — | |
| 17451-0L050 note |
Gasket, Exhaust Pipe
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 17451-0L050 note |
Gasket, Exhaust Pipe
2022-10 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,165,TGN166 VNP | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,16#,TGN156,166 THP | — | |
| 17451-0L060 note |
Gasket, Exhaust Pipe
2022-10 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17451-0L060 note |
Gasket, Exhaust Pipe
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 90917-T6001 |
Gasket, Exhaust Pipe
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
| 90917-T6003 |
Gasket, Exhaust Pipe
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 90917-T6003 |
Gasket, Exhaust Pipe
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 90917-T6003 |
Gasket, Exhaust Pipe
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 90917-T6003 |
Gasket, Exhaust Pipe
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17403-05010 |
Pipe Assy, Exhaust, Center
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 17403-0C130 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 17403-0C131 |
Pipe Assy, Exhaust, Center
2022-09 → 2023-08
ended
|
2TRFE TGN156 MA | — | |
| 17403-0E010 |
Pipe Assy, Exhaust, Center
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 17403-0E010 note |
Pipe Assy, Exhaust, Center
2022-11 → 2023-10
ended
|
1GDFTV GUN156 6F LA | — | |
| 17403-0E010 note |
Pipe Assy, Exhaust, Center
2022-11 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# 6FC LA | — | |
| 17403-0L150 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-10
ended
|
1GDFTV GUN156 BZAGT;1GDFTV GUN166 +2 | — | |
| 17403-0L150 note |
Pipe Assy, Exhaust, Center
2022-11 → 2023-10
ended
|
1GDFTV GUN156 LA | — | |
| 17403-0L150 |
Pipe Assy, Exhaust, Center
2022-08 → —
|
1GDFTV GUN156 PKNP TH | — | |
| 17403-0L150 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN156,165 IDNP (ARL,VN) | — | |
| 17403-0L150 note |
Pipe Assy, Exhaust, Center
2022-09 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP | — | |
| 17403-0L150 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP ARL | — | |
| 17403-0L150 note |
Pipe Assy, Exhaust, Center
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15# THP GCC | — | |
| 17403-0L150 note |
Pipe Assy, Exhaust, Center
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17403-0L150 note |
Pipe Assy, Exhaust, Center
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# IDNP GCC | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP (GCC,GEN,TH) | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → —
|
1GDFTV GUN156 PKN | — | |
| 17403-0L170 note |
Pipe Assy, Exhaust, Center
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP (GCC,GEN,IDN,PH) | — | |
| 17403-0L170 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-10
ended
|
1GDFTV GUN166 6F LA;1GDFTV,2GDFTV +2 | — | |
| 17403-0L172 |
Pipe Assy, Exhaust, Center
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# MA | — | |
| 17403-0P180 |
Pipe Assy, Exhaust, Center
2022-09 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 17403-0P180 |
Pipe Assy, Exhaust, Center
2022-09 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 17403-0P181 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17403-0P181 |
Pipe Assy, Exhaust, Center
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 17405-0C160 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 17405-0E010 |
Pipe Assy, Exhaust, Tail
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 17405-0E010 note |
Pipe Assy, Exhaust, Tail
2022-11 → 2023-10
ended
|
1GDFTV GUN156 6F LA | — | |
| 17405-0E010 note |
Pipe Assy, Exhaust, Tail
2022-11 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# 6FC LA | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE GUN15#,16#,LAN155 SA | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 17405-0L210 |
Pipe Assy, Exhaust, Tail
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
| 17405-0P030 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 17405-0P030 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17405-0P030 |
Pipe Assy, Exhaust, Tail
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17405-0P030 |
Pipe Assy, Exhaust, Tail
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-0C010 |
Gasket, Exhaust Pipe
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 17451-0L050 |
Gasket, Exhaust Pipe
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 90917-06076 |
Gasket, Exhaust Pipe
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 90917-06076 note |
Gasket, Exhaust Pipe
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 17451A — Gasket, Exhaust Pipe, NO.2 | ||||
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2024-03
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 90917-T6002 note |
Gasket, Exhaust Pipe, NO.2
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP;1GDFTV,2GDFTV GUN156,165 +1 | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2023-08
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90917-T6002 |
Gasket, Exhaust Pipe, NO.2
2022-08 → 2023-07
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 17564 — Support,Exhaust Pipe, NO.4 | ||||
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → 2023-07
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → 2024-03
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 17565-0L100 note |
Support,Exhaust Pipe, NO.4
2022-09 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 17565-0L100 note |
Support,Exhaust Pipe, NO.4
2022-09 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,165,TGN166 VNP | — | |
| 17565-0L100 note |
Support,Exhaust Pipe, NO.4
2022-09 → 2023-08
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 17565-0L100 |
Support,Exhaust Pipe, NO.4
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN156 MA | — | |
| 17565-0L110 note |
Support,Exhaust Pipe, NO.4
2022-09 → 2023-08
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 17565-0L120 note |
Support,Exhaust Pipe, NO.4
2022-10 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17565-0L130 note |
Support,Exhaust Pipe, NO.4
2022-11 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-02
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP;1GDFTV GUN156 +5 | — | |
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-05
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-05
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17565-0L070 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2022-11
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17565-0L080 note |
Support, Exhaust Pipe, NO.5
2022-10 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17565-0L090 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17565-0L090 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 17565-0L090 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA;2GDFTV +6 | — | |
| 17565-0L090 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-05
ended
|
1GDFTV,2GDFTV GUN15# (MAP,THP) (GEN,MA) | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKN | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-11
ended
|
1GDFTV,2GDFTV GUN15# RHD SA | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA;2GDFTV +6 | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP;1GDFTV GUN156 +2 | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN156 MA | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-02
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-08
ended
|
2TRFE TGN156,166 IDNP;1GDFTV GUN156 +5 | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.5
2022-08 → 2023-09
ended
|
2TRFE TGN166 VNP | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.5
2022-09 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-0L070 note |
Support, Exhaust Pipe, NO.4
2022-09 → 2023-08
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 17565-0L080 note |
Support, Exhaust Pipe, NO.4
2022-10 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17565-0L090 note |
Support, Exhaust Pipe, NO.4
2022-11 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → 2024-03
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.4
2022-09 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,165,TGN166 VNP | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.4
2022-09 → 2023-08
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN156 MA | — | |
| 17565-0P240 |
Support, Exhaust Pipe, NO.4
2022-08 → 2023-07
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 17565-0P240 note |
Support, Exhaust Pipe, NO.4
2022-09 → 2023-09
ended
|
1GDFTV,2TRFE GUN156,166,TGN166 IND | — | |
| 17572B — Bracket, Exhaust Pipe Support, NO.2 | ||||
| 17572-0E020 note |
Bracket, Exhaust Pipe Support, NO.2
2022-11 → 2023-10
ended
|
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 | — | |
| 17572-0E020 |
Bracket, Exhaust Pipe Support, NO.2
2022-10 → 2023-09
ended
|
1GDFTV GUN156,166 IND | — | |
| 17572-0L030 |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → —
|
1GDFTV GUN156 PKN | — | |
| 17572-0L030 |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 17572-0L030 note |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2023-11
ended
|
1GDFTV,2GDFTV GUN15# RHD SA | — | |
| 17572-0L030 note |
Bracket, Exhaust Pipe Support, NO.2
2022-11 → 2023-10
ended
|
1GDFTV GUN156 H LA;2GDFTV +6 | — | |
| 17572-0L030 |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2023-08
ended
|
2GDFTV GUN155,165 RHD (GEN,MA);1GDFTV +3 | — | |
| 17572-0L030 |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP GEN | — | |
| 17572-0L030 note |
Bracket, Exhaust Pipe Support, NO.2
2022-09 → 2023-05
ended
|
1GDFTV,2GDFTV GUN15# RHD GEN | — | |
| 17572-0L030 note |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2023-05
ended
|
1GDFTV GUN156 THP GEN;1GDFTV,2GDFTV +3 | — | |
| 17572-0L030 |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2023-02
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
| 17572-0L030 note |
Bracket, Exhaust Pipe Support, NO.2
2022-08 → 2022-11
ended
|
1GDFTV,2GDFTV GUN15#,16# IDN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
