Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

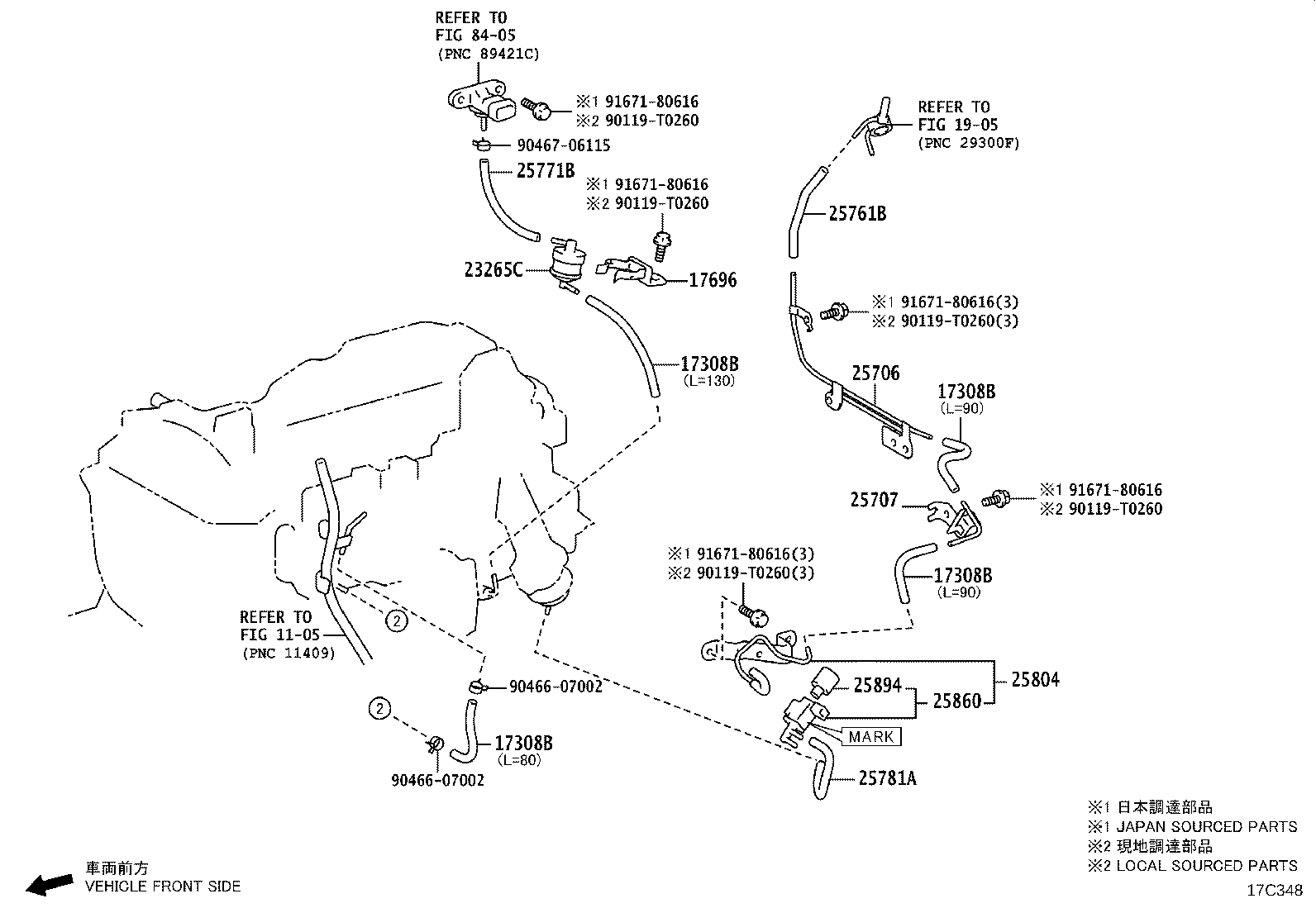

Exploded illustration 17C348 9046706115 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 17308B — HOSE SUB-ASSY, VACUUM (24 parts) 17308B — HOSE SUB-ASSY, VACUUM (24 parts) 1105 — not listed in this catalogue 9046607002 — not listed in this catalogue 23265C — FILTER, GAS (9 parts) 25771B — HOSE, VACCUM TRANSMITTING, NO.2 (12 parts) 8405 — not listed in this catalogue 17696 — BRACKET, GAS FILTER (12 parts) 9046607002 — not listed in this catalogue 17308B — HOSE SUB-ASSY, VACUUM (24 parts) 25706 — PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 (26 parts) 25761B — HOSE, VACCUM TRANSMITTING, NO.1 (20 parts) 1905 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 25707 — PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 (22 parts) 25781A — HOSE, VACUUM TRANSMITTING, NO.3 (20 parts) 25804 — VALVE SET, VACUUM CONTROL (21 parts) 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (32 parts) 25894 — FILTER, NO.1 (21 parts) 17308B — HOSE SUB-ASSY, VACUUM (24 parts) 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue
17C348 · 14 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
219 parts on this figure
Part number Description Fitment Price
17308B — Hose Sub-assy, Vacuum
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → —
1GDFTV GUN156 PKNP TH —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → —
1GDFTV GUN156 PKNP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90999-92002 note Hose Sub-assy, Vacuum
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90999-92002 note Hose Sub-assy, Vacuum
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
90999-92002 note Hose Sub-assy, Vacuum
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
90999-92002 note Hose Sub-assy, Vacuum
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
90999-92002 note Hose Sub-assy, Vacuum
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
90999-92002 note Hose Sub-assy, Vacuum
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
17696 — Bracket, Gas Filter
17696-0E010 note Bracket, Gas Filter
2022-08 → —
1GDFTV GUN156 PKNP —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
17696-0E010 note Bracket, Gas Filter
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
17696-0E020 note Bracket, Gas Filter
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
17696-0E020 note Bracket, Gas Filter
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
17696-11010 note Bracket, Gas Filter
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
17696-11010 note Bracket, Gas Filter
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
17696-11010 note Bracket, Gas Filter
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23265C — Filter, Gas
90917-11044 Filter, Gas
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90917-11044 Filter, Gas
2022-08 → —
1GDFTV GUN156 PKNP —
90917-11044 Filter, Gas
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90917-11044 Filter, Gas
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90917-11044 Filter, Gas
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90917-11044 Filter, Gas
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
90917-11044 Filter, Gas
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90917-11044 note Filter, Gas
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
90917-11044 note Filter, Gas
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25706-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25706-0E040 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25706-0E040 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2023-01 → 2024-01 ended
1GDFTV GUN156 LHD 6F +1 —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → —
1GDFTV GUN156 PKN —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 6FC SA;1GDFTV,2GDFTV +2 —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN156 H LA;2GDFTV +3 —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25706-0E060 note Pipe Sub-assy, Vacuum Transmitting, NO.1
2022-08 → 2023-08 ended
2GDFTV GUN155,165 RHD (GEN,MA);1GDFTV +3 —
25707 — Pipe Sub-assy, Vacuum Transmitting, NO.2
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-10 ended
1GDFTV GUN156 L LA;1GDFTV,2GDFTV +5 —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → —
1GDFTV GUN156 PKNP TH —
25707-0E010 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25707-0E020 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25707-0E020 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25707-11020 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
25707-11020 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25707-11020 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25707-11030 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 6FC H +1 —
25707-11030 note Pipe Sub-assy, Vacuum Transmitting, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 L BZAGT —
25761B — Hose, Vaccum Transmitting, NO.1
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25761-0E010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25761-0E020 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25761-0E020 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25761-11010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25761-11010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25761-11010 note Hose, Vaccum Transmitting, NO.1
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
25771B — Hose, Vaccum Transmitting, NO.2
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
25771-0E020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
25771-0E040 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25771-0E040 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25771-11020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
25771-11020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25771-11020 note Hose, Vaccum Transmitting, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25781A — Hose, Vacuum Transmitting, NO.3
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → —
1GDFTV GUN156 PKNP TH —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25781-0E010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25781-0E020 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25781-0E020 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25781-11010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
25781-11010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25781-11010 note Hose, Vacuum Transmitting, NO.3
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25804 — Valve Set, Vacuum Control
25804-0E010 note Valve Set, Vacuum Control
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25804-0E010 note Valve Set, Vacuum Control
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25804-11010 note Valve Set, Vacuum Control
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25804-11010 Valve Set, Vacuum Control
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25804-11010 Valve Set, Vacuum Control
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25804-11010 Valve Set, Vacuum Control
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25804-11010 note Valve Set, Vacuum Control
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25804-11010 Valve Set, Vacuum Control
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25804-11010 Valve Set, Vacuum Control
2022-08 → —
1GDFTV GUN156 PKNP TH —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25804-11010 Valve Set, Vacuum Control
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25804-11010 Valve Set, Vacuum Control
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25804-11010 note Valve Set, Vacuum Control
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25804-11010 note Valve Set, Vacuum Control
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25804-11010 note Valve Set, Vacuum Control
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25860 — Valve Assy, Vacuum Switching, NO.1
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
2TRFE TGN156,166 PKN —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
25860-0E010 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25860-0E010 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
1GRFE GGN155 EPT —
25894 — Filter, NO.1
25894-0E010 note Filter, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25894-0E010 note Filter, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25894-11010 note Filter, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25894-11010 Filter, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
25894-11010 Filter, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25894-11010 note Filter, NO.1
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25894-11010 note Filter, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25894-11010 Filter, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25894-11010 note Filter, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25894-11010 Filter, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25894-11010 note Filter, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25894-11010 Filter, NO.1
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25894-11010 note Filter, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25894-11010 note Filter, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25894-11010 note Filter, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25894-11010 Filter, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25894-11010 note Filter, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25894-11010 Filter, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25894-11010 note Filter, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25894-11010 note Filter, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25894-11010 note Filter, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
