Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

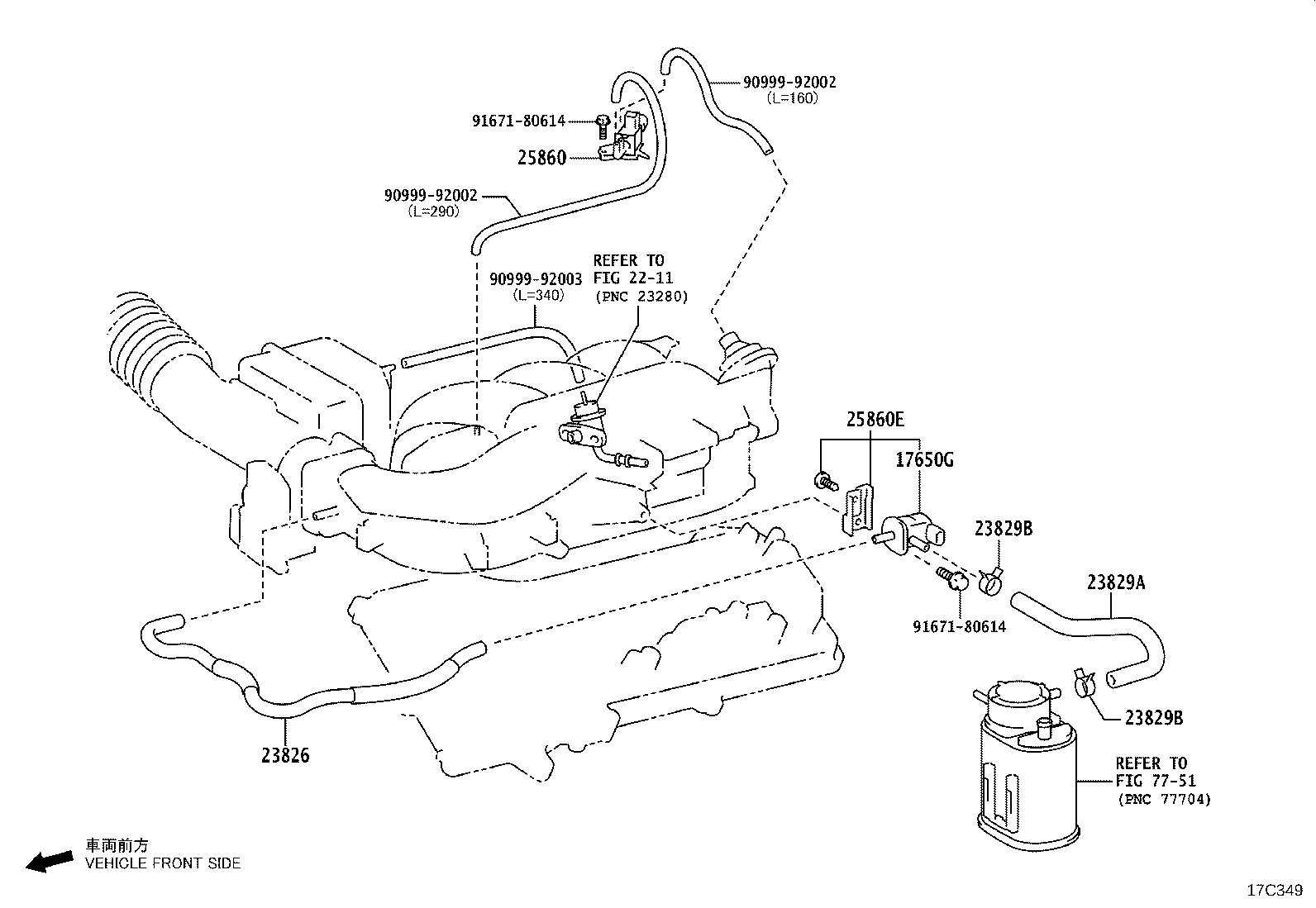

Exploded illustration 17C349 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (32 parts) 9099992002 — not listed in this catalogue 9167180614 — not listed in this catalogue 23826 — HOSE, FUEL VAPOR FEED, NO.1 (4 parts) 2211 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992003 — not listed in this catalogue 25860E — VALVE, VACUUM SWITCHING, NO.2 (4 parts) 9167180614 — not listed in this catalogue 23829B — CLIP(FOR FUEL VAPOR FEED HOSE) (11 parts) 23829B — CLIP(FOR FUEL VAPOR FEED HOSE) (11 parts) 23829A — HOSE, FUEL VAPOR FEED (11 parts) 7751 — not listed in this catalogue 17650G — VALVE, DUTY VACUUM SWITCHING (11 parts)
17C349 · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
17650G — Valve, Duty Vacuum Switching
90910-12276 Valve, Duty Vacuum Switching
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
90910-12276 Valve, Duty Vacuum Switching
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
90910-12276 Valve, Duty Vacuum Switching
2022-08 → —
1GRFE GGN155 EPT —
90910-12276 Valve, Duty Vacuum Switching
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → —
2TRFE TGN156,166 PKN —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
90910-TC004 Valve, Duty Vacuum Switching
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
23826 — Hose, Fuel Vapor Feed, NO.1
23826-31010 Hose, Fuel Vapor Feed, NO.1
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
23826-31010 Hose, Fuel Vapor Feed, NO.1
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
23826-31010 Hose, Fuel Vapor Feed, NO.1
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
23826-31010 Hose, Fuel Vapor Feed, NO.1
2022-08 → —
1GRFE GGN155 EPT —
23829A — Hose, Fuel Vapor Feed
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → —
2TRFE TGN156,166 PKN —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
23829-0L011 Hose, Fuel Vapor Feed
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
23829-0P190 Hose, Fuel Vapor Feed
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
23829-0P190 Hose, Fuel Vapor Feed
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
23829-0P190 Hose, Fuel Vapor Feed
2022-08 → 2024-03 ended
1GRFE GGN155 EPT —
23829-0P190 Hose, Fuel Vapor Feed
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
23829B — Clip(FOR FUEL VAPOR FEED HOSE)
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → —
2TRFE TGN156,166 PKN —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2024-03 ended
1GRFE GGN155 EPT —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
90466-T0040 Clip(FOR FUEL VAPOR FEED HOSE)
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
25860 — Valve Assy, Vacuum Switching, NO.1
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP,MAP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-01 ended
2TRFE TGN156 SA —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
2TRFE TGN156,166 THP —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
25860-0C010 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
2TRFE TGN156,166 PKN —
25860-0E010 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25860-0E010 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15# RHD 6FC +1 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-01 ended
1GDFTV GUN156 RHD 6F +1 —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
1GDFTV GUN156 PKNP TH —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-09 → 2023-08 ended
1GDFTV,2GDFTV GUN15# RHD GEN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-02 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP (ARL,GCC,TH) —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GEN —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN155,16# LHD IDNP;1GDFTV +3 —
25860-30070 note Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15# MA —
25860-30070 Valve Assy, Vacuum Switching, NO.1
2023-02 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDN —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
25860-31010 Valve Assy, Vacuum Switching, NO.1
2022-08 → —
1GRFE GGN155 EPT —
25860E — Valve, Vacuum Switching, NO.2
25860-31140 Valve, Vacuum Switching, NO.2
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
25860-31140 Valve, Vacuum Switching, NO.2
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
25860-31140 Valve, Vacuum Switching, NO.2
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
25860-31140 Valve, Vacuum Switching, NO.2
2022-08 → —
1GRFE GGN155 EPT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
