Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

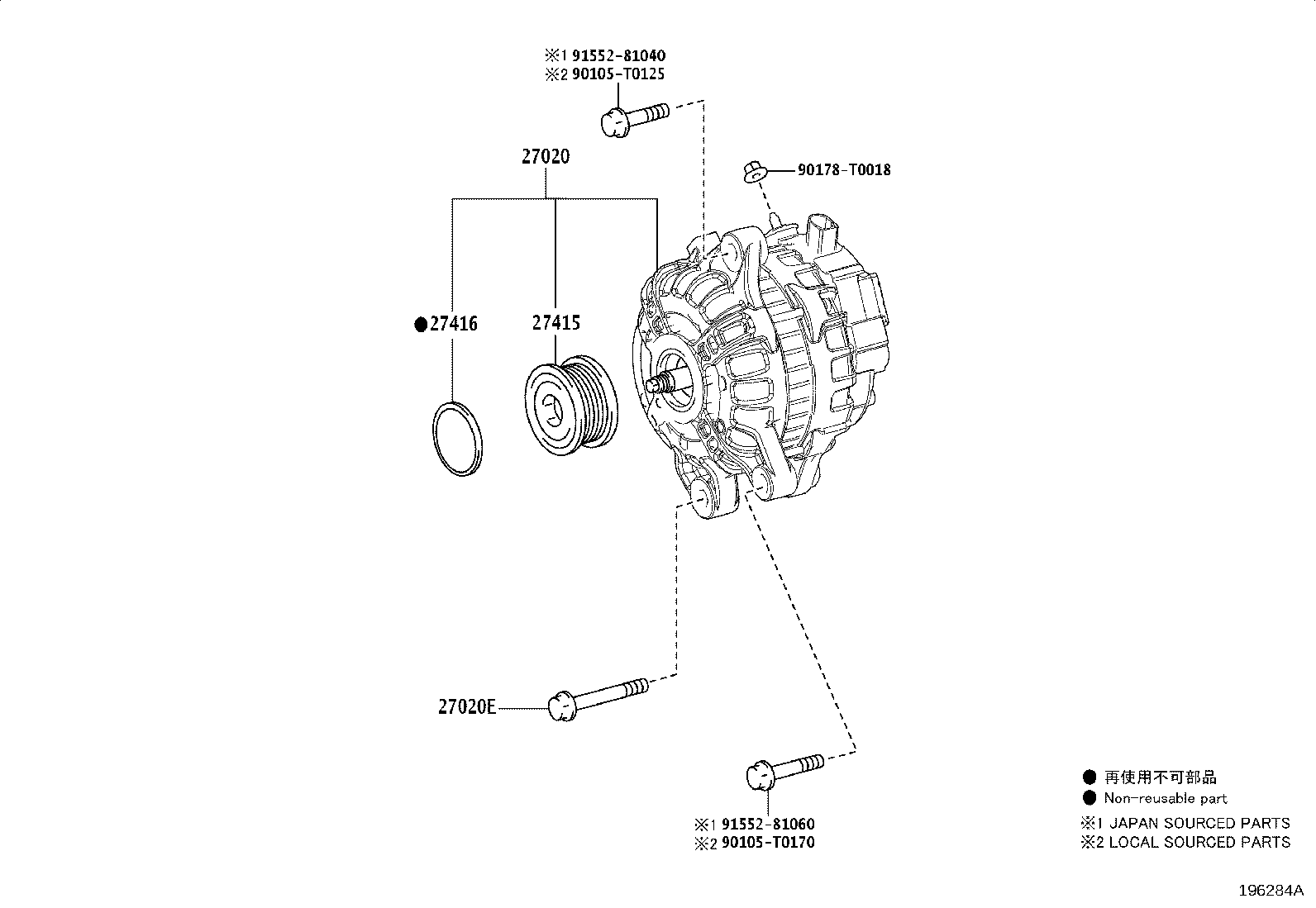

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-0C080 note |
Alternator Assy
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 27060-0C080 note |
Alternator Assy
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 27060-0C080 note |
Alternator Assy
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 27060-0C080 note |
Alternator Assy
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP | — | |
| 27060-0C080 note |
Alternator Assy
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 27060-0C080 note |
Alternator Assy
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 27060-0C160 note |
Alternator Assy
2023-01 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 27060-0C200 note |
Alternator Assy
2022-09 → 2023-08
ended
|
2TRFE TGN156 MA | — | |
| 27060-0E020 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP ARL | — | |
| 27060-0E020 note |
Alternator Assy
2022-08 → 2023-08
ended
|
1GDFTV GUN156 IDNP ARL | — | |
| 27060-0E030 note |
Alternator Assy
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27060-0E030 note |
Alternator Assy
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27060-0L140 note |
Alternator Assy
2022-10 → 2023-09
ended
|
1GDFTV GUN156 6FC IND | — | |
| 27060-0L140 note |
Alternator Assy
2022-10 → 2023-09
ended
|
1GDFTV GUN166 IND;1GDFTV GUN156 +2 | — | |
| 27060-0L160 note |
Alternator Assy
2022-11 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 27060-0L260 note |
Alternator Assy
2022-09 → 2023-08
ended
|
2GDFTV GUN165 IDNP L +1 | — | |
| 27060-0L260 note |
Alternator Assy
2022-09 → 2023-09
ended
|
2GDFTV GUN165 VNP L | — | |
| 27060-0L270 note |
Alternator Assy
2022-09 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15# MA | — | |
| 27060-0L290 note |
Alternator Assy
2022-08 → 2023-08
ended
|
2GDFTV GUN15#,166 GUN165 IDNP +7 | — | |
| 27060-0L290 note |
Alternator Assy
2022-08 → —
|
1GDFTV GUN156 PKN | — | |
| 27060-0L290 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# TH | — | |
| 27060-0L290 note |
Alternator Assy
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27060-0L290 note |
Alternator Assy
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27060-0L290 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,165 LHD THP | — | |
| 27060-0L290 note |
Alternator Assy
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,165 VNP 6FC | — | |
| 27060-0P290 note |
Alternator Assy
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 27060-0P290 note |
Alternator Assy
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 27060-0P290 note |
Alternator Assy
2022-08 → 2024-03
ended
|
1GRFE GGN155 EPT | — | |
| 27060-0P290 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 27060-30230 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP GCC | — | |
| 27060-30230 note |
Alternator Assy
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# TH | — | |
| 27060-30230 note |
Alternator Assy
2022-08 → 2023-08
ended
|
2GDFTV GUN155 S IDN;1GDFTV +3 | — | |
| 27060-30230 note |
Alternator Assy
2022-08 → 2023-09
ended
|
1GDFTV GUN156 6FC IND | — | |
| 27060-30230 note |
Alternator Assy
2022-08 → —
|
1GDFTV GUN156 PKNP TH | — | |
| 27060-54431 note |
Alternator Assy
2023-01 → 2024-01
ended
|
5LE LAN155 | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90105-10287 |
Bolt(FOR ALTERNATOR)
2023-01 → —
|
5LE LAN155 | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 90105-T0211 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 91552-81080 note |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 91672-81065 |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-07
ended
|
1GRFE GGN155 THP | — | |
| 91672-81065 |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-10
ended
|
1GRFE GGN155 LA | — | |
| 91672-81065 |
Bolt(FOR ALTERNATOR)
2022-08 → —
|
1GRFE GGN155 EPT | — | |
| 91672-81065 |
Bolt(FOR ALTERNATOR)
2022-08 → 2023-08
ended
|
1GRFE GGN155 IDNP | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0C010 |
Pulley, Alternator W/Clutch
2023-01 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 27415-0L030 |
Pulley, Alternator W/Clutch
2022-09 → 2023-09
ended
|
2GDFTV GUN165 VNP L | — | |
| 27415-0L030 |
Pulley, Alternator W/Clutch
2022-09 → 2023-08
ended
|
2GDFTV GUN165 IDNP L +1 | — | |
| 27415-0L040 note |
Pulley, Alternator W/Clutch
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27415-0L040 note |
Pulley, Alternator W/Clutch
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2023-08
ended
|
2GDFTV NP GUN165 (GCC,GEN,IDN,PH) +7 | — | |
| 27415-0L050 note |
Pulley, Alternator W/Clutch
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → —
|
1GDFTV GUN156 PKN | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2023-09
ended
|
1GDFTV S) GUN156 VNP;1GDFTV +6 | — | |
| 27415-0L050 note |
Pulley, Alternator W/Clutch
2022-08 → 2023-09
ended
|
1GDFTV GUN156 6FC IND | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27415-0L050 note |
Pulley, Alternator W/Clutch
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 27415-0L050 note |
Pulley, Alternator W/Clutch
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# TH | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27415-0L050 |
Pulley, Alternator W/Clutch
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,165 THP (ARL,GCC,GEN) | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 27415-0W063 |
Pulley, Alternator W/Clutch
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 27415-30010 note |
Pulley, Alternator W/Clutch
2022-08 → 2023-08
ended
|
2GDFTV GUN155 S IDN;1GDFTV +3 | — | |
| 27415-30010 note |
Pulley, Alternator W/Clutch
2022-08 → 2023-07
ended
|
1GDFTV GUN156 THP GCC | — | |
| 27415-30010 |
Pulley, Alternator W/Clutch
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# TH | — | |
| 27415-30010 |
Pulley, Alternator W/Clutch
2022-08 → —
|
1GDFTV GUN156 PKNP TH | — | |
| 27415-30010 |
Pulley, Alternator W/Clutch
2022-08 → 2023-09
ended
|
1GDFTV GUN156 6FC IND | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0L050 |
Cap, Alternator Pulley
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV GUN156,16# INDP,VNP | — | |
| 27416-0L050 |
Cap, Alternator Pulley
2022-08 → —
|
1GDFTV GUN156 PKNP | — | |
| 27416-0L050 note |
Cap, Alternator Pulley
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
| 27416-0L050 note |
Cap, Alternator Pulley
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27416-0L050 |
Cap, Alternator Pulley
2022-08 → 2023-10
ended
|
1GDFTV,2GDFTV GUN156,16# AGTP | — | |
| 27416-0L050 |
Cap, Alternator Pulley
2022-08 → 2023-08
ended
|
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP | — | |
| 27416-0L050 |
Cap, Alternator Pulley
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN15#,16# THP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2023-09
ended
|
2TRFE TGN166 INDP,VNP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2023-08
ended
|
2TRFE TGN156,166 IDNP,MAP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2023-10
ended
|
2TRFE TGN156,166 AGTP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2024-01
ended
|
2TRFE TGN156 SA | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2024-03
ended
|
2TRFE TGN166 EPT | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → 2023-07
ended
|
2TRFE TGN156,166 THP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2022-08 → —
|
2TRFE TGN156,166 PKN | — | |
| 27416-33010 note |
Cap, Alternator Pulley
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# SA | — | |
| 27416-33010 note |
Cap, Alternator Pulley
2023-01 → 2024-03
ended
|
1GDFTV,2GDFTV GUN15# KEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
