Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

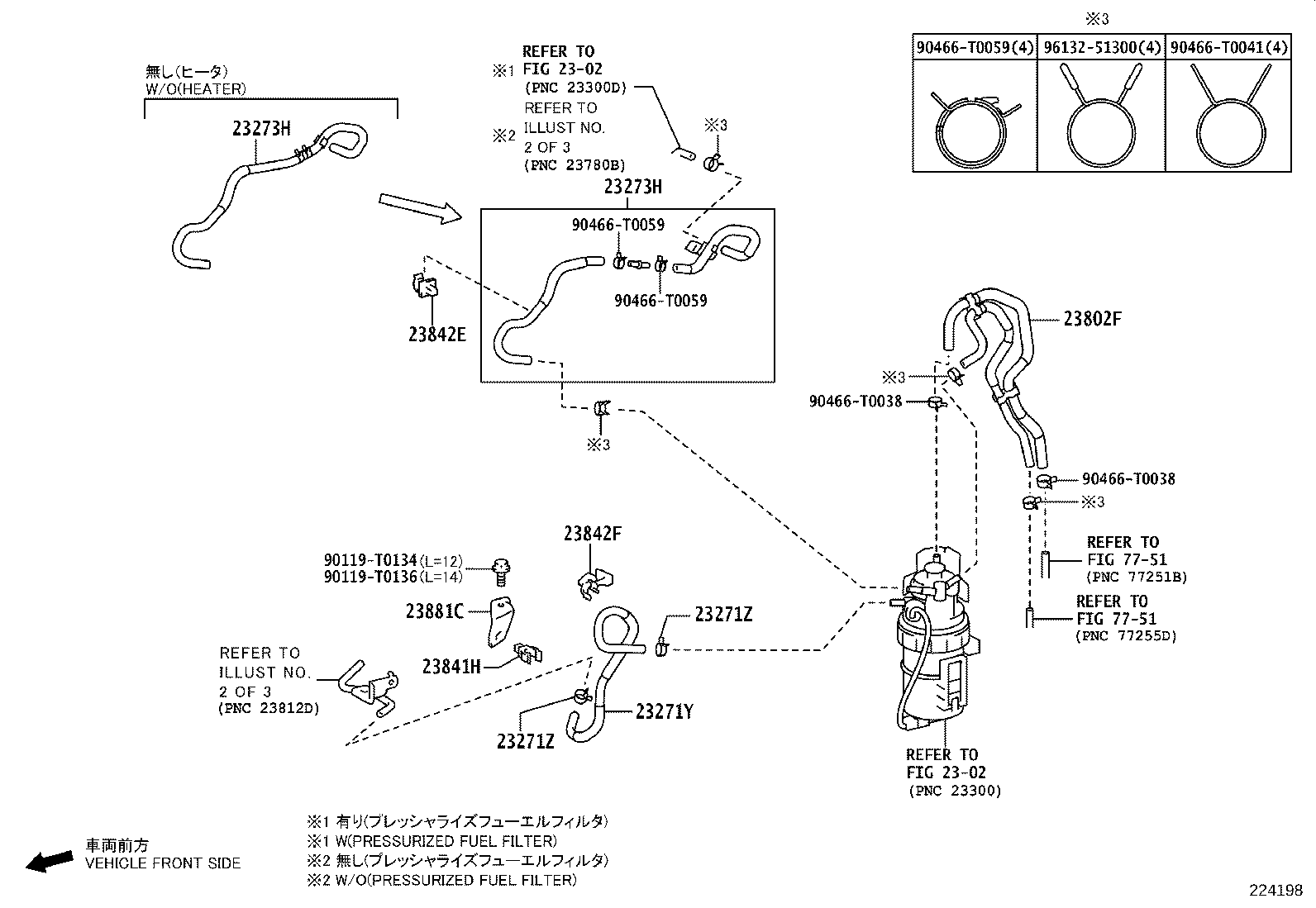

Exploded illustration 224198 90466T0038 — not listed in this catalogue 23802F — HOSE, FUEL (9 parts) 2302 — not listed in this catalogue 7751 — not listed in this catalogue 7751 — not listed in this catalogue 23271Z — CLIP, HOSE (7 parts) 23271Z — CLIP, HOSE (7 parts) 23271Y — HOSE, FUEL (7 parts) 90119T0134 — not listed in this catalogue 90119T0136 — not listed in this catalogue 23881C — BRACKET, FUEL HOSE (7 parts) 90466T0038 — not listed in this catalogue 23842F — CLAMP, FUEL PIPE, NO.2 (9 parts) 23841H — CLAMP, FUEL HOSE (9 parts) 2302 — not listed in this catalogue 90466T0059 — not listed in this catalogue 90466T0059 — not listed in this catalogue 23273H — HOSE, FUEL, NO.2 (11 parts) 23273H — HOSE, FUEL, NO.2 (11 parts) 23842E — CLAMP, FUEL PIPE, NO.1 (9 parts) 90466T0059 — not listed in this catalogue 90466T0041 — not listed in this catalogue 9613251300 — not listed in this catalogue
224198 · 10 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
23271Y — Hose, Fuel
23271-0E041 Hose, Fuel
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23271-0E041 Hose, Fuel
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23271-0E041 Hose, Fuel
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23271-0E041 Hose, Fuel
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23271-0E041 Hose, Fuel
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23271-0E041 Hose, Fuel
2022-08 → —
1GDFTV GUN156 PKNP —
23271-0E041 Hose, Fuel
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23271Z — Clip, Hose
90466-T0023 Clip, Hose
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
90466-T0023 Clip, Hose
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
90466-T0023 Clip, Hose
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
90466-T0023 Clip, Hose
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
90466-T0023 Clip, Hose
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
90466-T0023 Clip, Hose
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
90466-T0023 Clip, Hose
2022-08 → —
1GDFTV GUN156 PKNP —
23273H — Hose, Fuel, NO.2
23273-0E040 Hose, Fuel, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 L BZAGT —
23273-0E040 note Hose, Fuel, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN156 6FC H +1 —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2023-10 ended
1GDFTV GUN156 L LA;1GDFTV,2GDFTV +5 —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2023-08 ended
2GDFTV FTV GUN165 GUN165 +8 —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23273-0L132 Hose, Fuel, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23273-0L132 Hose, Fuel, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
23273-0L200 Hose, Fuel, NO.2
2022-09 → 2023-08 ended
2GDFTV GUN155,165 L (MA,PH) —
23273-54190 Hose, Fuel, NO.2
2023-01 → 2024-01 ended
5LE LAN155 —
23802F — Hose, Fuel
23801-0E020 Hose, Fuel
2022-10 → 2023-09 ended
1GDFTV GUN156,166 IND —
23801-0E020 note Hose, Fuel
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 —
23801-0L050 Hose, Fuel
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
23801-0L050 Hose, Fuel
2022-08 → —
1GDFTV GUN156 PKNP —
23801-0L050 Hose, Fuel
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23801-0L050 Hose, Fuel
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23801-0L050 Hose, Fuel
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23801-0L050 Hose, Fuel
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23801-0L050 Hose, Fuel
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23841H — Clamp, Fuel Hose
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23841-0L010 note Clamp, Fuel Hose
2022-08 → —
1GDFTV GUN156 PKNP —
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23841-0L010 note Clamp, Fuel Hose
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23841-0L030 note Clamp, Fuel Hose
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 —
23841-0L030 note Clamp, Fuel Hose
2022-10 → 2023-09 ended
1GDFTV GUN156,166 IND —
23842E — Clamp, Fuel Pipe, NO.1
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → —
1GDFTV GUN156 PKNP —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23841-0L041 note Clamp, Fuel Pipe, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23841-0L061 note Clamp, Fuel Pipe, NO.1
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 —
23841-0L061 note Clamp, Fuel Pipe, NO.1
2022-10 → 2023-09 ended
1GDFTV GUN156,166 IND —
23842F — Clamp, Fuel Pipe, NO.2
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23842-0L010 note Clamp, Fuel Pipe, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23842-0L030 note Clamp, Fuel Pipe, NO.2
2022-11 → 2023-10 ended
1GDFTV GUN166 6FC LA;1GDFTV,2GDFTV +2 —
23842-0L030 note Clamp, Fuel Pipe, NO.2
2022-10 → 2023-09 ended
1GDFTV GUN156,166 IND —
23881C — Bracket, Fuel Hose
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23881-0E011 note Bracket, Fuel Hose
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23881-0E011 note Bracket, Fuel Hose
2022-08 → —
1GDFTV GUN156 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
