Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

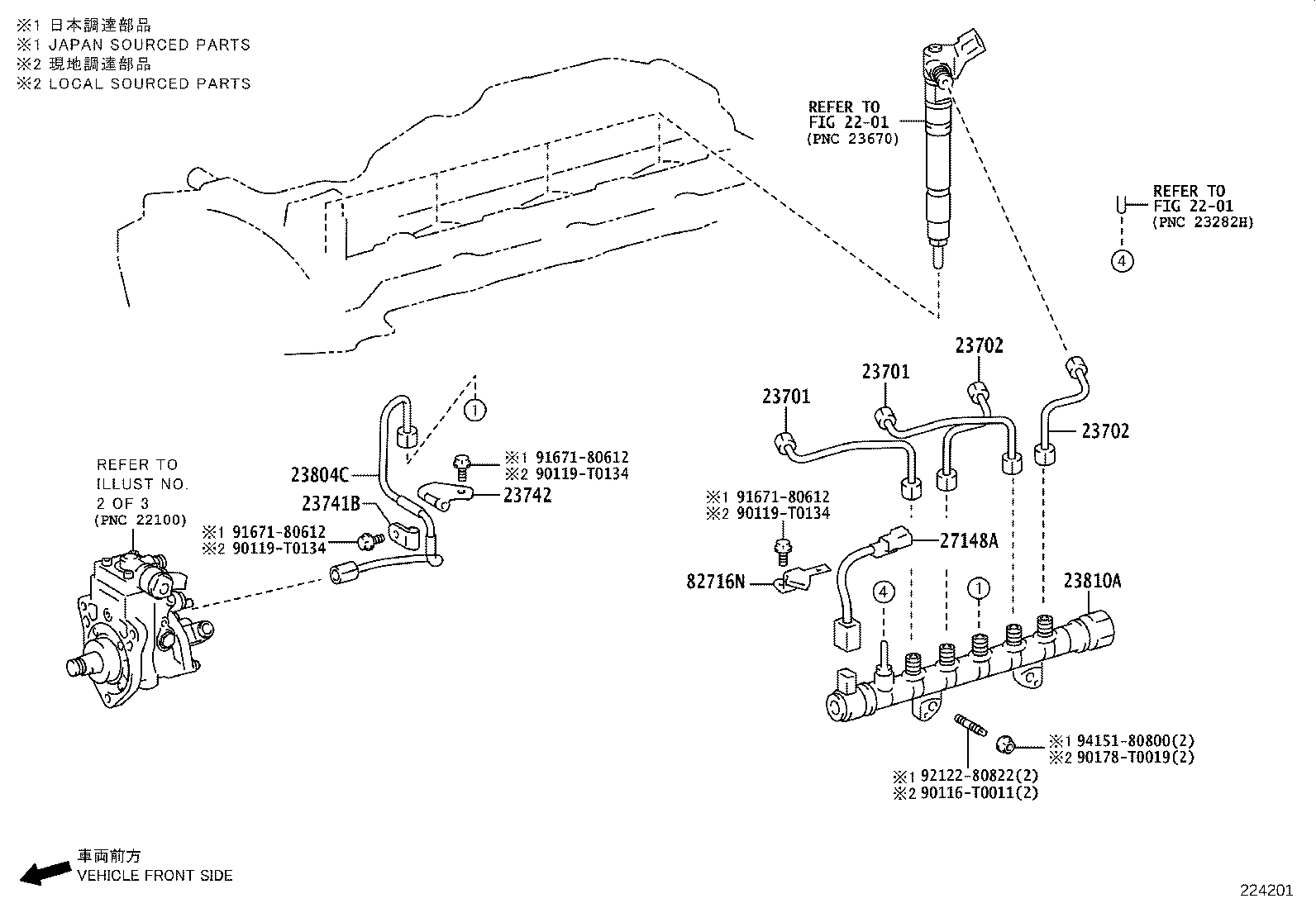

Exploded illustration 224201 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 27148A — WIRE, CONNECTING (13 parts) 9212280822 — not listed in this catalogue 90116T0011 — not listed in this catalogue 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (13 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (13 parts) 23741B — CLAMP, INJECTION PIPE (12 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (13 parts) 23804C — PIPE SUB-ASSY, FUEL INLET (13 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (13 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (13 parts) 2201 — not listed in this catalogue 2201 — not listed in this catalogue 82716N — BRACKET, WIRING HARNESS CLAMP, NO.2 (11 parts) 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 23810A — RAIL ASSY, COMMON (13 parts) 9415180800 — not listed in this catalogue 90178T0019 — not listed in this catalogue
224201 · 10 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
23701 — Pipe Sub-assy, Injection, NO.1
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → —
1GDFTV GUN156 PKNP —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23701-0E031 note Pipe Sub-assy, Injection, NO.1
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23701-0E041 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
23701-0E041 note Pipe Sub-assy, Injection, NO.1
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
23701-54140 Pipe Sub-assy, Injection, NO.1
2023-01 → —
5LE LAN155 —
23702 — Pipe Sub-assy, Injection, NO.2
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23702-0E031 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23702-0E041 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
23702-0E041 note Pipe Sub-assy, Injection, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
23702-54140 Pipe Sub-assy, Injection, NO.2
2023-01 → —
5LE LAN155 —
23741B — Clamp, Injection Pipe
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23741-0E010 note Clamp, Injection Pipe
2022-08 → —
1GDFTV GUN156 PKNP —
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23741-0E010 note Clamp, Injection Pipe
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23741-0E010 note Clamp, Injection Pipe
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23741-30010 note Clamp, Injection Pipe
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
23741-30010 note Clamp, Injection Pipe
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23741-30010 note Clamp, Injection Pipe
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23741-56010 Clamp, Injection Pipe
2023-01 → —
5LE LAN155 —
23742 — Clamp, Injection Pipe, NO.2
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23742-0E010 note Clamp, Injection Pipe, NO.2
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23742-0E020 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
23742-0E020 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
23742-11010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
23742-11010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23742-11010 note Clamp, Injection Pipe, NO.2
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23804C — Pipe Sub-assy, Fuel Inlet
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → —
1GDFTV GUN156 PKNP —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23804-0E041 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23804-0E051 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
23804-0E051 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
23804-11030 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23804-11030 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
23804-11030 note Pipe Sub-assy, Fuel Inlet
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23810A — Rail Assy, Common
23810-0E020 note Rail Assy, Common
2022-08 → —
1GDFTV GUN156 PKNP —
23810-0E020 note Rail Assy, Common
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
23810-0E020 note Rail Assy, Common
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
23810-0E020 note Rail Assy, Common
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
23810-0E020 note Rail Assy, Common
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
23810-0E020 note Rail Assy, Common
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
23810-0E020 note Rail Assy, Common
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
23810-0E020 note Rail Assy, Common
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
23810-0E040 note Rail Assy, Common
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
23810-0E040 note Rail Assy, Common
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
23810-11040 note Rail Assy, Common
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
23810-11040 note Rail Assy, Common
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
23810-11040 note Rail Assy, Common
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
27148A — Wire, Connecting
27148-0E030 note Wire, Connecting
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
27148-0E030 note Wire, Connecting
2022-08 → —
1GDFTV GUN156 PKNP —
27148-0E030 note Wire, Connecting
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
27148-0E030 note Wire, Connecting
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
27148-0E030 note Wire, Connecting
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
27148-0E030 note Wire, Connecting
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
27148-0E030 note Wire, Connecting
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
27148-0E030 note Wire, Connecting
2022-11 → 2023-05 ended
2GDFTV GUN165 L LA;1GDFTV +3 —
27148-0E060 note Wire, Connecting
2022-08 → 2023-07 ended
1GDFTV GUN156 THP ARL —
27148-0E060 note Wire, Connecting
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
27148-11030 note Wire, Connecting
2022-08 → 2023-05 ended
2GDFTV GUN155 THP GCC —
27148-11030 note Wire, Connecting
2022-08 → 2023-05 ended
2GDFTV GUN155 THP S —
27148-11030 note Wire, Connecting
2022-08 → 2023-07 ended
2GDFTV GUN155,165 THP —
82716N — Bracket, Wiring Harness Clamp, NO.2
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → —
GUN156 PKNP —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2024-03 ended
GUN15# KEN —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2024-01 ended
GUN15#,16# SA —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-10 ended
GUN156,16# AGTP —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-09 ended
GUN156,16# INDP,VNP —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-08 ended
GUN15#,16# IDNP,MAP —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-07 ended
GUN15#,16# THP —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2022-11 → 2023-05 ended
GUN165 L LA;GUN156 6F +1 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-07 ended
GUN155,165 THP —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-05 ended
GUN155 THP GCC —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2022-08 → 2023-05 ended
GUN155 THP S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
