Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

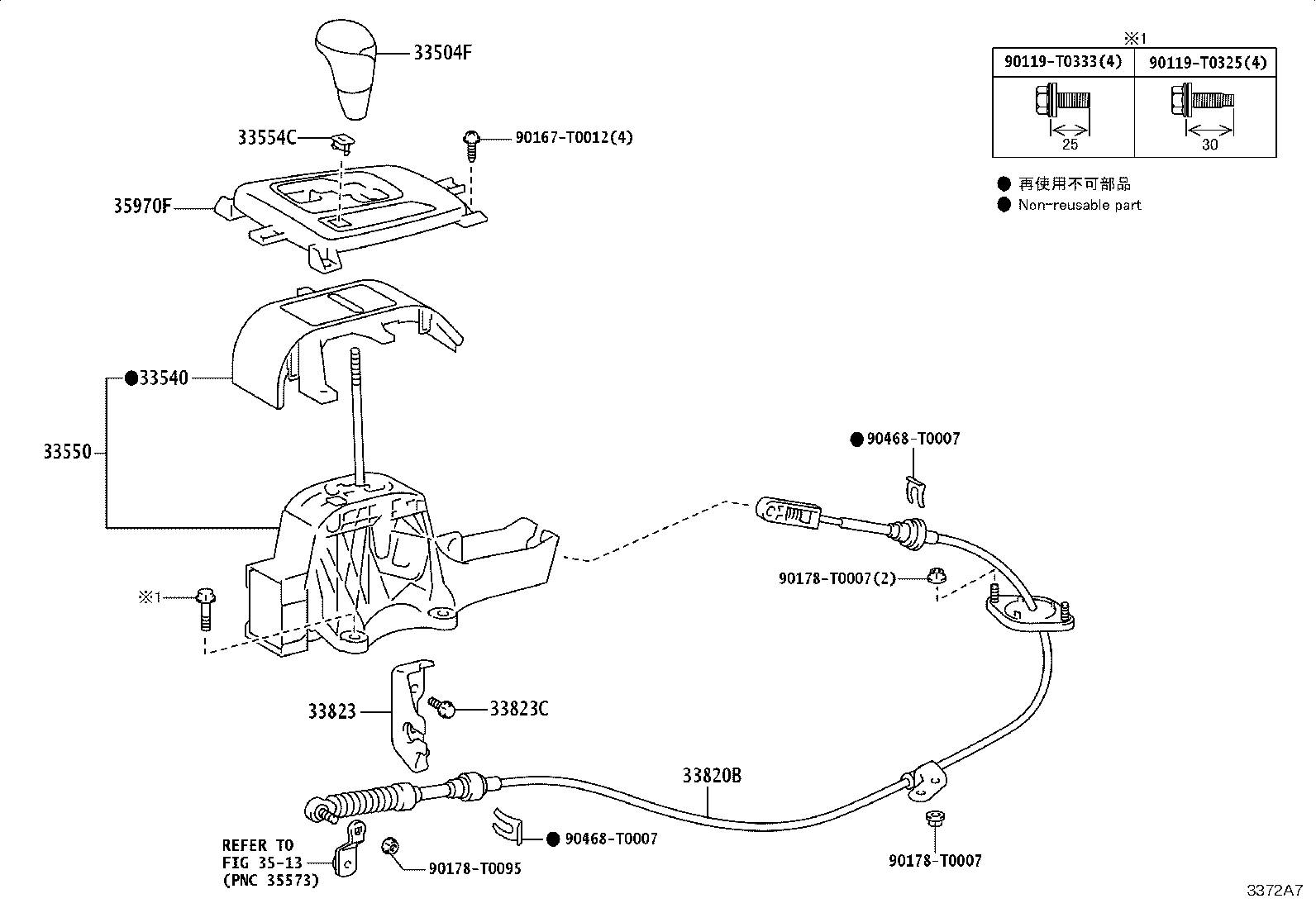

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-0K050 note |
Knob Sub-assy, Shift Lever
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 33504-0K060-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
TGN166 S LA | — | |
| 33504-0K090-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156,166 6F LA | — | |
| 33504-0K101-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156,166 6F LA | — | |
| 33504-0K101-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2024-01
ended
|
GUN156 LHD 6F SA | — | |
| 33504-0K101-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 33504-0K101-C0 note |
Knob Sub-assy, Shift Lever
2023-06 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 33504-0K101-C0 note |
Knob Sub-assy, Shift Lever
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2024-01
ended
|
GUN156 LHD 6FC SA;GUN155,165,TGN156 +2 | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN155,165 6FC L (MA,PH) | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN155,165,TGN156,166 IDNP L GCC | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN156 THP L | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN155,165,TGN156,166 THP L | — | |
| 33504-0K131-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-10
ended
|
GUN166 6FC LA;GUN156,165,TGN156,166 AGTP +2 | — | |
| 33504-0K150-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 33504-0K160-C0 note |
Knob Sub-assy, Shift Lever
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 33504-0K201-C0 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
TGN166 5F IND | — | |
| 33504-0K220-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN165 IDNP 6F L | — | |
| 33504-0K220-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 33504-0K220-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 33504-0K230-C0 note |
Knob Sub-assy, Shift Lever
2023-01 → 2024-01
ended
|
GUN165 6F SA;GUN156 LHD +2 | — | |
| 33504-0K241-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN165 6F IDN | — | |
| 33504-0K261-C0 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
GUN156,166 6F IND | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-09 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-10
ended
|
GUN156 H LA;GUN156 S +4 | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156,16#,TGN166 6FC (L,S) LA | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-11 → 2024-01
ended
|
GUN155,TGN156 SA;GUN156 LHD 6FC +1 | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2024-03
ended
|
GGN155,GUN156 6FC (EPT,KEN) | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → —
|
TGN156,166 PKN | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → —
|
GUN156 PKNP TH | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2023-05 → —
|
GUN156 PKN | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2023-05 → —
|
GUN156 PKN | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-05
ended
|
GUN156 TH | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN15# THP H GCC | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 (H,S) +3 | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN15# IDNP H GCC | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN155 P H (H,S) +8 | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN156 (IDNP,MAP) IDNP (H,S) +6 | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN156,166 MA,PH | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-05
ended
|
GUN156 6FC H BZAGT | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
TGN166 6FC IND | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-05
ended
|
GUN156 6FC IND | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-05
ended
|
GUN156 (AGTP,IDNP) H (LA,VN) | — | |
| 33504-0K311-C1 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-05
ended
|
GUN156 PH | — | |
| 33504-0K340-C0 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
TGN166 6FC IND | — | |
| 33504-0K340-C0 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-10 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → —
|
GUN156 PKN | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-09 → 2023-10
ended
|
GUN156 H LA | — | |
| 33504-YP020-C0 note |
Knob Sub-assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 33540 — Plate Assy, Shift Lever | ||||
| 33540-0K010 |
Plate Assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP 6FC | — | |
| 33540-0K020 |
Plate Assy, Shift Lever
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP 6FC | — | |
| 33540-0K030 |
Plate Assy, Shift Lever
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 6FC IND | — | |
| 33540-0K040 |
Plate Assy, Shift Lever
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 33540-0K040 |
Plate Assy, Shift Lever
2022-08 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 33540-0K040 |
Plate Assy, Shift Lever
2022-08 → 2024-01
ended
|
GUN15#,16# RHD 6FC SA | — | |
| 33540-0K040 |
Plate Assy, Shift Lever
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 33540-0K040 |
Plate Assy, Shift Lever
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 33540-0K050 |
Plate Assy, Shift Lever
2022-08 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 33540-0K050 |
Plate Assy, Shift Lever
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 33540-0K050 |
Plate Assy, Shift Lever
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 33540-0K050 |
Plate Assy, Shift Lever
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 33540-0K060 |
Plate Assy, Shift Lever
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP 6FC | — | |
| 33550 — Floor Shift Assy, Transmission | ||||
| 33550-0K100 |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GUN155,165 RHD IDNP 6FC +1 | — | |
| 33550-0K110 |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP (H,L) | — | |
| 33550-0K110 note |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 33550-0K120 |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GUN165,TGN156 IDNP 6FC L;GGN155,GUN155,TGN166 +3 | — | |
| 33550-0K130 |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GGN155,GUN15#,166 LHD IDNP H;GUN165,TGN156,166 +3 | — | |
| 33550-0K130 note |
Floor Shift Assy, Transmission
2022-09 → 2023-08
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 33550-0K150 |
Floor Shift Assy, Transmission
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 6FC IND | — | |
| 33550-0K160 |
Floor Shift Assy, Transmission
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 33550-0K160 note |
Floor Shift Assy, Transmission
2023-01 → 2024-01
ended
|
GUN15#,165 RHD 6FC SA | — | |
| 33550-0K170 |
Floor Shift Assy, Transmission
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 33550-0K170 |
Floor Shift Assy, Transmission
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 33550-0K170 |
Floor Shift Assy, Transmission
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 33550-0K170 |
Floor Shift Assy, Transmission
2022-08 → 2024-03
ended
|
GUN156 6FC KEN | — | |
| 33550-0K170 |
Floor Shift Assy, Transmission
2022-08 → 2024-01
ended
|
GUN15#,16# RHD 6FC SA | — | |
| 33550-0K180 |
Floor Shift Assy, Transmission
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 33550-0K180 |
Floor Shift Assy, Transmission
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 33550-0K180 |
Floor Shift Assy, Transmission
2022-08 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 33550-0K190 |
Floor Shift Assy, Transmission
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 33550-0K190 note |
Floor Shift Assy, Transmission
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 33550-0K190 |
Floor Shift Assy, Transmission
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 33550-0K190 note |
Floor Shift Assy, Transmission
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 33550-0K190 |
Floor Shift Assy, Transmission
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15# LHD +2 | — | |
| 33550-0K200 |
Floor Shift Assy, Transmission
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP 6FC (L,S) | — | |
| 33550-0K210 |
Floor Shift Assy, Transmission
2022-11 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 33554C — Cover, Shift Lock Release Button | ||||
| 33554-0K010 |
Cover, Shift Lock Release Button
2022-08 → 2023-07
ended
|
GUN15#,16# TH | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2022-09 → —
|
GUN156,TGN156,166 PKNP | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2022-09 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 33554-0K020 |
Cover, Shift Lock Release Button
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2022-09 → 2024-01
ended
|
GUN15#,16# RHD 6FC SA | — | |
| 33554-0K020 |
Cover, Shift Lock Release Button
2022-08 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 33554-0K020 |
Cover, Shift Lock Release Button
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP 6FC | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 33554-0K020 note |
Cover, Shift Lock Release Button
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 33554-0K020 |
Cover, Shift Lock Release Button
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) | — | |
| 33554-0K060 |
Cover, Shift Lock Release Button
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 33554-0K060 |
Cover, Shift Lock Release Button
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP 6FC (ARL,GCC,GEN,PH,VN) | — | |
| 33554-0K080 |
Cover, Shift Lock Release Button
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 6FC IDN | — | |
| 33554-0K100 note |
Cover, Shift Lock Release Button
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 33554-0K100 |
Cover, Shift Lock Release Button
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 6FC IND | — | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-0K120 |
Cable Assy, Transmission Control
2022-09 → 2023-08
ended
|
GGN155 IDNP | — | |
| 33820-0K131 |
Cable Assy, Transmission Control
2022-09 → 2023-08
ended
|
GUN15#,16# IDNP 6FC | — | |
| 33820-0K131 |
Cable Assy, Transmission Control
2022-09 → 2023-09
ended
|
GUN156,165 VNP 6FC | — | |
| 33820-0K140 |
Cable Assy, Transmission Control
2022-09 → 2023-08
ended
|
TGN156,166 IDNP 6FC | — | |
| 33820-0K160 |
Cable Assy, Transmission Control
2022-08 → 2023-07
ended
|
GGN155 THP | — | |
| 33820-0K160 |
Cable Assy, Transmission Control
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 33820-0K160 |
Cable Assy, Transmission Control
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → 2023-07
ended
|
GUN15#,16# THP | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → 2023-08
ended
|
GUN15# MA | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → —
|
GUN156 PKNP | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → 2023-10
ended
|
GUN156,16# AGTP 6FC | — | |
| 33820-0K171 |
Cable Assy, Transmission Control
2022-08 → 2024-01
ended
|
GUN15#,16# 6FC SA | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2023-07
ended
|
TGN156,166 THP | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → —
|
TGN156,166 PKN | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2024-01
ended
|
TGN156 SA | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2023-10
ended
|
TGN156,166 AGTP 6FC | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2023-09
ended
|
TGN166 VNP | — | |
| 33820-0K180 |
Cable Assy, Transmission Control
2022-08 → 2023-08
ended
|
TGN156 MA | — | |
| 33820-0K201 |
Cable Assy, Transmission Control
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 33820-0K220 |
Cable Assy, Transmission Control
2022-10 → 2023-09
ended
|
TGN166 6FC IND | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 6FC (EPT,KEN) | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2024-01
ended
|
GUN15#,16#,TGN156 6FC SA | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP 6FC | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) 6FC | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 33823-KK010 |
Bracket, Transmission Control Cable, NO.1
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) 6FC | — | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) 6FC | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) 6FC | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP 6FC | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2024-01
ended
|
GUN15#,16#,TGN156 6FC SA | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 6FC (EPT,KEN) | — | |
| 90119-T0102 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 35970F — Housing Assy, Position Indicator | ||||
| 35970-0K490-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN155,16# H TH | — | |
| 35970-0K490-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 35970-0K490-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 35970-0K490-B1 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2023-05 → —
|
GUN156 PKN | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → —
|
GUN156 PKNP TH | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-08 → —
|
TGN156,166 PKN | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 35970-0K510-B0 note |
Housing Assy, Position Indicator
2022-09 → 2024-01
ended
|
GUN155,165 6FC L SA | — | |
| 35970-0K510-B1 note |
Housing Assy, Position Indicator
2023-05 → —
|
GUN156 PKN | — | |
| 35970-0K510-B1 note |
Housing Assy, Position Indicator
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 35970-0K520-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 6FC IDN | — | |
| 35970-0K540-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) | — | |
| 35970-0K560-B0 note |
Housing Assy, Position Indicator
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 35970-0K560-B0 note |
Housing Assy, Position Indicator
2022-10 → 2023-09
ended
|
TGN166 6FC IND | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-11 → 2023-10
ended
|
GUN156 AGTP 6FC (L,S);GGN155,GUN16#,TGN156,166 +2 | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN155 THP S;GGN155,TGN156 THP +1 | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-11 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-11 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-11 → 2023-10
ended
|
GUN156 H LA | — | |
| 35970-0K580-B0 note |
Housing Assy, Position Indicator
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 35970-0K580-B1 note |
Housing Assy, Position Indicator
2022-11 → 2023-10
ended
|
GUN156 AGTP 6FC H | — | |
| 35970-0K580-B1 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN15#,165,TGN156,166 IDNP (H,L) GCC | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN155 GCC,GEN) LHD H +8 | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 35970-0K600-B0 note |
Housing Assy, Position Indicator
2022-09 → 2023-08
ended
|
GUN165 IDNP 6FC (PH,VN);GUN156,TGN156,166 +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
