Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

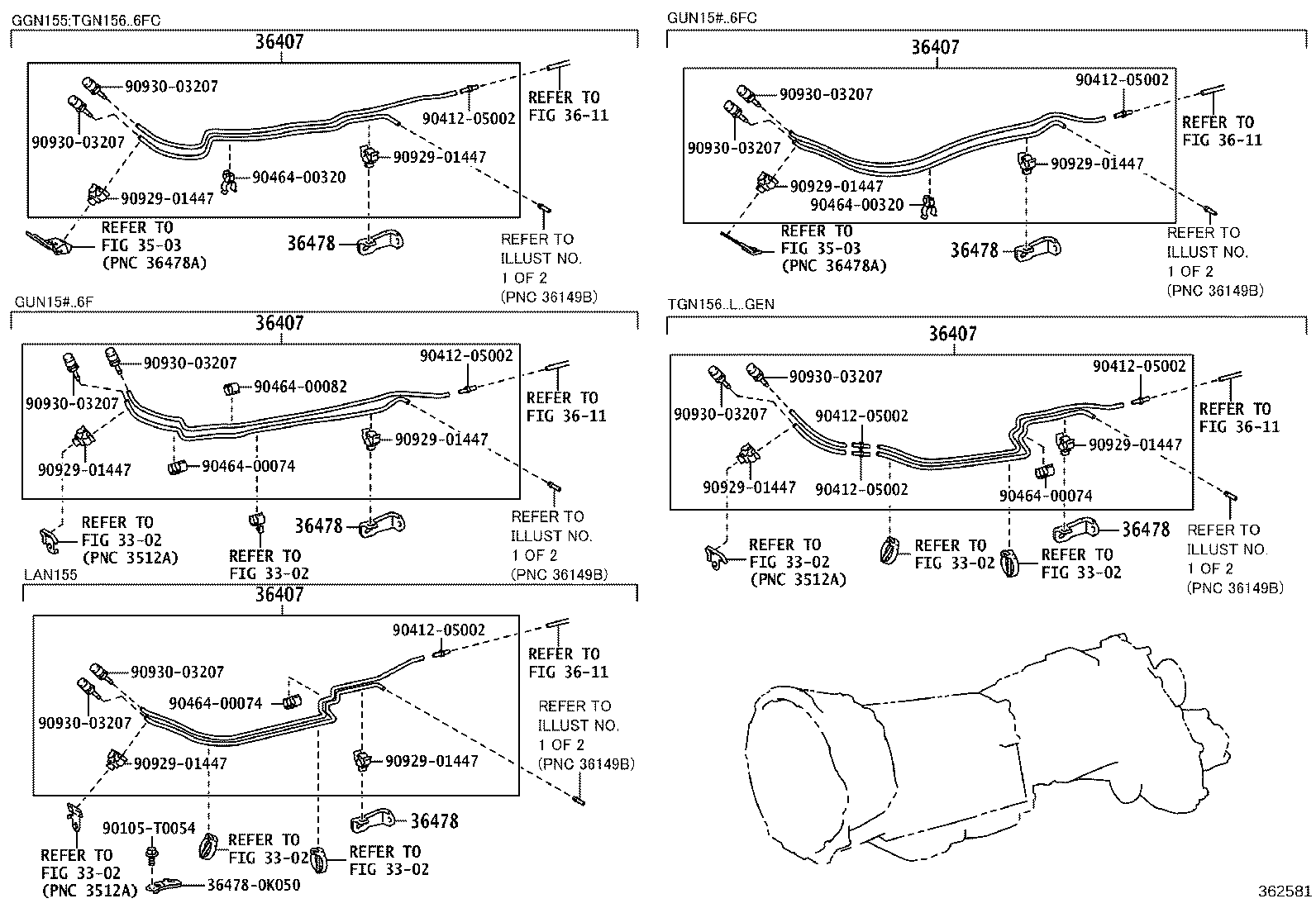

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 36407 — Hose Sub-assy, Transfer Breather | ||||
| 36407-0K010 |
Hose Sub-assy, Transfer Breather
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 36407-0K020 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-07
ended
|
TGN156 THP | — | |
| 36407-0K020 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-08
ended
|
TGN156 (IDNP,MAP) 6FC | — | |
| 36407-0K020 |
Hose Sub-assy, Transfer Breather
2022-08 → 2024-01
ended
|
TGN156 SA | — | |
| 36407-0K020 |
Hose Sub-assy, Transfer Breather
2022-08 → —
|
TGN156 PKN | — | |
| 36407-0K020 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-10
ended
|
TGN156 AGTP | — | |
| 36407-0K030 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-07
ended
|
GGN155 THP | — | |
| 36407-0K030 |
Hose Sub-assy, Transfer Breather
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 36407-0K030 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 36407-0K030 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-08
ended
|
GGN155 IDNP | — | |
| 36407-0K050 |
Hose Sub-assy, Transfer Breather
2022-09 → 2023-09
ended
|
GUN156 6F IND | — | |
| 36407-0K050 |
Hose Sub-assy, Transfer Breather
2022-09 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 36407-0K050 |
Hose Sub-assy, Transfer Breather
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 36407-0K050 |
Hose Sub-assy, Transfer Breather
2022-09 → 2023-10
ended
|
GUN156 AGTP 6F | — | |
| 36407-0K050 |
Hose Sub-assy, Transfer Breather
2022-09 → 2024-01
ended
|
GUN156 6F SA | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → —
|
GUN156 PKNP | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2024-01
ended
|
GUN15# 6FC SA | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-10
ended
|
GUN156 AGTP 6FC | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-09
ended
|
GUN156 (INDP,VNP) 6FC | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-08
ended
|
GUN15# (IDNP,MAP) 6FC | — | |
| 36407-0K060 |
Hose Sub-assy, Transfer Breather
2022-08 → 2023-07
ended
|
GUN15# THP | — | |
| 36407-0K070 |
Hose Sub-assy, Transfer Breather
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 36478 — Bracket, Transfer Breather | ||||
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → 2024-03
ended
|
GGN155,GUN15# EPT,KEN | — | |
| 36478-0K020 |
Bracket, Transfer Breather
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
