Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

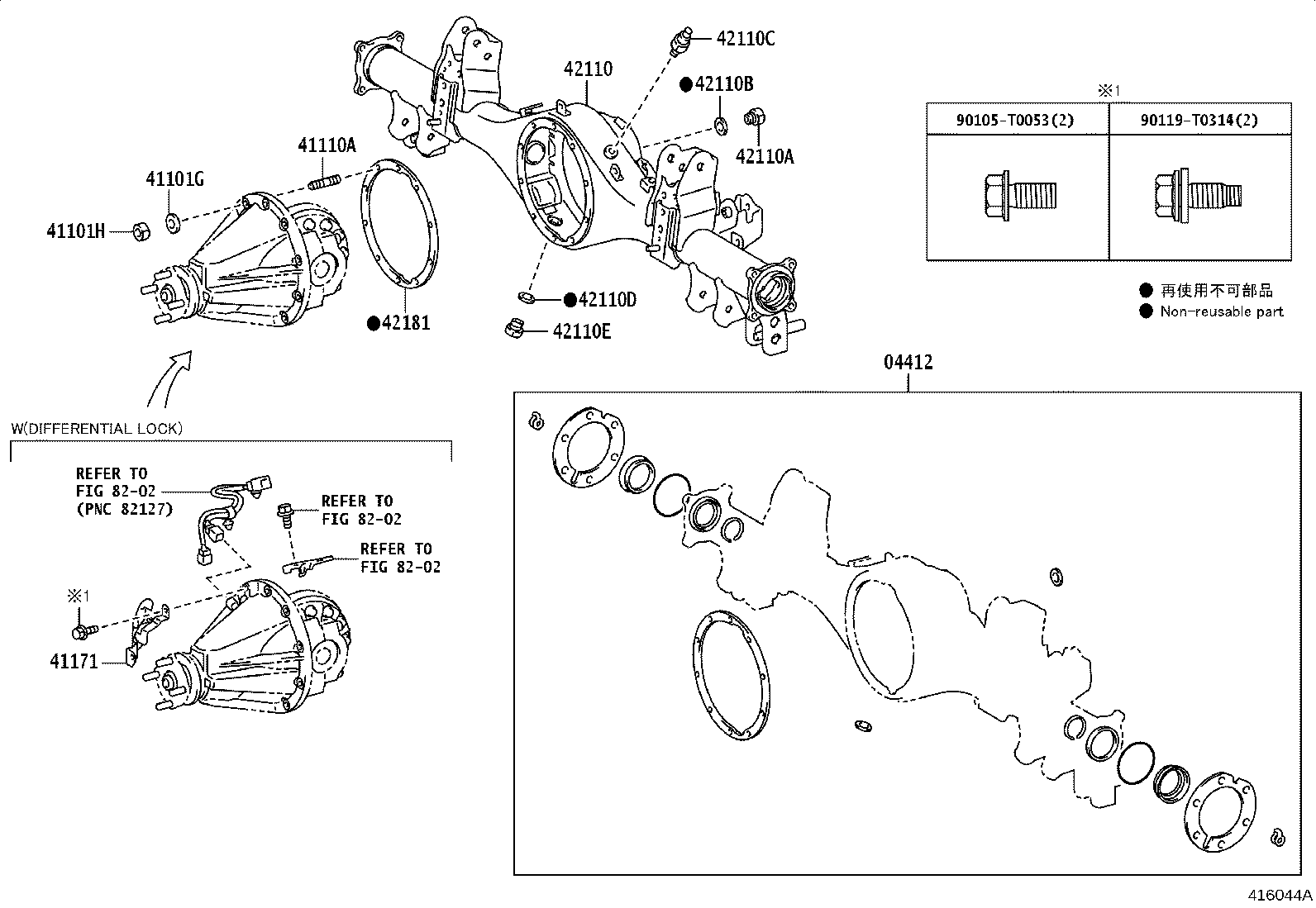

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-0K570 |
Gasket Kit, Rear Differential Carrier
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 04412-0K570 |
Gasket Kit, Rear Differential Carrier
2022-08 → —
|
GUN155 56;TGN166 156 L +9 | — | |
| 04412-0K580 |
Gasket Kit, Rear Differential Carrier
2022-09 → 2023-09
ended
|
TGN166 IDN,VN | — | |
| 41101G — Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90201-08002 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 90201-08002 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08
ended
|
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09
ended
|
TGN166 IND;GUN156,16# INDP,VNP | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 41101H — Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-T0009 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 90170-T0009 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08
ended
|
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09
ended
|
TGN166 IND;GUN156,16# INDP,VNP | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 90116-08233 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09
ended
|
TGN166 IND;GUN156,16# INDP,VNP | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08
ended
|
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 41171 — Protector, Differential, Rear | ||||
| 41171-0K010 note |
Protector, Differential, Rear
2022-08 → 2023-10
ended
|
GGN155,GUN166 LA;GUN156,165 AGTP L | — | |
| 41171-0K010 |
Protector, Differential, Rear
2022-08 → —
|
GUN156,TGN156 PKN | — | |
| 41171-0K010 |
Protector, Differential, Rear
2022-08 → 2023-10
ended
|
TGN156,166 AGTP;GUN156,165 AGTP (H,S) | — | |
| 41171-0K010 |
Protector, Differential, Rear
2022-08 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 41171-0K010 note |
Protector, Differential, Rear
2022-08 → 2023-08
ended
|
GUN155 IDNP L GCC | — | |
| 41171-0K010 |
Protector, Differential, Rear
2022-08 → 2023-08
ended
|
TGN166 GEN;GUN156 IDNP,MAP;GGN155 IDNP +3 | — | |
| 41171-0K010 note |
Protector, Differential, Rear
2022-08 → 2023-07
ended
|
GUN155 THP L | — | |
| 41171-0K010 |
Protector, Differential, Rear
2022-08 → 2023-07
ended
|
GUN156 THP (ARL,GCC,GEN);GGN155,GUN155,TGN156 THP +2 | — | |
| 41171-0K030 |
Protector, Differential, Rear
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155 SA | — | |
| 41171-0K030 note |
Protector, Differential, Rear
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 41171-0K030 |
Protector, Differential, Rear
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → 2023-08
ended
|
GUN155,165 CC,GEN,IND) LHD IDNP +3 | — | |
| 42110-KK170 |
Housing Assy, Rear Axle
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) | — | |
| 42110-KK200 |
Housing Assy, Rear Axle
2023-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 42110-KK200 |
Housing Assy, Rear Axle
2022-08 → 2023-08
ended
|
GUN165 IDN,MA,PH,VN) IDNP (PH,VN);GUN155,165 +4 | — | |
| 42110-KK200 |
Housing Assy, Rear Axle
2022-08 → 2023-07
ended
|
GUN15#,16# THP TH | — | |
| 42110-KK200 |
Housing Assy, Rear Axle
2022-08 → 2023-09
ended
|
GUN156,165 VNP | — | |
| 42110-KK230 |
Housing Assy, Rear Axle
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 42110-KK230 |
Housing Assy, Rear Axle
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2023-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-0K030 |
Gasket, Rear Differential Carrier
2022-09 → 2023-08
ended
|
TGN166 IDNP (IDN,VN) | — | |
| 42181-0K030 |
Gasket, Rear Differential Carrier
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2023-08
ended
|
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2023-09
ended
|
TGN166 IND;GUN156,16# INDP,VNP | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2024-01
ended
|
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 42181-KK010 |
Gasket, Rear Differential Carrier
2022-08 → —
|
GGN155,GUN156,TGN156,166 EPT,PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
