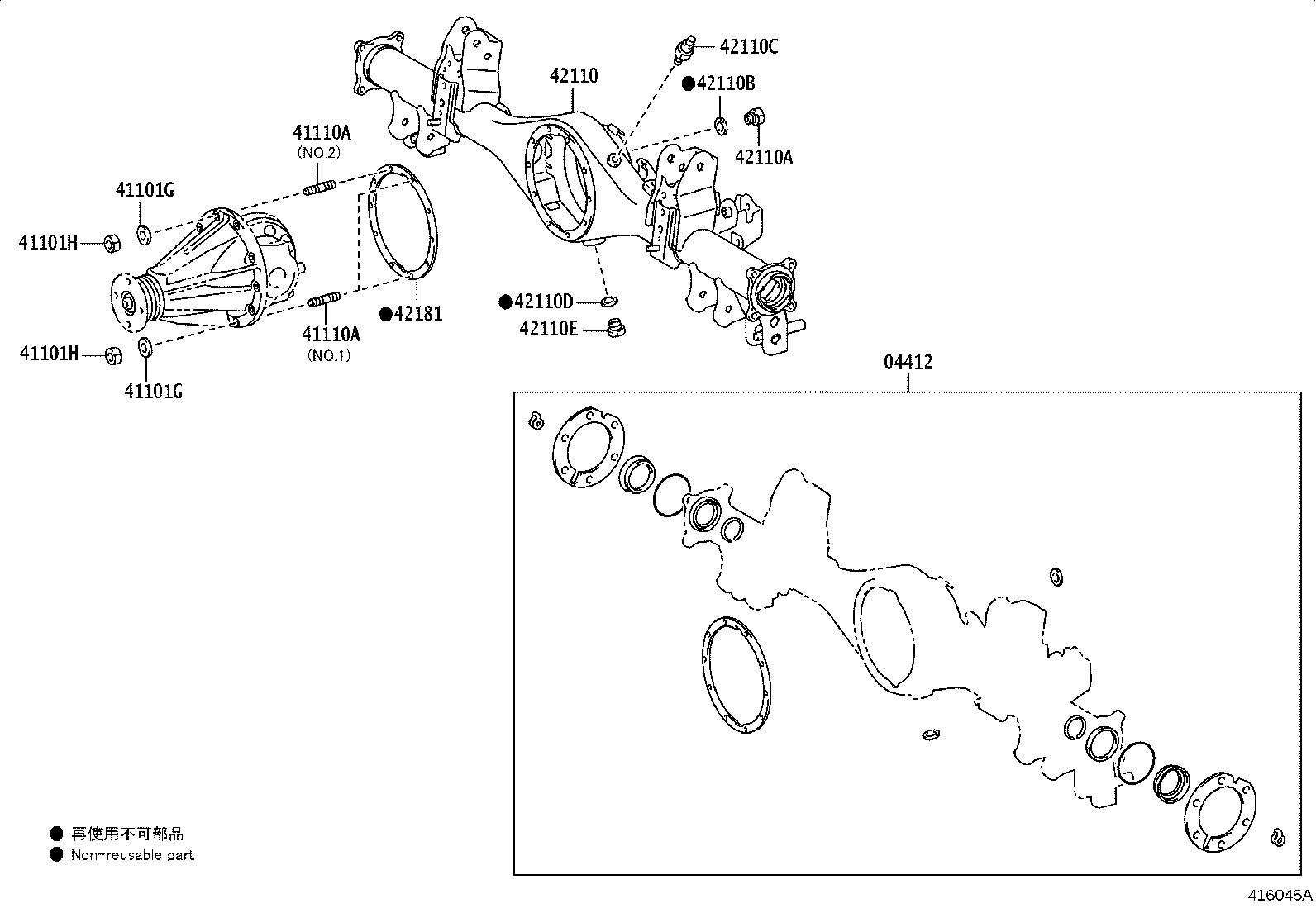

Exploded illustration 416045A 04412 — GASKET KIT, REAR DIFFERENTIAL CARRIER (3 parts) 41101G — WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) (10 parts) 41101H — NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) (10 parts) 41110A — BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) (12 parts) 41101G — WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) (10 parts) 41101H — NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) (10 parts) 41110A — BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) (12 parts) 42110 — HOUSING ASSY, REAR AXLE (13 parts) 42110A — PLUG (FOR REAR AXLE HOUSING FILLER) (8 parts) 42110B — GASKET (FOR REAR AXLE HOUSING FILLER PLUG) (8 parts) 42110D — GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) (8 parts) 42110E — PLUG (FOR REAR AXLE HOUSING DRAIN) (8 parts) 42181 — GASKET, REAR DIFFERENTIAL CARRIER (10 parts) 42110C — PLUG, BREATHER (FOR REAR AXLE HOUSING) (8 parts)
416045A · 14 callouts Full size ↗
98 parts on this figure
Part number Description Fitment Price
04412 — Gasket Kit, Rear Differential Carrier
04412-0K570 Gasket Kit, Rear Differential Carrier
2023-01 → 2024-01 ended
GUN15# LHD SA —
04412-0K570 Gasket Kit, Rear Differential Carrier
2022-08 → —
GUN155 56;TGN166 156 L +9 —
04412-0K580 Gasket Kit, Rear Differential Carrier
2022-09 → 2023-09 ended
TGN166 IDN,VN —
41101G — Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
90201-08002 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
90201-08002 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09 ended
TGN166 VNP —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN15# KEN —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01 ended
GUN15# LHD SA —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09 ended
TGN166 IND;GUN156,16# INDP,VNP —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
41101H — Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
90170-T0009 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
90170-T0009 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09 ended
TGN166 VNP —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN15# KEN —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01 ended
GUN15# LHD SA —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09 ended
TGN166 IND;GUN156,16# INDP,VNP —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP —
41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08233 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
90116-08233 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09 ended
TGN166 VNP —
90116-08329 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
90116-08329 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-09 → 2023-09 ended
TGN166 VNP —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-09 ended
TGN166 IND;GUN156,16# INDP,VNP —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN15# KEN —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2023-01 → 2024-01 ended
GUN15# LHD SA —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
42110 — Housing Assy, Rear Axle
42110-KK170 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) —
42110-KK170 Housing Assy, Rear Axle
2022-08 → 2023-08 ended
GUN155,165 CC,GEN,IND) LHD IDNP +3 —
42110-KK170 Housing Assy, Rear Axle
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
42110-KK170 Housing Assy, Rear Axle
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
42110-KK170 Housing Assy, Rear Axle
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
42110-KK170 Housing Assy, Rear Axle
2023-01 → 2024-01 ended
GUN15# LHD SA —
42110-KK170 Housing Assy, Rear Axle
2022-08 → 2024-03 ended
GUN15# KEN —
42110-KK200 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN15#,16# THP TH —
42110-KK200 Housing Assy, Rear Axle
2022-08 → 2023-08 ended
GUN165 IDN,MA,PH,VN) IDNP (PH,VN);GUN155,165 +4 —
42110-KK200 Housing Assy, Rear Axle
2022-08 → 2023-09 ended
GUN156,165 VNP —
42110-KK200 Housing Assy, Rear Axle
2023-08 → 2023-09 ended
GUN156,166,TGN166 IND —
42110-KK230 Housing Assy, Rear Axle
2022-09 → 2023-09 ended
TGN166 VNP —
42110-KK230 Housing Assy, Rear Axle
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
42110A — Plug (FOR REAR AXLE HOUSING FILLER)
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-03 ended
GUN15# KEN —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2023-01 → 2024-01 ended
GUN15# LHD SA —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2023-01 → 2024-01 ended
GUN15# LHD SA —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-03 ended
GUN15# KEN —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
42110C — Plug, Breather (FOR REAR AXLE HOUSING)
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → —
GUN156,TGN156,166 PKNP —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2023-08 → 2023-09 ended
GUN156,166,TGN166 IND —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-03 ended
GUN15# KEN —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2023-01 → 2024-01 ended
GUN15# LHD SA —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
42110E — Plug (FOR REAR AXLE HOUSING DRAIN)
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-03 ended
GUN15# KEN —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2023-01 → 2024-01 ended
GUN15# LHD SA —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
42181 — Gasket, Rear Differential Carrier
42181-0K030 Gasket, Rear Differential Carrier
2022-09 → 2023-08 ended
TGN166 IDNP (IDN,VN) —
42181-0K030 Gasket, Rear Differential Carrier
2022-09 → 2023-09 ended
TGN166 VNP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-08 ended
TGN166 IDNP (GCC,GEN);GGN155,GUN15#,16#,TGN156 IDNP,MAP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-09 ended
TGN166 IND;GUN156,16# INDP,VNP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2024-01 ended
GUN15# RHD SA;GUN16#,LAN155,TGN156 SA —
42181-KK010 Gasket, Rear Differential Carrier
2023-01 → 2024-01 ended
GUN15# LHD SA —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2024-03 ended
GUN15# KEN —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
