Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

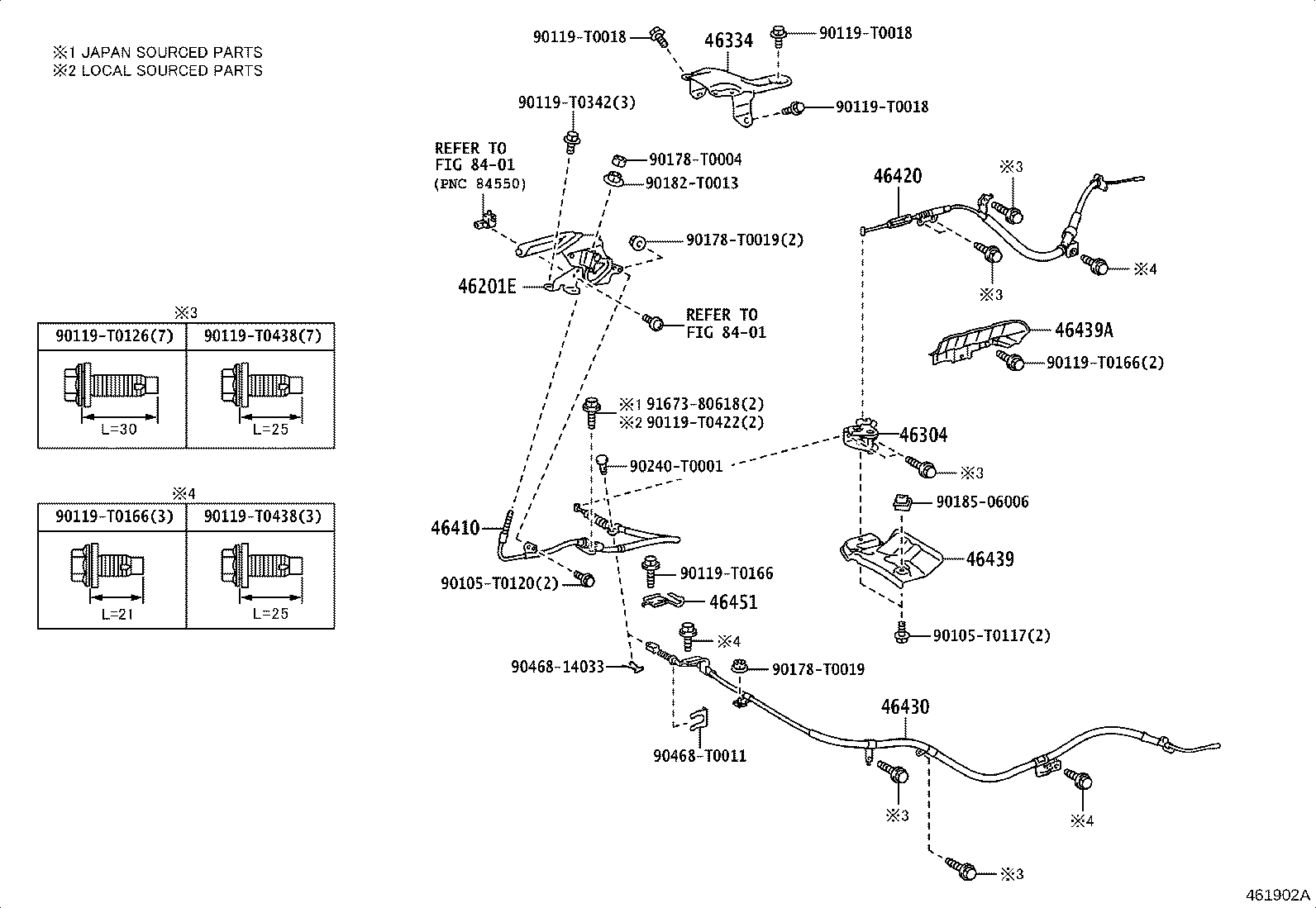

Exploded illustration 461902A 46201E — LEVER SUB-ASSY, PARKING BRAKE (50 parts) 46304 — EQUALIZER SUB-ASSY, PARKING BRAKE (8 parts) 46334 — PROTECTOR, INTERMEDIATE LEVER (7 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (9 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (11 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (11 parts) 46439 — INSULATOR, PARKING BRAKE CABLE HEAT (7 parts) 46439A — INSULATOR, PARKING BRAKE CABLE HEAT, NO.2 (7 parts) 46451 — BRACKET, CABLE SUPPORT (7 parts) 90105T0117 — not listed in this catalogue 90105T0120 — not listed in this catalogue 90119T0018 — not listed in this catalogue 90119T0018 — not listed in this catalogue 90119T0018 — not listed in this catalogue 90119T0166 — not listed in this catalogue 90119T0166 — not listed in this catalogue 90119T0422 — not listed in this catalogue 90178T0004 — not listed in this catalogue 90119T0342 — not listed in this catalogue 90178T0019 — not listed in this catalogue 90178T0019 — not listed in this catalogue 90182T0013 — not listed in this catalogue 9018506006 — not listed in this catalogue 90240T0001 — not listed in this catalogue 9046814033 — not listed in this catalogue 90468T0011 — not listed in this catalogue 9167380618 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0438 — not listed in this catalogue 90119T0166 — not listed in this catalogue 90119T0438 — not listed in this catalogue
461902A · 9 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
117 parts on this figure
Part number Description Fitment Price
46201E — Lever Sub-assy, Parking Brake
46201-0K140-C0 note Lever Sub-assy, Parking Brake
2022-09 → 2023-09 ended
GUN165 VNP L —
46201-0K140-C0 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN165 IDNP L (PH,VN) —
46201-0K140-C0 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN156,TGN156 IDNP L (ARL,GEN) —
46201-0K140-C0 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN15# IDN;GUN16#,TGN156,166 IDNP (H,S) +1 —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN155 P H (H,S) +8 —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN15# IDNP H GCC —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
46201-0K180-C2 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
46201-0K180-C3 note Lever Sub-assy, Parking Brake
2022-09 → 2023-09 ended
GUN156,165 VNP H —
46201-0K180-C3 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
46201-0K180-C4 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
46201-0K190-C0 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156,16#,TGN156,166 (L,S) LA —
46201-0K200-C3 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
46201-0K200-C3 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
46201-0K200-C3 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 H LA —
46201-0K200-C3 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 S BZAGT;GGN155,GUN165,TGN156,166 AGTP +2 —
46201-0K200-C4 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
46201-0K210-C0 note Lever Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46201-0K210-C0 note Lever Sub-assy, Parking Brake
2023-01 → 2024-03 ended
GUN155 KEN —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2022-09 → 2023-08 ended
GUN155 MA —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2022-08 → 2023-09 ended
GUN156,166 6FC IND —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2022-08 → 2023-08 ended
GUN156 MA —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2022-08 → —
GUN156 PKN —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN15#,16# THP H (GEN,TH) —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
46201-0K240-C2 note Lever Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-10 → —
GUN156 PKN —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → —
GUN156 PKNP TH —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → —
TGN156,166 PKN —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN165 S TH —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN156 THP GEN —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN155,16# H TH —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN15# THP H GCC —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 H +3 —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-10 → 2023-09 ended
GUN156 6FC IND —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-08 ended
GUN156,TGN156 MA —
46201-0K240-C3 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN156 TH —
46201-0K240-C4 note Lever Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GUN156 TH —
46201-0K240-C4 note Lever Sub-assy, Parking Brake
2022-08 → —
GUN156 PKN —
46201-0K240-C4 note Lever Sub-assy, Parking Brake
2022-08 → 2023-09 ended
GUN156 6FC IND —
46201-0K250-C0 note Lever Sub-assy, Parking Brake
2023-05 → 2024-03 ended
TGN166 EPT —
46201-0K260-C0 note Lever Sub-assy, Parking Brake
2022-11 → 2023-10 ended
GUN156 L BZAGT —
46304 — Equalizer Sub-assy, Parking Brake
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → —
GUN156,TGN156,166 PKNP —
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
46304-0K050 Equalizer Sub-assy, Parking Brake
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46304-0K090 Equalizer Sub-assy, Parking Brake
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46304-0K090 Equalizer Sub-assy, Parking Brake
2023-01 → 2024-03 ended
GUN15# KEN —
46334 — Protector, Intermediate Lever
46334-0K010 Protector, Intermediate Lever
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46334-0K010 Protector, Intermediate Lever
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
46334-0K010 Protector, Intermediate Lever
2022-09 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46334-KK010 Protector, Intermediate Lever
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46334-KK010 Protector, Intermediate Lever
2022-08 → —
GUN156,TGN156,166 PKNP —
46334-KK010 Protector, Intermediate Lever
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46334-KK010 Protector, Intermediate Lever
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46410 — Cable Assy, Parking Brake, NO.1
46410-0K090 Cable Assy, Parking Brake, NO.1
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46410-0K090 Cable Assy, Parking Brake, NO.1
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
46410-0K100 Cable Assy, Parking Brake, NO.1
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
46410-0K100 Cable Assy, Parking Brake, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
46410-0K100 Cable Assy, Parking Brake, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46410-0K110 Cable Assy, Parking Brake, NO.1
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
46410-0K110 Cable Assy, Parking Brake, NO.1
2022-10 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46410-0K110 Cable Assy, Parking Brake, NO.1
2022-10 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46410-0K110 Cable Assy, Parking Brake, NO.1
2022-10 → 2024-03 ended
GUN15# KEN —
46420 — Cable Assy, Parking Brake, NO.2
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
46420-0K190 note Cable Assy, Parking Brake, NO.2
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
46420-0K190 note Cable Assy, Parking Brake, NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
46420-0K190 Cable Assy, Parking Brake, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46420-0K350 note Cable Assy, Parking Brake, NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
46420-0K350 note Cable Assy, Parking Brake, NO.2
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
46430 — Cable Assy, Parking Brake, NO.3
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → —
GUN156,TGN156,166 PKNP —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46430-0K190 note Cable Assy, Parking Brake, NO.3
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
46430-0K190 note Cable Assy, Parking Brake, NO.3
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46430-0K190 Cable Assy, Parking Brake, NO.3
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
46430-0K260 note Cable Assy, Parking Brake, NO.3
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
46430-0K260 note Cable Assy, Parking Brake, NO.3
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
46439 — Insulator, Parking Brake Cable Heat
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → —
GUN156,TGN156,166 PKNP —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46439-0K090 Insulator, Parking Brake Cable Heat
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46439A — Insulator, Parking Brake Cable Heat, NO.2
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2023-09 ended
GUN156,165 VNP;TGN166 INDP,VNP —
46439-0K070 Insulator, Parking Brake Cable Heat, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46451 — Bracket, Cable Support
46451-0K050 Bracket, Cable Support
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
46451-0K050 Bracket, Cable Support
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
46451-0K050 Bracket, Cable Support
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
46451-0K050 Bracket, Cable Support
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
46451-0K050 Bracket, Cable Support
2022-08 → 2024-01 ended
GGN155,GUN15#,16#,LAN155,TGN156,166 EPT,KEN,PKN,SA —
46451-0K051 Bracket, Cable Support
2024-02 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
46451-0K051 Bracket, Cable Support
2024-02 → —
GUN156,TGN156,166 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
