Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

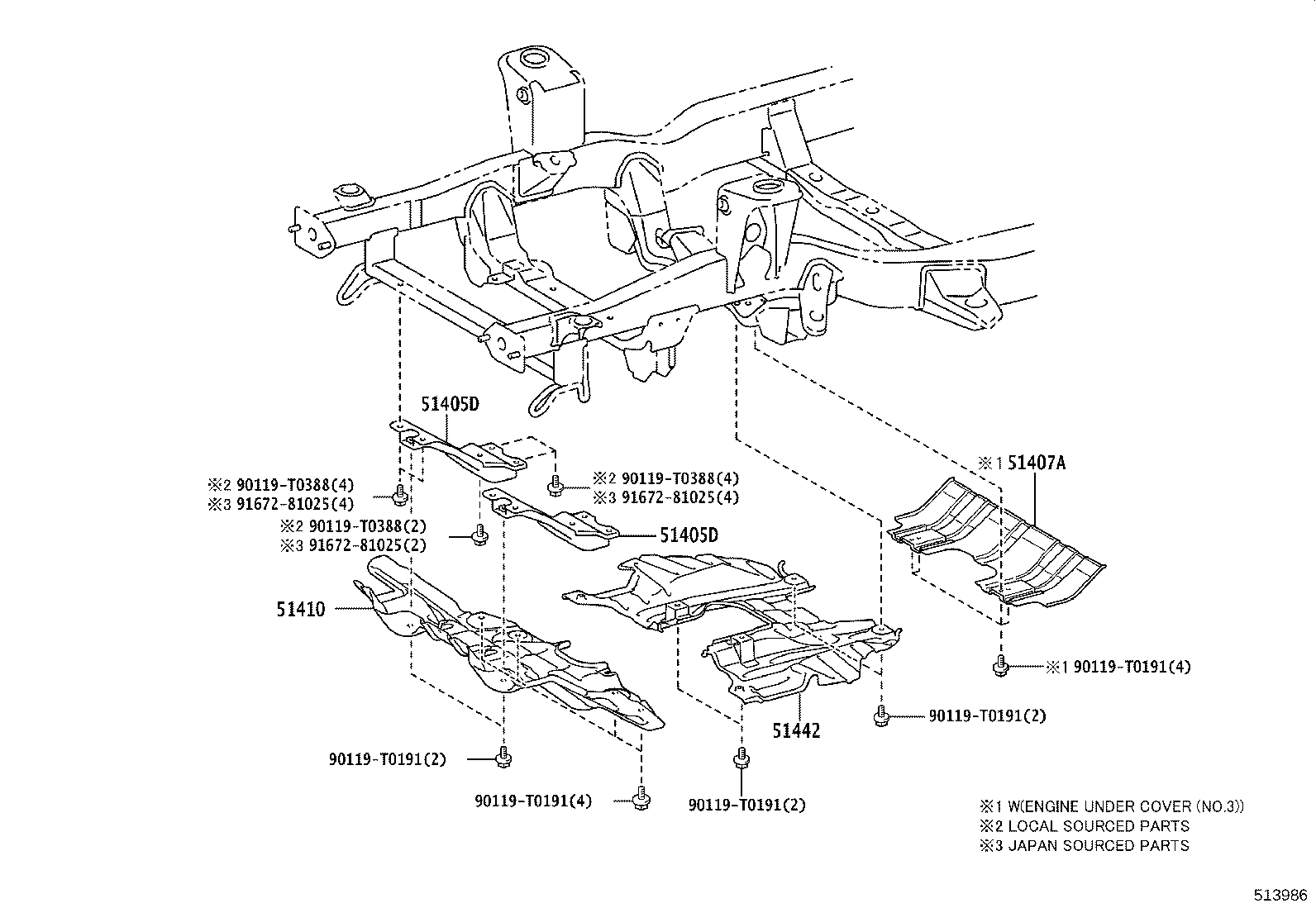

Exploded illustration 514275 51410 — COVER ASSY, ENGINE UNDER, NO.1 (18 parts) 51442 — COVER, ENGINE UNDER, NO.2 (18 parts) 51407A — COVER SUB-ASSY, ENGINE UNDER, NO.3 (7 parts) 51405D — BRACE SUB-ASSY, ENGINE UNDER (7 parts) 51405D — BRACE SUB-ASSY, ENGINE UNDER (7 parts) 90119T0191 — not listed in this catalogue 90119T0191 — not listed in this catalogue 90119T0191 — not listed in this catalogue 90119T0191 — not listed in this catalogue 90119T0191 — not listed in this catalogue 90119T0388 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119T0388 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119T0388 — not listed in this catalogue 9167281025 — not listed in this catalogue
514275 · 5 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
51405D — Brace Sub-assy, Engine Under
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → —
GUN156,TGN156,166 PKNP —
51405-KK030 Brace Sub-assy, Engine Under
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51407A — Cover Sub-assy, Engine Under, NO.3
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → —
TGN156 PKN —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2024-03 ended
GGN155 EPT —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2024-01 ended
TGN156 SA —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2023-09 ended
TGN166 VNP —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2023-08 ended
GGN155,TGN156 IDNP,MAP;GUN156,TGN166 IDNP (L,S) —
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2022-08 → 2023-07 ended
GUN156 THP ARL;GGN155,TGN156,166 THP —
51410 — Cover Assy, Engine Under, NO.1
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
GUN156 RHD GEN —
51410-KK010 Cover Assy, Engine Under, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
51410-KK010 Cover Assy, Engine Under, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
GUN156,TGN156 RHD GEN —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
GUN156 IDNP GEN —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
GUN156,TGN166 RHD GEN —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
TGN166 GEN —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-08 → 2023-08 ended
GUN156 IDNP GEN —
51410-KK010 Cover Assy, Engine Under, NO.1
2022-08 → 2023-08 ended
GUN165 ) IDNP (IDN,MA,PH,VN) +4 —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
51410-KK010 Cover Assy, Engine Under, NO.1
2022-08 → 2023-07 ended
GUN15#,16# TH —
51410-KK010 note Cover Assy, Engine Under, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-08 → 2023-08 ended
GUN156,TGN156,166 IDNP (ARL,GCC,GEN);GGN155,GUN155,165 LHD +2 —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-09 → 2023-08 ended
GUN155 RHD GEN —
51410-KK020 Cover Assy, Engine Under, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) —
51442 — Cover, Engine Under, NO.2
51420-KK010 Cover, Engine Under, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
51420-KK010 Cover, Engine Under, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51420-KK010 note Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
GUN156 RHD GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
GUN156,TGN156 RHD GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
GUN156 IDNP GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
GUN156,TGN166 RHD GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
TGN166 GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-08 → 2023-08 ended
GUN156 IDNP GEN —
51420-KK010 Cover, Engine Under, NO.2
2022-08 → 2023-08 ended
GUN165 ) IDNP (IDN,MA,PH,VN) +4 —
51420-KK010 note Cover, Engine Under, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
51420-KK010 note Cover, Engine Under, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
51420-KK010 Cover, Engine Under, NO.2
2022-08 → 2023-07 ended
GUN15#,16# TH —
51420-KK020 Cover, Engine Under, NO.2
2022-08 → 2023-08 ended
GUN156,TGN156,166 IDNP (ARL,GCC,GEN);GGN155,GUN155,165 LHD +2 —
51420-KK020 Cover, Engine Under, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) —
51420-KK020 Cover, Engine Under, NO.2
2022-09 → 2023-08 ended
GUN155 RHD GEN —
51420-KK020 Cover, Engine Under, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51420-KK020 Cover, Engine Under, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51420-KK020 Cover, Engine Under, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
