Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

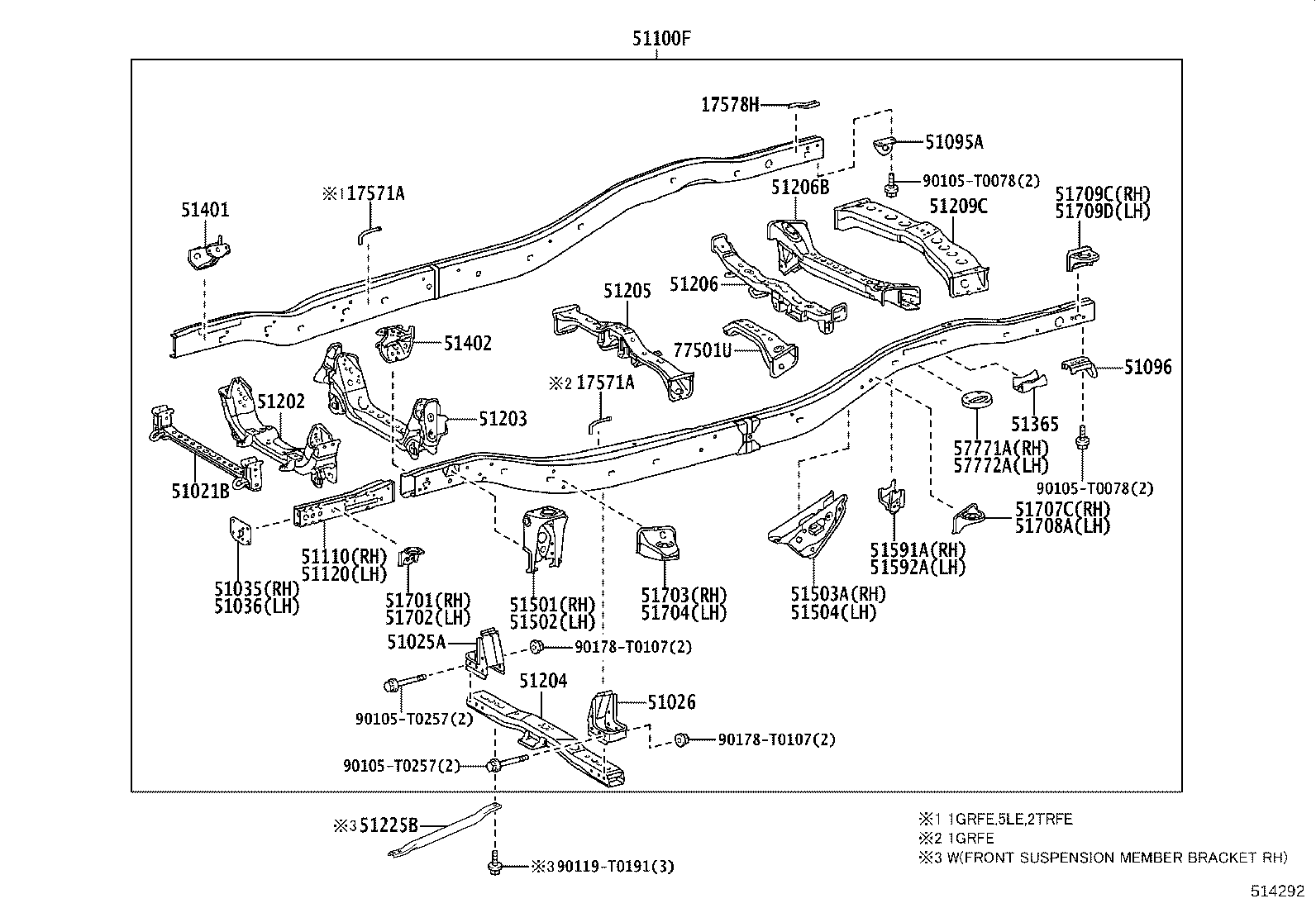

Exploded illustration 514292 17578H — BRACKET, EXHAUST PIPE SUPPORT, NO.10 (9 parts) 51021B — CROSSMEMBER SUB-ASSY, FRAME AUXILIARY (10 parts) 51025A — BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH (9 parts) 51026 — BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH (9 parts) 51035 — PLATE SUB-ASSY, FRAME SIDE RAIL, RH (9 parts) 51036 — PLATE SUB-ASSY, FRAME SIDE RAIL, LH (9 parts) 51095A — HOOK SUB-ASSY, TRANSPORT, REAR RH (9 parts) 51096 — HOOK SUB-ASSY, TRANSPORT, REAR LH (9 parts) 51225B — BRACKET, FRONT SUSPENSION MEMBER, RH (2 parts) 51110 — EXTENSION ASSY, SIDE RAIL, RH (2 parts) 51120 — EXTENSION ASSY, SIDE RAIL, LH (2 parts) 51202 — CROSSMEMBER SUB-ASSY, FRAME, NO.1 (9 parts) 51203 — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (9 parts) 51204 — CROSSMEMBER SUB-ASSY, FRAME, NO.3 (31 parts) 51205 — CROSSMEMBER SUB-ASSY, FRAME, NO.4 (16 parts) 51206 — CROSSMEMBER SUB-ASSY, FRAME, NO.5 (9 parts) 51206B — CROSSMEMBER SUB-ASSY, FRAME, NO.6 (9 parts) 51209C — CROSSMEMBER SUB-ASSY, FRAME, REAR (9 parts) 51365 — STOPPER, REAR BUMPER (9 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (21 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (21 parts) 51501 — SUPPORT SUB-ASSY, SUSPENSION ARM, RH (9 parts) 51502 — SUPPORT SUB-ASSY, SUSPENSION ARM, LH (9 parts) 51503A — BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH (9 parts) 51504 — BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH (9 parts) 51591A — SUPPORT, STABILIZER, RH (9 parts) 51592A — SUPPORT, STABILIZER, LH (9 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (9 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (9 parts) 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (9 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (9 parts) 51707C — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH (9 parts) 51708A — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH (9 parts) 51709C — BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH (9 parts) 51709D — BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH (9 parts) 57771A — PLATE, REAR SPRING, RH (9 parts) 57772A — PLATE, REAR SPRING, LH (9 parts) 77501U — BRACKET SUB-ASSY, FUEL TANK (9 parts) 90105T0078 — not listed in this catalogue 90105T0078 — not listed in this catalogue 90105T0257 — not listed in this catalogue 90119T0191 — not listed in this catalogue 90105T0257 — not listed in this catalogue 90178T0107 — not listed in this catalogue 90178T0107 — not listed in this catalogue 17571A — BRACKET, EXHAUST PIPE SUPPORT, NO.9 (12 parts) 17571A — BRACKET, EXHAUST PIPE SUPPORT, NO.9 (12 parts) 51100F — FRAME SUB-ASSY (46 parts)
514292 · 41 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
433 parts on this figure
Part number Description Fitment Price
17571A — Bracket, Exhaust Pipe Support, NO.9
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-07 ended
1GRFE GGN155 EPTP,THP —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-07 ended
2TRFE TGN166 THP;2TRFE TGN156 +1 —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2023-09 → —
2TRFE TGN156 PKN —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → —
2TRFE TGN166 PKN —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2023-09 → 2024-03 ended
1GRFE GGN155 EPT —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2024-03 ended
2TRFE TGN166 EPT —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2024-01 ended
5LE,2TRFE LAN155,TGN156 SA —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-10 ended
2TRFE TGN156,166 AGTP —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-09 ended
2TRFE TGN166 INDP,VNP —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
17571-0L010 Bracket, Exhaust Pipe Support, NO.9
2022-08 → 2023-08 ended
2TRFE TGN156,166 IDNP —
17578H — Bracket, Exhaust Pipe Support, NO.10
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2023-09 → —
1GDFTV,2TRFE GUN156,TGN156 PKN —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → —
2TRFE TGN166 PKN;1GDFTV GUN156 +2 —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2023-09 → 2024-03 ended
1GRFE GGN155 EPT —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2024-03 ended
1GDFTV,2GDFTV,2TRFE GUN15#,TGN166 EPT,KEN —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2024-01 ended
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2023-10 ended
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2023-09 ended
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP —
17505-0L020 Bracket, Exhaust Pipe Support, NO.10
2022-08 → 2023-07 ended
2TRFE TGN166 THP;1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156 +1 —
51021B — Crossmember Sub-assy, Frame Auxiliary
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2023-09 → —
GUN156,TGN156 PKN —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2023-09 → 2024-03 ended
GGN155 EPT —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
51021-KK010 Crossmember Sub-assy, Frame Auxiliary
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51021-KK020 Crossmember Sub-assy, Frame Auxiliary
2022-09 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51021-KK020 Crossmember Sub-assy, Frame Auxiliary
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51021-KK020 Crossmember Sub-assy, Frame Auxiliary
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP (GCC,GEN,IDN,PH,VN) —
51025A — Bracket Sub-assy, Frame NO.3 Crossmember, RH
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2023-09 → —
GUN156,TGN156 PKN —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51025-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51026 — Bracket Sub-assy, Frame NO.3 Crossmember, LH
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2023-09 → —
GUN156,TGN156 PKN —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51026-KK010 Bracket Sub-assy, Frame NO.3 Crossmember, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51035 — Plate Sub-assy, Frame Side Rail, RH
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2023-09 → —
GUN156,TGN156 PKN —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51035-KK010 Plate Sub-assy, Frame Side Rail, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51036 — Plate Sub-assy, Frame Side Rail, LH
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51036-KK010 Plate Sub-assy, Frame Side Rail, LH
2023-09 → —
GUN156,TGN156 PKN —
51095A — Hook Sub-assy, Transport, Rear RH
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2023-09 → —
GUN156,TGN156 PKN —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2023-09 → 2024-03 ended
GGN155 EPT —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51095-0K010 Hook Sub-assy, Transport, Rear RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51096 — Hook Sub-assy, Transport, Rear LH
51096-0K010 Hook Sub-assy, Transport, Rear LH
2023-09 → —
GUN156,TGN156 PKN —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2023-09 → 2024-03 ended
GGN155 EPT —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51096-0K010 Hook Sub-assy, Transport, Rear LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51100F — Frame Sub-assy
51001-KK492 Frame Sub-assy
2022-08 → 2023-01 ended
TGN156 MAP,THP —
51001-KK493 Frame Sub-assy
2023-02 → 2023-07 ended
TGN156 MAP,PKNP,THP —
51001-KK502 Frame Sub-assy
2022-08 → 2023-01 ended
GGN155 THP —
51001-KK503 Frame Sub-assy
2023-02 → 2023-07 ended
GGN155 EPTP,THP —
51001-KK512 Frame Sub-assy
2022-08 → 2023-01 ended
GUN15# MAP,THP —
51001-KK513 Frame Sub-assy
2023-02 → 2023-07 ended
GUN15# MAP,PKNP,THP —
51001-KK522 Frame Sub-assy
2023-01 → 2024-01 ended
LAN155 —
51001-KK530 Frame Sub-assy
2022-09 → 2023-08 ended
TGN166 IDNP —
51001-KK530 Frame Sub-assy
2022-09 → 2023-09 ended
TGN166 VNP —
51001-KK570 Frame Sub-assy
2022-09 → 2023-08 ended
GUN16# IDNP 6FC —
51001-KK570 Frame Sub-assy
2022-09 → 2023-09 ended
GUN165 VNP 6FC —
51001-KK612 Frame Sub-assy
2023-01 → 2024-01 ended
TGN156 SA —
51001-KK632 Frame Sub-assy
2023-01 → 2024-01 ended
GUN15# SA —
51001-KK632 Frame Sub-assy
2023-01 → 2024-03 ended
GUN15# KEN —
51001-KK652 Frame Sub-assy
2023-01 → 2024-01 ended
GUN165 6F SA —
51001-KK662 Frame Sub-assy
2023-01 → 2024-01 ended
GUN16# 6FC SA —
51001-KK873 Frame Sub-assy
2022-08 → 2023-01 ended
TGN166 THP —
51001-KK874 Frame Sub-assy
2023-02 → 2023-06 ended
TGN166 EPTP,PKNP,THP —
51001-KK875 Frame Sub-assy
2023-07 → 2024-03 ended
TGN166 EPT —
51001-KK875 Frame Sub-assy
2023-07 → —
TGN166 PKN —
51001-KKA03 Frame Sub-assy
2022-08 → 2023-01 ended
GUN16# THP —
51001-KKA04 Frame Sub-assy
2023-02 → 2023-07 ended
GUN16# THP —
51001-KKB10 Frame Sub-assy
2022-09 → 2023-08 ended
TGN156 IDNP —
51001-KKB20 Frame Sub-assy
2022-09 → 2023-08 ended
GGN155 IDNP —
51001-KKB30 Frame Sub-assy
2022-09 → 2023-09 ended
GUN156 VNP —
51001-KKB30 Frame Sub-assy
2022-09 → 2023-08 ended
GUN15# IDNP (GCC,GEN,IDN,PH,VN) —
51001-KKB50 Frame Sub-assy
2022-09 → 2023-08 ended
GUN165 IDNP 6F —
51001-KKB50 Frame Sub-assy
2022-09 → 2023-09 ended
GUN165 VNP L —
51001-KKC60 Frame Sub-assy
2022-10 → 2023-09 ended
GUN166 6FC IND —
51001-KKC72 Frame Sub-assy
2022-11 → 2023-10 ended
TGN156 AGTP —
51001-KKC92 Frame Sub-assy
2022-11 → 2023-10 ended
GGN155 LA —
51001-KKD00 Frame Sub-assy
2022-10 → 2023-09 ended
GUN156 IND —
51001-KKD20 Frame Sub-assy
2022-10 → 2023-09 ended
TGN166 6FC IND —
51001-KKD30 Frame Sub-assy
2022-10 → 2023-09 ended
TGN166 5F IND —
51001-KKD40 Frame Sub-assy
2022-10 → 2023-09 ended
GUN166 6F IND —
51001-KKG00 Frame Sub-assy
2022-11 → 2023-10 ended
GUN156 AGTP —
51001-KKG10 Frame Sub-assy
2022-11 → 2023-10 ended
GUN16# 6FC LA —
51001-KKG20 Frame Sub-assy
2022-11 → 2023-10 ended
TGN166 6FC LA —
51001-KKG30 Frame Sub-assy
2022-11 → 2023-10 ended
TGN166 S LA —
51001-KKG40 Frame Sub-assy
2022-11 → 2023-10 ended
GUN166 6F LA —
51001-KKG50 Frame Sub-assy
2022-09 → 2023-08 ended
GUN156 IDNP ARL —
51001-KKK20 Frame Sub-assy
2023-07 → —
GUN156 PKNP —
51001-KKK20 Frame Sub-assy
2023-07 → 2023-08 ended
GUN15# MA —
51001-KKL10 Frame Sub-assy
2023-07 → —
TGN156 PKN —
51001-KKL10 Frame Sub-assy
2023-07 → 2023-08 ended
TGN156 MA —
51001-KKL20 Frame Sub-assy
2023-07 → 2024-03 ended
GGN155 EPT —
51110 — Extension Assy, Side Rail, RH
5103A-KK010 Extension Assy, Side Rail, RH
2022-09 → 2024-03 ended
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,IDNP,INDP,KENP,SAP,VNP —
51110-KK907 Extension Assy, Side Rail, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 EPTP,MAP,PKNP,THP —
51120 — Extension Assy, Side Rail, LH
5103B-KK010 Extension Assy, Side Rail, LH
2022-09 → 2024-03 ended
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,IDNP,INDP,KENP,SAP,VNP —
51122-KK907 Extension Assy, Side Rail, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 EPTP,MAP,PKNP,THP —
51202 — Crossmember Sub-assy, Frame, NO.1
51201-KK020 Crossmember Sub-assy, Frame, NO.1
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51201-KK020 Crossmember Sub-assy, Frame, NO.1
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2023-09 → —
GUN156,TGN156 PKN —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2023-09 → 2024-03 ended
GGN155 EPT —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51201-KK050 Crossmember Sub-assy, Frame, NO.1
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51203 — Crossmember Sub-assy, Frame, NO.2
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2023-09 → 2024-03 ended
GGN155 EPT —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51202-KK010 Crossmember Sub-assy, Frame, NO.2
2023-09 → —
GUN156,TGN156 PKN —
51204 — Crossmember Sub-assy, Frame, NO.3
51203-KK010 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2023-08 ended
GUN16#,TGN166 IDNP 6FC —
51203-KK010 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2024-01 ended
GUN16# 6FC SA —
51203-KK010 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2023-09 ended
GUN165,TGN166 VNP 6FC —
51203-KK030 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2023-08 ended
GUN165 IDNP 6F —
51203-KK030 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2023-09 ended
GUN165 VNP L —
51203-KK030 Crossmember Sub-assy, Frame, NO.3
2022-09 → 2024-01 ended
GUN165 6F SA —
51203-KK040 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-08 ended
GUN15# IDNP —
51203-KK040 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2024-03 ended
GUN15# KEN —
51203-KK040 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-09 ended
GUN156 VNP —
51203-KK040 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-07 ended
GUN15# MAP,PKNP,THP —
51203-KK040 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2024-01 ended
GUN15# SA —
51203-KK050 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-08 ended
GGN155,TGN156 IDNP —
51203-KK050 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2024-01 ended
LAN155,TGN156 SA —
51203-KK050 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-07 ended
GGN155,TGN156 EPTP,MAP,PKNP,THP —
51203-KK120 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-10 ended
GUN16# 6FC LA —
51203-KK120 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-09 ended
GUN166 6FC IND —
51203-KK130 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-09 ended
TGN166 5F IND —
51203-KK130 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-10 ended
TGN166 S LA —
51203-KK140 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-09 ended
GUN166 6F IND —
51203-KK140 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-10 ended
GUN166 6F LA —
51203-KK150 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-09 ended
GUN156 IND —
51203-KK150 Crossmember Sub-assy, Frame, NO.3
2022-10 → 2023-10 ended
GUN156 AGTP —
51203-KK190 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-09 ended
TGN166 6FC IND —
51203-KK190 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-10 ended
TGN166 6FC LA —
51203-KK190 Crossmember Sub-assy, Frame, NO.3
2022-08 → 2023-07 ended
GUN16#,TGN166 EPTP,PKNP,THP —
51203-KK200 Crossmember Sub-assy, Frame, NO.3
2022-11 → 2023-10 ended
GGN155,TGN156 AGTP —
51203-KK210 Crossmember Sub-assy, Frame, NO.3
2023-07 → 2024-03 ended
TGN166 EPT —
51203-KK210 Crossmember Sub-assy, Frame, NO.3
2023-07 → —
TGN166 PKN —
51203-KK250 Crossmember Sub-assy, Frame, NO.3
2023-09 → —
GUN156 PKNP —
51203-KK260 Crossmember Sub-assy, Frame, NO.3
2023-09 → 2024-03 ended
GGN155 EPT —
51203-KK260 Crossmember Sub-assy, Frame, NO.3
2023-09 → —
TGN156 PKN —
51205 — Crossmember Sub-assy, Frame, NO.4
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2024-03 ended
GUN15# KEN —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2023-09 → —
GUN156,TGN156 PKN —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → —
GUN156 PKNP TH —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2023-09 → 2024-03 ended
GGN155 EPT —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 SA —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-10 ended
GGN155,GUN156,TGN156 AGTP —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-09 ended
GUN156 INDP,VNP —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-08 ended
GGN155,GUN15#,TGN156 IDNP —
51204-KK060 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 EPTP,MAP,PKNP,THP —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-10 ended
GUN16#,TGN166 LA —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2024-01 ended
GUN16# SA —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-08 ended
GUN16#,TGN166 IDNP —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2024-03 ended
TGN166 EPT —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-07 ended
GUN16#,TGN166 THP —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → —
TGN166 PKN —
51204-KK080 Crossmember Sub-assy, Frame, NO.4
2022-08 → 2023-09 ended
GUN16#,TGN166 INDP,VNP —
51206 — Crossmember Sub-assy, Frame, NO.5
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2023-09 → —
GUN156,TGN156 PKN —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2023-09 → 2024-03 ended
GGN155 EPT —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51205-KK050 Crossmember Sub-assy, Frame, NO.5
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51206B — Crossmember Sub-assy, Frame, NO.6
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2023-09 → —
GUN156,TGN156 PKN —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2023-09 → 2024-03 ended
GGN155 EPT —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51206-KK020 Crossmember Sub-assy, Frame, NO.6
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51209C — Crossmember Sub-assy, Frame, Rear
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2023-09 → —
GUN156,TGN156 PKN —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2023-09 → 2024-03 ended
GGN155 EPT —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51209-KK010 Crossmember Sub-assy, Frame, Rear
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51225B — Bracket, Front Suspension Member, RH
51225-KK010 Bracket, Front Suspension Member, RH
2022-10 → 2023-09 ended
GUN156 IND —
51225-KK010 note Bracket, Front Suspension Member, RH
2022-11 → 2023-10 ended
GUN156 LA —
51365 — Stopper, Rear Bumper
57081-KK010 Stopper, Rear Bumper
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
57081-KK010 Stopper, Rear Bumper
2023-09 → —
GUN156,TGN156 PKN —
57081-KK010 Stopper, Rear Bumper
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
57081-KK010 Stopper, Rear Bumper
2023-09 → 2024-03 ended
GGN155 EPT —
57081-KK010 Stopper, Rear Bumper
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
57081-KK010 Stopper, Rear Bumper
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57081-KK010 Stopper, Rear Bumper
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57081-KK010 Stopper, Rear Bumper
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57081-KK010 Stopper, Rear Bumper
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51401-KK010 Bracket Sub-assy, Engine Front Mounting, RH
2023-01 → 2024-01 ended
LAN155 —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2023-09 → —
TGN156 PKN —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → —
TGN166 PKN —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2024-03 ended
TGN166 EPT —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2024-01 ended
TGN156 SA —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-10 ended
TGN156,166 AGTP —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-07 ended
TGN166 THP;TGN156 MAP,PKNP,THP —
51401-KK020 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-08 ended
TGN156,166 IDNP —
51401-KK030 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-10 ended
GGN155 LA —
51401-KK030 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-08 ended
GGN155 IDNP —
51401-KK030 Bracket Sub-assy, Engine Front Mounting, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51401-KK030 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-07 ended
GGN155 EPTP,THP —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-10 ended
GUN156,16# AGTP —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-08 ended
GUN15#,16# IDNP —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2024-01 ended
GUN15#,16# SA —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2024-03 ended
GUN15# KEN —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-07 ended
GUN15#,16# MAP,PKNP,THP —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → —
GUN156 PKNP TH —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2023-09 → —
GUN156 PKN —
51401-KK040 Bracket Sub-assy, Engine Front Mounting, RH
2022-08 → 2023-09 ended
GUN156,16# INDP,VNP —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51402-KK010 Bracket Sub-assy, Engine Front Mounting, LH
2023-01 → 2024-01 ended
LAN155 —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-10 ended
TGN156,166 AGTP —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → —
TGN166 PKN —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2023-09 → —
TGN156 PKN —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2024-01 ended
TGN156 SA —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2024-03 ended
TGN166 EPT —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-08 ended
TGN156,166 IDNP —
51402-KK020 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-07 ended
TGN166 THP;TGN156 MAP,PKNP,THP —
51402-KK030 Bracket Sub-assy, Engine Front Mounting, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51402-KK030 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-07 ended
GGN155 EPTP,THP —
51402-KK030 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-10 ended
GGN155 LA —
51402-KK030 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-08 ended
GGN155 IDNP —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → —
GUN156 PKNP TH —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2023-09 → —
GUN156 PKN —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-09 ended
GUN156,16# INDP,VNP —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2024-01 ended
GUN15#,16# SA —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-10 ended
GUN156,16# AGTP —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-07 ended
GUN15#,16# MAP,PKNP,THP —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2023-08 ended
GUN15#,16# IDNP —
51402-KK040 Bracket Sub-assy, Engine Front Mounting, LH
2022-08 → 2024-03 ended
GUN15# KEN —
51501 — Support Sub-assy, Suspension Arm, RH
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2023-09 → —
GUN156,TGN156 PKN —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51501-KK020 Support Sub-assy, Suspension Arm, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51502 — Support Sub-assy, Suspension Arm, LH
51502-KK020 Support Sub-assy, Suspension Arm, LH
2023-09 → —
GUN156,TGN156 PKN —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51502-KK020 Support Sub-assy, Suspension Arm, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51503A — Bracket Sub-assy, Lower Control Link Support, RH
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2023-09 → —
GUN156,TGN156 PKN —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51503-KK010 Bracket Sub-assy, Lower Control Link Support, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51504 — Bracket Sub-assy, Lower Control Link Support, LH
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2023-09 → —
GUN156,TGN156 PKN —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51504-KK010 Bracket Sub-assy, Lower Control Link Support, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51591A — Support, Stabilizer, RH
51508-KK010 Support, Stabilizer, RH
2023-09 → —
GUN156,TGN156 PKN —
51508-KK010 Support, Stabilizer, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51508-KK010 Support, Stabilizer, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51508-KK010 Support, Stabilizer, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51592A — Support, Stabilizer, LH
51509-KK010 Support, Stabilizer, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51509-KK010 Support, Stabilizer, LH
2023-09 → —
GUN156,TGN156 PKN —
51509-KK010 Support, Stabilizer, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51509-KK010 Support, Stabilizer, LH
2023-09 → 2024-03 ended
GGN155 EPT —
51509-KK010 Support, Stabilizer, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51509-KK010 Support, Stabilizer, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51509-KK010 Support, Stabilizer, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51509-KK010 Support, Stabilizer, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51509-KK010 Support, Stabilizer, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2023-09 → —
GUN156,TGN156 PKN —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2023-09 → 2024-03 ended
GGN155 EPT —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2023-09 → —
GUN156,TGN156 PKN —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2023-09 → 2024-03 ended
GGN155 EPT —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51701-KK010 Bracket Sub-assy, Cab Mounting, NO.1 LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2023-09 → —
GUN156,TGN156 PKN —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2023-09 → 2024-03 ended
GGN155 EPT —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51703-KK010 Bracket Sub-assy, Cab Mounting, NO.2, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2023-09 → —
GUN156,TGN156 PKN —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2023-09 → 2024-03 ended
GGN155 EPT —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51704-KK010 Bracket Sub-assy, Cab Mounting, NO.2 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51707C — Bracket Sub-assy, Cab Mounting, NO.4 RH
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2023-09 → —
GUN156,TGN156 PKN —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2023-09 → 2024-03 ended
GGN155 EPT —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51707-KK010 Bracket Sub-assy, Cab Mounting, NO.4 RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51708A — Bracket Sub-assy, Cab Mounting, NO.4 LH
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2023-09 → —
GUN156,TGN156 PKN —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2023-09 → 2024-03 ended
GGN155 EPT —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51708-KK010 Bracket Sub-assy, Cab Mounting, NO.4 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51709C — Bracket Sub-assy, Cab Mounting, NO.5 RH
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2023-09 → —
GUN156,TGN156 PKN —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2023-09 → 2024-03 ended
GGN155 EPT —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51709D — Bracket Sub-assy, Cab Mounting, NO.5 LH
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2023-09 → —
GUN156,TGN156 PKN —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2023-09 → 2024-03 ended
GGN155 EPT —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
51709-KK010 Bracket Sub-assy, Cab Mounting, NO.5 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57771A — Plate, Rear Spring, RH
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57771-KK010 Plate, Rear Spring, RH
2023-09 → —
GUN156,TGN156 PKN —
57771-KK010 Plate, Rear Spring, RH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
57771-KK010 Plate, Rear Spring, RH
2023-09 → 2024-03 ended
GGN155 EPT —
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
57771-KK010 Plate, Rear Spring, RH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
57772A — Plate, Rear Spring, LH
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57771-KK010 Plate, Rear Spring, LH
2023-09 → —
GUN156,TGN156 PKN —
57771-KK010 Plate, Rear Spring, LH
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
57771-KK010 Plate, Rear Spring, LH
2023-09 → 2024-03 ended
GGN155 EPT —
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
57771-KK010 Plate, Rear Spring, LH
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
77501U — Bracket Sub-assy, Fuel Tank
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2023-07 ended
TGN166 THP;GGN155,GUN15#,16#,TGN156 EPTP,MAP,PKNP,THP —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
77501-KK040 Bracket Sub-assy, Fuel Tank
2023-09 → 2024-03 ended
GGN155 EPT —
77501-KK040 Bracket Sub-assy, Fuel Tank
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
77501-KK040 Bracket Sub-assy, Fuel Tank
2023-09 → —
GUN156,TGN156 PKN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
