Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

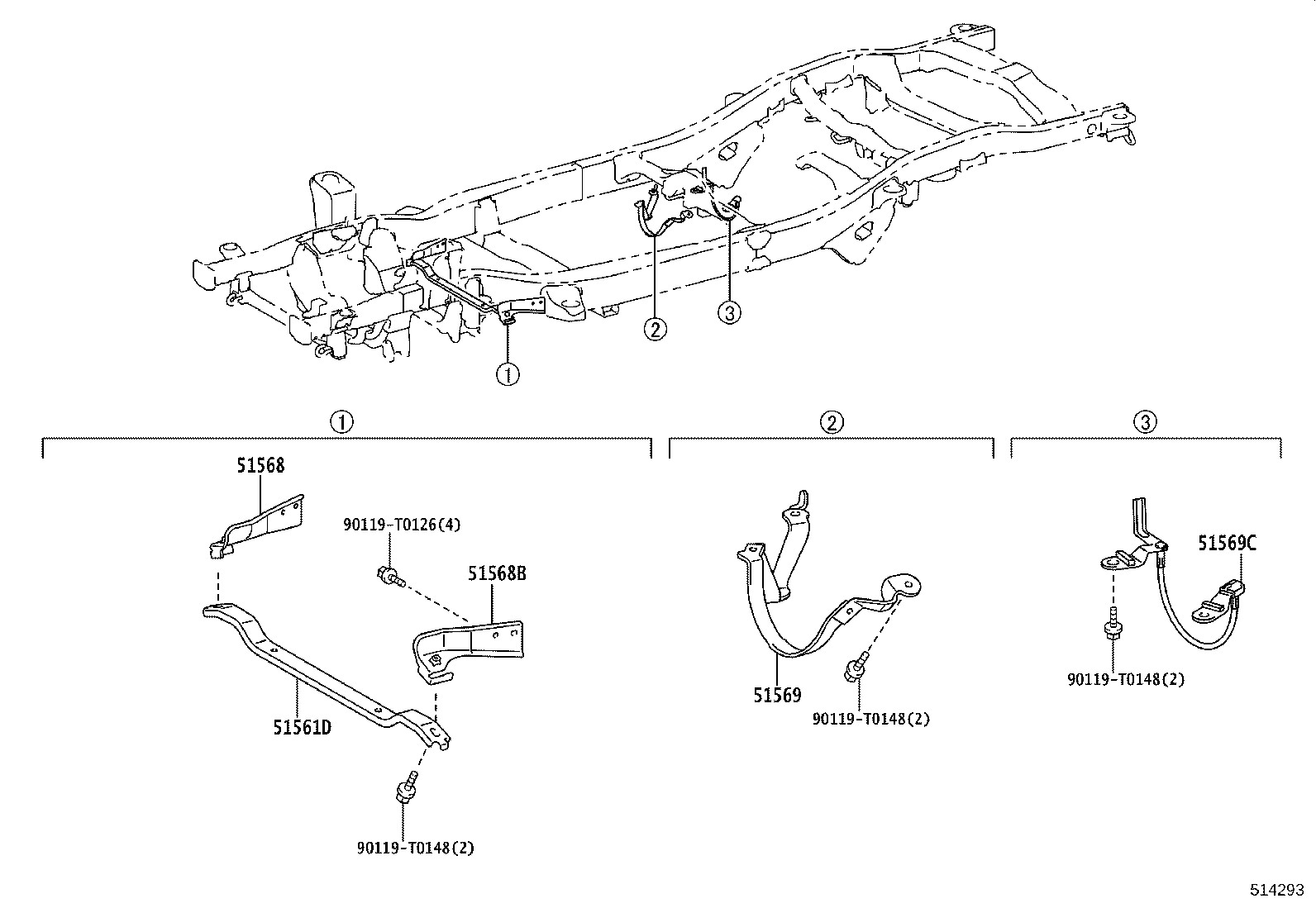

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51561D — Guard, Propeller Shaft | ||||
| 51569-KK010 |
Guard, Propeller Shaft
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2022-09 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2022-09 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2022-09 → 2024-03
ended
|
GGN155 EPT | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2022-09 → —
|
GUN156,TGN156 PKNP | — | |
| 51569-KK080 |
Guard, Propeller Shaft
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 51569-KK080 |
Guard, Propeller Shaft
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 51569-KK090 |
Guard, Propeller Shaft
2022-11 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51568 — Bracket, Propeller Shaft Guard | ||||
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2022-09 → —
|
GUN156,TGN156 PKNP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2022-09 → 2024-03
ended
|
GGN155 EPT | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51568B — Bracket, Propeller Shaft Guard | ||||
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2022-09 → —
|
GUN156,TGN156 PKNP | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2022-09 → 2024-03
ended
|
GGN155 EPT | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2022-09 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51568-KK090 note |
Bracket, Propeller Shaft Guard
2022-11 → 2023-10
ended
|
GUN156,165 LA;GUN166 6FC LA | — | |
| 51568-KK090 |
Bracket, Propeller Shaft Guard
2022-10 → 2023-09
ended
|
GUN156,166 IND | — | |
| 51569 — Guard, Propeller Shaft | ||||
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2022-08 → 2024-03
ended
|
GGN155,GUN15# EPT,KEN | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2023-07
ended
|
GUN16#,TGN166 THP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → —
|
TGN166 PKN | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2023-10
ended
|
GUN16#,TGN166 LA | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2023-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2023-08
ended
|
GUN16#,TGN166 IDNP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2022-08 → 2024-01
ended
|
GUN16# SA | — | |
| 51569C — Guard, Propeller Shaft | ||||
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2023-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2023-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2024-03
ended
|
GGN155,GUN15# EPT,KEN | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 SA | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → —
|
TGN166 PKN | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2024-01
ended
|
GUN16# SA | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2023-10
ended
|
GUN16#,TGN166 LA | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2023-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2023-08
ended
|
GUN16#,TGN166 IDNP | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2022-08 → 2023-07
ended
|
GUN16#,TGN166 THP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
