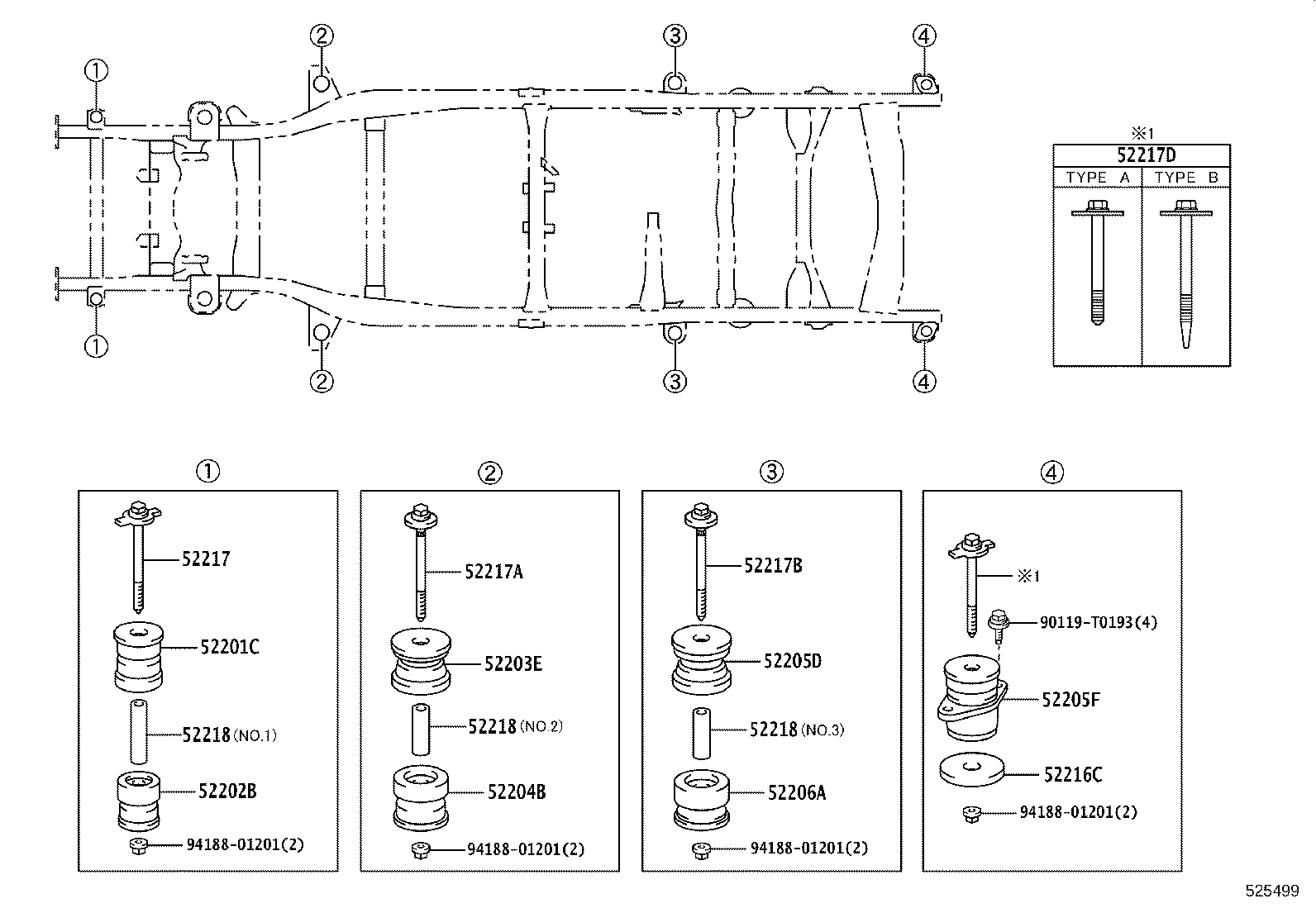

Exploded illustration 525499 52201C — CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER (9 parts) 52202B — CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER (9 parts) 52203E — CUSHION SUB-ASSY, CAB MOUNTING, NO.2 (9 parts) 52204B — CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER (9 parts) 52205D — CUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER (9 parts) 52205F — CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER (9 parts) 52206A — CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER (9 parts) 52216C — STOPPER, CAB MOUNTING CUSHION (7 parts) 52217 — BOLT, BODY MOUNTING (7 parts) 52217A — BOLT, BODY MOUNTING (7 parts) 52217B — BOLT, BODY MOUNTING (7 parts) 52217D — BOLT, BODY MOUNTING (14 parts) 52218 — HOLDER, BODY MOUNT BOLT SPACER, NO.1 (21 parts) 52218 — HOLDER, BODY MOUNT BOLT SPACER, NO.1 (21 parts) 52218 — HOLDER, BODY MOUNT BOLT SPACER, NO.1 (21 parts) 90119T0193 — not listed in this catalogue 9418801201 — not listed in this catalogue 9418801201 — not listed in this catalogue 9418801201 — not listed in this catalogue 9418801201 — not listed in this catalogue
525499 · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
52201C — Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52201-0K060 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52201-0K070 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → —
GUN156,TGN156,166 PKNP —
52201-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Upper
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52202B — Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52202-0K060 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52202-0K070 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → —
GUN156,TGN156,166 PKNP —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52202-0K100 Cushiion Sub-assy, Cab Mounting, NO.1 Lower
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52203E — Cushion Sub-assy, Cab Mounting, NO.2
52203-0K080 Cushion Sub-assy, Cab Mounting, NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52203-0K090 Cushion Sub-assy, Cab Mounting, NO.2
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52203-0K130 Cushion Sub-assy, Cab Mounting, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52204B — Cushion Sub-assy, Cab Mounting, NO.2 Lower
52204-0K080 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52204-0K090 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → —
GUN156,TGN156,166 PKNP —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52204-0K130 Cushion Sub-assy, Cab Mounting, NO.2 Lower
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52205D — Cushion Sub-assy, Cab Mounting, NO.3 Upper
52205-0K090 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52205-0K100 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → —
GUN156,TGN156,166 PKNP —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52205-0K180 Cushion Sub-assy, Cab Mounting, NO.3 Upper
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52205F — Cushion Sub-assy, Cab Mounting, NO.4 Upper
52207-0K070 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52207-0K080 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → —
GUN156,TGN156,166 PKNP —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52207-0K090 Cushion Sub-assy, Cab Mounting, NO.4 Upper
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52206A — Cushion Sub-assy, Cab Mounting, NO.3 Lower
52206-0K040 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
52206-0K050 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52206-0K140 Cushion Sub-assy, Cab Mounting, NO.3 Lower
2022-08 → —
GUN156,TGN156,166 PKNP —
52216C — Stopper, Cab Mounting Cushion
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → —
GUN156,TGN156,166 PKNP —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52216-KK010 Stopper, Cab Mounting Cushion
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217 — Bolt, Body Mounting
52217-0K010 Bolt, Body Mounting
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52217-0K010 Bolt, Body Mounting
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52217-0K010 Bolt, Body Mounting
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52217-0K010 Bolt, Body Mounting
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217-0K010 Bolt, Body Mounting
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52217-0K010 Bolt, Body Mounting
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52217-0K010 Bolt, Body Mounting
2022-08 → —
GUN156,TGN156,166 PKNP —
52217A — Bolt, Body Mounting
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52217-0K020 Bolt, Body Mounting
2022-08 → —
GUN156,TGN156,166 PKNP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52217-0K020 Bolt, Body Mounting
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52217B — Bolt, Body Mounting
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52217-0K020 Bolt, Body Mounting
2022-08 → —
GUN156,TGN156,166 PKNP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52217-0K020 Bolt, Body Mounting
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52217-0K020 Bolt, Body Mounting
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52217D — Bolt, Body Mounting
52217-0K050 note Bolt, Body Mounting
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52217-0K050 note Bolt, Body Mounting
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52217-0K050 note Bolt, Body Mounting
2022-08 → —
GUN156,TGN156,166 PKNP —
52217-0K050 note Bolt, Body Mounting
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52217-0K050 note Bolt, Body Mounting
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217-0K050 note Bolt, Body Mounting
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52217-0K050 note Bolt, Body Mounting
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52217-0K060 note Bolt, Body Mounting
2022-08 → —
GUN156,TGN156,166 PKNP —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52217-0K060 note Bolt, Body Mounting
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52218 — Holder, Body Mount Bolt Spacer, NO.1
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52218-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52219-0K010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
52219-KK010 note Holder, Body Mount Bolt Spacer, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
