Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

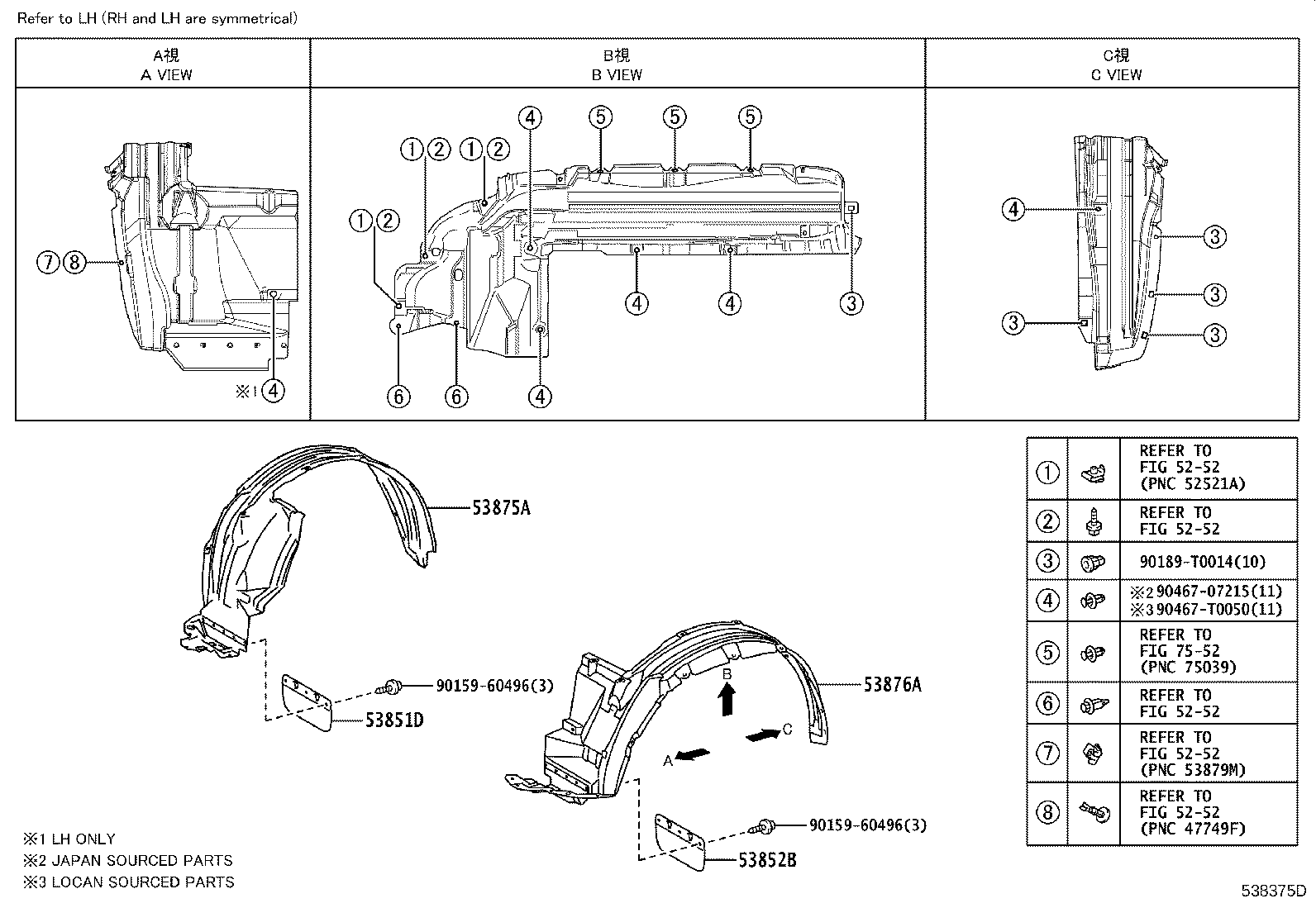

Exploded illustration 538375D 5252 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 7552 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 53852B — PAD, FRONT WHEEL OPENING EXTENSION, LH (10 parts) 53875A — LINER, FRONT FENDER, RH (10 parts) 53876A — LINER, FRONT FENDER, LH (10 parts) 9015960496 — not listed in this catalogue 53851D — PAD, FRONT WHEEL OPENING EXTENSION, RH (10 parts) 9015960496 — not listed in this catalogue 90189T0014 — not listed in this catalogue 9046707215 — not listed in this catalogue 90467T0050 — not listed in this catalogue
538375D · 4 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
53851D — Pad, Front Wheel Opening Extension, RH
53851-0K080 Pad, Front Wheel Opening Extension, RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
53851-0K080 Pad, Front Wheel Opening Extension, RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
53851-0K080 Pad, Front Wheel Opening Extension, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
53851-0K080 Pad, Front Wheel Opening Extension, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
53851-0K090 Pad, Front Wheel Opening Extension, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
53851-0K090 Pad, Front Wheel Opening Extension, RH
2023-01 → 2024-03 ended
GUN15# KEN —
53851-0K100 Pad, Front Wheel Opening Extension, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
53851-0K140 Pad, Front Wheel Opening Extension, RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
53851-0K140 Pad, Front Wheel Opening Extension, RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
53851-0K150 Pad, Front Wheel Opening Extension, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
53852B — Pad, Front Wheel Opening Extension, LH
53851-0K080 Pad, Front Wheel Opening Extension, LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
53851-0K080 Pad, Front Wheel Opening Extension, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
53851-0K080 Pad, Front Wheel Opening Extension, LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
53851-0K080 Pad, Front Wheel Opening Extension, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
53851-0K090 Pad, Front Wheel Opening Extension, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
53851-0K090 Pad, Front Wheel Opening Extension, LH
2023-01 → 2024-03 ended
GUN15# KEN —
53851-0K100 Pad, Front Wheel Opening Extension, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
53851-0K140 Pad, Front Wheel Opening Extension, LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
53851-0K140 Pad, Front Wheel Opening Extension, LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
53851-0K150 Pad, Front Wheel Opening Extension, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
53875A — Liner, Front Fender, RH
53805-0K250 Liner, Front Fender, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
53805-0K250 Liner, Front Fender, RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
53805-0K260 Liner, Front Fender, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
53805-0K260 Liner, Front Fender, RH
2023-01 → 2024-03 ended
GUN15# KEN —
53805-0K290 Liner, Front Fender, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
53805-0K300 Liner, Front Fender, RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
53805-0K300 Liner, Front Fender, RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
53805-0K310 Liner, Front Fender, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
53805-0K370 Liner, Front Fender, RH
2023-02 → —
GUN156,TGN156,166 PKNP —
53805-0K390 Liner, Front Fender, RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
53876A — Liner, Front Fender, LH
53806-0K250 Liner, Front Fender, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
53806-0K250 Liner, Front Fender, LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
53806-0K260 Liner, Front Fender, LH
2023-01 → 2024-03 ended
GUN15# KEN —
53806-0K260 Liner, Front Fender, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
53806-0K290 Liner, Front Fender, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
53806-0K300 Liner, Front Fender, LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
53806-0K300 Liner, Front Fender, LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
53806-0K310 Liner, Front Fender, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
53806-0K370 Liner, Front Fender, LH
2023-02 → —
GUN156,TGN156,166 PKNP —
53806-0K390 Liner, Front Fender, LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
