Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

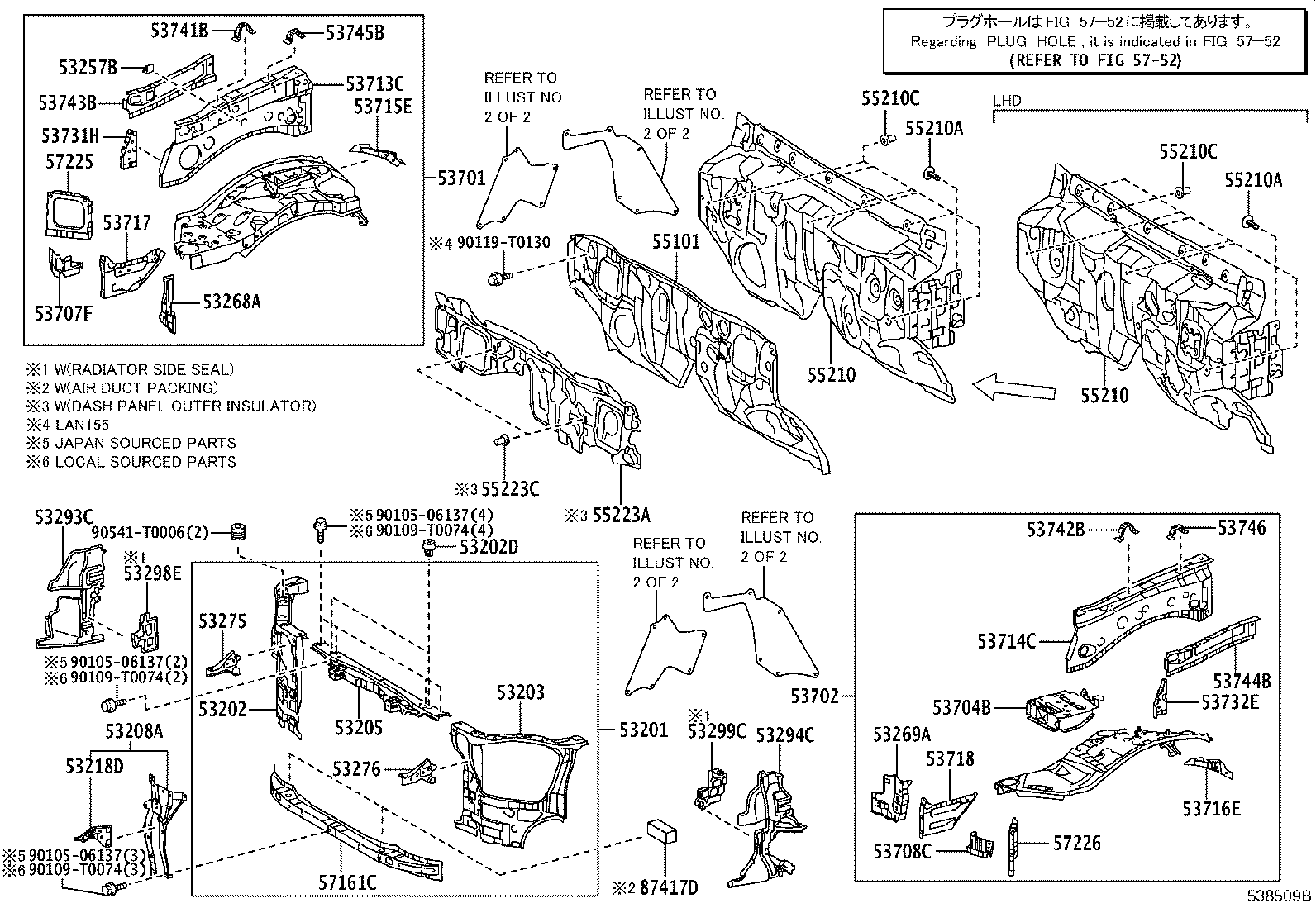

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53201 — Support Sub-assy, Radiator | ||||
| 53201-KK040 |
Support Sub-assy, Radiator
2022-09 → 2024-03
ended
|
GGN155,GUN15#,16#,TGN156,166 EPTP,IDNP,MAP,VNP | — | |
| 53201-KK050 |
Support Sub-assy, Radiator
2022-11 → 2024-11
ended
|
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,KENP,PKNP,SAP | — | |
| 53201-KK060 |
Support Sub-assy, Radiator
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53201-KK070 |
Support Sub-assy, Radiator
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53201-KK220 |
Support Sub-assy, Radiator
2024-11 → —
|
GUN156,TGN156,166 | — | |
| 53202 — Support Sub-assy, Radiator, RH | ||||
| 53202-KK020 |
Support Sub-assy, Radiator, RH
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 53202D — Cushion, Radiator Support | ||||
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53384-0K040 |
Cushion, Radiator Support
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53203 — Support Sub-assy, Radiator, LH | ||||
| 53203-KK020 |
Support Sub-assy, Radiator, LH
2022-08 → 2024-11
ended
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 53203-KK060 |
Support Sub-assy, Radiator, LH
2024-11 → —
|
GUN156,TGN156,166 | — | |
| 53205 — Support Sub-assy, Radiator, Upper | ||||
| 53205-KK020 |
Support Sub-assy, Radiator, Upper
2022-09 → 2024-03
ended
|
GGN155,GUN15#,16#,TGN156,166 EPTP,IDNP,MAP,VNP | — | |
| 53205-KK040 |
Support Sub-assy, Radiator, Upper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53205-KK050 |
Support Sub-assy, Radiator, Upper
2022-11 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,KENP,PKNP,SAP | — | |
| 53205-KK080 |
Support Sub-assy, Radiator, Upper
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53208A — Support Sub-assy, Hood Lock | ||||
| 53208-KK020 |
Support Sub-assy, Hood Lock
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,EPTP,IDNP,KENP,MAP,PKNP,SAP,THP,VNP | — | |
| 53208-KK080 |
Support Sub-assy, Hood Lock
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53218D — Extension, Hood Lock Brace | ||||
| 53218-KK010 |
Extension, Hood Lock Brace
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53218-KK010 |
Extension, Hood Lock Brace
2022-09 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,EPTP,IDNP,INDP,KENP,MAP,PKNP,SAP,VNP | — | |
| 53257B — Bracket, Radiator Support TO Front Fender | ||||
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2024-01
ended
|
GUN15#,16#,TGN156 SA | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53257-35030 |
Bracket, Radiator Support TO Front Fender
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53268A — Reinforcement, Radiator Mounting, RH | ||||
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53268-KK010 |
Reinforcement, Radiator Mounting, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53269A — Reinforcement, Radiator Mounting, LH | ||||
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53269-KK010 |
Reinforcement, Radiator Mounting, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53275 — Bracket, Headlamp Door Mounting, NO.1 RH | ||||
| 53275-KK010 |
Bracket, Headlamp Door Mounting, NO.1 RH
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 53276 — Bracket, Headlamp Door Mounting, NO.1 LH | ||||
| 53276-KK010 |
Bracket, Headlamp Door Mounting, NO.1 LH
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 53293C — Deflector, Radiator Side, RH | ||||
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-11 → 2023-05
ended
|
GUN156 H LA | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-11 → 2023-05
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
TGN156,166 THP;GUN15#,16# THP (ARL,GEN,TH) | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2023-08
ended
|
TGN156,166 IDNP,MAP;GGN155,GUN15#,16# (IDNP,MAP) (ARL,GEN,IDN,MA,PH,VN) | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-11
ended
|
GUN156 6FC KEN;GGN155,GUN155,165 (H,L) +1 | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → 2023-11
ended
|
GUN156 RHD SA;GUN155,166 S +4 | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53293-KK280 |
Deflector, Radiator Side, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → —
|
GUN156 PKN | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → —
|
GUN156 PKN | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-10 → 2023-05
ended
|
GUN156 6FC IND | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-10 → 2023-05
ended
|
GUN156 6FC H (BZAGT,IND) | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → 2023-05
ended
|
GUN156 LHD IDNP GEN | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → 2023-05
ended
|
GUN156 (AGTP,IDNP) H (LA,PH,VN) | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-09 → 2023-05
ended
|
GUN156 PH | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN165 TH;GGN155,GUN155 LA,TH;GUN156,16# AGTP +1 | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN156 THP GEN;GUN166 6FC +1 | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN155,16# H TH | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN156 6F BZAGT;GUN16# H +3 | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN156 TH | — | |
| 53293-KK280 note |
Deflector, Radiator Side, RH
2022-08 → 2023-05
ended
|
GUN156 TH | — | |
| 53293-KK300 |
Deflector, Radiator Side, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,165 IDNP GCC | — | |
| 53293-KK300 |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165 THP GCC | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → —
|
GUN156 PKN | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 H LA | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-09 → 2023-02
ended
|
GUN156 H LA | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2024-03
ended
|
GGN155,GUN156 6FC (EPT,KEN) | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-11 → 2023-02
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-02
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-09 → 2024-01
ended
|
GUN156 RHD SA;GUN155,166 S +4 | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2024-01
ended
|
GUN155,165 L SA | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-02
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-09 → —
|
GUN156 PKN | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-02
ended
|
GUN156 6F BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GUN155,165 TH | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-08
ended
|
GUN156,166 MA,PH | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP170 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53293-YP240 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP240 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 H LA | — | |
| 53293-YP240 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53293-YP240 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53293-YP240 note |
Deflector, Radiator Side, RH
2023-02 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 53294C — Deflector, Radiator Side, LH | ||||
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2023-08
ended
|
TGN156,166 IDNP,MAP;GGN155,GUN15#,16# (IDNP,MAP) (ARL,GEN,IDN,MA,PH,VN) | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
TGN156,166 THP;GUN15#,16# THP (ARL,GEN,TH) | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-11 → 2023-05
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-11 → 2023-05
ended
|
GUN156 H LA | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-10 → 2023-05
ended
|
GUN156 6FC IND | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-11
ended
|
GUN156 6FC KEN;GGN155,GUN155,165 (H,L) +1 | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → 2023-11
ended
|
GUN156 RHD SA;GUN155,166 S +4 | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53294-KK280 |
Deflector, Radiator Side, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → —
|
GUN156 PKN | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → —
|
GUN156 PKN | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → 2023-05
ended
|
GUN156 PH | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → 2023-05
ended
|
GUN156 LHD IDNP GEN | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-10 → 2023-05
ended
|
GUN156 6FC H (BZAGT,IND) | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN156 6F BZAGT;GUN16# H +3 | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN156 THP GEN;GUN166 6FC +1 | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN165 TH;GGN155,GUN155 LA,TH;GUN156,16# AGTP +1 | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN155,16# H TH | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN156 TH | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-09 → 2023-05
ended
|
GUN156 (AGTP,IDNP) H (LA,PH,VN) | — | |
| 53294-KK280 note |
Deflector, Radiator Side, LH
2022-08 → 2023-05
ended
|
GUN156 TH | — | |
| 53294-KK300 |
Deflector, Radiator Side, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,165 IDNP GCC | — | |
| 53294-KK300 |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165 THP GCC | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-09 → —
|
GUN156 PKN | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-02
ended
|
GUN156 6F BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-02
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → —
|
GUN156 PKN | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GUN155,165 TH | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-11 → 2023-02
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2024-01
ended
|
GUN155,165 L SA | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-09 → 2024-01
ended
|
GUN156 RHD SA;GUN155,166 S +4 | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-09 → 2023-02
ended
|
GUN156 H LA | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2024-03
ended
|
GGN155,GUN156 6FC (EPT,KEN) | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-02
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 H LA | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-08
ended
|
GUN156,166 MA,PH | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 53294-YP170 note |
Deflector, Radiator Side, LH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 53294-YP240 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP240 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 H LA | — | |
| 53294-YP240 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN165 L LA;GUN156,166 LA;GUN156 +2 | — | |
| 53294-YP240 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 53294-YP240 note |
Deflector, Radiator Side, LH
2023-02 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 53298E — Seal, Radiator Side, RH | ||||
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2023-07
ended
|
GGN155,TGN156,166 THP | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2023-08
ended
|
GGN155,TGN156,166 IDNP,MAP | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2023-10
ended
|
GGN155,TGN156,166 AGTP | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2024-01
ended
|
LAN155,TGN156 SA | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 53298-KK010 |
Seal, Radiator Side, RH
2022-08 → —
|
TGN156,166 PKN | — | |
| 53299C — Seal, Radiator Side, LH | ||||
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → —
|
TGN156,166 PKN | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2024-01
ended
|
LAN155,TGN156 SA | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2023-08
ended
|
GGN155,TGN156,166 IDNP,MAP | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2023-07
ended
|
GGN155,TGN156,166 THP | — | |
| 53299-KK010 |
Seal, Radiator Side, LH
2022-08 → 2023-10
ended
|
GGN155,TGN156,166 AGTP | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-KK170 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 53701-KK330 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-09
ended
|
GUN156,165 VNP | — | |
| 53701-KK330 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16# LHD IDNP | — | |
| 53701-KK340 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-08
ended
|
GUN15#,16# RHD IDNP | — | |
| 53701-KK390 |
Apron Sub-assy, Front Fender, RH
2023-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 53701-KK390 |
Apron Sub-assy, Front Fender, RH
2022-08 → 2022-12
ended
|
GGN155,GUN15#,165 LHD THP | — | |
| 53701-KK410 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-08
ended
|
TGN156,166 LHD IDNP | — | |
| 53701-KK410 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 53701-KK420 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2023-08
ended
|
TGN156,166 RHD IDNP | — | |
| 53701-KK490 |
Apron Sub-assy, Front Fender, RH
2023-07 → —
|
GUN156 PKN | — | |
| 53701-KK490 |
Apron Sub-assy, Front Fender, RH
2022-08 → —
|
GUN156 PKNP TH | — | |
| 53701-KK490 |
Apron Sub-assy, Front Fender, RH
2023-07 → 2023-08
ended
|
GUN15# MA | — | |
| 53701-KK490 |
Apron Sub-assy, Front Fender, RH
2022-08 → 2022-11
ended
|
GUN15#,16# RHD (INDP,MAP,THP) | — | |
| 53701-KK490 |
Apron Sub-assy, Front Fender, RH
2023-07 → 2023-09
ended
|
GUN156,166 IND | — | |
| 53701-KK590 |
Apron Sub-assy, Front Fender, RH
2022-11 → 2022-12
ended
|
GGN155,GUN156,16# AGTP | — | |
| 53701-KK600 |
Apron Sub-assy, Front Fender, RH
2022-11 → 2022-12
ended
|
TGN156,166 AGTP | — | |
| 53701-KK610 |
Apron Sub-assy, Front Fender, RH
2023-07 → 2024-03
ended
|
TGN166 EPT | — | |
| 53701-KK610 |
Apron Sub-assy, Front Fender, RH
2022-08 → 2022-11
ended
|
TGN156,166 THP | — | |
| 53701-KK620 |
Apron Sub-assy, Front Fender, RH
2022-09 → 2022-12
ended
|
TGN156,166 IND,MA | — | |
| 53701-KK670 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 53701-KK690 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 53701-KK710 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 53701-KK710 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 53701-KK740 |
Apron Sub-assy, Front Fender, RH
2022-12 → 2023-07
ended
|
TGN156,166 EPTP,THP | — | |
| 53701-KK750 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-08
ended
|
GGN155 EPT | — | |
| 53701-KK750 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-07
ended
|
GGN155,GUN15#,165 LHD THP | — | |
| 53701-KK770 |
Apron Sub-assy, Front Fender, RH
2022-12 → 2023-07
ended
|
GUN15#,16# RHD (INDP,MAP,PKNP,THP) | — | |
| 53701-KK790 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-09
ended
|
TGN166 IND | — | |
| 53701-KK790 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-08
ended
|
TGN156 MA | — | |
| 53701-KK790 |
Apron Sub-assy, Front Fender, RH
2023-01 → —
|
TGN156,166 PKN | — | |
| 53701-KK800 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-10
ended
|
GGN155,GUN156,16# AGTP | — | |
| 53701-KK810 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2023-10
ended
|
TGN156,166 AGTP | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-KK070 |
Apron Sub-assy, Front Fender, LH
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 53702-KK070 |
Apron Sub-assy, Front Fender, LH
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 53702-KK080 |
Apron Sub-assy, Front Fender, LH
2022-09 → 2022-12
ended
|
GUN15#,TGN156 MA | — | |
| 53702-KK120 |
Apron Sub-assy, Front Fender, LH
2022-08 → 2022-11
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 53702-KK120 |
Apron Sub-assy, Front Fender, LH
2023-07 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 53702-KK120 |
Apron Sub-assy, Front Fender, LH
2023-07 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 53702-KK150 |
Apron Sub-assy, Front Fender, LH
2022-11 → 2022-12
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53702-KK200 |
Apron Sub-assy, Front Fender, LH
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP | — | |
| 53702-KK240 |
Apron Sub-assy, Front Fender, LH
2022-08 → 2022-11
ended
|
GUN15#,16#,TGN166 RHD (INDP,THP) | — | |
| 53702-KK300 |
Apron Sub-assy, Front Fender, LH
2022-12 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53702-KK300 |
Apron Sub-assy, Front Fender, LH
2022-12 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 53702-KK300 |
Apron Sub-assy, Front Fender, LH
2022-12 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 53702-KK300 |
Apron Sub-assy, Front Fender, LH
2022-12 → 2024-03
ended
|
GUN15# KEN | — | |
| 53702-KK300 |
Apron Sub-assy, Front Fender, LH
2022-12 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53702-KK320 |
Apron Sub-assy, Front Fender, LH
2022-12 → 2023-07
ended
|
GGN155,GUN15#,165,LAN155,TGN156,166 LHD (EPTP,SAP,THP) | — | |
| 53702-KK340 |
Apron Sub-assy, Front Fender, LH
2023-01 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53702-KK360 |
Apron Sub-assy, Front Fender, LH
2023-01 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 53704B — Support Sub-assy, Battery, LH | ||||
| 53704-KK010 |
Support Sub-assy, Battery, LH
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 53704-KK010 |
Support Sub-assy, Battery, LH
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53704-KK020 |
Support Sub-assy, Battery, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53704-KK020 |
Support Sub-assy, Battery, LH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53704-KK020 |
Support Sub-assy, Battery, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53704-KK020 |
Support Sub-assy, Battery, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53704-KK020 |
Support Sub-assy, Battery, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53707F — Gusset Sub-assy, Front Fender Apron, Lower RH | ||||
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53707-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53708C — Gusset Sub-assy, Front Fender Apron, Lower LH | ||||
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53708-KK010 |
Gusset Sub-assy, Front Fender Apron, Lower LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53713C — Extension, Front Fender Apron, Front RH | ||||
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 53713-KK020 |
Extension, Front Fender Apron, Front RH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 53713-KK040 |
Extension, Front Fender Apron, Front RH
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 53713-KK040 |
Extension, Front Fender Apron, Front RH
2022-09 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53713-KK040 |
Extension, Front Fender Apron, Front RH
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 53713-KK040 |
Extension, Front Fender Apron, Front RH
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 53714C — Extension, Front Fender Apron, Front LH | ||||
| 53714-KK020 |
Extension, Front Fender Apron, Front LH
2022-08 → —
|
GUN15#,16#,TGN156,166 RHD (INDP,PKNP,THP) | — | |
| 53714-KK020 |
Extension, Front Fender Apron, Front LH
2022-08 → 2024-03
ended
|
GUN15# ,MA);GGN155,GUN16#,LAN155,TGN166 LHD LHD +5 | — | |
| 53714-KK030 |
Extension, Front Fender Apron, Front LH
2022-09 → 2023-09
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,VNP | — | |
| 53714-KK030 |
Extension, Front Fender Apron, Front LH
2022-12 → —
|
GUN15#,16# RHD (KEN,SA) | — | |
| 53715E — Extension, Front Fender Apron, Rear RH | ||||
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53715-0K030 |
Extension, Front Fender Apron, Rear RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53716E — Extension, Front Fender Apron, Rear LH | ||||
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53716-0K030 |
Extension, Front Fender Apron, Rear LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53717 — Plate, Fender Apron, RH | ||||
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53717-KK010 |
Plate, Fender Apron, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53718 — Plate, Fender Apron, LH | ||||
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53718-KK010 |
Plate, Fender Apron, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53731H — Patch, Front Fender Apron, RH | ||||
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53731-KK010 |
Patch, Front Fender Apron, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53732E — Reinforcement, Front Fender Apron, LH | ||||
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53732-KK010 |
Reinforcement, Front Fender Apron, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53741B — Plate, Fender Apron Reinforce, RH | ||||
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53741-KK030 |
Plate, Fender Apron Reinforce, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53742B — Plate, Fender Apron Reinforce, LH | ||||
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53742-KK030 |
Plate, Fender Apron Reinforce, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53743B — Reinforcement, Front Fender Apron, Front RH | ||||
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53743-KK010 |
Reinforcement, Front Fender Apron, Front RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53744B — Reinforcement, Front Fender Apron, Front LH | ||||
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53744-KK010 |
Reinforcement, Front Fender Apron, Front LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53745B — Reinforcement, Front Fender Apron, Rear RH | ||||
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53745-KK020 |
Reinforcement, Front Fender Apron, Rear RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53746 — Reinforcement, Front Fender Apron, Rear LH | ||||
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53746-KK020 |
Reinforcement, Front Fender Apron, Rear LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-KK050 |
Panel Sub-assy, Dash
2022-09 → 2023-05
ended
|
GUN155,165,TGN156 L (GEN,VN) | — | |
| 55101-KK050 |
Panel Sub-assy, Dash
2022-09 → 2024-01
ended
|
GUN156,LAN155 LHD MTM SA | — | |
| 55101-KK050 |
Panel Sub-assy, Dash
2022-09 → 2023-10
ended
|
GUN156,166,TGN166 AGTP MTM | — | |
| 55101-KK080 |
Panel Sub-assy, Dash
2022-08 → 2023-05
ended
|
GUN165 DNP,THP,VNP) S 6FC +6 | — | |
| 55101-KK080 |
Panel Sub-assy, Dash
2022-08 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 55101-KK080 |
Panel Sub-assy, Dash
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP 6FC | — | |
| 55101-KK090 |
Panel Sub-assy, Dash
2022-09 → 2023-05
ended
|
GUN156,16#,TGN166 MTM (IDN,IND) | — | |
| 55101-KK090 |
Panel Sub-assy, Dash
2022-09 → 2023-10
ended
|
GUN156,165 RHD 6F (KEN,SA) | — | |
| 55101-KK091 |
Panel Sub-assy, Dash
2023-10 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 55101-KK091 |
Panel Sub-assy, Dash
2023-10 → 2024-01
ended
|
GUN156,165 RHD 6F SA | — | |
| 55101-KK120 |
Panel Sub-assy, Dash
2022-08 → 2023-05
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,INDP,MAP,PKNP,THP) 6FC | — | |
| 55101-KK120 |
Panel Sub-assy, Dash
2022-08 → 2023-10
ended
|
GUN15#,16# RHD 6FC (KEN,SA) | — | |
| 55101-KK121 |
Panel Sub-assy, Dash
2023-10 → 2024-03
ended
|
GUN15# 6FC KEN | — | |
| 55101-KK121 |
Panel Sub-assy, Dash
2023-10 → 2024-01
ended
|
GUN15#,16# RHD 6FC SA | — | |
| 55101-KK170 |
Panel Sub-assy, Dash
2022-10 → 2023-05
ended
|
GUN165 6F PH | — | |
| 55101-KK180 |
Panel Sub-assy, Dash
2022-09 → 2023-05
ended
|
GUN165 6FC L PH | — | |
| 55101-KK220 |
Panel Sub-assy, Dash
2023-05 → 2023-09
ended
|
GUN165 VNP L | — | |
| 55101-KK220 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN155,165,TGN156 IDNP L (GEN,VN) | — | |
| 55101-KK230 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN165 6F PH | — | |
| 55101-KK240 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN165 HD S IDNP +7 | — | |
| 55101-KK240 |
Panel Sub-assy, Dash
2023-05 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 55101-KK240 |
Panel Sub-assy, Dash
2023-05 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 55101-KK240 |
Panel Sub-assy, Dash
2023-05 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 55101-KK250 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN165 6FC L PH | — | |
| 55101-KK260 |
Panel Sub-assy, Dash
2023-05 → 2023-09
ended
|
GUN156,166,TGN166 MTM IND | — | |
| 55101-KK260 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN165 6F IDN | — | |
| 55101-KK280 |
Panel Sub-assy, Dash
2023-05 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 55101-KK280 |
Panel Sub-assy, Dash
2023-05 → 2023-09
ended
|
GUN156,166,TGN156,166 6FC (IND,PKN) | — | |
| 55101-KK280 |
Panel Sub-assy, Dash
2023-05 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) 6FC | — | |
| 55101-KK281 |
Panel Sub-assy, Dash
2023-09 → —
|
GUN156,TGN156,166 PKNP | — | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-0K360 |
Insulator Assy, Dash Panel
2022-12 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 55210-0K360 |
Insulator Assy, Dash Panel
2022-12 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 55210-KK131 |
Insulator Assy, Dash Panel
2022-08 → 2022-11
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 55210-KK151 |
Insulator Assy, Dash Panel
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 55210-KK161 |
Insulator Assy, Dash Panel
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 55210-KK170 |
Insulator Assy, Dash Panel
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 55210-KK170 |
Insulator Assy, Dash Panel
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 55210-KK180 |
Insulator Assy, Dash Panel
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 55210-KK180 |
Insulator Assy, Dash Panel
2022-09 → —
|
GUN156,TGN156,166 PKNP | — | |
| 55210-KK191 |
Insulator Assy, Dash Panel
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 55210-KK211 |
Insulator Assy, Dash Panel
2023-01 → 2023-06
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 55210-KK212 |
Insulator Assy, Dash Panel
2023-07 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 55210-KK221 |
Insulator Assy, Dash Panel
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 55210-KK221 |
Insulator Assy, Dash Panel
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 55210A — Clip | ||||
| 90467-T0004-A0 note |
Clip
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90467-T0004-A0 note |
Clip
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 55210C — Clip | ||||
| 90467-06197 note |
Clip
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90467-T0032 |
Clip
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 90467-T0032 note |
Clip
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-0K030 |
Insulator, Dash Panel, Outer
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP | — | |
| 55223-0K040 |
Insulator, Dash Panel, Outer
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16# LHD IDNP;TGN156,166 LHD +2 | — | |
| 55223-0K050 |
Insulator, Dash Panel, Outer
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 55223-KK030 |
Insulator, Dash Panel, Outer
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 55223-KK030 |
Insulator, Dash Panel, Outer
2022-11 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 55223-KK040 |
Insulator, Dash Panel, Outer
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 55223-KK040 |
Insulator, Dash Panel, Outer
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 55223-KK051 |
Insulator, Dash Panel, Outer
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 55223-KK051 |
Insulator, Dash Panel, Outer
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15#,165 LHD +1 | — | |
| 55223-KK061 |
Insulator, Dash Panel, Outer
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 55223-KK061 |
Insulator, Dash Panel, Outer
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 55223-KK061 |
Insulator, Dash Panel, Outer
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 55223-KK070 |
Insulator, Dash Panel, Outer
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 55223C — Clip | ||||
| 90467-T0032 |
Clip
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90467-T0032 |
Clip
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16# IDNP,MAP;TGN156,166 (IDNP,MAP) (H,S) | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15#,16# THP | — | |
| 90467-T0032 |
Clip
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 57161C — Member, Front Cross | ||||
| 57161-KK010 note |
Member, Front Cross
2022-11 → 2024-11
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP,PKNP | — | |
| 57161-KK010 |
Member, Front Cross
2022-08 → —
|
GGN155,GUN15#,16#,TGN156,166 EPTP,IDNP,INDP,MAP,THP,VNP | — | |
| 57161-KK010 |
Member, Front Cross
2024-11 → —
|
GUN156,TGN156,166 | — | |
| 57161-KK020 note |
Member, Front Cross
2023-01 → 2024-03
ended
|
GUN15#,16#,LAN155,TGN156 KEN,SA | — | |
| 57225 — Brace, Front Mounting Bracket, RH | ||||
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 57225-KK010 |
Brace, Front Mounting Bracket, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 57226 — Brace, Front Mounting Bracket, LH | ||||
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 57226-KK010 |
Brace, Front Mounting Bracket, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 87417D — Packing, Air Duct | ||||
| 87417-0K020 |
Packing, Air Duct
2022-08 → 2023-07
ended
|
GGN155,TGN156,166 THP | — | |
| 87417-0K020 |
Packing, Air Duct
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 87417-0K020 |
Packing, Air Duct
2022-08 → 2023-10
ended
|
TGN156,166 AGTP | — | |
| 87417-0K020 |
Packing, Air Duct
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 87417-0K020 |
Packing, Air Duct
2022-08 → —
|
TGN156,166 PKN | — | |
| 87417-0K040 |
Packing, Air Duct
2022-09 → 2023-08
ended
|
TGN156,166 IDNP;GGN155 IDNP GCC | — | |
| 87417-0K090 |
Packing, Air Duct
2022-09 → 2023-08
ended
|
TGN156 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
