Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

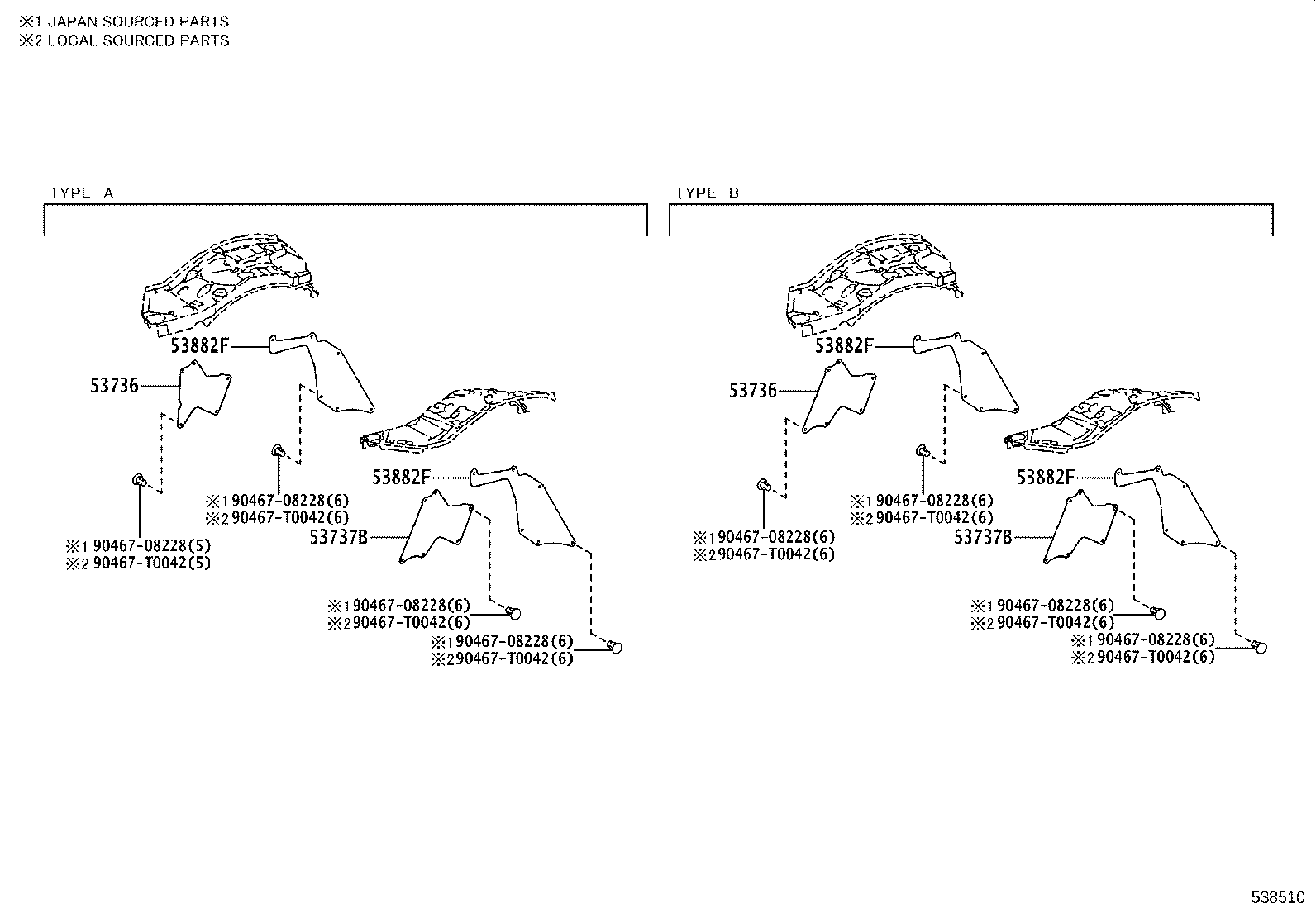

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53736 — Seal, Front Fender Apron, RH | ||||
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-07
ended
|
TGN156,166 THP | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-08
ended
|
TGN156 L GEN;TGN156,166 (IDNP,MAP) +1 | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-09 → 2023-08
ended
|
TGN156 H GEN | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-09 → 2023-08
ended
|
TGN156 H GEN | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-08 → —
|
TGN156,166 PKN | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-10
ended
|
TGN156,166 AGTP | — | |
| 53735-KK010 note |
Seal, Front Fender Apron, RH
2022-09 → 2024-01
ended
|
TGN156 SA | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16# THP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-09 → —
|
TGN156,166 PKN | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → —
|
GUN156 PKNP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16# AGTP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-09
ended
|
GUN156,16# INDP,VNP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2023-08
ended
|
TGN156,166 H GEN;GGN155,GUN15#,16# IDNP,MAP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, RH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53737B — Seal, Front Fender Apron, LH | ||||
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53735-KK020 note |
Seal, Front Fender Apron, LH
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53882F — Seal, Front Fender | ||||
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 53885-KK020 note |
Seal, Front Fender
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
