Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

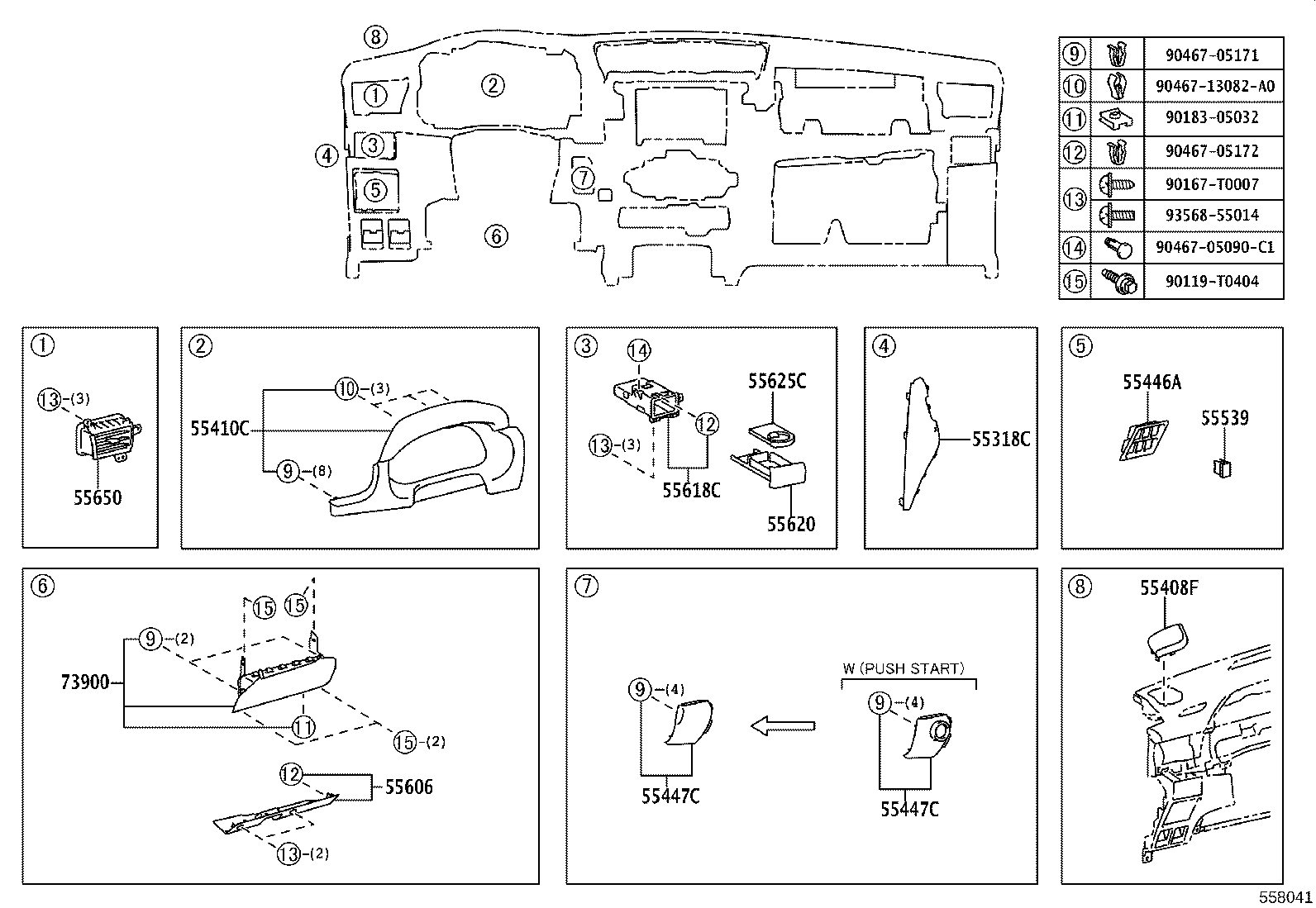

Exploded illustration 558041 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (55 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (31 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (33 parts) 55618C — HOLDER, INSTRUMENT PANEL CUP (12 parts) 55625C — TRAY, INSTRUMENT PANEL CUP HOLDER (7 parts) 55620 — HOLDER ASSY, INSTRUMENT PANEL CUP (28 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (19 parts) 55446A — BASE, SWITCH HOLE, NO.1 (28 parts) 55447C — BASE, SWITCH HOLE, NO.2 (40 parts) 55447C — BASE, SWITCH HOLE, NO.2 (40 parts) 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (30 parts) 55539 — COVER, SPARE SWITCH HOLE (32 parts) 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (21 parts) 9356855014 — not listed in this catalogue 90167T0007 — not listed in this catalogue 9046705172 — not listed in this catalogue 90119T0404 — not listed in this catalogue 9046705090C1 — not listed in this catalogue 9046713082A0 — not listed in this catalogue 9046705171 — not listed in this catalogue 9018305032 — not listed in this catalogue
558041 · 13 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
336 parts on this figure
Part number Description Fitment Price
55318C — Panel, Instrument Side, LH
55318-KK030-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN156 THP ARL —
55318-KK030-C0 note Panel, Instrument Side, LH
2023-01 → 2024-03 ended
GUN15# KEN —
55318-KK030-C0 note Panel, Instrument Side, LH
2023-01 → 2024-01 ended
GUN155,165 L SA —
55318-KK030-C0 note Panel, Instrument Side, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
55318-KK030-C0 note Panel, Instrument Side, LH
2022-08 → 2023-08 ended
GUN15#,TGN156,166 RHD IDNP (ARL,GEN) —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN156 THP GEN —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2024-03 ended
GGN155,TGN166 EPT —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN165 IDNP (PH,VN);GUN156,TGN156,166 IDNP +1 —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN156,166 PH —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-08 ended
GUN155 IDNP IDNP (H,S) +7 —
55318-KK040-C0 note Panel, Instrument Side, LH
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN156 MA —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-10 → —
GUN156 PKN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → —
TGN156,166 PKN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-08 → —
GUN156 PKNP TH —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-08 → 2023-07 ended
GUN165 S TH —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-08 → 2023-08 ended
GUN156 IDN;GUN155,16#,TGN156,166 IDN,MA —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN156 RHD GEN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN156,TGN156,166 RHD GEN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN156,TGN166 RHD GEN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
TGN166 GEN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-09 → 2023-08 ended
GUN165 RHD GEN —
55318-KK090-C0 note Panel, Instrument Side, LH
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-10 → 2023-09 ended
GUN156 6FC IND —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-10 → 2023-09 ended
GUN156 6F IND —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2023-01 → 2023-07 ended
GUN156 THP TH —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2023-01 → 2023-07 ended
GUN166 TH —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2023-01 → 2024-01 ended
GUN156,166 RHD 6FC SA —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-08 → 2023-07 ended
GUN156 H ARL —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-10 → 2023-05 ended
GUN156 6F IND —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-10 → 2023-05 ended
GUN156 6FC IND —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-08 → 2023-01 ended
GUN156 TH —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-08 → 2023-01 ended
GUN156 TH —
55408-KK011-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-08 → 2023-01 ended
GUN166 TH —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-08 ended
GUN166 PH —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-09 ended
GUN156 VNP —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-08 ended
GUN156,TGN156 IDNP VN —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-08 ended
GUN156 PH —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-09 ended
GUN165 H VN —
55408-KK021-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2022-09 → 2023-05 ended
GUN156 PH;GUN156 VNP —
55410C — Panel Assy, Instrument Cluster Finish
55410-KK060-C3 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 THP L —
55410-KK060-C3 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
GUN155 MA —
55410-KK060-C3 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
55410-KK070-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
55410-KK070-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-09 ended
GUN156,165 VNP H —
55410-KK070-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 THP GEN —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN15# THP H GCC —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-10 ended
GGN155,GUN165,TGN166 H LA —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-10 ended
GUN156 H LA —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
GUN16#,TGN156,166 IDNP (H,S) (PH,VN) —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN155 GCC,GEN) LHD H +8 —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 THP GEN —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2024-03 ended
GGN155 EPT —
55410-KK070-C6 note Panel Assy, Instrument Cluster Finish
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55410-KK070-C7 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
TGN156 L GEN —
55410-KK070-C7 note Panel Assy, Instrument Cluster Finish
2022-11 → 2023-10 ended
GUN156 L LA;GUN156 S +3 —
55410-KK070-C8 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55410-KK070-C8 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-10 ended
GUN156 L BZAGT —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-08 ended
GUN165 IDNP L (PH,VN) —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-09 → 2024-03 ended
TGN166 EPT —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55410-KK080-C4 note Panel Assy, Instrument Cluster Finish
2022-09 → 2023-09 ended
GUN165 VNP L —
55410-KK120-C0 note Panel Assy, Instrument Cluster Finish
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
55410-KK120-C0 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN156 MA —
55410-KK120-C0 note Panel Assy, Instrument Cluster Finish
2022-08 → —
GUN156 PKN —
55410-KK120-C0 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-09 ended
GUN156,166 6FC IND —
55410-KK120-C0 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → —
GUN156 PKNP TH —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → —
TGN156,166 PKN —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 TH —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 H ARL —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN165 S TH —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2024-03 ended
GUN156 KEN —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN155,16# H TH —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-10 → —
GUN156 PKN —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 (H,S) (IDN,MA) —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
55410-KK120-C4 note Panel Assy, Instrument Cluster Finish
2022-10 → 2023-09 ended
GUN156 6FC IND —
55410-KK120-C5 note Panel Assy, Instrument Cluster Finish
2023-01 → 2024-01 ended
GUN155,165 L SA —
55410-KK120-C5 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 S ARL —
55410-KK120-C5 note Panel Assy, Instrument Cluster Finish
2023-01 → 2024-03 ended
GUN155 KEN —
55410-KK120-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-09 ended
GUN156 6FC IND —
55410-KK120-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → 2023-07 ended
GUN156 TH —
55410-KK120-C6 note Panel Assy, Instrument Cluster Finish
2022-08 → —
GUN156 PKN —
55446A — Base, Switch Hole, NO.1
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2024-01 ended
GUN155,165 L SA —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-08 ended
GUN156 MA —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2024-03 ended
GUN15# KEN —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-08 ended
GUN156 IDN;GUN155,16#,TGN156,166 IDN,MA —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → —
TGN156,166 PKN —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → —
GUN156 PKNP TH —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-10 → —
GUN156 PKN —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN165 S TH —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55446-KK030-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN156 THP ARL —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2024-03 ended
GGN155,TGN166 EPT —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-08 ended
GUN165 IDNP (PH,VN);GUN156,TGN156,166 IDNP +1 —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-08 ended
GUN156,166 PH —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-08 ended
GUN155 IDNP IDNP (H,S) +7 —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55446-KK040-C0 note Base, Switch Hole, NO.1
2022-09 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
55447C — Base, Switch Hole, NO.2
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GUN156 IDN;GUN155,16#,TGN156,166 IDN,MA —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-08 ended
GUN156 MA —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2024-01 ended
GUN155,165 L SA —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2024-03 ended
GUN15# KEN —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → —
TGN156,166 PKN —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → —
GUN156 PKNP TH —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-10 → —
GUN156 PKN —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN156 THP ARL —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55447-KK010-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN165 S TH —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-09 → 2024-03 ended
TGN166 EPT —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-09 ended
GUN165 VNP L —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GGN155,GUN155 THP S —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-08 ended
GUN165 IDNP L (PH,VN) —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
TGN156 L GEN;GGN155,GUN155 IDNP +2 —
55447-KK020-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
55447-KK030-C0 note Base, Switch Hole, NO.2
2023-01 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2024-03 ended
GGN155 EPT —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GGN155 IDNP H;TGN156 IDNP +4 —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-08 ended
GGN155,GUN155 IDNP S GCC —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GGN155,GUN155 THP S —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-08 ended
GUN156,166 PH —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-08 ended
GUN165 IDNP S (PH,VN);GUN156,TGN156,166 +2 —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GUN15# THP H GCC —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-08 ended
GUN155 L GEN —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-08 → 2023-07 ended
GGN155 THP H;TGN156 THP +1 —
55447-KK030-C0 note Base, Switch Hole, NO.2
2022-09 → 2023-09 ended
GUN165,TGN166 VNP S —
55539 — Cover, Spare Switch Hole
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-01 ended
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
TGN156,166 PKN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
GUN156,TGN156,166 PKNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
GUN156 PKNP TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-10 → —
GUN156 PKN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN165 S TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-05 ended
GGN155 66 IDNP (IDNP,INDP) +7 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN156 THP GEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN156 (IDN,MA,VN) IDNP (IDN,VN);GUN165 +3 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-01 ended
GUN166 TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55539-KK030-C0 note Cover, Spare Switch Hole
2023-01 → 2023-07 ended
GUN166 TH —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2024-03 ended
GUN15# KEN —
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2024-01 ended
GUN15#,16# RHD SA —
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-10 → 2023-09 ended
GUN156 6FC IND —
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 IDN —
55606-KK010-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN156,16#,TGN156,166 IDNP (PH,VN) —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55606-KK020-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN155 .LHD IDNP IDNP +8 —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2023-05 → —
GUN156 PKN —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → —
GUN156 PKNP TH —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → —
TGN156,166 PKN —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN156 THP ARL —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN165 S TH —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN156 MA —
55606-KK050-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-08 ended
GUN155,TGN156 MA —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-08 ended
GUN156,166 PH —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2023-05 → 2024-03 ended
GGN155,TGN166 EPT —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
55606-KK060-C0 note Cover Sub-assy, Instrument Panel Under, NO.1
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
55618C — Holder, Instrument Panel Cup
55618-KK030 Holder, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN15#,16# RHD THP —
55618-KK030 Holder, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) —
55618-KK030 Holder, Instrument Panel Cup
2022-08 → —
GUN156,TGN156,166 PKNP —
55618-KK030 Holder, Instrument Panel Cup
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
55618-KK030 Holder, Instrument Panel Cup
2022-08 → 2024-03 ended
GUN15# KEN —
55618-KK030 Holder, Instrument Panel Cup
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 LHD THP —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 LHD IDNP —
55618-KK040 Holder, Instrument Panel Cup
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
55620 — Holder Assy, Instrument Panel Cup
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN156 THP ARL —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-10 → —
GUN156 PKN —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → —
GUN156 PKNP TH —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → —
TGN156,166 PKN —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2024-03 ended
GUN15# KEN —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2024-01 ended
GUN155,165 L SA —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-08 ended
GUN156 MA —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN165 S TH —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN156 IDN;GUN155,16#,TGN156,166 IDN,MA —
55620-KK010-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN156 THP GEN —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2024-03 ended
GGN155,TGN166 EPT —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-08 ended
GUN165 IDNP (PH,VN);GUN156,TGN156,166 IDNP +1 —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-09 → 2023-08 ended
GUN156,166 PH —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-08 → 2023-08 ended
GUN155 IDNP IDNP (H,S) +7 —
55620-KK020-C0 note Holder Assy, Instrument Panel Cup
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55625C — Tray, Instrument Panel Cup Holder
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → —
GUN156,TGN156,166 PKNP —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
55625-KK030 Tray, Instrument Panel Cup Holder
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
55650 — Register Assy, Instrument Panel, NO.1
55650-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP L —
55650-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
55650-KK180 Register Assy, Instrument Panel, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
55650-KK180 Register Assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
GUN15# KEN —
55650-KK180 Register Assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
55650-KK180 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) (H,S) —
55650-KK180 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN15#,16# RHD THP (H,S) —
55650-KK190 Register Assy, Instrument Panel, NO.1
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
55660-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L —
55660-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN165 VNP L —
55660-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-10 ended
GUN156 L BZAGT —
55660-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
TGN166 EPT —
55660-KK090 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
TGN156 IDNP S;TGN156 LHD +4 —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
GGN155 EPT —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP (H,S) —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-10 ended
GUN156 L LA;GUN156 AGTP +2 —
55660-KK160 Register Assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-10 → —
GUN156 PKN —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → —
GUN156 PKNP TH —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → —
TGN156,166 PKN —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2023-08 ended
GUN156 MA —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-08 ended
GUN156 IDN;GUN155,16#,TGN156,166 IDN,MA —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN156 THP ARL —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN15#,16# H TH —
73900-0K010-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN165 S TH —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2024-03 ended
GGN155,TGN166 EPT —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2023-09 ended
GUN156,165 VNP H —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2023-08 ended
GUN165 IDNP (PH,VN);GUN156,TGN156,166 IDNP +1 —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-09 → 2023-08 ended
GUN156,166 PH —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-08 ended
GUN155 IDNP IDNP (H,S) +7 —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
73900-0K020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
73900-0K070-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-11 → 2023-10 ended
GUN156 H BZAGT —
73900-0K070-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2022-11 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
73900-0K080-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-01 → 2023-02 ended
GUN155,165 L SA —
73900-0K080-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-01 → 2023-02 ended
GUN156,166 RHD SA —
73900-0K081-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-03 → 2024-01 ended
GUN156,166 RHD SA —
73900-0K081-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-03 → 2024-01 ended
GUN155,165 L SA —
73900-0K081-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-03 → 2024-03 ended
GUN15# KEN —
73900-0K090-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
