Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

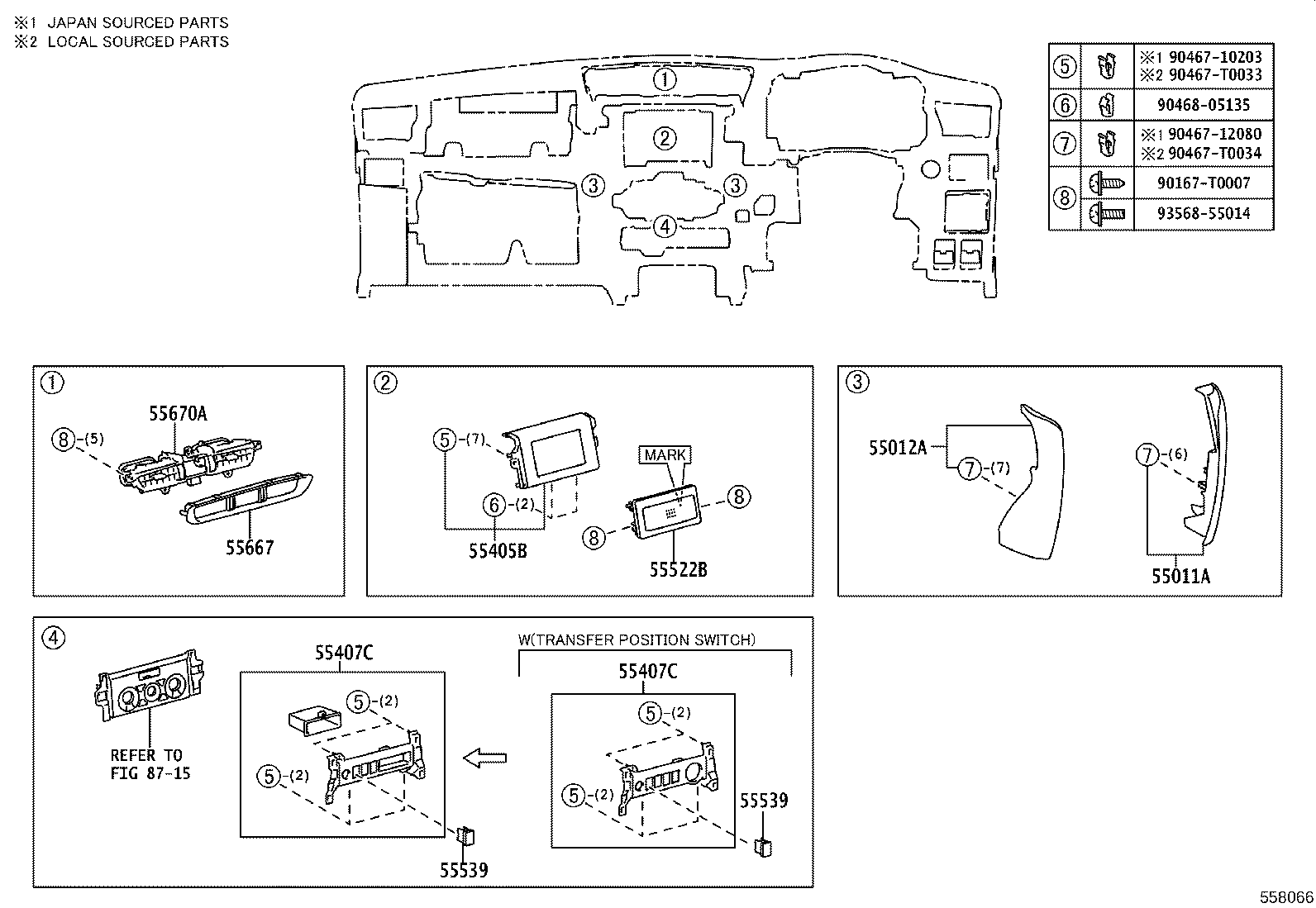

Exploded illustration 558066 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (13 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (44 parts) 55407C — COVER SUB-ASSY, INSTRUMENT, LOWER (22 parts) 55011A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 (75 parts) 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (75 parts) 55407C — COVER SUB-ASSY, INSTRUMENT, LOWER (22 parts) 55667 — GARNISH, INSTRUMENT PANEL REGISTER BEZEL (17 parts) 55539 — COVER, SPARE SWITCH HOLE (32 parts) 55539 — COVER, SPARE SWITCH HOLE (32 parts) 8715 — not listed in this catalogue 55522B — COVER, RADIO TUNER OPENING (21 parts) 9356855014 — not listed in this catalogue 90167T0007 — not listed in this catalogue 9046805135 — not listed in this catalogue 90467T0033 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046712080 — not listed in this catalogue 90467T0034 — not listed in this catalogue
558066 · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
299 parts on this figure
Part number Description Fitment Price
55011A — Garnish Sub-assy, Instrument Panel, NO.1
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN155,16# H TH —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-11 ended
GUN156,166 RHD SA —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156 6FC IND —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
GUN156 KEN —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → —
GUN156 PKN —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) (H,S) —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → —
TGN156,166 PKN;GUN156 PKNP TH —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2023-05 → —
GUN156 PKN —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 TH —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN155,16# TH;GUN156 H ARL —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 TH —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-10 → 2023-05 ended
GUN166 6FC IND —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-05 ended
GUN156 MA —
55011-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-10 → 2023-05 ended
GUN156 6FC IND —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → —
GUN156 PKN —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156 6FC IND —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-10 → 2023-05 ended
GUN156 6FC IND —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 TH —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2023-05 → —
GUN156 PKN —
55011-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 TH —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-10 → 2023-05 ended
GUN156,166 6FC IND —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → —
GUN156,TGN156,166 PKN —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2023-05 → —
GUN156 PKN —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
55011-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 H ARL —
55011-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
55011-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
GUN155 KEN —
55011-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
GUN155,165 L SA —
55011-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
55011-KK140-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
55011-KK140-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-10 ended
GUN156 6F BZAGT;GGN155,GUN165,TGN166 H +1 —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 VNP;GUN156 LHD GEN;GUN156 +4 —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 THP GEN —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2024-03 ended
GGN155 EPT —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN155 (H,S) IDNP S +7 —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-05 ended
GUN156 PH —
55011-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
55011-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55011-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-05 ended
GUN156 PH —
55011-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
55011-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
55011-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 LHD GEN —
55011-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-05 ended
GUN156 THP GEN —
55011-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,165,TGN156 LHD IDNP (H,S) +1 —
55011-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP (H,S) —
55011-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2024-03 ended
TGN166 EPT —
55011-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-09 ended
GUN165 VNP L —
55011-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
55011-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-08 ended
GUN165,TGN156 IDNP L (GEN,PH,VN) —
55011-KK160-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55011-KK160-E1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L (GCC,GEN) —
55011-YP010-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55011-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55011-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55011-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55011-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → 2023-08 ended
GUN156 MA —
55011-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → —
GUN156 PKN —
55011-YP020-A0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
55011-YP020-A0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
55011-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55011-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55011-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55011-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55011-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
55011-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
55011-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.1
2022-08 → 2023-09 ended
GUN156,165 VNP H —
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-10 → 2023-05 ended
GUN166 6FC IND —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) (H,S) —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → —
GUN156 PKN —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-03 ended
GUN156 KEN —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 TH —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN155,16# TH;GUN156 H ARL —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-11 ended
GUN156,166 RHD SA —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156 6FC IND —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-10 → 2023-05 ended
GUN156 6FC IND —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → —
TGN156,166 PKN;GUN156 PKNP TH —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-05 ended
GUN156 MA —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2023-05 → —
GUN156 PKN —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN155,16# H TH —
55012-KK130-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 TH —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-10 → 2023-05 ended
GUN156 6FC IND —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → —
GUN156 PKN —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2023-05 → —
GUN156 PKN —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 TH —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 TH —
55012-KK130-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156 6FC IND —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → —
GUN156,TGN156,166 PKN —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2023-05 → —
GUN156 PKN —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-10 → 2023-05 ended
GUN156,166 6FC IND —
55012-KK130-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 H ARL —
55012-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-01 ended
GUN155,165 L SA —
55012-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
55012-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
55012-KK140-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-03 ended
GUN155 KEN —
55012-KK140-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
55012-KK140-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 VNP;GUN156 LHD GEN;GUN156 +4 —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-05 ended
GUN156 PH —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-10 ended
GUN156 6F BZAGT;GGN155,GUN165,TGN166 H +1 —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 THP GEN —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN155 (H,S) IDNP S +7 —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2024-03 ended
GGN155 EPT —
55012-KK150-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
55012-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
55012-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
55012-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-05 ended
GUN156 PH —
55012-KK150-C3 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
55012-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 LHD GEN —
55012-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-05 ended
GUN156 THP GEN —
55012-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP (H,S) —
55012-KK150-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,165,TGN156 LHD IDNP (H,S) +1 —
55012-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-09 ended
GUN165 VNP L —
55012-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2024-03 ended
TGN166 EPT —
55012-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-08 ended
GUN165,TGN156 IDNP L (GEN,PH,VN) —
55012-KK160-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
55012-KK160-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L (GCC,GEN) —
55012-KK160-E1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55012-YP010-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55012-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → —
GUN156 PKN —
55012-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55012-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55012-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-09 → 2023-08 ended
GUN156 MA —
55012-YP010-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55012-YP020-A0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
55012-YP020-A0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
55012-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
55012-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55012-YP020-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
55012-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
55012-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
55012-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
55012-YP020-C1 note Garnish Sub-assy, Instrument Panel, NO.2
2022-08 → 2023-09 ended
GUN156,165 VNP H —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-KK070 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-10 ended
GUN156 H BZAGT;GGN155,GUN165 H +1 —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-10 ended
GUN165 L LA;GUN156,TGN156 S +1 —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-09 ended
GUN165,TGN166 VNP S —
55405-KK070 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) H —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN166,TGN166 6FC (L,S) LA —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN166,TGN166 6FC (L,S) LA —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN156,TGN166 H LA —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN156,TGN166 H LA —
55405-KK070 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-01 ended
GUN15#,166,TGN156 S SA —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
GUN165,TGN166 IDNP S VN —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
TGN156 IDNP L GCC —
55405-KK070 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
GGN155 GEN,IDN,PH) IDNP GCC;GUN156,TGN156 +5 —
55405-KK070 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-01 ended
LAN155 —
55405-KK070 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-03 ended
GUN156 KEN —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2023-01 → 2023-10 ended
GUN156 6FC H BZAGT —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-01 ended
GUN155,165 L SA —
55405-KK080 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-03 ended
TGN166 EPT —
55405-KK080 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-10 ended
GUN156,166,TGN156,166 (6F,6FC) LA —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-03 ended
GUN155 KEN —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2023-01 → 2023-07 ended
TGN156 THP L —
55405-KK080 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2023-01 → 2023-08 ended
TGN156 IDNP L GCC —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2023-01 → 2023-08 ended
TGN156 IDNP L GCC;GGN155,GUN155,165,TGN166 +3 —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2023-01 → 2023-07 ended
GUN155,TGN156 THP L;GGN155,GUN165,TGN166 THP +2 —
55405-KK080 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
TGN156 IDNP H;GUN156 LHD +2 —
55405-KK080 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
GGN155,TGN156 ) LHD GEN;GUN165,TGN166 +6 —
55405-KK090 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-01 ended
GUN155 L SA;GUN165,LAN155 SA —
55405-KK090 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-10 ended
GUN165 L LA;TGN166 S +3 —
55405-KK090 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-03 ended
GUN155 KEN —
55405-KK090 Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 IDNP L (ARL,GCC) —
55405-KK090 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN156,166,TGN166 (6F,6FC) (L,S) LA —
55405-KK090 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-11 → 2023-10 ended
GUN156,166,TGN166 (6F,6FC) (L,S) LA —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → 2023-07 ended
TGN156 THP L —
55405-KK130 Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → 2024-03 ended
GGN155 EPT —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55405-KK130 Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → —
GUN156,TGN156,166 PKNP —
55405-KK130 Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → 2023-07 ended
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) —
55405-KK130 Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → 2023-08 ended
GUN156,TGN156 MA —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-10 → 2023-10 ended
GUN156 6FC H BZAGT —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2023-10 ended
GUN156 6F BZAGT —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55405-KK130 note Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55405-KK140 Panel Sub-assy, Instrument Cluster Finish, Center
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 (MAP,THP) L —
55407C — Cover Sub-assy, Instrument, Lower
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → —
GUN156,TGN156 PKNP —
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-01 ended
GUN15# RHD SA —
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-03 ended
GUN15# KEN —
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-09 ended
GUN156 IND —
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-08 ended
GUN15#,TGN156 RHD (IDNP,MAP) —
55407-KK082 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-07 ended
GUN15# RHD THP —
55407-KK092 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-08 ended
GUN16#,TGN166 RHD IDNP —
55407-KK092 Cover Sub-assy, Instrument, Lower
2022-08 → —
TGN166 PKN —
55407-KK092 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-07 ended
GUN16# TH —
55407-KK092 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-09 ended
GUN166,TGN166 IND —
55407-KK092 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-01 ended
GUN16# SA —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-03 ended
GGN155 EPT —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-08 ended
GGN155,GUN15#,TGN156 LHD IDNP —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-10 ended
GGN155,GUN156,TGN156 AGTP —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP —
55407-KK102 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-09 ended
GUN156 VNP —
55407-KK112 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-10 ended
GUN16#,TGN166 LA —
55407-KK112 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-07 ended
GUN165,TGN166 THP GCC —
55407-KK112 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-08 ended
GUN16#,TGN166 LHD IDNP —
55407-KK112 Cover Sub-assy, Instrument, Lower
2022-08 → 2023-09 ended
GUN165,TGN166 VNP —
55407-KK112 Cover Sub-assy, Instrument, Lower
2022-08 → 2024-03 ended
TGN166 EPT —
55522B — Cover, Radio Tuner Opening
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2024-03 ended
TGN166 EPT —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2024-03 ended
GUN155 KEN —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2024-01 ended
GUN155,165 L SA —
55522-0D010 note Cover, Radio Tuner Opening
2023-01 → 2023-10 ended
GUN156 6FC H BZAGT —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2023-10 ended
GUN156,166,TGN156,166 (6F,6FC) LA —
55522-0D010 note Cover, Radio Tuner Opening
2023-01 → 2023-08 ended
TGN156 IDNP L GCC;GGN155,GUN155,165,TGN166 +3 —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2023-08 ended
TGN156 IDNP H;GUN156 LHD +2 —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2023-08 ended
GUN165 (H,L) IDNP (GEN,PH) +6 —
55522-0D010 note Cover, Radio Tuner Opening
2022-09 → 2023-05 ended
GUN165,TGN166 IDNP S VN —
55522-0D010 note Cover, Radio Tuner Opening
2022-11 → 2023-05 ended
GUN156,166,TGN166 (6F,6FC) LA —
55522-0D010 note Cover, Radio Tuner Opening
2023-01 → 2023-07 ended
GUN155,TGN156 THP L;GGN155,GUN165,TGN166 THP +2 —
55522-0D010 note Cover, Radio Tuner Opening
2022-11 → 2023-05 ended
GUN156,166,TGN166 (6F,6FC) LA —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2023-08 ended
GUN165 (H,L) IDNP (GEN,PH) +6 —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2024-03 ended
GUN155 KEN —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2024-03 ended
TGN166 EPT —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2024-01 ended
GUN155,165 L SA —
55522-0K010 note Cover, Radio Tuner Opening
2023-01 → 2023-10 ended
GUN156 6FC H BZAGT —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2023-10 ended
GUN156,166,TGN156,166 (6F,6FC) LA —
55522-0K010 note Cover, Radio Tuner Opening
2023-01 → 2023-07 ended
GUN155,TGN156 THP L;GGN155,GUN165,TGN166 THP +2 —
55522-0K010 note Cover, Radio Tuner Opening
2023-01 → 2023-08 ended
TGN156 IDNP L GCC;GGN155,GUN155,165,TGN166 +3 —
55522-0K010 note Cover, Radio Tuner Opening
2022-09 → 2023-08 ended
TGN156 IDNP H;GUN156 LHD +2 —
55539 — Cover, Spare Switch Hole
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2023-09 ended
GUN156,165 VNP H —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-11 → 2023-10 ended
GUN156 H BZAGT —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-01 ended
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
TGN156,166 PKN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
GUN156,TGN156,166 PKNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
GUN156 PKNP TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-10 → —
GUN156 PKN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-01 ended
GUN166 TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-05 ended
GGN155 66 IDNP (IDNP,INDP) +7 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN15#,16# H TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN165 S TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN156 THP GEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
55539-KK030-C0 note Cover, Spare Switch Hole
2023-01 → 2023-07 ended
GUN166 TH —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GUN156 (IDN,MA,VN) IDNP (IDN,VN);GUN165 +3 —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
55667 — Garnish, Instrument Panel Register Bezel
55667-KK010 note Garnish, Instrument Panel Register Bezel
2022-08 → 2024-01 ended
LAN155 —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2024-01 ended
GUN15#,166,TGN156 S SA —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
55667-KK010 note Garnish, Instrument Panel Register Bezel
2022-08 → 2023-10 ended
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) (H,S) —
55667-KK010 note Garnish, Instrument Panel Register Bezel
2022-08 → 2023-08 ended
TGN156 IDNP L —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) (H,S) —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → —
GUN156,TGN156,166 PKNP —
55667-KK010 note Garnish, Instrument Panel Register Bezel
2022-08 → 2023-07 ended
TGN156 THP L —
55667-KK010 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-07 ended
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2024-03 ended
GUN155,TGN166 EPT,KEN —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-09 ended
GUN165 VNP L —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 (IDNP,MAP) L —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
55667-KK020 Garnish, Instrument Panel Register Bezel
2022-08 → 2024-01 ended
GUN155 L SA;GUN165,LAN155 SA —
55670A — Register Assy, Instrument Panel, Center
55670-KK070 Register Assy, Instrument Panel, Center
2022-08 → 2023-09 ended
GUN165 VNP L —
55670-KK070 Register Assy, Instrument Panel, Center
2022-08 → 2024-03 ended
TGN166 EPT —
55670-KK070 Register Assy, Instrument Panel, Center
2022-08 → 2023-10 ended
GUN156 L BZAGT —
55670-KK070 Register Assy, Instrument Panel, Center
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 (IDNP,MAP) (6F,6FC) L —
55670-KK070 Register Assy, Instrument Panel, Center
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP L —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2023-08 ended
TGN156 IDNP S;TGN156 GEN,MA,VN;GGN155,GUN15#,16#,TGN166 +2 —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156 THP (H,S) —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2023-10 ended
GUN156 L LA;GUN156 AGTP +2 —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → 2024-03 ended
GGN155,GUN15# EPT,KEN —
55670-KK120 Register Assy, Instrument Panel, Center
2022-08 → —
GUN156,TGN156,166 PKNP —
55670-KK130 Register Assy, Instrument Panel, Center
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
