Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

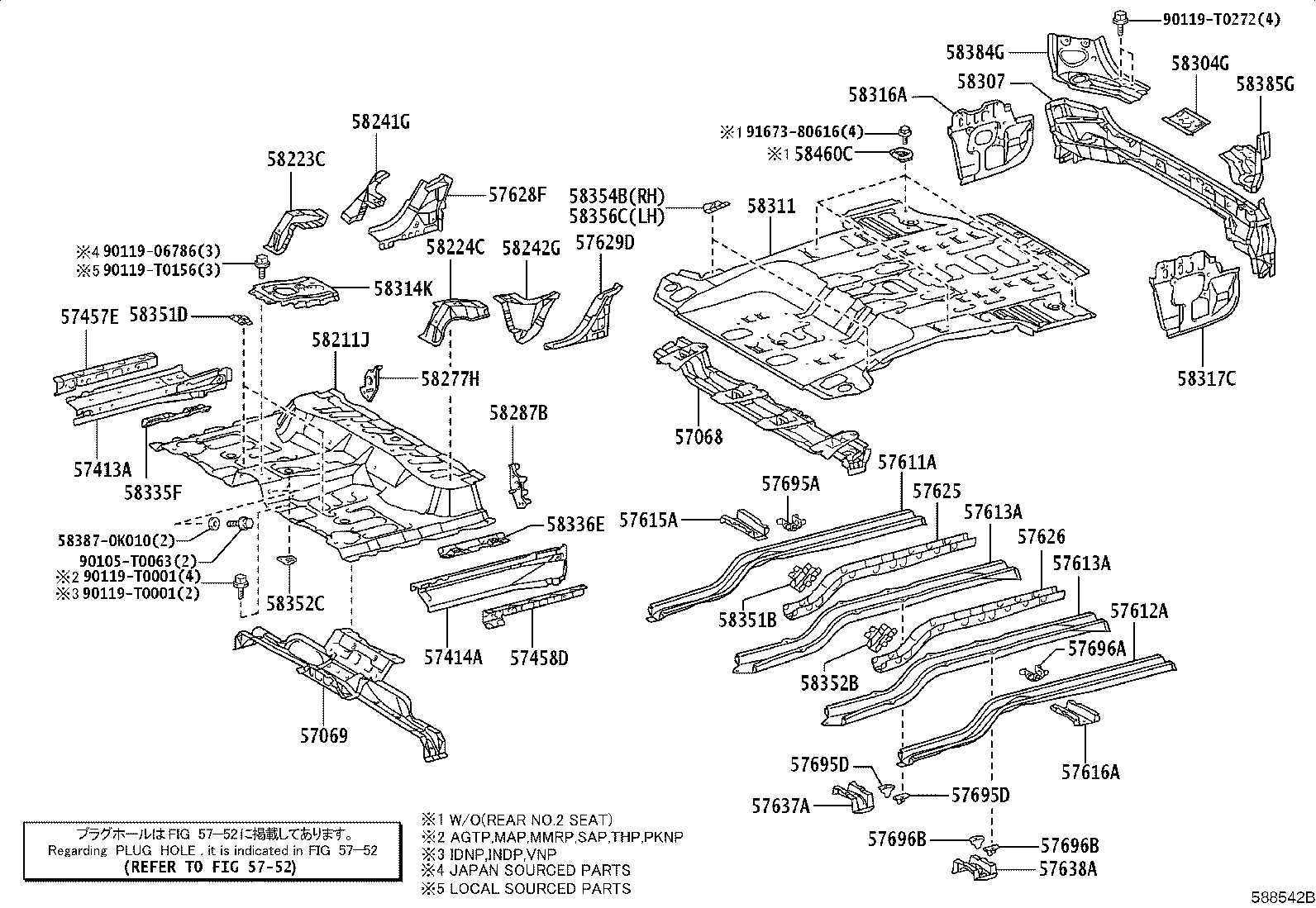

Exploded illustration 588542B 57068 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER (7 parts) 57069 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER (11 parts) 57413A — MEMBER, FLOOR SIDE, INNER REAR RH (1 parts) 57414A — MEMBER, FLOOR SIDE, INNER REAR LH (1 parts) 57457E — PATCH, FLOOR SIDE MEMBER, RR RH (1 parts) 57458D — PATCH, FLOOR SIDE MEMBER, REAR LH (1 parts) 57611A — MEMBER, REAR FLOOR SIDE, RH (7 parts) 57612A — MEMBER, REAR FLOOR SIDE, LH (7 parts) 57613A — MEMBER, REAR FLOOR SIDE CENTER (14 parts) 57613A — MEMBER, REAR FLOOR SIDE CENTER (14 parts) 57615A — MEMBER, REAR FLOOR SIDE, REAR RH (7 parts) 57616A — MEMBER, REAR FLOOR SIDE, REAR LH (7 parts) 57625 — REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH (7 parts) 57626 — REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH (7 parts) 57628F — PLATE, REAR FLOOR SIDE MEMBER, RH (1 parts) 57629D — PLATE, REAR FLOOR SIDE MEMBER, LH (1 parts) 57637A — REINFORCEMENT, REAR FLOOR SIDE, RH (7 parts) 57638A — REINFORCEMENT, REAR FLOOR SIDE, LH (7 parts) 57695A — EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH (7 parts) 57695D — BRACKET, REAR FLOOR MOUNTING, NO.2 RH (7 parts) 57695D — BRACKET, REAR FLOOR MOUNTING, NO.2 RH (7 parts) 57696A — EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH (7 parts) 57696B — BRACKET, REAR FLOOR MOUNTING, NO.2 LH (7 parts) 57696B — BRACKET, REAR FLOOR MOUNTING, NO.2 LH (7 parts) 58211J — PAN, CENTER FLOOR (7 parts) 58223C — REINFORCEMENT, SEAT SET, NO.1 (7 parts) 58224C — REINFORCEMENT, SEAT SET, NO.2 (7 parts) 58241G — PANEL, FLOOR SIDE, RH (7 parts) 58242G — PANEL, FLOOR SIDE, LH (7 parts) 58277H — REINFORCEMENT, SIDE FLOOR, NO.2 RH (7 parts) 58287B — REINFORCEMENT, SIDE FLOOR, NO.2 LH (7 parts) 58304G — REINFORCE SUB-ASSY, BODY LOWER BACK PANEL (7 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (7 parts) 58311 — PAN, REAR FLOOR (8 parts) 58314K — PANEL, REAR FLOOR, CENTER (7 parts) 58316A — EXTENSION, REAR FLOOR SIDE PANEL, REAR RH (7 parts) 58317C — EXTENSION, REAR FLOOR SIDE PANEL, REAR LH (7 parts) 58335F — PLATE, FLOOR SIDE, FRONT RH (7 parts) 58336E — PLATE, FLOOR SIDE, FRONT LH (7 parts) 58351B — REINFORCEMENT, REAR FLOOR PANEL, RH (7 parts) 58351D — REINFORCEMENT, REAR FLOOR PANEL (7 parts) 58352B — REINFORCEMENT, REAR FLOOR PANEL, LH (7 parts) 58352C — REINFORCEMENT, REAR FLOOR PANEL, NO.2 (7 parts) 58354B — REINFORCEMENT, REAR FLOOR PANEL, NO.4 (7 parts) 58356C — REINFORCEMENT, REAR FLOOR PANEL, NO.6 (7 parts) 58384G — GUSSET, LOWER BACK, UPPER RH (7 parts) 58385G — GUSSET, LOWER BACK, UPPER LH (7 parts) 583870K010 — not listed in this catalogue 90105T0063 — not listed in this catalogue 90119T0001 — not listed in this catalogue 90119T0272 — not listed in this catalogue 58460C — STRIKER ASSY, LUGGAGE HOLD BELT (1 parts) 9167380616 — not listed in this catalogue 5752 — not listed in this catalogue 90119T0001 — not listed in this catalogue 90119T0156 — not listed in this catalogue 9011906786 — not listed in this catalogue
588542B · 48 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
285 parts on this figure
Part number Description Fitment Price
57068 — Member Sub-assy, Rear Floor Rear Cross, Inner
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → —
GUN156,TGN156,166 PKNP —
57068-0K010 Member Sub-assy, Rear Floor Rear Cross, Inner
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57069 — Member Sub-assy, Rear Floor Rear Cross, Outer
57069-KK010 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57069-KK010 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
57069-KK020 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-08 → 2022-10 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57069-KK020 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-08 → 2023-07 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57069-KK020 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-08 → 2023-09 ended
GUN156,166,TGN166 IND —
57069-KK020 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57069-KK020 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-08 → 2024-03 ended
GUN15# KEN —
57069-KK060 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-10 → 2024-03 ended
GGN155,TGN166 EPT —
57069-KK060 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-10 → —
GUN156,TGN156,166 PKNP —
57069-KK060 Member Sub-assy, Rear Floor Rear Cross, Outer
2023-07 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57069-KK060 Member Sub-assy, Rear Floor Rear Cross, Outer
2022-10 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57413A — Member, Floor Side, Inner Rear RH
57413-KK010 Member, Floor Side, Inner Rear RH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57414A — Member, Floor Side, Inner Rear LH
57414-KK010 Member, Floor Side, Inner Rear LH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57457E — Patch, Floor Side Member, RR RH
57457-KK010 Patch, Floor Side Member, RR RH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57458D — Patch, Floor Side Member, Rear LH
57458-KK010 Patch, Floor Side Member, Rear LH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57611A — Member, Rear Floor Side, RH
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57611-0K010 Member, Rear Floor Side, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57612A — Member, Rear Floor Side, LH
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57611-0K010 Member, Rear Floor Side, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57613A — Member, Rear Floor Side Center
57613-0K011 Member, Rear Floor Side Center
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
57613-0K011 Member, Rear Floor Side Center
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
57613-0K091 Member, Rear Floor Side Center
2022-10 → —
GUN156,TGN156,166 PKNP —
57613-0K091 Member, Rear Floor Side Center
2022-10 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57613-0K091 Member, Rear Floor Side Center
2022-10 → 2023-08 ended
GUN15#,TGN156 MA —
57613-0K091 Member, Rear Floor Side Center
2022-10 → 2024-03 ended
GGN155,TGN166 EPT —
57613-0K091 Member, Rear Floor Side Center
2023-07 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57613-0K101 note Member, Rear Floor Side Center
2023-07 → 2023-10 ended
GUN156,TGN156 BZAGT —
57613-0K102 note Member, Rear Floor Side Center
2022-11 → 2023-06 ended
GUN156,TGN156 BZAGT —
57613-0K110 Member, Rear Floor Side Center
2022-08 → 2022-10 ended
GGN155,GUN15#,16#,TGN156,166 MAP,THP —
57613-0K110 Member, Rear Floor Side Center
2022-08 → 2023-06 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57613-0K140 Member, Rear Floor Side Center
2022-10 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57613-0K140 Member, Rear Floor Side Center
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
57613-0K140 Member, Rear Floor Side Center
2022-10 → 2024-03 ended
GUN15# KEN —
57615A — Member, Rear Floor Side, Rear RH
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57615-0K010 Member, Rear Floor Side, Rear RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57615-0K030 Member, Rear Floor Side, Rear RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57616A — Member, Rear Floor Side, Rear LH
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57616-0K010 Member, Rear Floor Side, Rear LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57616-0K030 Member, Rear Floor Side, Rear LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57625 — Reinforcement, Rear Floor Side Member, RH
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57641-0K040 Reinforcement, Rear Floor Side Member, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57626 — Reinforcement, Rear Floor Side Member, LH
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57641-0K040 Reinforcement, Rear Floor Side Member, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57628F — Plate, Rear Floor Side Member, RH
57628-KK010 Plate, Rear Floor Side Member, RH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57629D — Plate, Rear Floor Side Member, LH
57629-KK010 Plate, Rear Floor Side Member, LH
2022-08 → —
GGN155,GUN15#,16#,LAN155,TGN156,166 —
57637A — Reinforcement, Rear Floor Side, RH
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57637-0K030 Reinforcement, Rear Floor Side, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57638A — Reinforcement, Rear Floor Side, LH
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57637-0K030 Reinforcement, Rear Floor Side, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57695A — Extension, Rear Floor Crossmember Rear Side, RH
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57695D — Bracket, Rear Floor Mounting, NO.2 RH
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → —
GUN156,TGN156,166 PKNP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57696A — Extension, Rear Floor Crossmember Rear Side, LH
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57696-0K010 Extension, Rear Floor Crossmember Rear Side, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57696B — Bracket, Rear Floor Mounting, NO.2 LH
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → —
GUN156,TGN156,166 PKNP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57695-0K010 Bracket, Rear Floor Mounting, NO.2 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58211J — Pan, Center Floor
58211-KK010 Pan, Center Floor
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58211-KK010 Pan, Center Floor
2022-08 → —
GUN156,TGN156,166 PKNP —
58211-KK010 Pan, Center Floor
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58211-KK010 Pan, Center Floor
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58211-KK010 Pan, Center Floor
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58211-KK010 Pan, Center Floor
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58211-KK010 Pan, Center Floor
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58223C — Reinforcement, Seat Set, NO.1
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58223-KK010 Reinforcement, Seat Set, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
58224C — Reinforcement, Seat Set, NO.2
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58224-KK010 Reinforcement, Seat Set, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58241G — Panel, Floor Side, RH
58241-KK010 Panel, Floor Side, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58241-KK010 Panel, Floor Side, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58241-KK010 Panel, Floor Side, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58241-KK010 Panel, Floor Side, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58241-KK010 Panel, Floor Side, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58241-KK010 Panel, Floor Side, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58241-KK010 Panel, Floor Side, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58242G — Panel, Floor Side, LH
58242-KK010 Panel, Floor Side, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58242-KK010 Panel, Floor Side, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58242-KK010 Panel, Floor Side, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58242-KK010 Panel, Floor Side, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58242-KK010 Panel, Floor Side, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58242-KK010 Panel, Floor Side, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58242-KK010 Panel, Floor Side, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58277H — Reinforcement, Side Floor, NO.2 RH
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58277-KK010 Reinforcement, Side Floor, NO.2 RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58287B — Reinforcement, Side Floor, NO.2 LH
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58287-KK010 Reinforcement, Side Floor, NO.2 LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58304G — Reinforce Sub-assy, Body Lower Back Panel
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → —
GUN156,TGN156,166 PKNP —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58304-0K030 Reinforce Sub-assy, Body Lower Back Panel
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58307 — Panel Sub-assy, Body Lower Back
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58307-KK011 Panel Sub-assy, Body Lower Back
2022-08 → —
GUN156,TGN156,166 PKNP —
58307-KK031 Panel Sub-assy, Body Lower Back
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58311 — Pan, Rear Floor
58311-KK190 Pan, Rear Floor
2022-08 → —
GUN156,TGN156,166 PKNP —
58311-KK190 Pan, Rear Floor
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58311-KK190 Pan, Rear Floor
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58311-KK190 Pan, Rear Floor
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58311-KK190 Pan, Rear Floor
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58311-KK190 Pan, Rear Floor
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58311-KK190 Pan, Rear Floor
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58311-KK200 note Pan, Rear Floor
2022-11 → 2023-10 ended
GUN156,TGN156 BZAGT —
58314K — Panel, Rear Floor, Center
58314-KK010 Panel, Rear Floor, Center
2022-08 → —
GUN156,TGN156,166 PKNP —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58314-KK010 Panel, Rear Floor, Center
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58316A — Extension, Rear Floor Side Panel, Rear RH
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58316-0K021 Extension, Rear Floor Side Panel, Rear RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58317C — Extension, Rear Floor Side Panel, Rear LH
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58317-0K011 Extension, Rear Floor Side Panel, Rear LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58335F — Plate, Floor Side, Front RH
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58335-KK010 Plate, Floor Side, Front RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58336E — Plate, Floor Side, Front LH
58336-KK010 Plate, Floor Side, Front LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58336-KK010 Plate, Floor Side, Front LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58351B — Reinforcement, Rear Floor Panel, RH
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58351-0K010 Reinforcement, Rear Floor Panel, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58351D — Reinforcement, Rear Floor Panel
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
57555-KK010 Reinforcement, Rear Floor Panel
2022-08 → —
GUN156,TGN156,166 PKNP —
58352B — Reinforcement, Rear Floor Panel, LH
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58351-0K010 Reinforcement, Rear Floor Panel, LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58352C — Reinforcement, Rear Floor Panel, NO.2
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58352-KK010 Reinforcement, Rear Floor Panel, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
58354B — Reinforcement, Rear Floor Panel, NO.4
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → —
GUN156,TGN156,166 PKNP —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58354-0K030 Reinforcement, Rear Floor Panel, NO.4
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58356C — Reinforcement, Rear Floor Panel, NO.6
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → —
GUN156,TGN156,166 PKNP —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58356-0K010 Reinforcement, Rear Floor Panel, NO.6
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58384G — Gusset, Lower Back, Upper RH
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → —
GUN156,TGN156,166 PKNP —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58384-KK010 Gusset, Lower Back, Upper RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58385G — Gusset, Lower Back, Upper LH
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58385-KK010 Gusset, Lower Back, Upper LH
2022-08 → —
GUN156,TGN156,166 PKNP —
58460C — Striker Assy, Luggage Hold Belt
58460-35012 note Striker Assy, Luggage Hold Belt
2022-11 → 2023-10 ended
GUN156,TGN156 BZAGT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
