Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

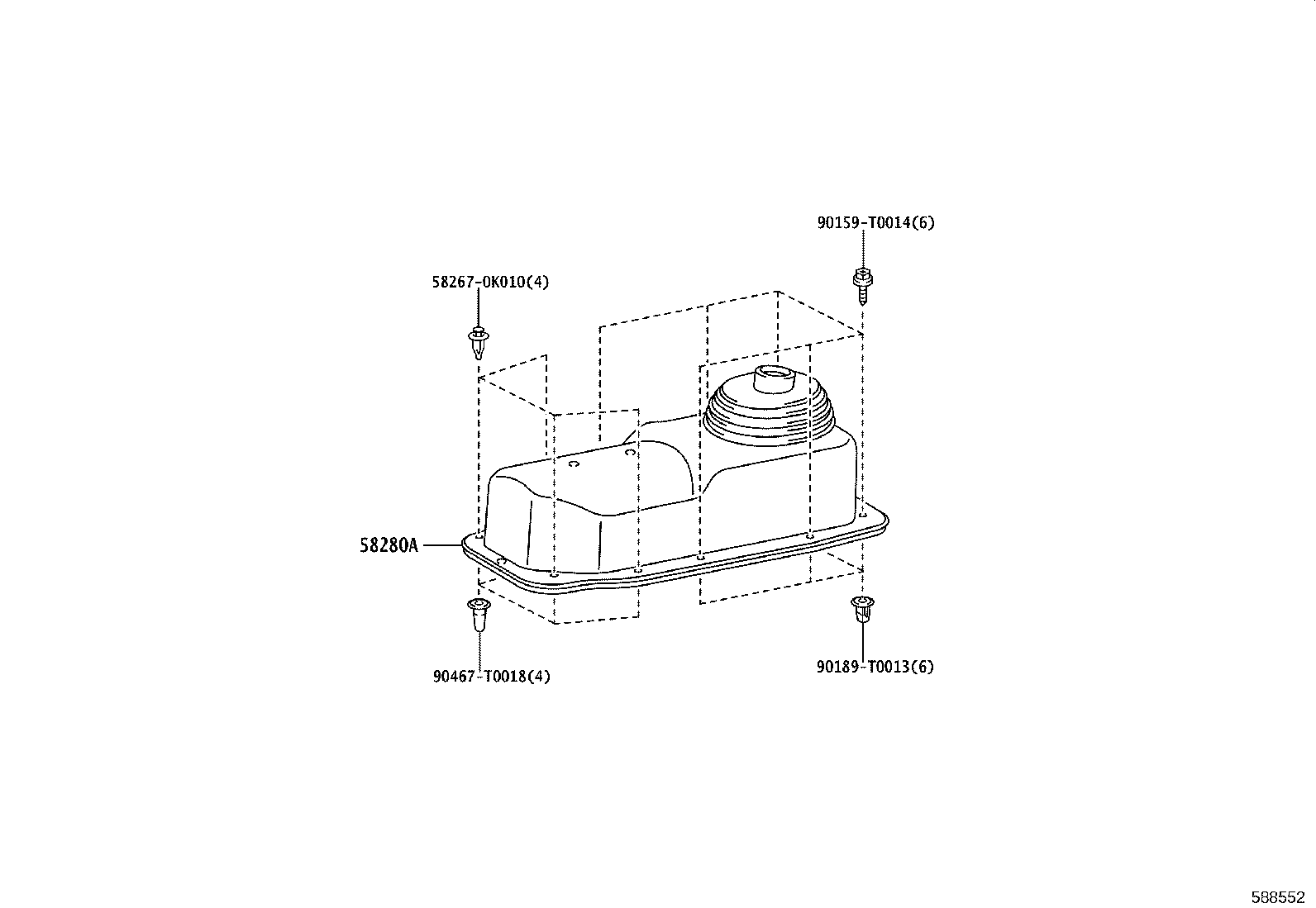

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58280A — Boot Assy, Shift Lever | ||||
| 58280-KK010 |
Boot Assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 58280-KK010 |
Boot Assy, Shift Lever
2022-09 → 2023-09
ended
|
GUN156 6F IND | — | |
| 58280-KK010 |
Boot Assy, Shift Lever
2022-09 → 2023-10
ended
|
GUN156 AGTP 6F | — | |
| 58280-KK010 |
Boot Assy, Shift Lever
2022-09 → 2024-01
ended
|
GUN156 6F SA | — | |
| 58280-KK010 |
Boot Assy, Shift Lever
2022-09 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 58280-KK020 |
Boot Assy, Shift Lever
2022-09 → 2023-08
ended
|
GUN165 IDNP 6F | — | |
| 58280-KK020 |
Boot Assy, Shift Lever
2022-09 → 2023-09
ended
|
GUN16# (INDP,VNP) 6F | — | |
| 58280-KK020 |
Boot Assy, Shift Lever
2022-09 → 2023-10
ended
|
GUN166 6F LA | — | |
| 58280-KK020 |
Boot Assy, Shift Lever
2022-09 → 2024-01
ended
|
GUN165 6F SA | — | |
| 58280-KK030 |
Boot Assy, Shift Lever
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 58280-KK050 |
Boot Assy, Shift Lever
2022-11 → 2023-10
ended
|
TGN166 S LA | — | |
| 58280-KK060 |
Boot Assy, Shift Lever
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 58280-KK180 |
Boot Assy, Shift Lever
2022-10 → 2023-09
ended
|
TGN166 5F IND | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
