Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

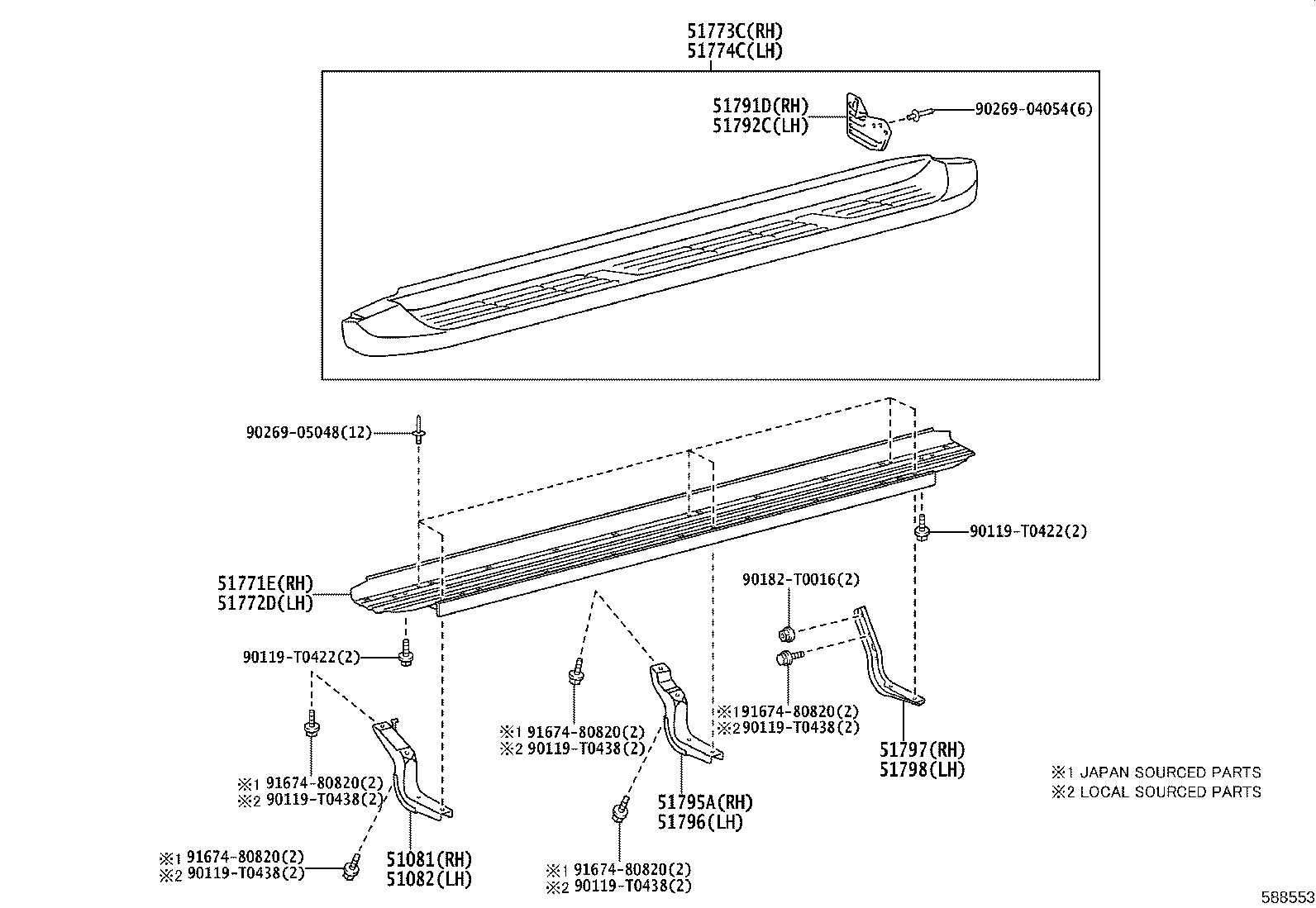

Exploded illustration 588553 51773C — COVER, STEP PLATE, RH (17 parts) 51774C — COVER, STEP PLATE, LH (17 parts) 51771E — PLATE, STEP, RH (9 parts) 51772D — PLATE, STEP, LH (9 parts) 51791D — PANEL, STEP, REAR RH (7 parts) 51792C — PANEL, STEP, REAR LH (7 parts) 51797 — BRACKET, SIDE STEP, NO.3 RH (9 parts) 51798 — BRACKET, SIDE STEP, NO.3 LH (9 parts) 51795A — BRACKET, SIDE STEP, NO.2 RH (9 parts) 51796 — BRACKET, SIDE STEP, NO.2 LH (9 parts) 51081 — STAY SUB-ASSY, SIDE STEP, NO.1 RH (9 parts) 51082 — STAY SUB-ASSY, SIDE STEP, NO.1 LH (9 parts) 90119T0422 — not listed in this catalogue 9026904054 — not listed in this catalogue 90119T0422 — not listed in this catalogue 90119T0438 — not listed in this catalogue 90182T0016 — not listed in this catalogue 9026905048 — not listed in this catalogue 9167480820 — not listed in this catalogue 90119T0438 — not listed in this catalogue 9167480820 — not listed in this catalogue 90119T0438 — not listed in this catalogue 9167480820 — not listed in this catalogue 90119T0438 — not listed in this catalogue 9167480820 — not listed in this catalogue 90119T0438 — not listed in this catalogue 9167480820 — not listed in this catalogue
588553 · 12 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
51081 — Stay Sub-assy, Side Step, NO.1 RH
51081-0K090 Stay Sub-assy, Side Step, NO.1 RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51081-0K090 Stay Sub-assy, Side Step, NO.1 RH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51081-0K090 Stay Sub-assy, Side Step, NO.1 RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51081-0K100 Stay Sub-assy, Side Step, NO.1 RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51081-0K100 Stay Sub-assy, Side Step, NO.1 RH
2023-01 → 2024-03 ended
GUN15# KEN —
51081-0K110 Stay Sub-assy, Side Step, NO.1 RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51081-0K120 Stay Sub-assy, Side Step, NO.1 RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51081-0K130 Stay Sub-assy, Side Step, NO.1 RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51081-0K150 Stay Sub-assy, Side Step, NO.1 RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51082 — Stay Sub-assy, Side Step, NO.1 LH
51082-0K090 Stay Sub-assy, Side Step, NO.1 LH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51082-0K090 Stay Sub-assy, Side Step, NO.1 LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51082-0K090 Stay Sub-assy, Side Step, NO.1 LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51082-0K100 Stay Sub-assy, Side Step, NO.1 LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51082-0K100 Stay Sub-assy, Side Step, NO.1 LH
2023-01 → 2024-03 ended
GUN15# KEN —
51082-0K110 Stay Sub-assy, Side Step, NO.1 LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51082-0K120 Stay Sub-assy, Side Step, NO.1 LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51082-0K130 Stay Sub-assy, Side Step, NO.1 LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51082-0K150 Stay Sub-assy, Side Step, NO.1 LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51771E — Plate, Step, RH
51771-0K370 Plate, Step, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51771-0K370 Plate, Step, RH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51771-0K380 Plate, Step, RH
2023-01 → 2024-03 ended
GUN15# KEN —
51771-0K380 Plate, Step, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51771-0K390 Plate, Step, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51771-0K400 Plate, Step, RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51771-0K410 Plate, Step, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51771-0K440 Plate, Step, RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51771-0K510 Plate, Step, RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
51772D — Plate, Step, LH
51771-0K370 Plate, Step, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51771-0K370 Plate, Step, LH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51771-0K380 Plate, Step, LH
2023-01 → 2024-03 ended
GUN15# KEN —
51771-0K380 Plate, Step, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51771-0K390 Plate, Step, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51771-0K400 Plate, Step, LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51771-0K410 Plate, Step, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51771-0K440 Plate, Step, LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51771-0K510 Plate, Step, LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
51773C — Cover, Step Plate, RH
51701-0K100 note Cover, Step Plate, RH
2023-05 → —
GUN156,TGN156 PKNP —
51701-0K100 note Cover, Step Plate, RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51701-0K100 note Cover, Step Plate, RH
2022-08 → 2023-07 ended
GUN155,16# TH;GGN155 THP H;GUN156 +3 —
51701-0K110 note Cover, Step Plate, RH
2022-11 → 2023-10 ended
GGN155,GUN156,TGN166 AGTP H —
51701-0K120 note Cover, Step Plate, RH
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 H IDN —
51701-0K120 note Cover, Step Plate, RH
2022-09 → 2023-08 ended
GUN155 166 S IDNP +8 —
51701-0K130 note Cover, Step Plate, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51701-0K130 note Cover, Step Plate, RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51701-0K130 note Cover, Step Plate, RH
2023-05 → —
GUN156 PKN —
51701-0K130 note Cover, Step Plate, RH
2022-08 → —
GGN155,TGN166 EPT,PKN —
51701-0K140 note Cover, Step Plate, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51701-0K140 note Cover, Step Plate, RH
2023-01 → 2024-03 ended
GUN15# KEN —
51701-0K150 note Cover, Step Plate, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51701-0K160 note Cover, Step Plate, RH
2022-09 → 2023-08 ended
GUN155,165 DNP IDNP (ARL,GCC,GEN,PH,VN) +5 —
51701-0K170 note Cover, Step Plate, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51701-0K180 note Cover, Step Plate, RH
2023-01 → 2024-01 ended
GUN15#,166,LAN155,TGN156 S SA —
51701-0K200 note Cover, Step Plate, RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51774C — Cover, Step Plate, LH
51702-0K020 note Cover, Step Plate, LH
2023-01 → 2024-01 ended
GUN15#,166,LAN155,TGN156 S SA —
51702-0K100 note Cover, Step Plate, LH
2022-08 → 2023-07 ended
GUN155,16# TH;GGN155 THP H;GUN156 +3 —
51702-0K100 note Cover, Step Plate, LH
2023-05 → —
GUN156,TGN156 PKNP —
51702-0K100 note Cover, Step Plate, LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51702-0K110 note Cover, Step Plate, LH
2022-11 → 2023-10 ended
GGN155,GUN156,TGN166 AGTP H —
51702-0K120 note Cover, Step Plate, LH
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 H IDN —
51702-0K120 note Cover, Step Plate, LH
2022-09 → 2023-08 ended
GUN155 166 S IDNP +8 —
51702-0K130 note Cover, Step Plate, LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51702-0K130 note Cover, Step Plate, LH
2023-05 → —
GUN156 PKN —
51702-0K130 note Cover, Step Plate, LH
2022-08 → —
GGN155,TGN166 EPT,PKN —
51702-0K130 note Cover, Step Plate, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51702-0K140 note Cover, Step Plate, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51702-0K140 note Cover, Step Plate, LH
2023-01 → 2024-03 ended
GUN15# KEN —
51702-0K150 note Cover, Step Plate, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51702-0K160 note Cover, Step Plate, LH
2022-09 → 2023-08 ended
GUN155,165 DNP IDNP (ARL,GCC,GEN,PH,VN) +5 —
51702-0K170 note Cover, Step Plate, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51702-0K190 note Cover, Step Plate, LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51791D — Panel, Step, Rear RH
51791-0K010 Panel, Step, Rear RH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51791-0K010 Panel, Step, Rear RH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51791-0K010 Panel, Step, Rear RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51791-0K010 Panel, Step, Rear RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51791-0K040 Panel, Step, Rear RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51791-0K050 Panel, Step, Rear RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51791-0K090 Panel, Step, Rear RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51792C — Panel, Step, Rear LH
51792-0K010 Panel, Step, Rear LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51792-0K010 Panel, Step, Rear LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51792-0K010 Panel, Step, Rear LH
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51792-0K010 Panel, Step, Rear LH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51792-0K040 Panel, Step, Rear LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51792-0K050 Panel, Step, Rear LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51792-0K090 Panel, Step, Rear LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51795A — Bracket, Side Step, NO.2 RH
51795-0K070 Bracket, Side Step, NO.2 RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51795-0K070 Bracket, Side Step, NO.2 RH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51795-0K070 Bracket, Side Step, NO.2 RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51795-0K080 Bracket, Side Step, NO.2 RH
2023-01 → 2024-03 ended
GUN15# KEN —
51795-0K080 Bracket, Side Step, NO.2 RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51795-0K090 Bracket, Side Step, NO.2 RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51795-0K100 Bracket, Side Step, NO.2 RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51795-0K110 Bracket, Side Step, NO.2 RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51795-0K190 Bracket, Side Step, NO.2 RH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51796 — Bracket, Side Step, NO.2 LH
51795-0K070 Bracket, Side Step, NO.2 LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51795-0K070 Bracket, Side Step, NO.2 LH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51795-0K070 Bracket, Side Step, NO.2 LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51795-0K080 Bracket, Side Step, NO.2 LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51795-0K080 Bracket, Side Step, NO.2 LH
2023-01 → 2024-03 ended
GUN15# KEN —
51795-0K090 Bracket, Side Step, NO.2 LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51795-0K100 Bracket, Side Step, NO.2 LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51795-0K110 Bracket, Side Step, NO.2 LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51795-0K190 Bracket, Side Step, NO.2 LH
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
51797 — Bracket, Side Step, NO.3 RH
51797-0K080 Bracket, Side Step, NO.3 RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51797-0K080 Bracket, Side Step, NO.3 RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
51797-0K080 Bracket, Side Step, NO.3 RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51797-0K080 Bracket, Side Step, NO.3 RH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51797-0K090 Bracket, Side Step, NO.3 RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51797-0K090 Bracket, Side Step, NO.3 RH
2023-01 → 2024-03 ended
GUN15# KEN —
51797-0K100 Bracket, Side Step, NO.3 RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51797-0K110 Bracket, Side Step, NO.3 RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51797-0K120 Bracket, Side Step, NO.3 RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
51798 — Bracket, Side Step, NO.3 LH
51798-0K080 Bracket, Side Step, NO.3 LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
51798-0K080 Bracket, Side Step, NO.3 LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
51798-0K080 Bracket, Side Step, NO.3 LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
51798-0K080 Bracket, Side Step, NO.3 LH
2022-08 → —
GGN155,GUN156,TGN156,166 EPTP,PKNP —
51798-0K090 Bracket, Side Step, NO.3 LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
51798-0K090 Bracket, Side Step, NO.3 LH
2023-01 → 2024-03 ended
GUN15# KEN —
51798-0K100 Bracket, Side Step, NO.3 LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
51798-0K110 Bracket, Side Step, NO.3 LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
51798-0K120 Bracket, Side Step, NO.3 LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
