Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

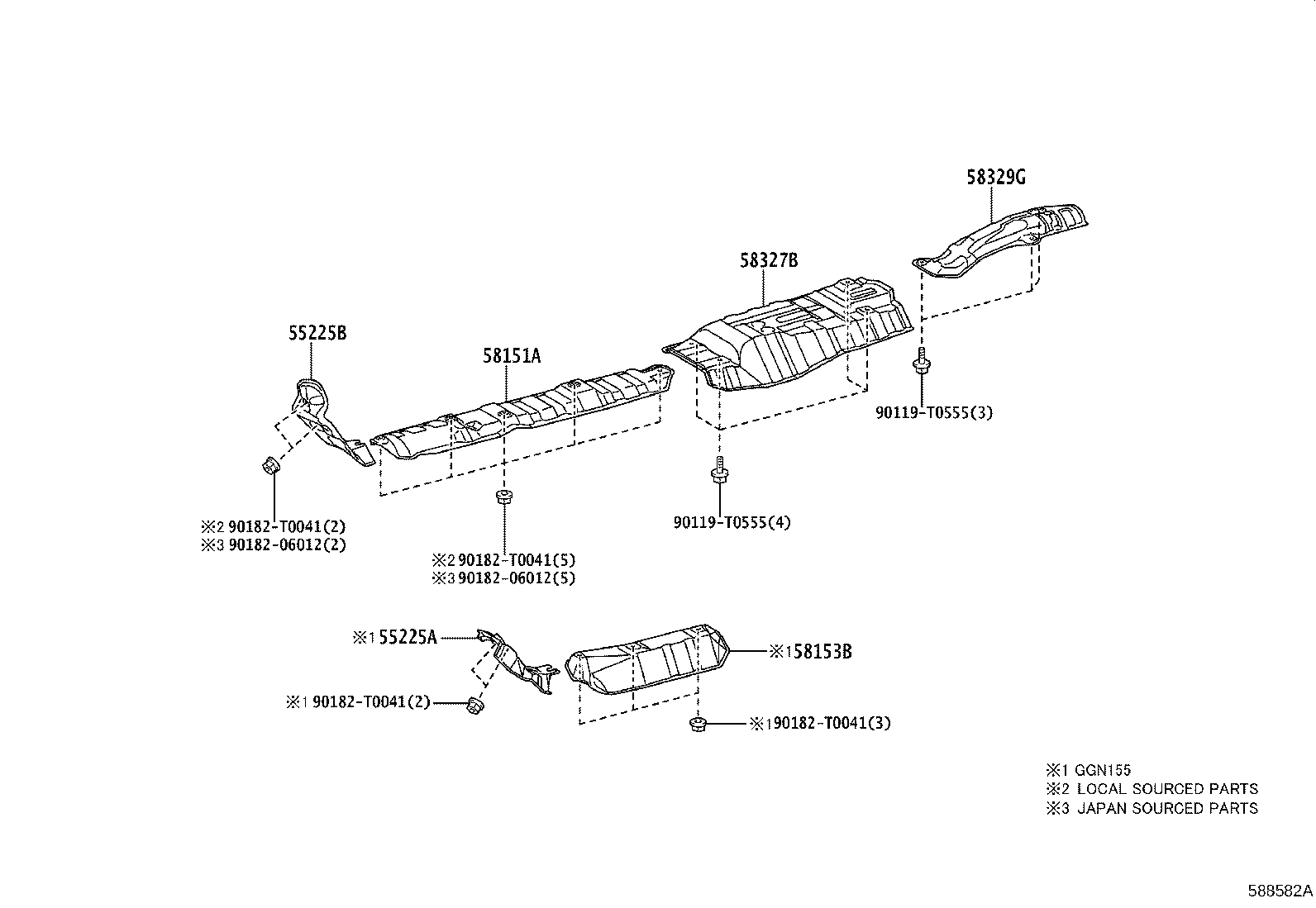

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55225A — Insulator, Dash Panel Heat, NO.1 | ||||
| 55225-0K021 |
Insulator, Dash Panel Heat, NO.1
2022-08 → 2023-08
ended
|
GGN155 IDNP | — | |
| 55225-0K021 |
Insulator, Dash Panel Heat, NO.1
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 55225-0K021 |
Insulator, Dash Panel Heat, NO.1
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 55225-0K021 |
Insulator, Dash Panel Heat, NO.1
2022-08 → 2023-07
ended
|
GGN155 THP | — | |
| 55225B — Insulator, Dash Panel Heat | ||||
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 55225-KK011 |
Insulator, Dash Panel Heat
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 58151A — Insulator, Floor Heat, NO.1 | ||||
| 58151-KK011 |
Insulator, Floor Heat, NO.1
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 58151-KK020 |
Insulator, Floor Heat, NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 58153B — Insulator, Floor Heat, NO.3 | ||||
| 58153-0K011 |
Insulator, Floor Heat, NO.3
2022-08 → 2023-07
ended
|
GGN155 THP | — | |
| 58153-0K011 |
Insulator, Floor Heat, NO.3
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 58153-0K011 |
Insulator, Floor Heat, NO.3
2022-08 → 2023-08
ended
|
GGN155 IDNP | — | |
| 58153-0K011 |
Insulator, Floor Heat, NO.3
2022-08 → 2023-10
ended
|
GGN155 LA | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 58327-0K030 |
Insulator, Main Muffler Heat
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 58329G — Insulator, Main Muffler Heat, Rear Upper | ||||
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 58329-0K020 |
Insulator, Main Muffler Heat, Rear Upper
2022-09 → —
|
GUN156,TGN156,166 PKNP | — | |
| 58329-0K030 |
Insulator, Main Muffler Heat, Rear Upper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 58329-0K030 |
Insulator, Main Muffler Heat, Rear Upper
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
