Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

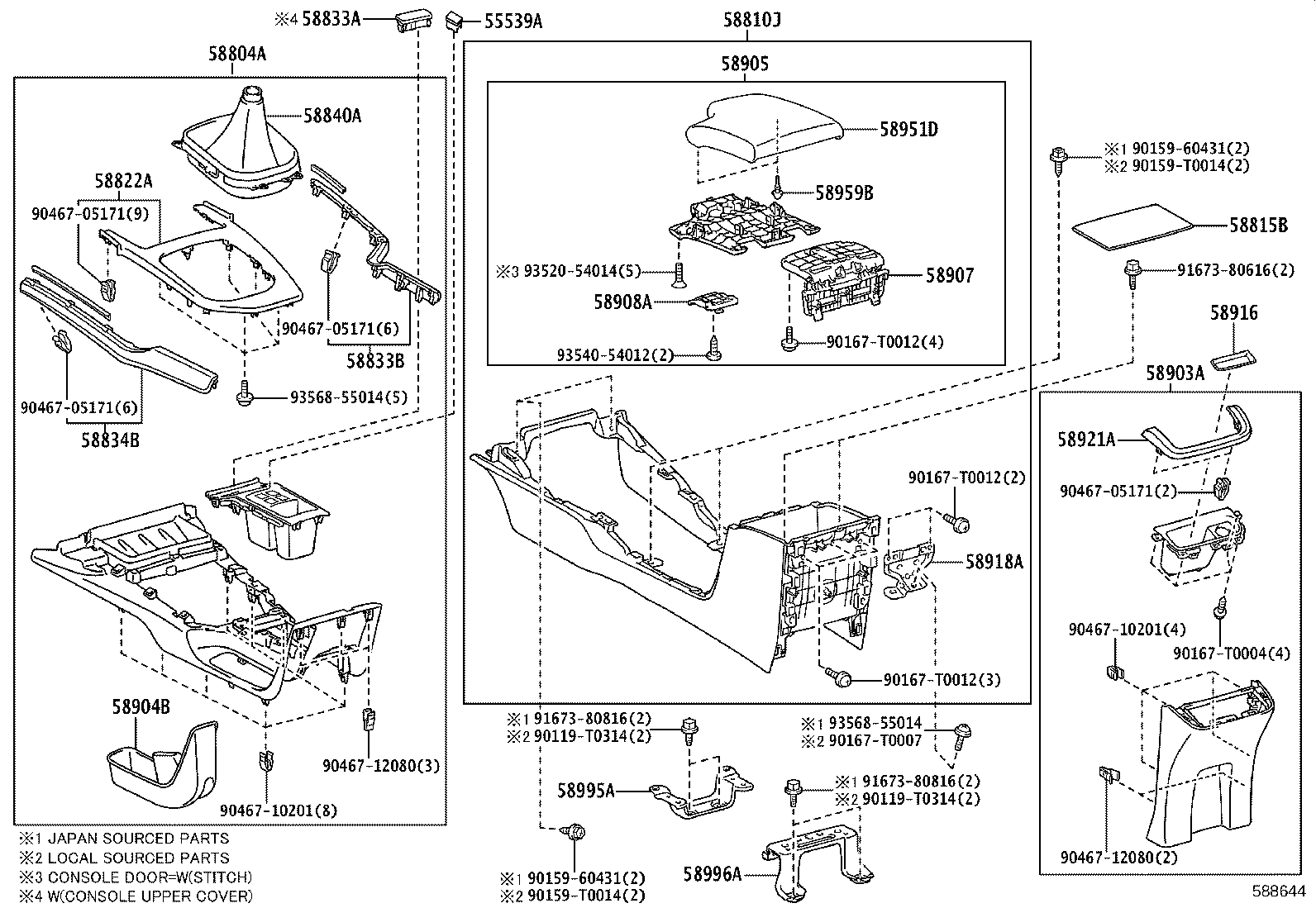

Exploded illustration 588644 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (65 parts) 58822A — PANEL, CONSOLE, UPPER REAR (12 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (91 parts) 58904B — COVER SUB-ASSY, PARKING BRAKE HOLE (42 parts) 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (22 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (7 parts) 58916 — MAT, BOX BOTTOM (7 parts) 58921A — PANEL, REAR CONSOLE, UPPER (70 parts) 58951D — DOOR, CONSOLE COMPARTMENT, OUTER (53 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (9 parts) 90167T0004 — not listed in this catalogue 90167T0012 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046710201 — not listed in this catalogue 9046710201 — not listed in this catalogue 9046712080 — not listed in this catalogue 9046712080 — not listed in this catalogue 9352054014 — not listed in this catalogue 9354054012 — not listed in this catalogue 9356855014 — not listed in this catalogue 58810J — BOX ASSY, CONSOLE (44 parts) 58815B — CARPET, CONSOLE BOX (7 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (53 parts) 58918A — BRACKET, BOX SUPPORT (7 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (5 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (7 parts) 90119T0314 — not listed in this catalogue 9015960431 — not listed in this catalogue 90159T0014 — not listed in this catalogue 9015960431 — not listed in this catalogue 90159T0014 — not listed in this catalogue 90167T0007 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380816 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167T0012 — not listed in this catalogue 90167T0012 — not listed in this catalogue 90119T0314 — not listed in this catalogue 9167380816 — not listed in this catalogue 58833B — GARNISH, CONSOLE UPPER PANEL, NO.1 (55 parts) 58834B — GARNISH, CONSOLE UPPER PANEL, NO.2 (55 parts) 58840A — COVER ASSY, SHIFTING HOLE (12 parts) 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 55539A — COVER, SPARE SWITCH HOLE (7 parts) 58833A — COVER, CONSOLE, UPPER (1 parts)
588644 · 21 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
631 parts on this figure
Part number Description Fitment Price
55539A — Cover, Spare Switch Hole
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → —
GUN156,TGN156,166 PKNP —
55539-KK030-C0 note Cover, Spare Switch Hole
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58804A — Panel Sub-assy, Console, Upper
58804-KK480-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-08 ended
GUN156 MA —
58804-KK480-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58804-KK480-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-09 ended
GUN156,166 6FC IND —
58804-KK480-C0 note Panel Sub-assy, Console, Upper
2022-08 → —
GUN156 PKN —
58804-KK480-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58804-KK480-C1 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2023-05 → —
GUN156 PKN —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → —
GUN156 PKNP TH —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-08 ended
GUN156,TGN156 MA —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → —
TGN156,166 PKN —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2024-03 ended
GUN156 6FC KEN —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 TH —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 H ARL —
58804-KK480-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN155,16# TH —
58804-KK480-C3 note Panel Sub-assy, Console, Upper
2022-08 → —
GUN156 PKN —
58804-KK480-C3 note Panel Sub-assy, Console, Upper
2022-08 → 2023-09 ended
GUN156 6FC IND —
58804-KK480-C3 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 TH —
58804-KK480-C4 note Panel Sub-assy, Console, Upper
2022-10 → 2023-09 ended
GUN156,166,TGN166 6FC IND —
58804-KK490-C0 note Panel Sub-assy, Console, Upper
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
58804-KK490-C1 note Panel Sub-assy, Console, Upper
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
58804-KK490-C1 note Panel Sub-assy, Console, Upper
2023-01 → 2024-03 ended
GUN156 6F KEN —
58804-KK490-C2 note Panel Sub-assy, Console, Upper
2022-10 → 2023-01 ended
GUN156,166,TGN166 MTM IND —
58804-KK490-C2 note Panel Sub-assy, Console, Upper
2023-01 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58804-KK500-C0 note Panel Sub-assy, Console, Upper
2023-01 → 2024-01 ended
GUN165 6F SA —
58804-KK520-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2024-01 ended
GUN155,165 6FC L SA —
58804-KK520-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58804-KK520-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2024-03 ended
GUN155 KEN —
58804-KK520-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN155 MA —
58804-KK530-C0 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58804-KK530-C1 note Panel Sub-assy, Console, Upper
2022-11 → 2024-01 ended
GUN156,LAN155 LHD MTM SA —
58804-KK530-C1 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58804-KK540-C0 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58804-KK590-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN165 6F IDN —
58804-KK600-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 6FC IDN —
58804-KK600-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58804-KK610-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN165 IDNP 6F L —
58804-KK610-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN155 L GEN —
58804-KK610-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-09 ended
GUN165 VNP L —
58804-KK610-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
TGN156 L GEN —
58804-KK620-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L GCC —
58804-KK620-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN165 6FC L PH —
58804-KK630-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58804-KK630-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
58804-KK630-C1 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58804-KK630-C2 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58804-KK630-C2 note Panel Sub-assy, Console, Upper
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58804-KK630-C2 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN16#,TGN156,166 IDNP (H,S) (PH,VN) —
58804-KK630-C2 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN155 ,S) IDNP (GCC,GEN) +9 —
58804-KK630-C2 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN15# IDNP H GCC —
58804-KK630-C3 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58804-KK660-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 THP GEN —
58804-KK660-C1 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN156 THP GEN —
58804-KK660-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
58804-KK660-C2 note Panel Sub-assy, Console, Upper
2023-01 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
58804-KK660-C2 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN15# THP H GCC —
58804-KK660-C2 note Panel Sub-assy, Console, Upper
2023-01 → 2024-03 ended
GGN155 EPT —
58804-KK670-C0 note Panel Sub-assy, Console, Upper
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58804-KK670-C0 note Panel Sub-assy, Console, Upper
2023-05 → 2024-03 ended
TGN166 EPT —
58804-KK680-C0 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58804-KK680-C1 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58804-KK680-C2 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58804-KK680-C2 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GGN155,GUN165,TGN166 H LA —
58804-KK690-C0 note Panel Sub-assy, Console, Upper
2022-11 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP 6FC (L,S) —
58804-KK720-C0 note Panel Sub-assy, Console, Upper
2022-09 → 2023-08 ended
GUN156 IDNP ARL —
58810J — Box Assy, Console
58810-KK090-C0 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156 IDNP ARL —
58810-KK110-C0 note Box Assy, Console
2022-10 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58810-KK110-C0 note Box Assy, Console
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58810-KK110-C0 note Box Assy, Console
2022-11 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58810-KK110-C0 note Box Assy, Console
2022-11 → 2024-01 ended
GUN165 6F SA;GUN156,LAN155 LHD +2 —
58810-KK110-C0 note Box Assy, Console
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
58810-KK110-C0 note Box Assy, Console
2022-11 → 2024-03 ended
GUN156 6F KEN —
58810-KK180-C0 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156 MA —
58810-KK180-C0 note Box Assy, Console
2022-10 → —
TGN156,166 PKN —
58810-KK180-C0 note Box Assy, Console
2022-10 → —
GUN156 PKN —
58810-KK180-C0 note Box Assy, Console
2022-08 → —
GUN156 PKNP TH —
58810-KK180-C0 note Box Assy, Console
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
58810-KK180-C0 note Box Assy, Console
2022-10 → 2023-09 ended
TGN166 6FC IND —
58810-KK180-C0 note Box Assy, Console
2022-08 → 2024-03 ended
GUN15# 6FC KEN —
58810-KK180-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58810-KK180-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN165 S TH —
58810-KK180-C0 note Box Assy, Console
2022-08 → 2023-08 ended
GUN155,TGN156 MA —
58810-KK180-C0 note Box Assy, Console
2022-09 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58810-KK180-C0 note Box Assy, Console
2022-08 → 2024-01 ended
GUN155,165 6FC L SA —
58810-KK210-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN156 THP GEN —
58810-KK210-C0 note Box Assy, Console
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58810-KK210-C0 note Box Assy, Console
2022-11 → 2023-10 ended
GUN156 6FC LA;GUN156 (L,S) +3 —
58810-KK210-C0 note Box Assy, Console
2022-11 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
58810-KK210-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58810-KK210-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
58810-KK210-C0 note Box Assy, Console
2022-11 → 2024-03 ended
GGN155,TGN166 EPT —
58810-KK250-C0 note Box Assy, Console
2022-08 → 2023-07 ended
GUN156 THP ARL —
58810-KK431-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN165 6F IDN —
58810-KK451-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58810-KK451-C4 note Box Assy, Console
2022-09 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD 6FC (GEN,IDN) —
58810-KK460-C2 note Box Assy, Console
2022-09 → 2023-09 ended
GUN165 VNP L —
58810-KK460-C2 note Box Assy, Console
2022-09 → 2023-08 ended
TGN156 L GEN —
58810-KK460-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN155 L GEN —
58810-KK460-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN165 IDNP 6F L —
58810-KK480-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN165 6FC L PH —
58810-KK480-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L GCC —
58810-KK491-C2 note Box Assy, Console
2022-09 → 2023-08 ended
GGN155,GUN15#,165,TGN156 LHD IDNP (H,S) +1 —
58810-KK491-C4 note Box Assy, Console
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58810-KK491-C4 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58810-KK491-C4 note Box Assy, Console
2022-09 → 2023-08 ended
GUN155 ) LHD H +7 —
58810-KK491-C4 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58810-KK491-C5 note Box Assy, Console
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58810-KK491-C5 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
58810-KK491-C6 note Box Assy, Console
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58815B — Carpet, Console Box
58815-KK010 Carpet, Console Box
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58815-KK010 Carpet, Console Box
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58815-KK010 Carpet, Console Box
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58815-KK010 Carpet, Console Box
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58815-KK010 Carpet, Console Box
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58815-KK010 Carpet, Console Box
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58815-KK010 Carpet, Console Box
2022-08 → —
GUN156,TGN156,166 PKNP —
58822A — Panel, Console, Upper Rear
58822-KK010-B1 note Panel, Console, Upper Rear
2022-09 → 2024-03 ended
GUN156 6F KEN —
58822-KK010-B1 note Panel, Console, Upper Rear
2022-09 → 2023-08 ended
GUN165 6F IDN —
58822-KK010-B1 note Panel, Console, Upper Rear
2022-09 → 2024-01 ended
GUN156 RHD 6F SA —
58822-KK010-B2 note Panel, Console, Upper Rear
2023-01 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58822-KK010-B2 note Panel, Console, Upper Rear
2022-10 → 2023-01 ended
GUN156,166,TGN166 MTM IND —
58822-KK010-C0 note Panel, Console, Upper Rear
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
58822-KK050-B1 note Panel, Console, Upper Rear
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58822-KK050-B1 note Panel, Console, Upper Rear
2022-11 → 2024-01 ended
GUN156,LAN155 LHD MTM SA —
58822-KK050-C1 note Panel, Console, Upper Rear
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58822-KK060 Panel, Console, Upper Rear
2022-09 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58822-KK060 Panel, Console, Upper Rear
2022-09 → 2023-09 ended
GUN165 VNP L —
58822-KK060 Panel, Console, Upper Rear
2022-09 → 2023-08 ended
GUN155,165,TGN156 IDNP MTM L —
58833A — Cover, Console, Upper
58833-KK100 Cover, Console, Upper
2023-01 → 2024-01 ended
LAN155 —
58833B — Garnish, Console Upper Panel, NO.1
58833-KK040 Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN165 6F IDN —
58833-KK040 Garnish, Console Upper Panel, NO.1
2022-09 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58833-KK040 Garnish, Console Upper Panel, NO.1
2022-09 → 2024-03 ended
GUN156 6F KEN —
58833-KK040 Garnish, Console Upper Panel, NO.1
2022-09 → 2024-01 ended
GUN156 RHD 6F SA —
58833-KK050 Garnish, Console Upper Panel, NO.1
2023-01 → 2024-01 ended
GUN165 6F SA —
58833-KK060 Garnish, Console Upper Panel, NO.1
2022-11 → 2024-01 ended
GUN156,LAN155 LHD MTM SA —
58833-KK060 Garnish, Console Upper Panel, NO.1
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58833-KK070 Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN155,165,TGN156 IDNP MTM L —
58833-KK070 Garnish, Console Upper Panel, NO.1
2022-09 → 2023-09 ended
GUN165 VNP L —
58833-KK070 Garnish, Console Upper Panel, NO.1
2022-09 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-09 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2024-03 ended
GUN156 6FC KEN —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-10 → 2023-09 ended
GUN166 6FC IND —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-10 → 2023-09 ended
GUN156 6FC IND —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → —
TGN156,166 PKN —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → —
GUN156 PKNP TH —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-09 ended
TGN166 6FC IND —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-10 → —
GUN156 PKN —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN156 MA —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN156 TH —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
TGN156 MA;GUN15#,16#,TGN166 6FC IDN —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN155,16# H TH —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN165 S TH —
58833-KK130-B0 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN156 H ARL —
58833-KK130-B2 note Garnish, Console Upper Panel, NO.1
2022-08 → —
GUN156 PKN —
58833-KK130-B2 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-09 ended
GUN156 6FC IND —
58833-KK130-B2 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN156 TH —
58833-KK140 Garnish, Console Upper Panel, NO.1
2022-08 → 2024-03 ended
GUN155 KEN —
58833-KK140 Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58833-KK140 Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
58833-KK140 Garnish, Console Upper Panel, NO.1
2022-08 → 2024-01 ended
GUN155,165 6FC L SA —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2024-03 ended
GGN155 EPT —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN156 THP GEN —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN15# THP H GCC —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN156 IDNP VN —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-10 ended
GUN156 H LA —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN156 PH —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN166 PH —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN165,TGN156,166 IDNP (H,S) (PH,VN) —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN155 GCC,GEN) LHD H +8 —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-09 ended
GUN165,TGN166 VNP S —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58833-KK150-B1 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-10 ended
GGN155,GUN165,TGN166 H LA —
58833-KK150-B2 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
58833-KK150-B2 note Garnish, Console Upper Panel, NO.1
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58833-KK160 Garnish, Console Upper Panel, NO.1
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP 6FC L —
58833-KK160 Garnish, Console Upper Panel, NO.1
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP 6FC (L,S) —
58833-KK160 Garnish, Console Upper Panel, NO.1
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58833-KK160 Garnish, Console Upper Panel, NO.1
2022-08 → 2024-03 ended
TGN166 EPT —
58834B — Garnish, Console Upper Panel, NO.2
58834-KK040 Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN165 6F IDN —
58834-KK040 Garnish, Console Upper Panel, NO.2
2022-09 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58834-KK040 Garnish, Console Upper Panel, NO.2
2022-09 → 2024-03 ended
GUN156 6F KEN —
58834-KK040 Garnish, Console Upper Panel, NO.2
2022-09 → 2024-01 ended
GUN156 RHD 6F SA —
58834-KK050 Garnish, Console Upper Panel, NO.2
2023-01 → 2024-01 ended
GUN165 6F SA —
58834-KK060 Garnish, Console Upper Panel, NO.2
2022-11 → 2024-01 ended
GUN156,LAN155 LHD MTM SA —
58834-KK060 Garnish, Console Upper Panel, NO.2
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58834-KK070 Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN155,165,TGN156 IDNP MTM L —
58834-KK070 Garnish, Console Upper Panel, NO.2
2022-09 → 2023-09 ended
GUN165 VNP L —
58834-KK070 Garnish, Console Upper Panel, NO.2
2022-09 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-09 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-10 → 2023-09 ended
GUN166 6FC IND —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-10 → 2023-09 ended
GUN156 6FC IND —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2024-03 ended
GUN156 6FC KEN —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → —
TGN156,166 PKN —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-09 ended
TGN166 6FC IND —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN156 MA —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → —
GUN156 PKNP TH —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-10 → —
GUN156 PKN —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN165 S TH —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN155,16# H TH —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN156 H ARL —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN156 TH —
58834-KK080-B0 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
TGN156 MA;GUN15#,16#,TGN166 6FC IDN —
58834-KK080-B2 note Garnish, Console Upper Panel, NO.2
2022-08 → —
GUN156 PKN —
58834-KK080-B2 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-09 ended
GUN156 6FC IND —
58834-KK080-B2 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN156 TH —
58834-KK090 Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58834-KK090 Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
58834-KK090 Garnish, Console Upper Panel, NO.2
2022-08 → 2024-03 ended
GUN155 KEN —
58834-KK090 Garnish, Console Upper Panel, NO.2
2022-08 → 2024-01 ended
GUN155,165 6FC L SA —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN156 THP GEN —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2024-03 ended
GGN155 EPT —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN15# THP H GCC —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-10 ended
GGN155,GUN165,TGN166 H LA —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-10 ended
GUN156 H LA —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-09 ended
GUN165,TGN166 VNP S —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN155 GCC,GEN) LHD H +8 —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN165,TGN156,166 IDNP (H,S) (PH,VN) —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN166 PH —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN156 PH —
58834-KK100-B1 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN156 IDNP VN —
58834-KK100-B2 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-10 ended
GUN156 AGTP 6FC H —
58834-KK100-B2 note Garnish, Console Upper Panel, NO.2
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58834-KK110 Garnish, Console Upper Panel, NO.2
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP 6FC L —
58834-KK110 Garnish, Console Upper Panel, NO.2
2022-08 → 2024-03 ended
TGN166 EPT —
58834-KK110 Garnish, Console Upper Panel, NO.2
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58834-KK110 Garnish, Console Upper Panel, NO.2
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP 6FC (L,S) —
58840A — Cover Assy, Shifting Hole
58840-KK030-C1 note Cover Assy, Shifting Hole
2023-01 → 2024-03 ended
GUN156 6F KEN —
58840-KK030-C1 note Cover Assy, Shifting Hole
2023-01 → 2024-01 ended
GUN156,165 RHD 6F SA —
58840-KK030-C1 note Cover Assy, Shifting Hole
2022-10 → 2023-09 ended
GUN156,166,TGN166 MTM IND —
58840-KK030-C2 note Cover Assy, Shifting Hole
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
58840-KK050-C1 note Cover Assy, Shifting Hole
2022-09 → 2023-08 ended
GUN165 6F IDN —
58840-KK070-C2 note Cover Assy, Shifting Hole
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58840-KK070-C2 note Cover Assy, Shifting Hole
2022-11 → 2023-10 ended
GUN156,166,TGN166 MTM LA —
58840-KK070-C2 note Cover Assy, Shifting Hole
2022-11 → 2024-01 ended
GUN156,LAN155 LHD MTM SA —
58840-KK080-C1 note Cover Assy, Shifting Hole
2022-09 → 2023-09 ended
GUN165 VNP L —
58840-KK080-C1 note Cover Assy, Shifting Hole
2022-09 → 2023-08 ended
GUN155 L GEN —
58840-KK080-C1 note Cover Assy, Shifting Hole
2022-09 → 2023-08 ended
TGN156 L GEN —
58840-KK080-C1 note Cover Assy, Shifting Hole
2022-09 → 2023-08 ended
GUN165 IDNP 6F L —
58903A — Panel Sub-assy, Console Rear End
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 IDNP GEN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN15#,16# TH —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 H ARL —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2023-01 → 2023-11 ended
GUN156 RHD 6FC SA —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-11 ended
GUN156,166 RHD 6FC SA —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-10 ended
GUN156 H BZAGT —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN155 RHD GEN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN156,165,TGN156,166 IDNP 6FC VN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 RHD GEN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 RHD GEN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → —
GUN156 PKNP TH —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-05 ended
GUN15#,16# H TH —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-05 ended
GUN156 TH —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2023-05 → —
GUN156 PKN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2023-05 → —
GUN156 PKN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-05 ended
GUN156 6F BZAGT;GUN156,165 VNP +1 —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-05 ended
GUN156 IDNP VN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-08 → —
GUN156,TGN156,166 PKN —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58903-KK030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-10 → 2023-09 ended
GUN156 6FC IND —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-11 ended
GUN156 RHD 6F SA —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2023-01 → 2024-01 ended
GUN156 RHD 6FC SA —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN155 RHD GEN —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN15#,16#,TGN156,166 (H,S) (IDN,MA,PH) —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2024-01 ended
GUN156 6F SA;GUN15#,LAN155,TGN156 LHD +2 —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN156 6 IDNP IDNP +9 —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN15# THP H GCC —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-10 → 2023-05 ended
GUN156 6FC IND —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-10 → 2023-05 ended
GUN156 6FC IND —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-05 ended
GUN156 LHD GEN —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-08 → 2023-05 ended
GUN156 THP GEN;GUN166 6FC +1 —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-05 ended
GUN156 H (LA,PH) —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-05 ended
GUN156 LHD IDNP GEN —
58903-KK040-C2 note Panel Sub-assy, Console Rear End
2022-09 → 2023-05 ended
GUN156,166 MA,PH —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-10 ended
GUN156 AGTP L;GUN16#,TGN156,166 (L,S) +1 —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2024-01 ended
GUN155,165 L SA —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2024-03 ended
GUN155,TGN166 EPT,KEN —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN156,TGN156 IDNP L (ARL,GEN) —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
58903-KK050-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN155,165 L (MA,PH) —
58903-KK060-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-09 ended
GUN165 VNP L —
58903-KK060-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN165 IDNP L VN —
58903-KK060-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-10 ended
GUN156,TGN156 S BZAGT —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 TH —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2024-01 ended
GUN156,166 RHD 6FC SA —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2023-05 → —
GUN156 PKN —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-09 → —
GUN156 PKN —
58903-YP030-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2023-05 → —
GUN156 PKN —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-09 → —
GUN156 PKN —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 TH —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 IDNP VN —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP030-C1 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 TH —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 PH —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 THP GEN —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-07 ended
GUN156 THP GEN —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2023-01 → 2024-01 ended
GUN156 RHD 6FC SA —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2023-01 → 2023-09 ended
GUN156 6FC IND —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2024-01 ended
GUN156 RHD 6F SA —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP040-C0 note Panel Sub-assy, Console Rear End
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 PH —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-08 ended
GUN156 PH —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-10 → 2023-09 ended
GUN156 6FC IND —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2023-01 → 2023-09 ended
GUN156 6FC IND —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-09 → 2023-10 ended
GUN156 H LA —
58903-YP040-C1 note Panel Sub-assy, Console Rear End
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58904B — Cover Sub-assy, Parking Brake Hole
58904-KK020-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD IDNP (ARL,GEN) —
58904-KK020-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 IDN —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN16#,TGN156,166 IDNP (PH,VN) —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN155 IDNP IDNP (H,S) +7 —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
58904-KK030-C1 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58904-KK030-C2 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58904-KK030-C2 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
58904-KK030-C3 note Cover Sub-assy, Parking Brake Hole
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58904-KK060-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-08 ended
GUN156 MA —
58904-KK060-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
58904-KK060-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → —
GUN156 PKN —
58904-KK060-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58904-KK060-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-09 ended
GUN156,166 6FC IND —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2024-03 ended
GUN15# KEN —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → —
TGN156,166 PKN —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → —
GUN156 PKNP TH —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-10 → 2023-09 ended
GUN156 6FC IND —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN156 TH —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN156 THP ARL —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN165 S TH —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN155,16# H TH —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-10 → —
GUN156 PKN —
58904-KK060-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
58904-KK060-C4 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-09 ended
GUN156 6FC IND —
58904-KK060-C4 note Cover Sub-assy, Parking Brake Hole
2022-08 → —
GUN156 PKN —
58904-KK060-C4 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN156 TH —
58904-KK070-C2 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN156 THP GEN —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2024-03 ended
GGN155,TGN166 EPT —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2023-10 ended
GUN156 AGTP (L,S);GGN155,GUN16#,TGN156,166 AGTP —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2023-10 ended
GUN156 H LA —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-08 → 2023-07 ended
GUN156 THP GEN —
58904-KK070-C3 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
58904-KK070-C4 note Cover Sub-assy, Parking Brake Hole
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58905 — Door Sub-assy, Console Compartment
58905-KK010-C7 note Door Sub-assy, Console Compartment
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
58905-KK010-C7 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN155 MA —
58905-KK010-C7 note Door Sub-assy, Console Compartment
2022-09 → 2024-01 ended
GUN155,165 L SA —
58905-KK010-C7 note Door Sub-assy, Console Compartment
2022-09 → 2024-03 ended
GUN155 KEN —
58905-KK010-C7 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-09 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-09 → 2023-09 ended
GUN165 VNP L —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN165 IDNP L (PH,VN) —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
TGN156 L GEN —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-09 → 2024-03 ended
TGN166 EPT —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
58905-KK020-C4 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58905-KK030-20 note Door Sub-assy, Console Compartment
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58905-KK030-20 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156 MA —
58905-KK030-20 note Door Sub-assy, Console Compartment
2022-09 → —
GUN156 PKN —
58905-KK030-20 note Door Sub-assy, Console Compartment
2022-09 → 2023-09 ended
GUN156,166 6FC IND —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-10 → 2023-09 ended
GUN156 6FC IND —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156,TGN156 MA —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-10 → —
GUN156 PKN —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-09 → —
TGN156,166 PKN;GUN156 PKNP TH —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-09 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
58905-KK030-24 note Door Sub-assy, Console Compartment
2022-09 → 2024-03 ended
GUN156 KEN —
58905-KK030-25 note Door Sub-assy, Console Compartment
2022-10 → 2023-09 ended
GUN156 6FC IND —
58905-KK030-25 note Door Sub-assy, Console Compartment
2022-10 → —
GUN156 PKN —
58905-KK030-C6 note Door Sub-assy, Console Compartment
2022-10 → —
GUN156,TGN156,166 PKN —
58905-KK030-C6 note Door Sub-assy, Console Compartment
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
58905-KK040-23 note Door Sub-assy, Console Compartment
2022-11 → 2023-10 ended
GUN156 H BZAGT —
58905-KK040-26 note Door Sub-assy, Console Compartment
2022-11 → 2024-03 ended
GGN155 EPT —
58905-KK040-26 note Door Sub-assy, Console Compartment
2022-11 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
58905-KK040-26 note Door Sub-assy, Console Compartment
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58905-KK040-26 note Door Sub-assy, Console Compartment
2022-11 → 2023-10 ended
GUN156 6F BZAGT;GGN155,GUN165,TGN166 H +1 —
58905-KK040-27 note Door Sub-assy, Console Compartment
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58905-KK110-C2 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58905-KK110-C3 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 H ARL —
58905-KK110-C5 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN155,16# H TH —
58905-KK110-C5 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN165 S TH;GUN156 H +1 —
58905-KK110-C5 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 TH —
58905-KK110-C7 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 TH —
58905-KK120-C3 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP (H,S) —
58905-KK120-C6 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 THP GEN —
58905-KK120-C7 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN156 THP GEN —
58905-KK120-C7 note Door Sub-assy, Console Compartment
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58905-KK130-C0 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58905-KK130-C2 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (GEN,IDN) —
58905-KK140-C0 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GGN155,GUN15#,165,TGN156 LHD IDNP (H,S) +1 —
58905-KK140-C2 note Door Sub-assy, Console Compartment
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58905-KK140-C2 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN155 ) LHD H +7 —
58905-KK140-C2 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58905-KK140-C2 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58905-KK140-C3 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
58905-KK140-C3 note Door Sub-assy, Console Compartment
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58905-KK140-C4 note Door Sub-assy, Console Compartment
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58907 — Hinge Sub-assy, Console Compartment Door
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-10 ended
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-11 → 2023-10 ended
GUN156 H BZAGT —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2024-01 ended
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → —
TGN156,166 PKN —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → —
GUN156 PKNP TH —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-10 → —
GUN156 PKN —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GUN165 S TH —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GUN156 THP GEN —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GUN15#,165,TGN156,166 THP (H,L) GCC —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GUN155 THP S;GUN156 THP +3 —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-08 ended
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-08 ended
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 —
58907-KK010-C0 note Hinge Sub-assy, Console Compartment Door
2022-08 → 2023-08 ended
GUN156 (IDN,MA,VN) IDNP (IDN,VN);GUN165 +3 —
58908A — Lock Sub-assy, Console Compartment Door
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58908-KK010 Lock Sub-assy, Console Compartment Door
2022-08 → —
GUN156,TGN156,166 PKNP —
58916 — Mat, Box Bottom
58916-KK010 Mat, Box Bottom
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58916-KK010 Mat, Box Bottom
2022-08 → —
GUN156,TGN156,166 PKNP —
58916-KK010 Mat, Box Bottom
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58916-KK010 Mat, Box Bottom
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58916-KK010 Mat, Box Bottom
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58916-KK010 Mat, Box Bottom
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58916-KK010 Mat, Box Bottom
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58918A — Bracket, Box Support
58918-KK010 Bracket, Box Support
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58918-KK010 Bracket, Box Support
2022-08 → —
GUN156,TGN156,166 PKNP —
58918-KK010 Bracket, Box Support
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58918-KK010 Bracket, Box Support
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58918-KK010 Bracket, Box Support
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58918-KK010 Bracket, Box Support
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58918-KK010 Bracket, Box Support
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58921A — Panel, Rear Console, Upper
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-08 ended
GUN15# IDNP H GCC —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-08 ended
GUN15# GCC,GEN) IDNP H +7 —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-08 ended
GUN15#,16#,TGN156,166 (IDNP,MAP) (H,S) (IDN,MA,PH,VN) —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-10 → 2023-09 ended
GUN156 6FC IND —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-09 → 2023-11 ended
GUN156,166 RHD SA —
58921-KK020-B0 note Panel, Rear Console, Upper
2023-01 → 2023-11 ended
GUN156 RHD 6FC SA —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → —
GUN156,TGN156,166 PKN —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → —
GUN156 PKNP TH —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → —
GUN156 PKN —
58921-KK020-B0 note Panel, Rear Console, Upper
2023-05 → —
GUN156 PKN —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2024-01 ended
GUN15#,166,LAN155,TGN156 S SA —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-10 → 2023-05 ended
GUN156 6FC IND —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-10 → 2023-05 ended
GUN156 6FC IND —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-09 → 2023-05 ended
GUN156 (AGTP,IDNP) H (LA,PH,VN) —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-09 → 2023-05 ended
GUN156,166 MA,PH;GUN156 6F BZAGT;GUN156,165 +2 —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN15#,16# TH —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN15# THP H GCC —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-09 → 2023-05 ended
GUN156 LHD IDNP GEN —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-05 ended
GUN156 TH —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-05 ended
GUN15#,16# H TH —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-05 ended
GUN156 THP GEN;GUN166 6FC +1 —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-05 ended
GUN156 LHD GEN —
58921-KK020-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +4 —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 THP (L,S);GUN155,165,TGN156,166 THP +1 —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2024-01 ended
GUN155,165 L SA —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2024-03 ended
GUN155,TGN166 EPT,KEN —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2023-09 ended
GUN165 VNP L —
58921-KK030 Panel, Rear Console, Upper
2022-08 → 2023-08 ended
GUN15#,165,TGN156,166 (IDNP,MAP) L —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 THP GEN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → —
GUN156 PKN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → —
GUN156 PKN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 THP GEN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 TH —
58921-YP030-B0 note Panel, Rear Console, Upper
2023-01 → 2024-01 ended
GUN156 RHD 6FC SA —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
58921-YP030-B0 note Panel, Rear Console, Upper
2022-09 → 2023-08 ended
GUN156 PH —
58921-YP030-B0 note Panel, Rear Console, Upper
2023-01 → 2023-09 ended
GUN156 6FC IND —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-09 → —
GUN156 PKN —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-09 → —
GUN156 PKN —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-10 → 2023-09 ended
GUN156 6FC IND —
58921-YP030-B1 note Panel, Rear Console, Upper
2023-01 → 2023-09 ended
GUN156 6FC IND —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-09 → 2023-08 ended
GUN156 PH —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 TH —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-08 → 2023-07 ended
GUN156 TH —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-09 → 2023-10 ended
GUN156 H LA —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-10 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58921-YP030-B1 note Panel, Rear Console, Upper
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
58951D — Door, Console Compartment, Outer
58951-KK010-C2 note Door, Console Compartment, Outer
2022-09 → 2024-01 ended
GUN155,165 L SA —
58951-KK010-C2 note Door, Console Compartment, Outer
2022-09 → 2024-03 ended
GUN155 KEN —
58951-KK010-C2 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN155 MA —
58951-KK010-C2 note Door, Console Compartment, Outer
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
58951-KK010-C2 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
58951-KK030-C3 note Door, Console Compartment, Outer
2022-09 → 2023-09 ended
GUN156,166 6FC IND —
58951-KK030-C3 note Door, Console Compartment, Outer
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58951-KK030-C3 note Door, Console Compartment, Outer
2022-09 → —
GUN156 PKN —
58951-KK030-C3 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156 MA —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-09 → 2024-01 ended
GUN156,166 RHD SA —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-09 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-09 → 2024-03 ended
GUN156 KEN —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-10 → 2023-09 ended
GUN156 6FC IND —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-09 → —
TGN156,166 PKN;GUN156 PKNP TH —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-10 → —
GUN156 PKN —
58951-KK030-C5 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156,TGN156 MA —
58951-KK030-C6 note Door, Console Compartment, Outer
2022-10 → 2023-09 ended
GUN156 6FC IND —
58951-KK030-C6 note Door, Console Compartment, Outer
2022-10 → —
GUN156 PKN —
58951-KK030-E3 note Door, Console Compartment, Outer
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
58951-KK030-E3 note Door, Console Compartment, Outer
2022-10 → —
GUN156,TGN156,166 PKN —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
TGN156 L GEN —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN165 IDNP L (PH,VN) —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-08 → 2023-08 ended
GUN155,165,TGN156,166 IDNP (6F,6FC) L +1 —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-09 → 2024-03 ended
TGN166 EPT —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-09 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
58951-KK070-C1 note Door, Console Compartment, Outer
2022-09 → 2023-09 ended
GUN165 VNP L —
58951-KK090-A0 note Door, Console Compartment, Outer
2022-11 → 2023-10 ended
GUN156 H BZAGT —
58951-KK090-C5 note Door, Console Compartment, Outer
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58951-KK090-C5 note Door, Console Compartment, Outer
2022-11 → 2023-10 ended
GUN156 6F BZAGT;GGN155,GUN165,TGN166 H +1 —
58951-KK090-C5 note Door, Console Compartment, Outer
2022-11 → 2024-03 ended
GGN155 EPT —
58951-KK090-C5 note Door, Console Compartment, Outer
2022-11 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
58951-KK090-C6 note Door, Console Compartment, Outer
2022-11 → 2023-10 ended
GUN156 AGTP 6FC H —
58951-KK120-C1 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN15#,16# H TH —
58951-KK120-C2 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN155,16# H TH —
58951-KK120-C2 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 TH —
58951-KK120-C2 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN165 S TH;GUN156 H +1 —
58951-KK120-C4 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 TH —
58951-KK120-E1 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 H ARL —
58951-KK130-C2 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 THP GEN —
58951-KK130-C3 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN156 THP GEN —
58951-KK130-C3 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GUN155 THP S;GGN155,TGN156 THP +1 —
58951-KK130-E1 note Door, Console Compartment, Outer
2022-08 → 2023-07 ended
GGN155,GUN15#,TGN156 LHD THP (H,S) —
58951-KK140-C0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD (GEN,IDN) —
58951-KK140-E0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN15#,165,TGN156,166 RHD GEN —
58951-KK150-C0 note Door, Console Compartment, Outer
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
58951-KK150-C0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN155 ) LHD H +7 —
58951-KK150-C0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58951-KK150-C0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
58951-KK150-C1 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156,166 LHD IDNP (GEN,PH) —
58951-KK150-C1 note Door, Console Compartment, Outer
2022-09 → 2023-09 ended
GUN156,165 VNP H —
58951-KK150-C2 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
58951-KK150-E0 note Door, Console Compartment, Outer
2022-09 → 2023-08 ended
GGN155,GUN15#,165,TGN156 LHD IDNP (H,S) +1 —
58959B — Cushion, Console Compartment Door
90541-04079 Cushion, Console Compartment Door
2022-09 → 2023-09 ended
GUN165 VNP L —
90541-04079 Cushion, Console Compartment Door
2022-09 → 2023-08 ended
GUN155,165,TGN156 IDNP MTM L —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) (H,S) —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90541-T0008 Cushion, Console Compartment Door
2022-08 → —
GUN156,TGN156,166 PKNP —
90541-T0008 Cushion, Console Compartment Door
2022-08 → 2023-08 ended
GUN165 6 IDNP (IDNP,MAP) +5 —
58995A — Bracket, Console Box Mounting, NO.1
58995-KK020 Bracket, Console Box Mounting, NO.1
2022-09 → 2023-10 ended
GUN156,166,TGN166 AGTP MTM —
58995-KK020 Bracket, Console Box Mounting, NO.1
2022-09 → 2024-03 ended
GUN156 6F KEN —
58995-KK020 Bracket, Console Box Mounting, NO.1
2022-09 → 2024-01 ended
GUN156,165,LAN155 MTM SA —
58995-KK020 Bracket, Console Box Mounting, NO.1
2022-09 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) MTM —
58995-KK020 Bracket, Console Box Mounting, NO.1
2022-09 → 2023-08 ended
GUN155,165,TGN156 IDNP MTM —
58996A — Bracket, Console Box Mounting, NO.2
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
58996-KK020 Bracket, Console Box Mounting, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
