Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

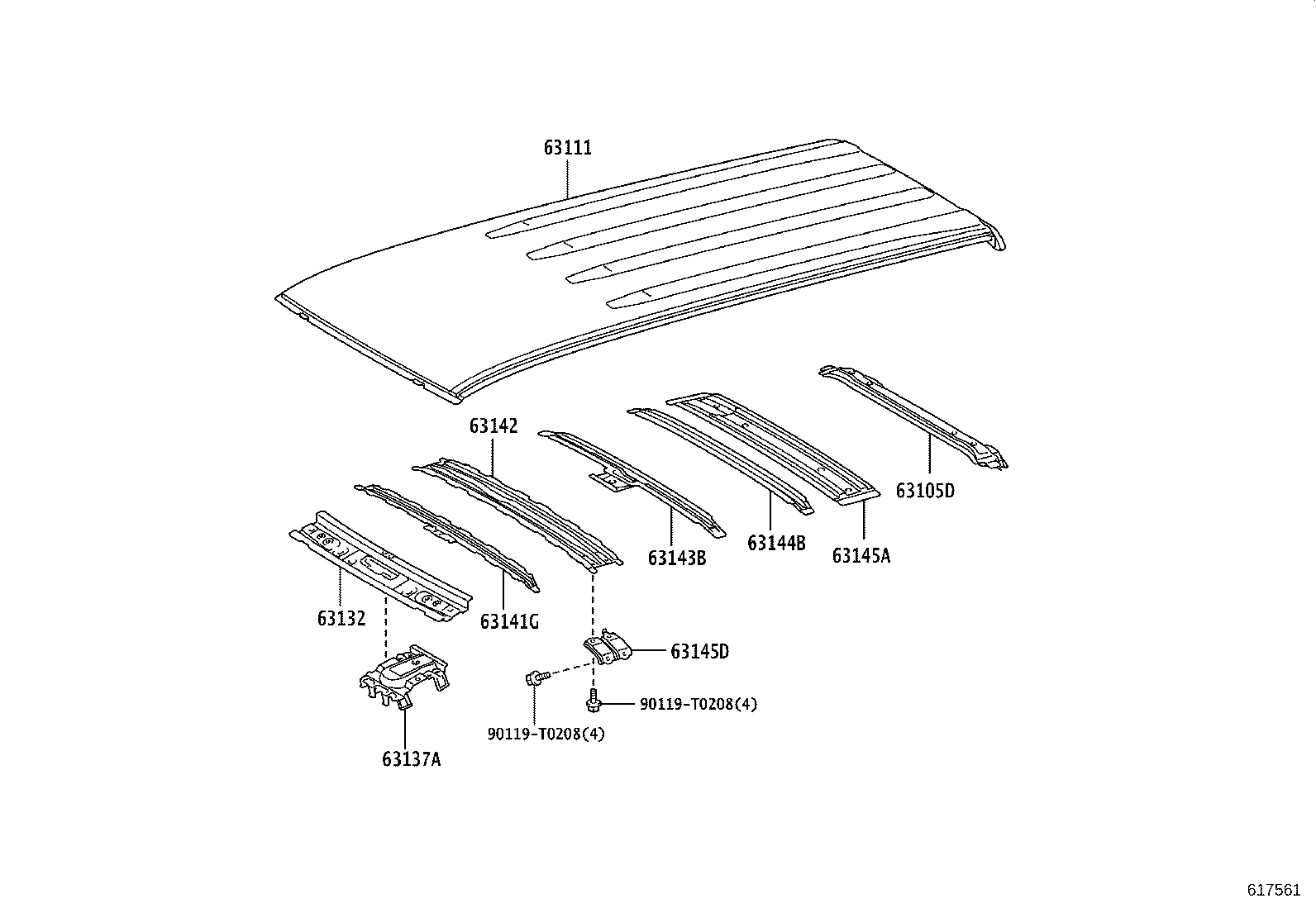

Exploded illustration 617561 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (10 parts) 63111 — PANEL, ROOF (17 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (11 parts) 63137A — BRACKET, DOME LAMP, NO.1 (10 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (9 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (9 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (9 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (9 parts) 63145A — REINFORCEMENT, ROOF PANEL, NO.5 (9 parts) 63145D — BRACKET, ROOF REINFORCEMENT (7 parts) 90119T0208 — not listed in this catalogue 90119T0208 — not listed in this catalogue
617561 · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
63105D — Frame Sub-assy, Back Window, Upper
63105-KK020 Frame Sub-assy, Back Window, Upper
2022-08 → 2023-08 ended
GGN155,GUN15#,165,TGN156,166 (IDNP,MAP) (GCC,MA) —
63105-KK020 Frame Sub-assy, Back Window, Upper
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63105-KK020 Frame Sub-assy, Back Window, Upper
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63105-KK020 note Frame Sub-assy, Back Window, Upper
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63105-KK020 Frame Sub-assy, Back Window, Upper
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63105-KK020 Frame Sub-assy, Back Window, Upper
2022-08 → —
GUN156,TGN156,166 PKNP —
63105-KK020 Frame Sub-assy, Back Window, Upper
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63105-KK080 Frame Sub-assy, Back Window, Upper
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP (ARL,GEN,IDN,PH,VN) —
63105-KK080 Frame Sub-assy, Back Window, Upper
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63105-KK080 Frame Sub-assy, Back Window, Upper
2022-09 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63111 — Panel, Roof
63111-KK040 note Panel, Roof
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 6FC (L,S) LA —
63111-KK040 Panel, Roof
2022-08 → 2023-09 ended
GUN165 VNP L —
63111-KK040 Panel, Roof
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63111-KK040 note Panel, Roof
2022-08 → 2023-08 ended
GGN155 GEN;GUN155,TGN156 IDNP (6F,6FC) +1 —
63111-KK040 Panel, Roof
2022-08 → 2023-08 ended
GUN156,165,TGN166 IDNP L —
63111-KK040 note Panel, Roof
2022-08 → 2023-07 ended
GUN155,TGN156 THP L —
63111-KK040 Panel, Roof
2022-08 → 2023-07 ended
GUN156,165,TGN166 THP L —
63111-KK050 Panel, Roof
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63111-KK050 note Panel, Roof
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63111-KK050 Panel, Roof
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63111-KK050 Panel, Roof
2022-08 → —
GUN156,TGN156,166 PKNP —
63111-KK050 note Panel, Roof
2022-09 → 2023-09 ended
GUN165 VNP L —
63111-KK050 Panel, Roof
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) (H,S) —
63111-KK050 note Panel, Roof
2022-09 → 2023-08 ended
GUN165 IDNP L VN —
63111-KK050 Panel, Roof
2022-08 → 2023-08 ended
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 —
63111-KK050 Panel, Roof
2022-08 → 2023-07 ended
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP —
63111-KK050 Panel, Roof
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63132 — Panel, Windshield Header, Inner
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2023-09 ended
GUN156,165,TGN166 VNP —
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2024-03 ended
GUN15# KEN —
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63132-KK021 Panel, Windshield Header, Inner
2023-03 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
63132-KK031 Panel, Windshield Header, Inner
2023-03 → —
GUN156,TGN156,166 PKNP —
63132-KK031 Panel, Windshield Header, Inner
2023-03 → 2024-03 ended
GGN155,TGN166 EPT —
63132-KK031 Panel, Windshield Header, Inner
2023-03 → 2023-09 ended
GUN156,166,TGN166 IND —
63132-KK900 Panel, Windshield Header, Inner
2022-08 → 2023-03 ended
GGN155,GUN15#,16#,LAN155,TGN156,166 AGTP,IDNP,MAP,SAP,THP,VNP —
63132-KK902 Panel, Windshield Header, Inner
2022-10 → 2023-03 ended
GUN156,166,TGN166 IND,PKN —
63137A — Bracket, Dome Lamp, NO.1
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63137-KK030 Bracket, Dome Lamp, NO.1
2023-03 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63137-KK030 Bracket, Dome Lamp, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63137-KK030 note Bracket, Dome Lamp, NO.1
2023-01 → 2023-03 ended
GUN15#,LAN155,TGN156 LHD SA —
63137-KK030 Bracket, Dome Lamp, NO.1
2023-01 → 2023-03 ended
GUN15#,LAN155,TGN156 LHD SA —
63141G — Reinforcement, Roof Panel, NO.1
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63104-KK010 note Reinforcement, Roof Panel, NO.1
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63104-KK010 Reinforcement, Roof Panel, NO.1
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63104-KK010 Reinforcement, Roof Panel, NO.1
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63142 — Reinforcement, Roof Panel, NO.2
63141-KK050 Reinforcement, Roof Panel, NO.2
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63141-KK050 note Reinforcement, Roof Panel, NO.2
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63141-KK050 Reinforcement, Roof Panel, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63143B — Reinforcement, Roof Panel, NO.3
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → —
GUN156,TGN156,166 PKNP —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63103-KK010 note Reinforcement, Roof Panel, NO.3
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63103-KK010 Reinforcement, Roof Panel, NO.3
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63103-KK010 Reinforcement, Roof Panel, NO.3
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63144B — Reinforcement, Roof Panel, NO.4
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → —
GUN156,TGN156,166 PKNP —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63144-KK010 note Reinforcement, Roof Panel, NO.4
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63144-KK010 Reinforcement, Roof Panel, NO.4
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63144-KK010 Reinforcement, Roof Panel, NO.4
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63145A — Reinforcement, Roof Panel, NO.5
63106-KK010 note Reinforcement, Roof Panel, NO.5
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → —
GUN156,TGN156,166 PKNP —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63106-KK010 Reinforcement, Roof Panel, NO.5
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63106-KK010 Reinforcement, Roof Panel, NO.5
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63145D — Bracket, Roof Reinforcement
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
63145-KK030 Bracket, Roof Reinforcement
2022-08 → —
GUN156,TGN156,166 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
