Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

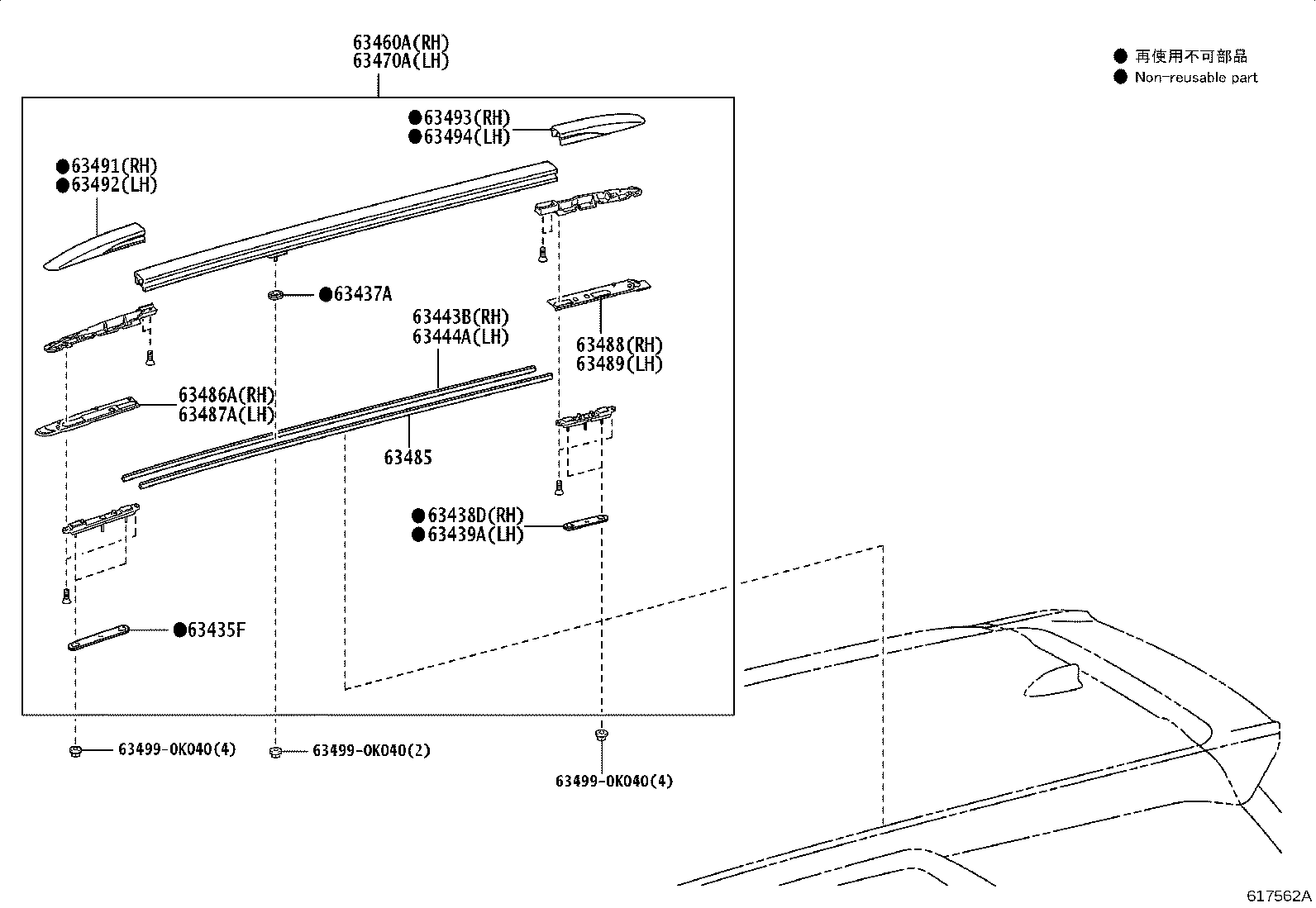

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63435F — Seal, Roof Carrier, NO.1 | ||||
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63437-0K020 note |
Seal, Roof Carrier, NO.1
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63437-0K020 note |
Seal, Roof Carrier, NO.1
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63437-0K020 note |
Seal, Roof Carrier, NO.1
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63437-0K020 note |
Seal, Roof Carrier, NO.1
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63437-0K020 |
Seal, Roof Carrier, NO.1
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63437A — Seal, Roof Carrier, NO.2 | ||||
| 63439-0K010 note |
Seal, Roof Carrier, NO.2
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63439-0K010 note |
Seal, Roof Carrier, NO.2
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63439-0K010 note |
Seal, Roof Carrier, NO.2
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63439-0K010 |
Seal, Roof Carrier, NO.2
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63439-0K010 note |
Seal, Roof Carrier, NO.2
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63438D — Seal, Roof Carrier, NO.3 RH | ||||
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 RH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 RH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 RH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63439A — Seal, Roof Carrier, NO.3 LH | ||||
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 LH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 LH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 LH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63437-0K070 |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63437-0K070 note |
Seal, Roof Carrier, NO.3 LH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63443B — Protector, Roof Rack, RH | ||||
| 63444-0K010 note |
Protector, Roof Rack, RH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63444-0K010 note |
Protector, Roof Rack, RH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63444-0K010 |
Protector, Roof Rack, RH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63444-0K010 note |
Protector, Roof Rack, RH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63444-0K010 note |
Protector, Roof Rack, RH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63444A — Protector, Roof Rack, LH | ||||
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63444-0K010 note |
Protector, Roof Rack, LH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63444-0K010 note |
Protector, Roof Rack, LH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63444-0K010 note |
Protector, Roof Rack, LH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63444-0K010 |
Protector, Roof Rack, LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63444-0K010 note |
Protector, Roof Rack, LH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63460A — Rack Assy, Roof, RH | ||||
| 63460-0K040 note |
Rack Assy, Roof, RH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63460-0K040 |
Rack Assy, Roof, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63460-0K040 |
Rack Assy, Roof, RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63460-0K040 |
Rack Assy, Roof, RH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63460-0K040 |
Rack Assy, Roof, RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63460-0K040 |
Rack Assy, Roof, RH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63460-0K050 |
Rack Assy, Roof, RH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63460-0K050 note |
Rack Assy, Roof, RH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63460-0K050 |
Rack Assy, Roof, RH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63460-0K060 |
Rack Assy, Roof, RH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63460-0K060 note |
Rack Assy, Roof, RH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63460-0K070 |
Rack Assy, Roof, RH
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 63460-0K070 note |
Rack Assy, Roof, RH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63460-0K070 |
Rack Assy, Roof, RH
2022-09 → 2023-08
ended
|
GUN165,TGN166 IDNP (H,S);GGN155,GUN15#,166,TGN156 IDNP +1 | — | |
| 63460-0K070 note |
Rack Assy, Roof, RH
2022-09 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 IDNP (6F,6FC) +1 | — | |
| 63460-0K070 note |
Rack Assy, Roof, RH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63470A — Rack Assy, Roof, LH | ||||
| 63470-0K040 |
Rack Assy, Roof, LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63470-0K040 |
Rack Assy, Roof, LH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63470-0K040 |
Rack Assy, Roof, LH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63470-0K040 |
Rack Assy, Roof, LH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63470-0K040 |
Rack Assy, Roof, LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63470-0K040 note |
Rack Assy, Roof, LH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63470-0K050 |
Rack Assy, Roof, LH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63470-0K050 note |
Rack Assy, Roof, LH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63470-0K050 |
Rack Assy, Roof, LH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63470-0K060 note |
Rack Assy, Roof, LH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63470-0K060 |
Rack Assy, Roof, LH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63470-0K070 |
Rack Assy, Roof, LH
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 63470-0K070 note |
Rack Assy, Roof, LH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63470-0K070 note |
Rack Assy, Roof, LH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63470-0K070 |
Rack Assy, Roof, LH
2022-09 → 2023-08
ended
|
GUN165,TGN166 IDNP (H,S);GGN155,GUN15#,166,TGN156 IDNP +1 | — | |
| 63470-0K070 note |
Rack Assy, Roof, LH
2022-09 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 IDNP (6F,6FC) +1 | — | |
| 63485 — Cushion, Roof Rack Leg, Center | ||||
| 63485-0K040 note |
Cushion, Roof Rack Leg, Center
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63485-0K040 note |
Cushion, Roof Rack Leg, Center
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63485-0K040 note |
Cushion, Roof Rack Leg, Center
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63485-0K040 |
Cushion, Roof Rack Leg, Center
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63485-0K040 note |
Cushion, Roof Rack Leg, Center
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63486A — Cushion, Roof Rack Leg, Front RH | ||||
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63486-0K040 note |
Cushion, Roof Rack Leg, Front RH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63486-0K040 note |
Cushion, Roof Rack Leg, Front RH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63486-0K040 note |
Cushion, Roof Rack Leg, Front RH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63486-0K040 |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63486-0K040 note |
Cushion, Roof Rack Leg, Front RH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63487A — Cushion, Roof Rack Leg, Front LH | ||||
| 63487-0K040 note |
Cushion, Roof Rack Leg, Front LH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63487-0K040 note |
Cushion, Roof Rack Leg, Front LH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63487-0K040 note |
Cushion, Roof Rack Leg, Front LH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63487-0K040 |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63487-0K040 note |
Cushion, Roof Rack Leg, Front LH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63488 — Cushion, Roof Rack Leg, Rear RH | ||||
| 63488-0K040 note |
Cushion, Roof Rack Leg, Rear RH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63488-0K040 note |
Cushion, Roof Rack Leg, Rear RH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63488-0K040 note |
Cushion, Roof Rack Leg, Rear RH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63488-0K040 |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63488-0K040 note |
Cushion, Roof Rack Leg, Rear RH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63489 — Cushion, Roof Rack Leg, Rear LH | ||||
| 63489-0K040 note |
Cushion, Roof Rack Leg, Rear LH
2022-09 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 63489-0K040 note |
Cushion, Roof Rack Leg, Rear LH
2022-09 → 2023-08
ended
|
GUN165 IDNP L VN | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2023-08
ended
|
GUN165,TGN166 H,VN) IDNP (H,S);GGN155,GUN15#,166,TGN156 +2 | — | |
| 63489-0K040 |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63489-0K040 note |
Cushion, Roof Rack Leg, Rear LH
2022-08 → 2023-05
ended
|
GGN155 GEN;GUN155,TGN156 LHD (6F,6FC) +4 | — | |
| 63489-0K040 note |
Cushion, Roof Rack Leg, Rear LH
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 63491 — Cover, Roof Rack Leg, Front RH | ||||
| 63491-0K040 |
Cover, Roof Rack Leg, Front RH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63491-0K040 |
Cover, Roof Rack Leg, Front RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63491-0K040 |
Cover, Roof Rack Leg, Front RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63491-0K040 |
Cover, Roof Rack Leg, Front RH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63491-0K040 |
Cover, Roof Rack Leg, Front RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63491-0K040 note |
Cover, Roof Rack Leg, Front RH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63491-0K050 |
Cover, Roof Rack Leg, Front RH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63491-0K050 note |
Cover, Roof Rack Leg, Front RH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63491-0K050 |
Cover, Roof Rack Leg, Front RH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63491-0K060 |
Cover, Roof Rack Leg, Front RH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63491-0K060 note |
Cover, Roof Rack Leg, Front RH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63492 — Cover, Roof Rack Leg, Front LH | ||||
| 63492-0K040 |
Cover, Roof Rack Leg, Front LH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63492-0K040 |
Cover, Roof Rack Leg, Front LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63492-0K040 |
Cover, Roof Rack Leg, Front LH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63492-0K040 |
Cover, Roof Rack Leg, Front LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63492-0K040 note |
Cover, Roof Rack Leg, Front LH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63492-0K040 |
Cover, Roof Rack Leg, Front LH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63492-0K050 |
Cover, Roof Rack Leg, Front LH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63492-0K050 note |
Cover, Roof Rack Leg, Front LH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63492-0K050 |
Cover, Roof Rack Leg, Front LH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63492-0K060 |
Cover, Roof Rack Leg, Front LH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63492-0K060 note |
Cover, Roof Rack Leg, Front LH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63493 — Cover, Roof Rack Leg, Rear RH | ||||
| 63493-0K040 note |
Cover, Roof Rack Leg, Rear RH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63493-0K040 |
Cover, Roof Rack Leg, Rear RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63493-0K040 |
Cover, Roof Rack Leg, Rear RH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63493-0K040 |
Cover, Roof Rack Leg, Rear RH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63493-0K040 |
Cover, Roof Rack Leg, Rear RH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63493-0K040 |
Cover, Roof Rack Leg, Rear RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63493-0K050 note |
Cover, Roof Rack Leg, Rear RH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63493-0K050 |
Cover, Roof Rack Leg, Rear RH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63493-0K050 |
Cover, Roof Rack Leg, Rear RH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63493-0K060 |
Cover, Roof Rack Leg, Rear RH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 63493-0K060 note |
Cover, Roof Rack Leg, Rear RH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63494 — Cover, Roof Rack Leg, Rear LH | ||||
| 63494-0K040 note |
Cover, Roof Rack Leg, Rear LH
2022-08 → 2023-05
ended
|
GUN155,TGN156 THP L | — | |
| 63494-0K040 |
Cover, Roof Rack Leg, Rear LH
2022-08 → 2023-07
ended
|
GUN156,165 THP (H,S);GGN155,GUN155,166,TGN156 THP | — | |
| 63494-0K040 |
Cover, Roof Rack Leg, Rear LH
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 63494-0K040 |
Cover, Roof Rack Leg, Rear LH
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 63494-0K040 |
Cover, Roof Rack Leg, Rear LH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 63494-0K040 |
Cover, Roof Rack Leg, Rear LH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 63494-0K050 |
Cover, Roof Rack Leg, Rear LH
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 63494-0K050 note |
Cover, Roof Rack Leg, Rear LH
2023-01 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 63494-0K050 |
Cover, Roof Rack Leg, Rear LH
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 63494-0K060 note |
Cover, Roof Rack Leg, Rear LH
2022-11 → 2023-05
ended
|
GUN156,16#,TGN156,166 6FC (L,S) LA | — | |
| 63494-0K060 |
Cover, Roof Rack Leg, Rear LH
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
