Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

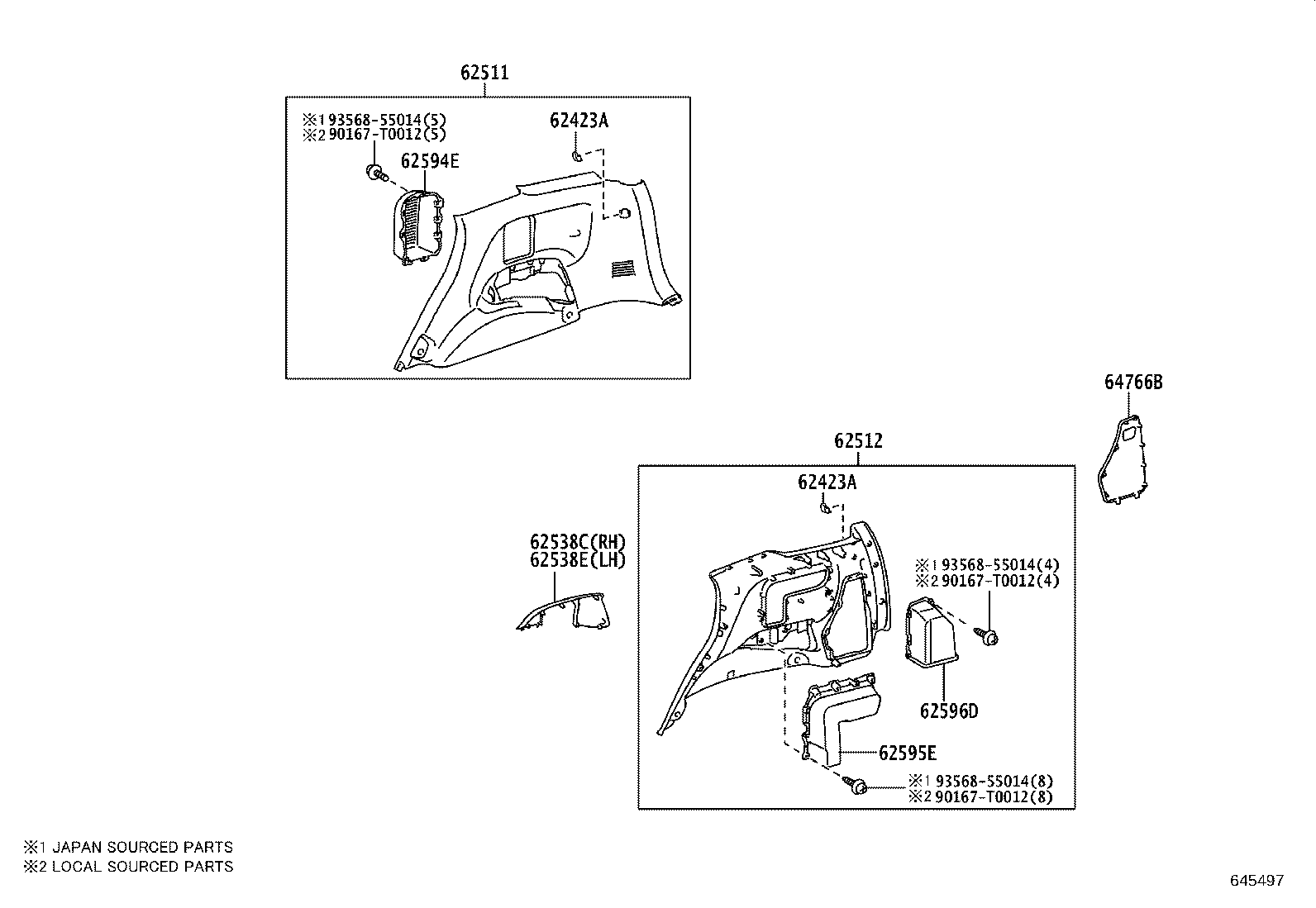

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62423A — Hook, Side Window Garnish | ||||
| 62423-0K010-C0 note |
Hook, Side Window Garnish
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 62423-0K010-C0 note |
Hook, Side Window Garnish
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62423-0K010-C0 note |
Hook, Side Window Garnish
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-11 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-08
ended
|
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62423-KK010-C0 note |
Hook, Side Window Garnish
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62511 — Board, Quarter Inside Trim, RH | ||||
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → —
|
GUN155 THP S;GGN155,TGN156,166 (PKNP,THP) +1 | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → —
|
GUN165 S TH;GGN155,GUN156,TGN166 (EPTP,PKNP) +1 | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2023-05 → —
|
GUN156 PKN | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 62510-0K320-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 62510-0K360-C0 note |
Board, Quarter Inside Trim, RH
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 62510-0K360-C0 note |
Board, Quarter Inside Trim, RH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62510-0K411-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 62510-0K411-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62510-0K411-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62510-0K411-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156 N;TGN156 RHD IDNP +10 | — | |
| 62510-0K411-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62510-0K420-C0 note |
Board, Quarter Inside Trim, RH
2022-11 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62510-0K420-C0 note |
Board, Quarter Inside Trim, RH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62510-0K450-C0 note |
Board, Quarter Inside Trim, RH
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62510-0K450-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-03
ended
|
GUN156 KEN;GUN156 LHD SA;GUN155,165,TGN156 +1 | — | |
| 62510-0K450-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62510-0K450-C0 note |
Board, Quarter Inside Trim, RH
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62510-0K450-C0 note |
Board, Quarter Inside Trim, RH
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 62510-0K460-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62510-0K460-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62510-0K470-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156 IDNP ARL;GGN155,TGN156 LHD +1 | — | |
| 62510-0K470-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 62510-0K470-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN155,165 LHD 6FC GEN | — | |
| 62510-0K470-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 62510-KK010-C0 note |
Board, Quarter Inside Trim, RH
2022-10 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62510-KK010-C0 note |
Board, Quarter Inside Trim, RH
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62510-KK030-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 62510-KK030-C0 note |
Board, Quarter Inside Trim, RH
2022-09 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 62510-KK030-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 62510-KK040-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62510-KK040-C0 note |
Board, Quarter Inside Trim, RH
2023-01 → 2024-03
ended
|
GUN156 KEN;GUN156 LHD SA;GUN155,165,TGN156 +1 | — | |
| 62510-KK040-C0 note |
Board, Quarter Inside Trim, RH
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62510-KK040-C0 note |
Board, Quarter Inside Trim, RH
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62512 — Board, Quarter Inside Trim, LH | ||||
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → —
|
GUN155 THP S;GGN155,TGN156,166 (PKNP,THP) +1 | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → —
|
GUN165 S TH;GGN155,GUN156,TGN166 (EPTP,PKNP) +1 | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2023-05 → —
|
GUN156 PKN | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 62520-0K260-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 62520-0K300-C0 note |
Board, Quarter Inside Trim, LH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62520-0K300-C0 note |
Board, Quarter Inside Trim, LH
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 62520-0K361-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 62520-0K361-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62520-0K361-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62520-0K361-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156 N;TGN156 RHD IDNP +10 | — | |
| 62520-0K361-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62520-0K370-C0 note |
Board, Quarter Inside Trim, LH
2022-11 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62520-0K370-C0 note |
Board, Quarter Inside Trim, LH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62520-0K390-C0 note |
Board, Quarter Inside Trim, LH
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62520-0K390-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62520-0K390-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-03
ended
|
GUN156 KEN;GUN156 LHD SA;GUN155,165,TGN156 +1 | — | |
| 62520-0K390-C0 note |
Board, Quarter Inside Trim, LH
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62520-0K390-C0 note |
Board, Quarter Inside Trim, LH
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 62520-0K400-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62520-0K400-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62520-0K410-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156 IDNP ARL;GGN155,TGN156 LHD +1 | — | |
| 62520-0K410-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 62520-0K410-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 62520-0K410-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN155,165 LHD 6FC GEN | — | |
| 62520-KK010-C0 note |
Board, Quarter Inside Trim, LH
2022-10 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62520-KK010-C0 note |
Board, Quarter Inside Trim, LH
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62520-KK030-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 62520-KK030-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 62520-KK030-C0 note |
Board, Quarter Inside Trim, LH
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 62520-KK040-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62520-KK040-C0 note |
Board, Quarter Inside Trim, LH
2023-01 → 2024-03
ended
|
GUN156 KEN;GUN156 LHD SA;GUN155,165,TGN156 +1 | — | |
| 62520-KK040-C0 note |
Board, Quarter Inside Trim, LH
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62520-KK040-C0 note |
Board, Quarter Inside Trim, LH
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62538C — Cover, Quarter Trim, Hole | ||||
| 62538-0K060-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62538-0K060-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-02
ended
|
GUN156 LHD SA;GUN155,165,TGN156 SA | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-03
ended
|
GUN15# KEN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → —
|
TGN156,166 PKN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → —
|
GUN156 PKNP TH | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2023-05 → —
|
GUN156 PKN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155,165 LHD 6FC GEN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL;GGN155,TGN156 LHD +1 | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 79937-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-02
ended
|
GUN156,166 RHD SA | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-03
ended
|
GUN15# KEN | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-02
ended
|
LAN155 | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 N;TGN156 RHD IDNP +10 | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-KK030-C0 note |
Cover, Quarter Trim, Hole
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 79937-KK050-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-KK050-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 79937-KK050-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 79937-KK050-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62538E — Cover, Quarter Trim, Hole | ||||
| 62538-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62538-0K070-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155,165 LHD 6FC GEN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-03
ended
|
GUN15# KEN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → —
|
TGN156,166 PKN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → —
|
GUN156 PKNP TH | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2023-05 → —
|
GUN156 PKN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-02
ended
|
GUN156,166 RHD SA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-02
ended
|
GUN156 LHD SA;GUN155,165,TGN156 SA | — | |
| 79937-0K080-C0 note |
Cover, Quarter Trim, Hole
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL;GGN155,TGN156 LHD +1 | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-03
ended
|
GUN15# KEN | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2023-02 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-02
ended
|
LAN155 | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 N;TGN156 RHD IDNP +10 | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 79937-KK040-C0 note |
Cover, Quarter Trim, Hole
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 79937-KK060-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 79937-KK060-C0 note |
Cover, Quarter Trim, Hole
2022-11 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 79937-KK060-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 79937-KK060-C0 note |
Cover, Quarter Trim, Hole
2023-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62594E — Pocket, Quarter Trim, RH | ||||
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2023-05 → —
|
GUN156 PKN | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → —
|
GUN156 PKNP TH | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → —
|
TGN156,166 PKN | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 62594-0K130-C0 note |
Pocket, Quarter Trim, RH
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 62594-KK010-C0 note |
Pocket, Quarter Trim, RH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62595E — Pocket, Quarter Trim, LH | ||||
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → —
|
TGN156,166 PKN | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → —
|
GUN156 PKNP TH | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2023-05 → —
|
GUN156 PKN | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 62595-0K090-C0 note |
Pocket, Quarter Trim, LH
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62595-KK010-C0 note |
Pocket, Quarter Trim, LH
2022-09 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62596D — Tray, Quarter Trim Pocket | ||||
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2023-05 → —
|
GUN156 PKN | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → —
|
GUN156 PKNP TH | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → —
|
TGN156,166 PKN | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 62596-0K030-C0 note |
Tray, Quarter Trim Pocket
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 62596-KK010-C0 note |
Tray, Quarter Trim Pocket
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 64766B — Cover, Quarter Trim Jack | ||||
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2023-05 → —
|
GUN156 PKN | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → —
|
GUN156 PKNP TH | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → —
|
TGN156,166 PKN | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN156 MA | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-07
ended
|
GUN155 THP S;GUN156 THP +3 | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-07
ended
|
GUN15#,165,TGN156,166 THP (H,L) GCC | — | |
| 64766-0K100-C0 note |
Cover, Quarter Trim Jack
2022-08 → 2023-08
ended
|
GUN155,TGN156 MA | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN155 L GEN;GUN15#,165,TGN156,166 IDNP +2 | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN155,TGN156 EN);GGN155,GUN165,TGN166 IDNP IDNP +9 | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP (L,S) | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-09
ended
|
TGN166 IND;GUN156,166 6F IND | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-10
ended
|
GUN156 LA;GUN156 (L,S) BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2024-01
ended
|
GUN156 LHD SA;GUN155,165,LAN155,TGN156 SA | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN165 IDNP (IDN,PH,VN);GUN15#,166,TGN156,166 IDNP +1 | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2024-03
ended
|
GUN15# KEN | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 64766-KK010-C0 note |
Cover, Quarter Trim Jack
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
