Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

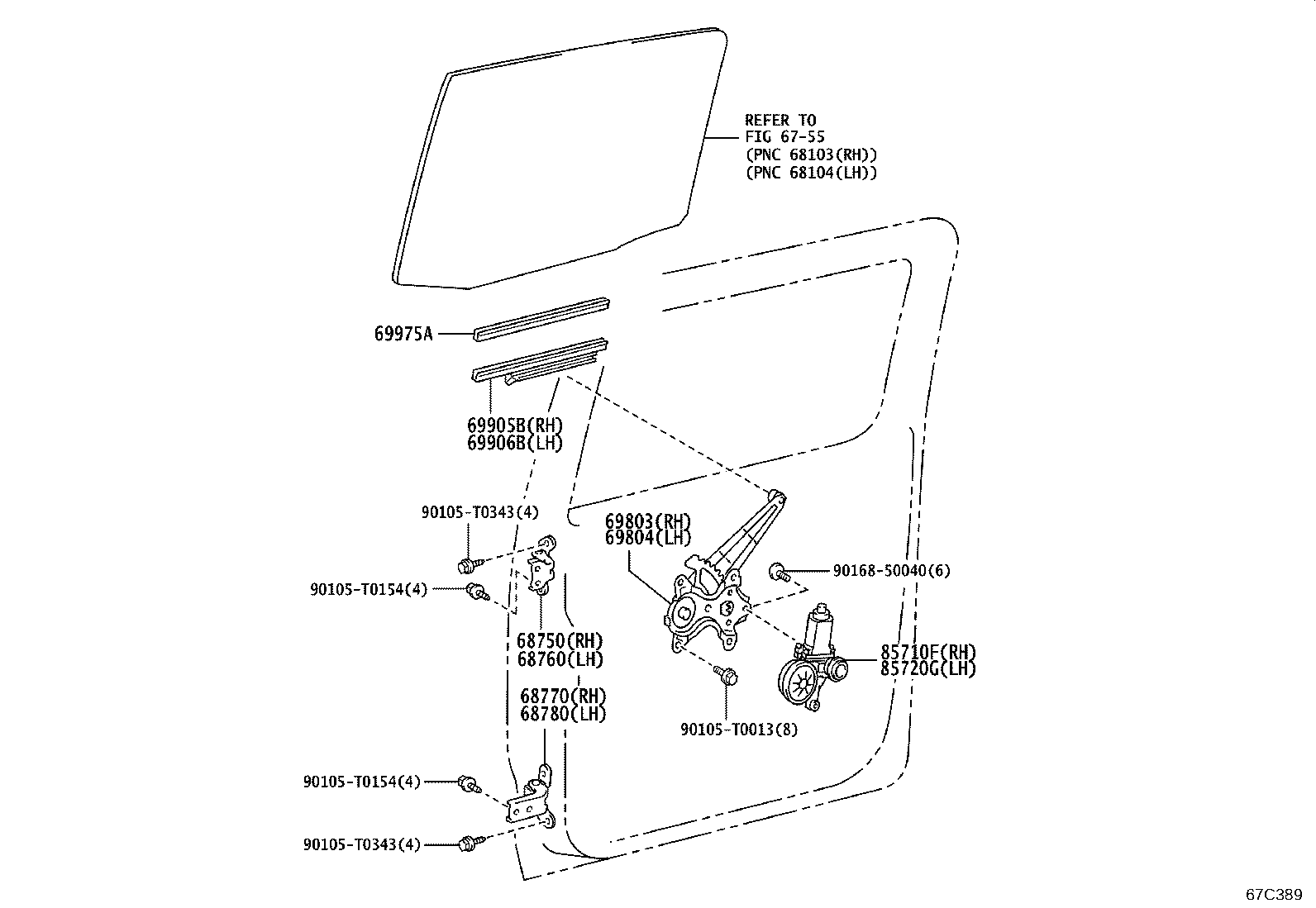

Exploded illustration 67C389 68750 — HINGE ASSY, REAR DOOR, UPPER RH (9 parts) 68760 — HINGE ASSY, REAR DOOR, UPPER LH (9 parts) 68770 — HINGE ASSY, REAR DOOR, LOWER RH (10 parts) 68780 — HINGE ASSY, REAR DOOR, LOWER LH (10 parts) 69803 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH (11 parts) 69804 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH (11 parts) 85710F — MOTOR ASSY, POWER WINDOW REGULATOR, RH (24 parts) 85720G — MOTOR ASSY, POWER WINDOW REGULATOR, LH (24 parts) 90105T0013 — not listed in this catalogue 90105T0343 — not listed in this catalogue 90105T0154 — not listed in this catalogue 90105T0154 — not listed in this catalogue 90105T0343 — not listed in this catalogue 9016850040 — not listed in this catalogue 6755 — not listed in this catalogue 69905B — CHANNEL SUB-ASSY, REAR DOOR GLASS, RH (10 parts) 69906B — CHANNEL SUB-ASSY, REAR DOOR GLASS, LH (10 parts) 69975A — FILLER, REAR DOOR GLASS CHANNEL (9 parts)
67C389 · 11 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
137 parts on this figure
Part number Description Fitment Price
68750 — Hinge Assy, Rear Door, Upper RH
68750-02020 Hinge Assy, Rear Door, Upper RH
2023-01 → 2024-03 ended
GUN15# KEN —
68750-02020 Hinge Assy, Rear Door, Upper RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
68750-02080 Hinge Assy, Rear Door, Upper RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
68750-0D030 Hinge Assy, Rear Door, Upper RH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
68750-0D030 Hinge Assy, Rear Door, Upper RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
68750-0D030 Hinge Assy, Rear Door, Upper RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
68750-0D030 Hinge Assy, Rear Door, Upper RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
68750-0K100 Hinge Assy, Rear Door, Upper RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
68750-0K110 Hinge Assy, Rear Door, Upper RH
2023-02 → —
GUN156,TGN156,166 PKNP —
68760 — Hinge Assy, Rear Door, Upper LH
68760-02020 Hinge Assy, Rear Door, Upper LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
68760-02020 Hinge Assy, Rear Door, Upper LH
2023-01 → 2024-03 ended
GUN15# KEN —
68760-02080 Hinge Assy, Rear Door, Upper LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
68760-0D030 Hinge Assy, Rear Door, Upper LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
68760-0D030 Hinge Assy, Rear Door, Upper LH
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
68760-0D030 Hinge Assy, Rear Door, Upper LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
68760-0D030 Hinge Assy, Rear Door, Upper LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
68760-0K100 Hinge Assy, Rear Door, Upper LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
68760-0K110 Hinge Assy, Rear Door, Upper LH
2023-02 → —
GUN156,TGN156,166 PKNP —
68770 — Hinge Assy, Rear Door, Lower RH
68770-02020 Hinge Assy, Rear Door, Lower RH
2023-01 → 2024-03 ended
GUN15# KEN —
68770-02020 Hinge Assy, Rear Door, Lower RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
68770-02070 Hinge Assy, Rear Door, Lower RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
68770-0D030 Hinge Assy, Rear Door, Lower RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
68770-0D030 Hinge Assy, Rear Door, Lower RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
68770-0D030 Hinge Assy, Rear Door, Lower RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
68770-0K020 Hinge Assy, Rear Door, Lower RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
68770-0K040 Hinge Assy, Rear Door, Lower RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
68770-0K040 Hinge Assy, Rear Door, Lower RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
68770-52031 Hinge Assy, Rear Door, Lower RH
2023-02 → —
GUN156,TGN156,166 PKNP —
68780 — Hinge Assy, Rear Door, Lower LH
68780-02020 Hinge Assy, Rear Door, Lower LH
2023-01 → 2024-03 ended
GUN15# KEN —
68780-02020 Hinge Assy, Rear Door, Lower LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
68780-02070 Hinge Assy, Rear Door, Lower LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
68780-0D030 Hinge Assy, Rear Door, Lower LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
68780-0D030 Hinge Assy, Rear Door, Lower LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
68780-0D030 Hinge Assy, Rear Door, Lower LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
68780-0K020 Hinge Assy, Rear Door, Lower LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
68780-0K040 Hinge Assy, Rear Door, Lower LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
68780-0K040 Hinge Assy, Rear Door, Lower LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
68780-52031 Hinge Assy, Rear Door, Lower LH
2023-02 → —
GUN156,TGN156,166 PKNP —
69803 — Regulator Sub-assy, Rear Door Window, RH
69803-0K110 Regulator Sub-assy, Rear Door Window, RH
2022-08 → 2023-07 ended
GUN156 THP (ARL,GEN) —
69803-0K120 Regulator Sub-assy, Rear Door Window, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
69803-0K120 Regulator Sub-assy, Rear Door Window, RH
2023-01 → 2024-03 ended
GUN15# KEN —
69803-0K130 Regulator Sub-assy, Rear Door Window, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
69803-0K140 Regulator Sub-assy, Rear Door Window, RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
69803-0K140 Regulator Sub-assy, Rear Door Window, RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
69803-0K150 Regulator Sub-assy, Rear Door Window, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
69803-0K160 Regulator Sub-assy, Rear Door Window, RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
69803-0K160 Regulator Sub-assy, Rear Door Window, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
69803-0K160 Regulator Sub-assy, Rear Door Window, RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
69803-0K160 Regulator Sub-assy, Rear Door Window, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP (GCC,TH) —
69804 — Regulator Sub-assy, Rear Door Window, LH
69804-0K110 Regulator Sub-assy, Rear Door Window, LH
2022-08 → 2023-07 ended
GUN156 THP (ARL,GEN) —
69804-0K120 Regulator Sub-assy, Rear Door Window, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
69804-0K120 Regulator Sub-assy, Rear Door Window, LH
2023-01 → 2024-03 ended
GUN15# KEN —
69804-0K130 Regulator Sub-assy, Rear Door Window, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
69804-0K140 Regulator Sub-assy, Rear Door Window, LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
69804-0K140 Regulator Sub-assy, Rear Door Window, LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
69804-0K150 Regulator Sub-assy, Rear Door Window, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
69804-0K160 Regulator Sub-assy, Rear Door Window, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP (GCC,TH) —
69804-0K160 Regulator Sub-assy, Rear Door Window, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
69804-0K160 Regulator Sub-assy, Rear Door Window, LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
69804-0K160 Regulator Sub-assy, Rear Door Window, LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
69905B — Channel Sub-assy, Rear Door Glass, RH
69905-0K071 Channel Sub-assy, Rear Door Glass, RH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
69905-0K071 Channel Sub-assy, Rear Door Glass, RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
69905-0K071 Channel Sub-assy, Rear Door Glass, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
69905-0K071 Channel Sub-assy, Rear Door Glass, RH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
69905-0K080 Channel Sub-assy, Rear Door Glass, RH
2023-01 → 2024-03 ended
GUN15# KEN —
69905-0K080 Channel Sub-assy, Rear Door Glass, RH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
69905-0K090 Channel Sub-assy, Rear Door Glass, RH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
69905-0K100 Channel Sub-assy, Rear Door Glass, RH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
69905-0K100 Channel Sub-assy, Rear Door Glass, RH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
69905-0K110 Channel Sub-assy, Rear Door Glass, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
69906B — Channel Sub-assy, Rear Door Glass, LH
69906-0K071 Channel Sub-assy, Rear Door Glass, LH
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
69906-0K071 Channel Sub-assy, Rear Door Glass, LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
69906-0K071 Channel Sub-assy, Rear Door Glass, LH
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
69906-0K071 Channel Sub-assy, Rear Door Glass, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
69906-0K080 Channel Sub-assy, Rear Door Glass, LH
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
69906-0K080 Channel Sub-assy, Rear Door Glass, LH
2023-01 → 2024-03 ended
GUN15# KEN —
69906-0K090 Channel Sub-assy, Rear Door Glass, LH
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
69906-0K100 Channel Sub-assy, Rear Door Glass, LH
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
69906-0K100 Channel Sub-assy, Rear Door Glass, LH
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
69906-0K110 Channel Sub-assy, Rear Door Glass, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
69975A — Filler, Rear Door Glass Channel
69975-0D040 Filler, Rear Door Glass Channel
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
69975-0D130 Filler, Rear Door Glass Channel
2022-08 → —
GUN156,TGN156,166 PKNP —
69975-0D130 Filler, Rear Door Glass Channel
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
69975-0D130 Filler, Rear Door Glass Channel
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
69975-0D130 Filler, Rear Door Glass Channel
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP —
69975-0D130 Filler, Rear Door Glass Channel
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
69975-0K050 Filler, Rear Door Glass Channel
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
69975-0K050 Filler, Rear Door Glass Channel
2023-01 → 2024-03 ended
GUN15# KEN —
69975-0K060 Filler, Rear Door Glass Channel
2022-11 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85710F — Motor Assy, Power Window Regulator, RH
85720-0D580 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-07 ended
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 —
85720-0D580 Motor Assy, Power Window Regulator, RH
2022-08 → 2024-03 ended
TGN166 EPT —
85720-0K180 Motor Assy, Power Window Regulator, RH
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
85720-0K180 Motor Assy, Power Window Regulator, RH
2022-09 → 2024-03 ended
GUN155 KEN —
85720-0K180 Motor Assy, Power Window Regulator, RH
2022-09 → 2023-09 ended
GUN165 VNP L —
85720-0K180 note Motor Assy, Power Window Regulator, RH
2023-01 → 2024-01 ended
GUN155,165 L SA;GUN156 RHD +2 —
85720-0K180 note Motor Assy, Power Window Regulator, RH
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
85720-0K180 Motor Assy, Power Window Regulator, RH
2022-09 → 2023-08 ended
GUN165 C,GEN,IDN) RHD IDNP +6 —
85720-0K200 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85720-0K200 Motor Assy, Power Window Regulator, RH
2022-08 → 2024-03 ended
GGN155 EPT —
85720-0K200 Motor Assy, Power Window Regulator, RH
2022-08 → —
GUN156,TGN156,166 PKNP —
85720-0K200 note Motor Assy, Power Window Regulator, RH
2022-08 → 2023-07 ended
GGN155,GUN155 THP S —
85720-0K200 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-07 ended
GGN155,GUN155 THP H;GUN156,16#,TGN156 THP +2 —
85720-0K270 note Motor Assy, Power Window Regulator, RH
2023-01 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
85720-0K270 Motor Assy, Power Window Regulator, RH
2022-08 → 2024-03 ended
GUN156 KEN —
85720-0K270 Motor Assy, Power Window Regulator, RH
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
85720-0K270 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
85720-0K270 note Motor Assy, Power Window Regulator, RH
2022-09 → 2023-08 ended
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 —
85720-0K270 note Motor Assy, Power Window Regulator, RH
2022-09 → 2023-08 ended
GUN155 L GEN —
85720-0K270 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-08 ended
GUN155,165 IDNP IDNP (H,L) +6 —
85720-0K270 Motor Assy, Power Window Regulator, RH
2022-08 → 2023-07 ended
GUN156 THP (ARL,GEN) —
85720-0K290 Motor Assy, Power Window Regulator, RH
2022-11 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
85720-0K300 Motor Assy, Power Window Regulator, RH
2022-11 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
85720-0K320 Motor Assy, Power Window Regulator, RH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
85720G — Motor Assy, Power Window Regulator, LH
85710-0D580 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-07 ended
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 —
85710-0D580 Motor Assy, Power Window Regulator, LH
2022-08 → 2024-03 ended
TGN166 EPT —
85710-0K180 Motor Assy, Power Window Regulator, LH
2022-09 → 2024-03 ended
GUN155 KEN —
85710-0K180 note Motor Assy, Power Window Regulator, LH
2023-01 → 2024-01 ended
GUN156 RHD 6F SA —
85710-0K180 Motor Assy, Power Window Regulator, LH
2022-09 → 2023-08 ended
GUN165 C,GEN,IDN) RHD IDNP +6 —
85710-0K180 note Motor Assy, Power Window Regulator, LH
2023-01 → 2024-01 ended
GUN155,165 L SA;GUN156 RHD +2 —
85710-0K180 Motor Assy, Power Window Regulator, LH
2022-09 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
85710-0K180 Motor Assy, Power Window Regulator, LH
2022-09 → 2023-09 ended
GUN165 VNP L —
85710-0K220 Motor Assy, Power Window Regulator, LH
2022-08 → —
GUN156,TGN156,166 PKNP —
85710-0K220 Motor Assy, Power Window Regulator, LH
2022-08 → 2024-03 ended
GGN155 EPT —
85710-0K220 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85710-0K220 note Motor Assy, Power Window Regulator, LH
2022-08 → 2023-07 ended
GGN155,GUN155 THP S —
85710-0K220 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-07 ended
GGN155,GUN155 THP H;GUN156,16#,TGN156 THP +2 —
85710-0K270 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-09 ended
GUN156,165,TGN166 VNP 6FC —
85710-0K270 Motor Assy, Power Window Regulator, LH
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
85710-0K270 note Motor Assy, Power Window Regulator, LH
2022-09 → 2023-08 ended
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 —
85710-0K270 note Motor Assy, Power Window Regulator, LH
2022-09 → 2023-08 ended
GUN155 L GEN —
85710-0K270 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-08 ended
GUN155,165 IDNP IDNP (H,L) +6 —
85710-0K270 note Motor Assy, Power Window Regulator, LH
2023-01 → 2024-01 ended
GUN15#,TGN156 LHD 6FC SA —
85710-0K270 Motor Assy, Power Window Regulator, LH
2022-08 → 2023-07 ended
GUN156 THP (ARL,GEN) —
85710-0K270 Motor Assy, Power Window Regulator, LH
2022-08 → 2024-03 ended
GUN156 KEN —
85710-0K290 Motor Assy, Power Window Regulator, LH
2022-11 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
85710-0K300 Motor Assy, Power Window Regulator, LH
2022-11 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
85710-0K320 Motor Assy, Power Window Regulator, LH
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
